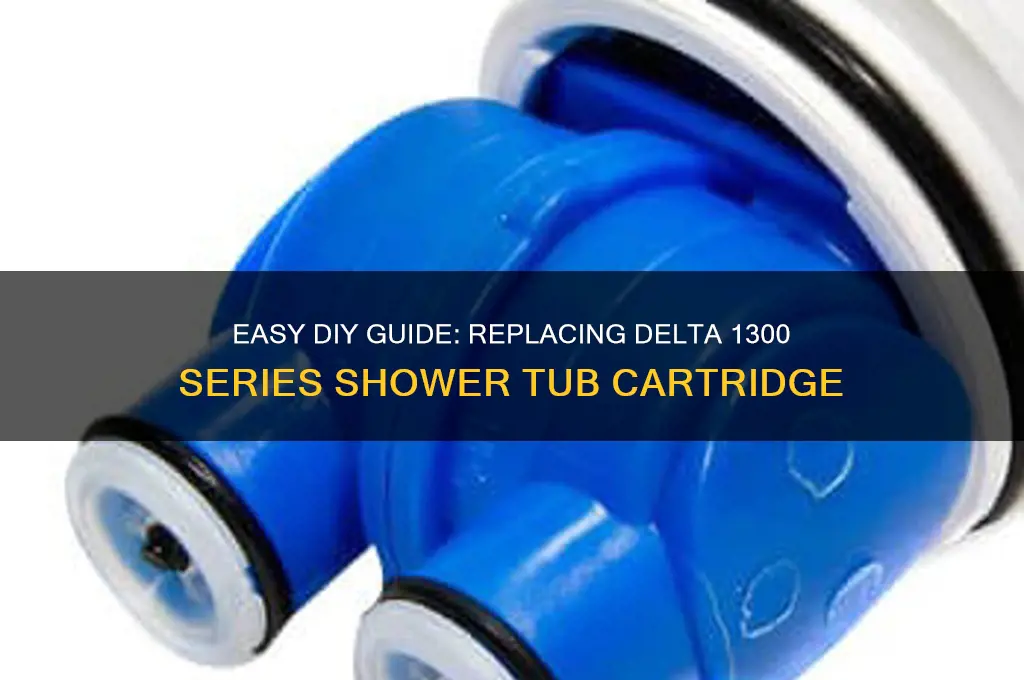

Replacing a 1300 series Delta shower tub cartridge is a straightforward DIY task that can restore your shower’s functionality and eliminate leaks or inconsistent water flow. This process involves turning off the water supply, removing the handle and escutcheon plate to access the cartridge, and carefully extracting the old cartridge using a cartridge puller tool. Once removed, insert the new 1300 series cartridge, ensuring it is aligned correctly, and reassemble the handle and escutcheon plate. Testing the shower afterward ensures proper installation and smooth operation. With basic tools and attention to detail, this repair can be completed efficiently, saving both time and money compared to hiring a professional.
| Characteristics | Values |
|---|---|
| Shower Cartridge Model | Delta 1300/1400 Series (RP19804) |
| Tools Required | Phillips screwdriver, flathead screwdriver, pliers, adjustable wrench |
| Replacement Steps | 1. Turn off water supply. 2. Remove handle and escutcheon. 3. Extract cartridge using puller tool. 4. Insert new cartridge. 5. Reassemble components. |
| Cartridge Compatibility | Fits Delta Monitor 1300/1400 Series tub/shower faucets |
| Common Issues Addressed | Leaks, difficulty turning handle, inconsistent water temperature |
| Cartridge Material | Durable plastic and metal components |
| Temperature Limit Stop | Adjustable to prevent scalding (rotate limit stop during installation) |
| Estimated Time for Replacement | 30-60 minutes (depending on experience) |
| Additional Parts Needed | New cartridge (RP19804), O-rings, lubricant (optional) |
| Water Supply Shutoff | Locate shutoff valves under sink or at main water supply |
| Warranty Coverage | Lifetime limited warranty for original Delta cartridges |
| Difficulty Level | Moderate (basic DIY skills required) |
| Safety Precautions | Ensure water is off before starting; avoid over-tightening components |
| Post-Installation Check | Test for leaks and ensure smooth handle operation |
Explore related products
What You'll Learn
- Tools Needed: Gather adjustable wrench, pliers, screwdriver, and replacement cartridge before starting the repair process
- Shut Off Water: Locate and turn off water supply valves to prevent leaks during cartridge replacement
- Remove Handle: Pry off handle cover, unscrew handle, and carefully lift it away from the valve
- Extract Old Cartridge: Use pliers to pull out the old 1300 series cartridge from the valve body
- Install New Cartridge: Insert new cartridge, reattach handle, and test for leaks before finishing
Tools Needed: Gather adjustable wrench, pliers, screwdriver, and replacement cartridge before starting the repair process
Before diving into the repair of a 1300 series Delta shower tub cartridge, it’s crucial to assemble the right tools. An adjustable wrench, pliers, screwdriver, and the replacement cartridge are non-negotiable essentials. Skipping this step can turn a straightforward task into a frustrating ordeal, as missing tools often lead to improvised solutions that risk damaging components or prolonging the repair. Think of this preparation as the foundation of your project—without it, even the simplest steps can crumble.
The adjustable wrench is your workhorse here, designed to grip the cartridge retaining nut securely without slipping. Opt for a wrench with a comfortable grip and a jaw width that fits the nut size, typically around 1 to 1.5 inches. Pliers, on the other hand, serve as your precision tool, ideal for removing small clips or stubborn parts that resist the wrench. Needle-nose pliers are particularly useful for tight spaces, ensuring you don’t accidentally scratch the fixture’s finish.
A screwdriver—preferably flathead and Phillips—is indispensable for prying off decorative caps or loosening screws that hold the handle in place. While Delta cartridges often require minimal screw removal, having both types ensures you’re prepared for any variation in design. Pro tip: wrap the screwdriver tip with a cloth or tape when prying to avoid marring the fixture’s surface.
Finally, the replacement cartridge itself is the star of the show. Ensure it’s the correct model for your Delta 1300 series—mismatches can lead to leaks or improper function. Most cartridges are labeled clearly, but double-check the part number against your shower’s documentation or a reliable parts guide. If in doubt, bring the old cartridge to a hardware store for comparison.
Gathering these tools beforehand isn’t just about efficiency; it’s about respect for the process. Each tool has a specific role, and their collective presence streamlines the repair, reducing the risk of mid-project interruptions. By treating this step as a ritual, you’ll find the actual replacement process far more manageable, transforming a potential headache into a satisfying DIY accomplishment.
