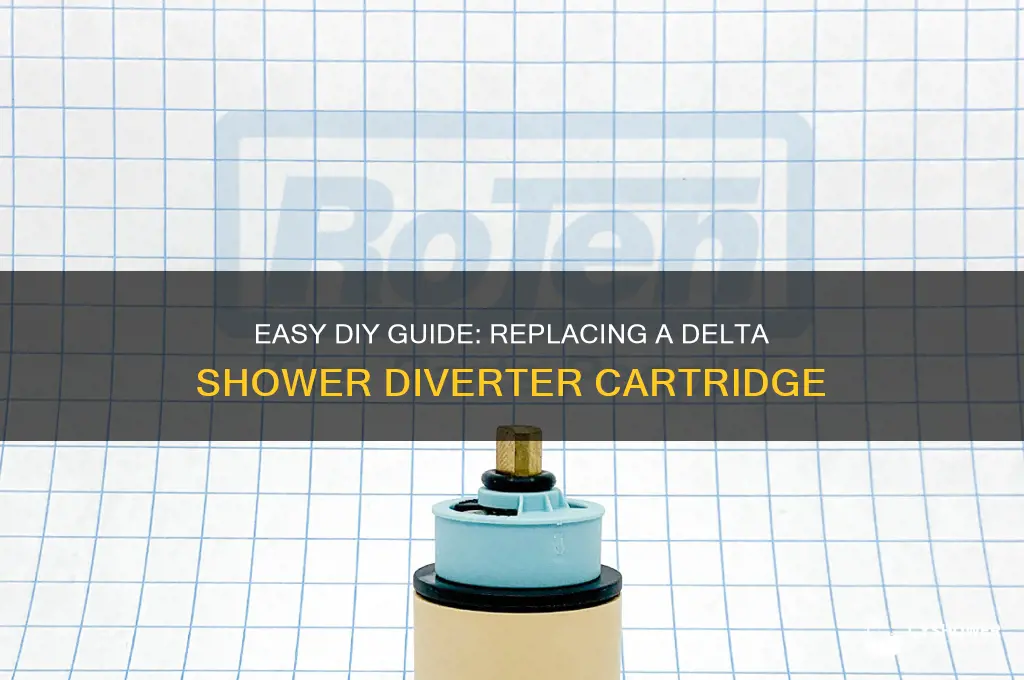

Replacing a Delta shower diverter cartridge is a common DIY task that can restore proper water flow and temperature control in your shower. Over time, the cartridge can wear out, leading to leaks or difficulty switching between the showerhead and tub spout. To begin, you’ll need to identify the correct replacement cartridge for your specific Delta model, which can usually be found using the faucet’s identification number or by consulting Delta’s product guides. The process involves shutting off the water supply, removing the shower handle and escutcheon, extracting the old cartridge with a puller tool, and installing the new one. With the right tools and a bit of patience, this repair can save you from costly plumber fees and extend the life of your shower system.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver, pliers, Allen wrench, cartridge puller, replacement cartridge |
| Steps | 1. Turn off water supply 2. Remove handle and escutcheon 3. Extract old cartridge 4. Insert new cartridge 5. Reassemble handle and escutcheon 6. Test for leaks |
| Cartridge Type | Delta RP19804 or specific model-dependent cartridge |
| Difficulty Level | Moderate |
| Time Required | 30-60 minutes |
| Common Issues | Leaks, difficulty turning handle, reduced water pressure |
| Safety Precautions | Ensure water is off before starting, wear protective gloves |
| Additional Tips | Apply plumber’s grease to new cartridge for smooth operation |
| Compatibility | Check Delta model number for correct cartridge replacement |
| Cost of Replacement Cartridge | $10-$25 (varies by model and retailer) |
| Warranty Coverage | Delta cartridges often come with a limited lifetime warranty |
| Video Tutorial Availability | Available on Delta’s official website and YouTube |
| Maintenance Frequency | Replace every 5-10 years or when issues arise |
Explore related products
What You'll Learn
- Gather Tools and Materials: Phillips screwdriver, pliers, replacement cartridge, lubricant, towels, bucket, and safety gloves
- Shut Off Water Supply: Locate shutoff valves, turn off water, or close main supply to prevent leaks
- Remove Handle and Escutcheon: Pry off handle, unscrew escutcheon, and access cartridge assembly carefully
- Extract Old Cartridge: Grip cartridge with pliers, pull out gently, inspect for damage, and clean area
- Install New Cartridge: Insert replacement, apply lubricant, reattach escutcheon, test for leaks, and restore water supply
Gather Tools and Materials: Phillips screwdriver, pliers, replacement cartridge, lubricant, towels, bucket, and safety gloves
Before tackling the task of replacing a Delta shower diverter cartridge, it's essential to assemble the necessary tools and materials to ensure a smooth and efficient process. A Phillips screwdriver, for instance, is crucial for removing the screws that secure the handle and escutcheon, typically requiring a #2 size for most Delta models. Pliers, preferably adjustable or needle-nose, will aid in gripping and turning the cartridge retaining clip, which can be stubborn due to mineral buildup or corrosion.
The replacement cartridge itself is the heart of this repair, and selecting the correct model is vital. Delta cartridges are often labeled with a series number (e.g., 1300/1400 series), which can be cross-referenced with the faucet model or found in the user manual. Applying a silicone-based lubricant to the new cartridge’s O-rings and surfaces ensures a watertight seal and easier installation. This step, though small, can prevent leaks and extend the cartridge’s lifespan.
Safety and cleanliness are equally important. Safety gloves protect your hands from sharp edges and chemicals, while towels and a bucket minimize water damage and catch any drips during disassembly. For example, placing a towel inside the shower stall and a bucket beneath the faucet can save hours of cleanup. These preparatory steps transform a potentially messy job into a controlled, professional-grade repair.
Comparing this toolkit to other plumbing tasks highlights its specificity. Unlike a general plumbing kit, this setup is tailored to the unique challenges of shower diverter cartridges, such as accessing tight spaces and managing water flow. For instance, the bucket serves a dual purpose: it catches water during disassembly and provides a stable base for tools, demonstrating how each item is chosen for both functionality and practicality.
In conclusion, gathering these tools and materials is not just a preliminary step but a strategic move that streamlines the repair process. Each item—from the Phillips screwdriver to the safety gloves—plays a distinct role in ensuring accuracy, safety, and efficiency. By investing time in preparation, you avoid mid-repair interruptions and set the stage for a successful cartridge replacement.
Long Subway Tiles in Showers: Stylish Upgrade or Design Mistake?
You may want to see also
Explore related products
Shut Off Water Supply: Locate shutoff valves, turn off water, or close main supply to prevent leaks
Before attempting to replace a Delta shower diverter cartridge, it's crucial to shut off the water supply to prevent accidental leaks or flooding. Start by locating the shutoff valves for your shower. In most cases, these valves are situated near the shower controls, often hidden behind an access panel or beneath the faucet handle. If you cannot find individual shutoff valves, you’ll need to close the main water supply to your home, typically located near the water meter or where the main water line enters the house. Turning off the water at this stage ensures a dry, safe workspace and avoids the inconvenience of cleaning up water damage mid-repair.
Once you’ve identified the correct valves, the process of shutting off the water is straightforward but requires attention to detail. For individual shutoff valves, turn them clockwise until they are fully closed. If the valves are stiff or difficult to turn, use a pair of adjustable pliers or a valve wrench, taking care not to overtighten and damage the valve. After closing the valves, open the shower faucet to release any residual water pressure in the lines. This step is essential, as it confirms the water supply is fully shut off and prevents sudden bursts of water when the cartridge is removed.
In cases where individual shutoff valves are absent or inaccessible, closing the main water supply becomes necessary. Locate the main shutoff valve and turn it clockwise until it stops. This action cuts off water flow to the entire house, so plan accordingly—fill a bucket or containers with water beforehand for temporary use. After shutting off the main supply, open faucets throughout the house to drain the remaining water from the pipes, ensuring the shower lines are also depressurized. While this method is more disruptive, it guarantees a leak-free environment for your repair.
A common mistake during this step is assuming the water is fully shut off without testing. Always verify by attempting to run the shower after closing the valves. If water continues to flow, double-check the shutoff valves or main supply to ensure they are fully closed. Additionally, if your home has a pressure regulator or water softener, consult the manufacturer’s instructions to avoid complications. Properly shutting off the water supply not only protects your workspace but also extends the life of your plumbing system by preventing unnecessary strain.
Finally, consider the age and condition of your shutoff valves before proceeding. Older valves may be corroded or prone to breaking, especially if they haven’t been used in years. If you encounter resistance or suspect a valve is damaged, address the issue before continuing with the cartridge replacement. In some cases, it may be necessary to replace the valves to ensure a secure shutoff. By taking the time to correctly shut off the water supply, you set the foundation for a smooth and successful repair, minimizing risks and maximizing efficiency.
DIY Guide: Replacing Tub Shower Valve in Steel Pipes Easily
You may want to see also
Explore related products
Remove Handle and Escutcheon: Pry off handle, unscrew escutcheon, and access cartridge assembly carefully
The first step in replacing a Delta shower diverter cartridge is gaining access to the internal components, which requires removing the handle and escutcheon. These parts are not just decorative; they protect and conceal the working mechanisms of your shower valve. To begin, locate the screw cover or button on the handle. This small, often inconspicuous feature is typically found on the underside or front of the handle. Use a flathead screwdriver to gently pry off this cover, revealing the screw that holds the handle in place. This initial step demands precision—apply just enough force to avoid damaging the finish or underlying components.
Once the screw is exposed, use a Phillips-head screwdriver to remove it. With the screw out, grip the handle firmly and pull it straight off the valve stem. Be cautious not to force it, as some handles may be tight due to mineral buildup or age. If resistance is met, wiggle the handle slightly while pulling to loosen it. After removing the handle, your attention shifts to the escutcheon—the decorative plate surrounding the valve. This component is typically secured with screws hidden behind the handle or beneath a small metal plate. Unscrew these fasteners using the appropriate screwdriver, ensuring you keep track of screw placement for reassembly.
With the escutcheon screws removed, gently pry the escutcheon away from the wall. Use a flat tool, like a putty knife or a specialized escutcheon removal tool, to avoid scratching the surface. Work your way around the edges, applying even pressure to release any adhesive or sealant holding it in place. Once removed, set the escutcheon aside, taking care not to lose any gaskets or spacers that may be attached. At this point, the cartridge assembly should be fully exposed, allowing you to proceed with the next steps of the replacement process.
This phase of the repair is critical, as improper handling can lead to unnecessary damage or complications. For instance, forcing the handle or escutcheon can strip screws or crack the surrounding tile or wall material. Always prioritize gentle, deliberate movements, and consider using penetrating oil on stubborn screws or handles. Additionally, if your shower setup includes a temperature limit stop or other auxiliary components, take note of their positioning before removal to ensure accurate reassembly. By approaching this step methodically, you ensure a smooth transition to the cartridge replacement, minimizing the risk of errors or additional repairs.
Effective Tips for Cleaning Porcelain Shower Tile and Grout Easily
You may want to see also
Explore related products
Extract Old Cartridge: Grip cartridge with pliers, pull out gently, inspect for damage, and clean area
Removing the old cartridge is a pivotal step in replacing a Delta shower diverter, as it sets the stage for a seamless installation of the new component. Begin by firmly gripping the cartridge with a pair of adjustable pliers, ensuring the jaws are positioned securely to avoid slipping. Apply steady, even pressure as you pull the cartridge straight out of the valve body, taking care not to jerk or twist, which could damage the surrounding components. This process may require some force, particularly if the cartridge has been in place for years and mineral deposits have accumulated.
Once extracted, lay the cartridge on a clean surface and inspect it for signs of wear, corrosion, or breakage. Common issues include cracked plastic, worn rubber seals, or mineral buildup that hinders functionality. Understanding the condition of the old cartridge can provide insights into the root cause of the diverter failure, such as hard water damage or manufacturing defects. This inspection also serves as a diagnostic step, helping you determine whether the issue is isolated to the cartridge or if other parts of the valve require attention.
After inspection, turn your focus to the valve body. Use a damp cloth or a soft-bristle brush to clean the area where the cartridge was seated, removing any debris, old lubricant, or mineral deposits. For stubborn buildup, a vinegar-soaked cloth or a mild descaling solution can be effective, but avoid abrasive cleaners that could scratch the surface. Ensuring the valve body is clean and dry is crucial, as residual particles can interfere with the new cartridge’s fit and function, potentially leading to leaks or premature failure.
Practical tips for this stage include wearing gloves to protect your hands from sharp edges or cleaning chemicals, and having a small container nearby to place the removed cartridge and any debris. If the cartridge is particularly difficult to remove, consider using a cartridge puller tool designed specifically for this task, which can provide better leverage without damaging the valve. By approaching this step methodically, you not only facilitate a smoother replacement process but also gain valuable knowledge about your shower system’s maintenance needs.
Find Shower Door Replacement Parts: Top Stores and Online Sources
You may want to see also
Explore related products
Install New Cartridge: Insert replacement, apply lubricant, reattach escutcheon, test for leaks, and restore water supply
With the old cartridge removed, it's time to install the new one. This step is crucial, as a properly installed cartridge ensures smooth water flow and prevents leaks. Begin by inserting the replacement cartridge into the valve body, aligning the tabs with the corresponding slots. A firm but gentle push should suffice; avoid forcing it, as this could damage the cartridge or valve. Delta cartridges are designed for a snug fit, so a slight resistance is normal.
Lubrication is key to ensuring the cartridge operates smoothly and extends its lifespan. Apply a small amount of silicone-based lubricant, such as Dow Corning 111, to the O-rings and the cartridge’s exterior. This reduces friction and helps create a watertight seal. Be precise—excess lubricant can attract debris and hinder performance. A pea-sized amount per O-ring is typically sufficient. Silicone-based lubricants are preferred over petroleum-based ones, as they won’t degrade rubber components over time.
Reattaching the escutcheon plate is both functional and aesthetic. Secure it by aligning the screw holes and tightening the screws evenly. Over-tightening can crack the escutcheon, while under-tightening may allow water to seep behind it. Use a screwdriver with the correct head size to avoid stripping the screws. Once the escutcheon is in place, it should sit flush against the wall, concealing the valve body and giving your shower a polished look.
Testing for leaks is a critical final step before restoring water supply. Turn the water back on slowly and monitor the cartridge area for any signs of leakage. Run the shower through its full range of motion, checking for drips or moisture around the escutcheon and handle. If leaks occur, shut off the water again and inspect the cartridge’s alignment and O-rings. Minor adjustments or reapplication of lubricant can often resolve the issue.
Restoring water supply marks the completion of the replacement process. Once you’ve confirmed there are no leaks, open the water valves fully and test the shower’s functionality. The handle should move smoothly, and water should divert seamlessly between fixtures. If the shower operates correctly, you’ve successfully replaced the Delta diverter cartridge. Regular maintenance, such as periodic lubrication and leak checks, will help ensure long-term performance.
Installing Acrylic Shower Liners Over Tile: A Viable Bathroom Upgrade?
You may want to see also
Frequently asked questions
You’ll need a Phillips screwdriver, adjustable wrench or pliers, needle-nose pliers, and possibly a cartridge puller if the old cartridge is stuck.
Check the model number of your Delta shower handle or faucet, then refer to Delta’s website or a hardware store to find the compatible cartridge (e.g., RP19804 or RP32104).
Yes, turn off the water supply to the shower at the main shut-off valve or the individual shut-off valves for the shower to avoid water leakage during the replacement process.
Remove the handle, unscrew the escutcheon, and pull out the cartridge. If it’s stuck, use a cartridge puller or gently twist and pull with pliers.
Insert the new cartridge into the valve, ensuring it’s aligned properly. Reattach the escutcheon, handle, and any screws, then turn the water back on and test for leaks.
