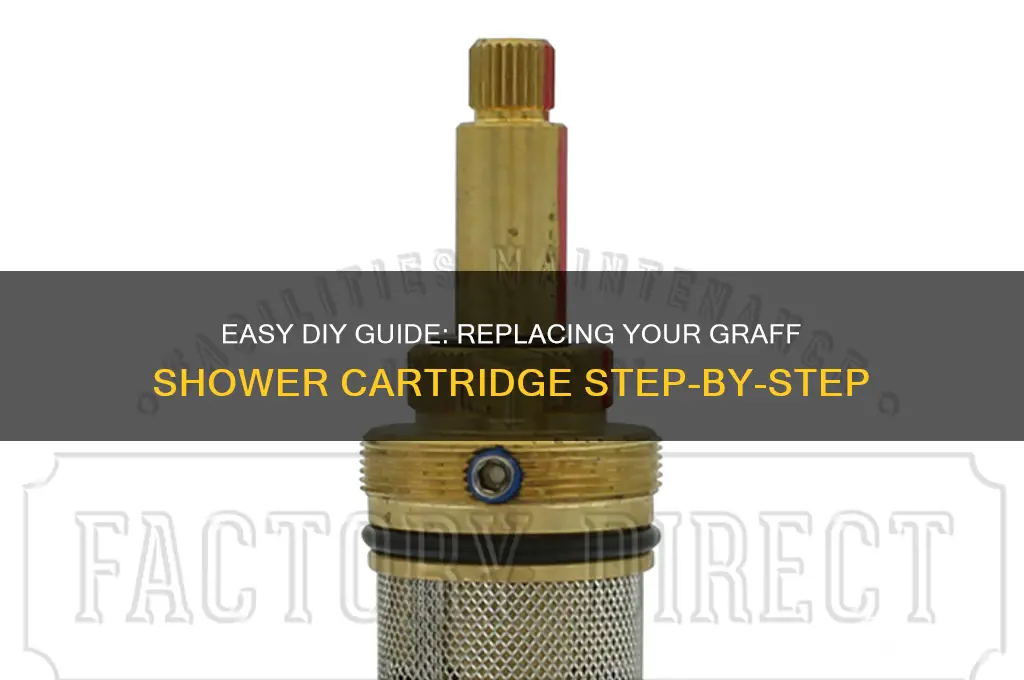

Replacing a Graff shower cartridge is a straightforward DIY task that can restore your shower's functionality and improve water flow. Over time, cartridges can wear out due to mineral buildup, corrosion, or regular use, leading to leaks or difficulty in adjusting water temperature. To begin the replacement process, you’ll need to gather the necessary tools, such as a screwdriver, pliers, and a replacement cartridge specific to your Graff shower model. Start by turning off the water supply to the shower, then remove the handle and escutcheon to access the cartridge. Carefully extract the old cartridge, clean the housing, and insert the new one, ensuring it aligns properly. Reassemble the handle and escutcheon, turn the water back on, and test the shower to confirm the repair is successful. This step-by-step approach ensures a smooth and efficient cartridge replacement, saving you from costly plumber fees.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver, pliers, adjustable wrench, utility knife, replacement cartridge |
| Safety Precautions | Turn off water supply, wear safety gloves |
| Steps | 1. Turn off water supply 2. Remove handle and escutcheon 3. Extract old cartridge 4. Insert new cartridge 5. Reassemble handle and escutcheon 6. Test for leaks |
| Cartridge Type | Specific to Graff shower model (check model number) |
| Difficulty Level | Moderate |
| Time Required | 30-60 minutes |
| Common Issues | Leaks, difficulty removing old cartridge, misalignment |
| Maintenance Tips | Regularly clean showerhead and cartridge to prevent buildup |
| Warranty Check | Verify if replacement is covered under Graff warranty |
| Additional Resources | Graff customer support, online tutorials, user manual |
Explore related products
What You'll Learn
- Gather Tools and Materials: Phillips screwdriver, pliers, replacement cartridge, Teflon tape, and a towel
- Shut Off Water Supply: Locate shutoff valves, turn off water, and open shower to drain
- Remove Handle and Escutcheon: Pry off handle, unscrew escutcheon, and expose cartridge
- Extract Old Cartridge: Pull out old cartridge using pliers, clean area, and inspect for damage
- Install New Cartridge: Insert new cartridge, reattach escutcheon, handle, and test for leaks
Gather Tools and Materials: Phillips screwdriver, pliers, replacement cartridge, Teflon tape, and a towel
Before diving into the task of replacing a Graff shower cartridge, it's essential to assemble the necessary tools and materials. A Phillips screwdriver is your primary weapon for disassembling the shower handle, as most Graff shower handles are secured with Phillips-head screws. Ensure the screwdriver fits snugly to avoid stripping the screw heads, which can complicate the process. Pliers, on the other hand, serve a dual purpose: they can help grip and turn stubborn cartridge retaining nuts and also assist in removing any corroded parts gently without causing damage.
The replacement cartridge is the heart of this repair. Verify compatibility by cross-referencing the model number of your Graff shower valve with the cartridge specifications. Using an incorrect cartridge can lead to leaks or improper water flow. Teflon tape is another critical component, often overlooked but indispensable. Wrap 2-3 layers of Teflon tape clockwise around the threads of the shower pipe before installing the new cartridge to ensure a watertight seal. This simple step prevents leaks and extends the life of your repair.
A towel, though seemingly mundane, plays a practical role in this process. Lay it down in the work area to protect the shower floor or tub from scratches and to catch any small parts that might slip during disassembly. Additionally, use the towel to wipe away excess water or debris, keeping your workspace clean and safe. This small detail can save time and frustration, especially in tight bathroom spaces where dropped screws or tools can be difficult to retrieve.
Gathering these tools and materials upfront streamlines the cartridge replacement process, turning a potentially daunting task into a manageable DIY project. Each item serves a specific purpose, and their collective presence ensures efficiency and precision. By preparing thoughtfully, you not only save time but also reduce the risk of errors that could lead to further complications. This step is the foundation of a successful repair, setting the stage for a smooth and effective replacement.
Optimal Shower Tile Height: Balancing Aesthetics and Functionality in Design
You may want to see also
Explore related products
Shut Off Water Supply: Locate shutoff valves, turn off water, and open shower to drain
Before you dive into replacing a Graff shower cartridge, it's crucial to start with a dry workspace. Water supply management is the linchpin of this process, preventing unnecessary mess and potential damage. Begin by locating the shutoff valves for your shower. These are typically found near the shower controls, either behind an access panel or under the fixture itself. If individual shutoff valves aren't present, you’ll need to turn off the main water supply to the house, though this is less ideal due to its broader impact.
Once you’ve identified the valves, turn them clockwise to shut off the water flow. This step is straightforward but requires attention to detail. For quarter-turn valves, a 90-degree rotation is sufficient; for older gate valves, turn until resistance is felt. After closing the valves, open the shower to release any residual water. This not only ensures a dry work area but also confirms that the water supply has been successfully cut off. Listen for dripping or running water—if present, recheck the valves or consider the possibility of a faulty shutoff mechanism.
The act of draining the shower serves a dual purpose: it minimizes the risk of water spilling during cartridge removal and tests the effectiveness of your shutoff. If water continues to flow, it’s a red flag indicating either a valve issue or an incorrectly identified shutoff point. In such cases, halt the process and address the problem before proceeding. This precautionary step, though seemingly minor, can save hours of cleanup and frustration.
Practical tips can streamline this phase. Labeling valves with "hot" and "cold" indicators beforehand prevents confusion, especially in low-light areas. If access panels are involved, keep a screwdriver handy to avoid mid-task interruptions. For those dealing with stubborn valves, applying penetrating oil 10–15 minutes prior can ease the turning process. Remember, the goal here is precision and preparedness—a dry, controlled environment sets the stage for a smoother cartridge replacement.
Effective Marble Shower Tile Cleaning: Tips for Spotless, Glowing Surfaces
You may want to see also
Explore related products
Remove Handle and Escutcheon: Pry off handle, unscrew escutcheon, and expose cartridge
The first step in replacing a Graff shower cartridge is gaining access to it, which requires removing the handle and escutcheon. These components are designed to be user-friendly but can sometimes be stubborn due to mineral buildup or age. Start by prying off the handle gently using a flathead screwdriver or a specialized tool like a handle puller. Be cautious not to scratch the finish, as this can detract from the aesthetic appeal of your shower. Once the handle is removed, you’ll expose the escutcheon, a decorative plate that conceals the cartridge. Unscrew the escutcheon by turning it counterclockwise, typically by hand or with a wrench if it’s tightly secured. With both the handle and escutcheon removed, the cartridge will be fully exposed, ready for inspection or replacement.
Analyzing the process reveals why each step is critical. The handle often hides a screw or retaining clip that secures the escutcheon, so removing it first is non-negotiable. Escutcheons, while functional, can be tricky due to their threading or corrosion from water exposure. Applying penetrating oil or using a rubber grip can ease this step, especially in older fixtures. Exposing the cartridge is the ultimate goal, as it allows you to assess whether it’s damaged, worn, or simply needs cleaning. This stage is where precision matters most—rushing could lead to stripped threads or damaged components, turning a straightforward task into a costly repair.
From a practical standpoint, consider the tools and techniques that streamline this process. A magnetic screwdriver can help retrieve screws hidden beneath the handle, while a hairdryer or heat gun can soften stubborn adhesive on the escutcheon. For escutcheons with hidden set screws, a flashlight and magnifying glass can help locate them. If the escutcheon resists turning, wrap it with a cloth and use pliers for extra grip, but avoid excessive force. These tips not only save time but also preserve the integrity of your shower’s components, ensuring a smooth transition to the next steps of cartridge replacement.
Comparing this process to other shower brands highlights Graff’s design philosophy. Unlike some brands that require specialized tools or complex disassembly, Graff’s system is relatively intuitive, prioritizing accessibility for DIY enthusiasts. However, this simplicity doesn’t compromise durability—the escutcheon’s threading and handle’s retention mechanism are engineered to withstand years of use. By understanding these design choices, you can approach the task with confidence, knowing that the steps are deliberate and user-focused.
In conclusion, removing the handle and escutcheon is a pivotal phase in replacing a Graff shower cartridge, blending simplicity with precision. By prying off the handle, unscrewing the escutcheon, and exposing the cartridge, you’re not just following instructions—you’re engaging with a system designed for longevity and ease of maintenance. Armed with the right tools, techniques, and insights, this step becomes a seamless part of the repair process, setting the stage for a successful cartridge replacement.
DIY Shower Upgrade: Replacing Your Handle and Plate Easily
You may want to see also
Explore related products
Extract Old Cartridge: Pull out old cartridge using pliers, clean area, and inspect for damage
The first step in replacing a Graff shower cartridge is removing the old one, a task that requires precision and care. Begin by firmly gripping the cartridge with pliers, ensuring a secure hold to prevent slippage. Apply steady, even pressure as you pull the cartridge straight out of its housing. Avoid excessive force, as this can damage surrounding components. If the cartridge is stuck, gently wiggle it back and forth while pulling to loosen any mineral deposits or debris that may be holding it in place.
Once the cartridge is removed, take a moment to clean the area thoroughly. Use a soft brush or cloth to clear away any sediment, limescale, or soap scum that has accumulated. For stubborn buildup, a mixture of white vinegar and water can be effective. Dip the brush into the solution and scrub the area, then rinse with clean water and dry with a towel. A clean workspace not only makes the installation of the new cartridge smoother but also allows for a clearer inspection of the housing for any damage.
Inspecting the cartridge housing is a critical step often overlooked. Look for cracks, corrosion, or wear that could compromise the functionality of the new cartridge. If the housing is damaged, it may need to be replaced or repaired before proceeding. Additionally, check the O-rings and seals for deterioration. These components are essential for preventing leaks and ensuring a proper fit. If they appear worn or brittle, replace them with new ones to maintain the integrity of the shower system.
A practical tip to streamline this process is to take photos of the cartridge and housing before removal. These images can serve as a reference during reassembly, ensuring that everything is aligned correctly. Furthermore, keeping the old cartridge and any removed parts organized can help identify any discrepancies when installing the new one. By approaching this step methodically, you not only ensure a successful extraction but also set the stage for a seamless replacement, minimizing the risk of future issues.
Laying Wood-Look Tile in Showers: A Step-by-Step Guide
You may want to see also
Explore related products
Install New Cartridge: Insert new cartridge, reattach escutcheon, handle, and test for leaks
With the old cartridge removed, it's time to install the new one. This step is crucial, as a properly installed cartridge ensures smooth shower operation and prevents leaks. Begin by aligning the new cartridge with the valve body, ensuring the notches or tabs match the corresponding slots. Gently but firmly push the cartridge into place, using a cartridge puller or pliers if necessary, but be careful not to damage the cartridge or valve.
The escutcheon, a decorative plate that covers the valve, plays a vital role in both aesthetics and functionality. Reattach the escutcheon by aligning it with the valve and securing it with screws or clips, depending on your shower model. Ensure the escutcheon is level and flush with the wall to prevent water seepage. A misaligned escutcheon can lead to water damage and mold growth, so take the time to get it right.
Next, reattach the handle, which controls water flow and temperature. Slide the handle onto the cartridge stem, ensuring it's in the correct position (usually marked with a hot/cold indicator). Secure the handle with the set screw, being careful not to overtighten, as this can damage the cartridge or handle. A properly attached handle should feel sturdy and respond smoothly to adjustments.
Before considering the job complete, test the shower for leaks. Turn on the water supply and check all connections, including the cartridge, escutcheon, and handle, for any signs of leakage. If leaks are detected, tighten connections or recheck the cartridge alignment. It's also essential to test the shower's functionality, ensuring smooth operation and accurate temperature control. This final step is critical, as undetected leaks can lead to water waste, damage, and increased utility bills. By thoroughly testing the system, you can enjoy a reliable, leak-free shower experience.
Revive Your Shower: Effective Tips to Clean Old Tile Surfaces
You may want to see also
Frequently asked questions
Signs include inconsistent water temperature, leaks around the shower handle, or difficulty turning the handle. If these issues persist after cleaning, replacement is likely needed.
You’ll need a screwdriver, pliers, a cartridge puller (if the cartridge is stuck), and possibly a wrench. Always refer to the specific model’s instructions for additional tools.
Most homeowners can replace the cartridge themselves with basic DIY skills. However, if you’re unsure or encounter complications, hiring a professional plumber is recommended.
Replacement cartridges are available at hardware stores, plumbing supply stores, or online retailers. Ensure you have the correct model number for an exact match.
If the cartridge is stuck, apply penetrating oil and let it sit for a few hours. Use a cartridge puller tool for safe removal, avoiding excessive force to prevent damage to the valve.
