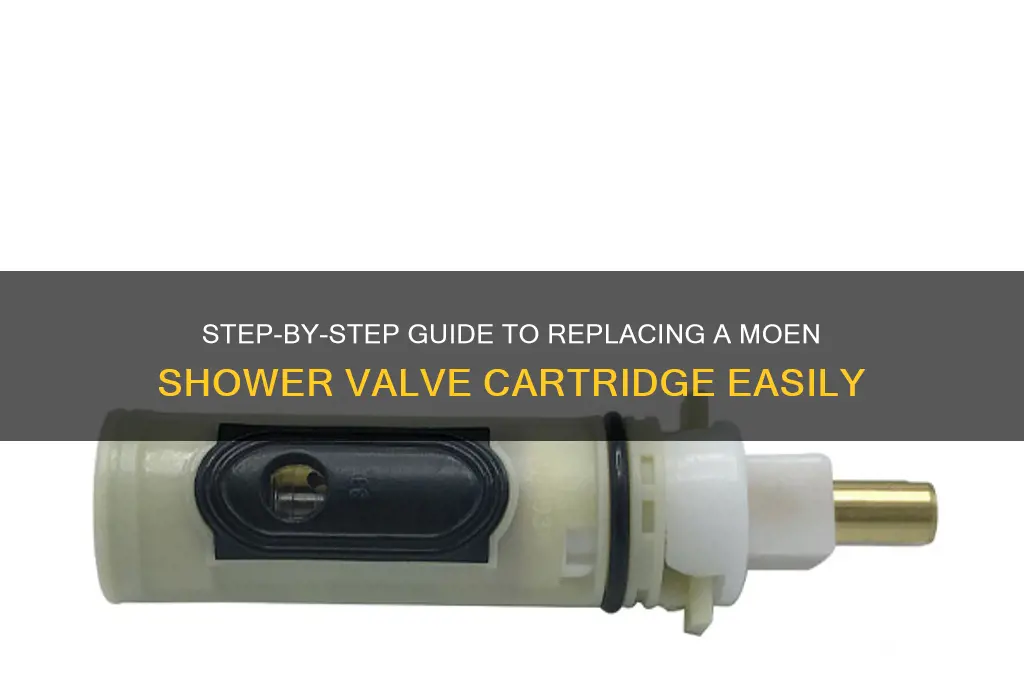

Replacing a Moen shower valve cartridge is a common DIY task that can resolve issues like leaks, inconsistent water temperature, or difficulty turning the handle. The process involves shutting off the water supply, removing the handle and escutcheon plate, extracting the old cartridge, and installing a new one. Proper direction is crucial to ensure the cartridge seats correctly and functions smoothly. This guide will walk you through the step-by-step process, including tools needed and troubleshooting tips, to help you complete the repair efficiently and effectively.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver, pliers, cartridge puller, replacement cartridge, lubricant |
| Steps | 1. Turn off water supply. 2. Remove handle and escutcheon. 3. Extract old cartridge. 4. Insert new cartridge. 5. Reassemble handle and escutcheon. 6. Turn on water supply and test. |
| Cartridge Type | Moen 1222 or 1222B (depends on model) |
| Difficulty Level | Moderate |
| Time Required | 30-60 minutes |
| Common Issues | Stuck cartridge, mineral buildup, incorrect cartridge type |
| Safety Precautions | Ensure water is off before starting, wear safety gloves |
| Additional Tips | Apply lubricant to O-rings, check for leaks after reassembly |
| Compatibility | Moen single-control shower valves (check model number for compatibility) |
| Cost of Replacement Cartridge | $10-$20 (varies by retailer) |
| Warranty Coverage | Check Moen warranty for cartridge replacement eligibility |
Explore related products
$35.43 $42.93
$25.54 $42.69
What You'll Learn
- Gather Tools and Materials: Phillips screwdriver, pliers, replacement cartridge, and towel for water cleanup
- Shut Off Water Supply: Locate shutoff valves or turn off main water supply to prevent leaks
- Remove Handle and Trim: Pry off handle cap, unscrew handle, and remove trim plate carefully
- Extract Old Cartridge: Use cartridge puller or pliers to grip and pull out the old cartridge
- Install New Cartridge: Insert new cartridge, reattach trim plate, handle, and test for leaks
Gather Tools and Materials: Phillips screwdriver, pliers, replacement cartridge, and towel for water cleanup
Before diving into the replacement of a Moen shower valve cartridge, it's essential to gather the necessary tools and materials to ensure a smooth and efficient process. A Phillips screwdriver, pliers, replacement cartridge, and towel for water cleanup are the bare minimum requirements for this task. The Phillips screwdriver, preferably #2 or #3 in size, will be used to remove the screws holding the valve cartridge in place. Pliers, on the other hand, will come in handy for gripping and turning the cartridge during removal and installation.
When selecting a replacement cartridge, it's crucial to choose the correct model that matches your Moen shower valve. Moen offers various cartridge models, including the 1222, 1222B, and 1225, each designed for specific valve types. To determine the correct cartridge, consult your shower valve's manual or Moen's online resources. Using an incorrect cartridge can result in leaks, reduced water flow, or even damage to the valve. Additionally, consider purchasing a genuine Moen replacement cartridge to ensure compatibility and longevity.
The towel for water cleanup might seem like an afterthought, but it plays a vital role in maintaining a dry and safe work environment. During the cartridge replacement process, it's common for residual water to spill or drip from the valve. A towel can be placed beneath the valve to absorb any water, preventing it from pooling on the floor or causing slip hazards. Furthermore, using a towel to dry the valve and surrounding areas can help prevent water spots and mineral buildup, which can be difficult to remove later.
As you gather your tools and materials, take a moment to inspect them for any signs of wear or damage. A worn-out screwdriver or pliers with slippery grips can compromise your grip and increase the risk of slipping, potentially causing injury or damage to the valve. If you notice any issues, consider replacing or repairing the tools before proceeding. Additionally, ensure that your replacement cartridge is free from defects or damage, as a faulty cartridge can lead to leaks and other problems down the line.
In terms of practical tips, consider the following: when using the Phillips screwdriver, apply gentle but firm pressure to avoid stripping the screws. If the screws are particularly tight, use the pliers to grip the screwdriver handle and provide extra leverage. When handling the replacement cartridge, avoid touching the rubber O-rings or seals, as oils from your skin can compromise their integrity. By taking the time to gather and inspect your tools and materials, you'll be well-prepared to tackle the cartridge replacement process with confidence and ease.
Easy DIY Guide: Replacing Your Shower Screen Seal Step-by-Step
You may want to see also
Explore related products
$14.37 $17.97
Shut Off Water Supply: Locate shutoff valves or turn off main water supply to prevent leaks
Before attempting to replace a Moen shower valve cartridge, it's crucial to shut off the water supply to avoid unwanted leaks and potential water damage. This step is often overlooked, but it's a fundamental safety measure that can save you from a messy and costly situation. The first action is to locate the shutoff valves, which are typically found near the shower or in the basement, depending on your plumbing setup. These valves control the flow of water to the shower and can be turned off individually, allowing you to work on the shower without affecting the entire household's water supply.
In some cases, you might not have access to individual shutoff valves or they may be malfunctioning. In such scenarios, you'll need to turn off the main water supply to the house. This is usually located near the water meter or where the main water line enters your home. Turning off the main supply will cut off water to all fixtures, so it's essential to inform other household members to avoid inconvenience. Remember, when dealing with main shutoff valves, it's advisable to turn them slowly and gently to prevent damage to the valve or pipes.
The process of shutting off the water supply is a critical safety step, but it's also an opportunity to inspect your plumbing system. As you locate and operate the shutoff valves, take note of any signs of wear, corrosion, or leaks. This can be an early indicator of potential issues that may require attention. For instance, if you notice a small leak around the valve stem, it might be a sign of a worn-out washer or O-ring, which can be easily replaced to prevent future problems.
To ensure a smooth and safe cartridge replacement, follow these practical tips: first, if you're unsure about the location of the shutoff valves, consult your home's plumbing diagram or contact a professional plumber for guidance. Second, when turning off the valves, do so gradually to release any built-up pressure in the lines, reducing the risk of sudden leaks. Lastly, after shutting off the water, open the shower faucet to relieve any remaining water pressure and ensure the lines are empty before proceeding with the cartridge replacement. This simple yet vital step can make the difference between a straightforward DIY project and a water-filled disaster.
By taking the time to properly shut off the water supply, you're not only preventing leaks but also gaining a better understanding of your home's plumbing system. This knowledge can empower you to tackle future plumbing tasks with confidence and ensure the longevity of your shower valve and related components. It's a small but significant aspect of the cartridge replacement process that should never be skipped.
Fixing Shower Door Leaks: A Step-by-Step Guide to Replacing the Leak Guard Strip
You may want to see also
Explore related products
Remove Handle and Trim: Pry off handle cap, unscrew handle, and remove trim plate carefully
The first step in replacing a Moen shower valve cartridge is gaining access to the valve itself, which requires removing the handle and trim. This process, while straightforward, demands precision to avoid damaging the components or the surrounding wall. Begin by prying off the handle cap, a small decorative piece often concealing the screw that holds the handle in place. Use a flathead screwdriver or a specialized tool designed for this purpose, applying gentle force to avoid scratching the finish. Once the cap is removed, you’ll expose the handle screw, typically a Phillips-head type. Unscrew it counterclockwise, taking care not to strip the threads, as this could complicate reassembly or future repairs.
With the screw removed, the handle should lift off easily. If it feels stuck, avoid forcing it; instead, check for residual resistance or hidden clips. Some Moen handles may have a set screw on the underside, so inspect carefully before proceeding. Once the handle is off, you’ll need to remove the trim plate, which is the decorative escutcheon surrounding the valve. This step requires patience, as trim plates are often secured by both screws and friction. Locate any visible screws and remove them, then gently pry the plate away from the wall using a putty knife or similar tool. Work slowly and evenly to prevent bending or cracking the plate, especially if it’s made of plastic or thin metal.
Comparatively, this phase of the process is less technical than replacing the cartridge itself but equally critical. While removing the handle and trim, you’re not just disassembling parts—you’re setting the stage for the actual repair. A rushed or careless approach here can lead to cosmetic damage or, worse, misalignment when reassembling the shower. For instance, if the trim plate is bent during removal, it may not sit flush against the wall later, compromising both aesthetics and water resistance.
A practical tip for this stage is to take photos or notes as you work, documenting the position and orientation of each component. This visual reference can be invaluable during reassembly, ensuring everything fits together seamlessly. Additionally, if you encounter resistance or unusual configurations, consult the Moen model-specific manual or online resources. Some models may have unique features, such as integrated handles or proprietary screws, that require specialized tools or techniques.
In conclusion, removing the handle and trim is a deceptively simple yet crucial step in replacing a Moen shower valve cartridge. It combines precision, patience, and awareness of potential pitfalls. By approaching this phase methodically and with care, you not only protect the integrity of your shower’s components but also streamline the subsequent steps of the repair process.
Re-Tiling Your Shower: Permit Requirements and What You Need to Know
You may want to see also
Explore related products
Extract Old Cartridge: Use cartridge puller or pliers to grip and pull out the old cartridge
Removing the old Moen shower valve cartridge is a pivotal step in the replacement process, and the right tools can make all the difference. A cartridge puller is specifically designed for this task, featuring a claw-like grip that latches onto the cartridge’s edges, ensuring a secure hold without damaging the valve body. If you don’t have a puller, pliers can serve as a practical alternative, though they require more caution to avoid slipping or scratching the cartridge or surrounding components. Whichever tool you choose, the goal is the same: to grip the cartridge firmly and apply steady, even force to extract it.
The process begins with positioning the tool correctly. For a cartridge puller, align the claws over the cartridge’s edges, ensuring they are seated securely. If using pliers, grip the cartridge’s top or sides, avoiding areas that could break off under pressure. Once the tool is in place, apply gradual, upward force to dislodge the cartridge. Avoid jerking or twisting motions, as these can damage the valve or leave pieces of the cartridge behind. If the cartridge resists, assess whether mineral deposits or corrosion are binding it in place; a light application of penetrating oil or vinegar can help loosen it.
One common challenge is a cartridge that’s been in place for years, hardened by mineral buildup or corrosion. In such cases, patience is key. Allow lubricants time to penetrate, and use gentle but persistent force. If the cartridge still won’t budge, consider heating the valve body slightly with a hairdryer to expand the metal, but avoid excessive heat that could warp the material. Alternatively, a screwdriver can be used to carefully pry the cartridge loose, though this method carries a higher risk of damage and should be a last resort.
After extraction, inspect the valve cavity for debris or remnants of the old cartridge. Use a wire brush or sandpaper to clean the area, ensuring a smooth surface for the new cartridge. This step is often overlooked but critical for preventing leaks and ensuring proper function. By taking the time to extract the old cartridge carefully and prepare the valve, you set the stage for a successful replacement that restores your shower’s performance.
Step-by-Step Guide: Replacing Your Shower Pump Easily and Efficiently
You may want to see also
Explore related products
Install New Cartridge: Insert new cartridge, reattach trim plate, handle, and test for leaks
With the old cartridge removed, it's time to install the new one. This step is crucial, as a properly installed cartridge ensures smooth water flow and temperature control. Begin by aligning the new cartridge with the valve body, ensuring the notches or tabs match the corresponding slots. Gently but firmly push the cartridge into place, taking care not to damage the O-rings or seals. A slight twisting motion may be required to seat the cartridge correctly, but avoid excessive force to prevent breakage.
Reattaching the trim plate is the next critical step in the process. This component not only enhances the aesthetic appeal of your shower but also secures the cartridge in place. Align the trim plate with the valve body, making sure the screw holes match up. Use the provided screws to fasten the plate, tightening them just enough to hold the plate securely without over-torquing, which could strip the threads or damage the plate.
The handle reattachment follows, restoring functionality to your shower. Position the handle onto the cartridge stem, ensuring it aligns with the desired temperature and flow settings. Secure the handle with the set screw, typically located on the side or underside of the handle. Tighten the screw firmly, but be cautious not to overtighten, as this can cause the handle to bind or become difficult to operate. A properly attached handle should move smoothly and respond accurately to adjustments.
Testing for leaks is the final, essential step to confirm the success of your cartridge replacement. Turn on the shower, allowing water to flow through the system. Inspect all connections, including the cartridge, trim plate, and handle, for any signs of leakage. Pay close attention to areas where components meet, as these are common leak points. If leaks are detected, tighten the relevant screws or connections slightly and retest. Persistent leaks may indicate a misaligned cartridge or damaged O-rings, requiring further adjustment or replacement. A leak-free system ensures the longevity and efficiency of your shower valve.
Shower Tiles and Asbestos: What Homeowners Need to Know
You may want to see also
Frequently asked questions
Identify the cartridge by locating the model number on the shower valve or existing cartridge. Moen cartridges are typically labeled with a model number like "1222" or "1225." You can also use Moen's online resources or consult a hardware store for assistance.
You’ll need a Phillips screwdriver, flathead screwdriver, adjustable wrench, pliers, and possibly a cartridge puller if the old cartridge is stuck.
Yes, turn off the water supply to the shower at the main shut-off valve or at the individual fixture valves to prevent water leakage during the replacement process.
Use a cartridge puller tool designed for Moen valves. If you don’t have one, gently tap the puller with a mallet while pulling to loosen the cartridge. Avoid excessive force to prevent damaging the valve.
Align the cartridge so the notch or tab matches the orientation mark on the valve body. Insert the cartridge straight in, ensuring it is fully seated. Test the handle to confirm proper operation.
