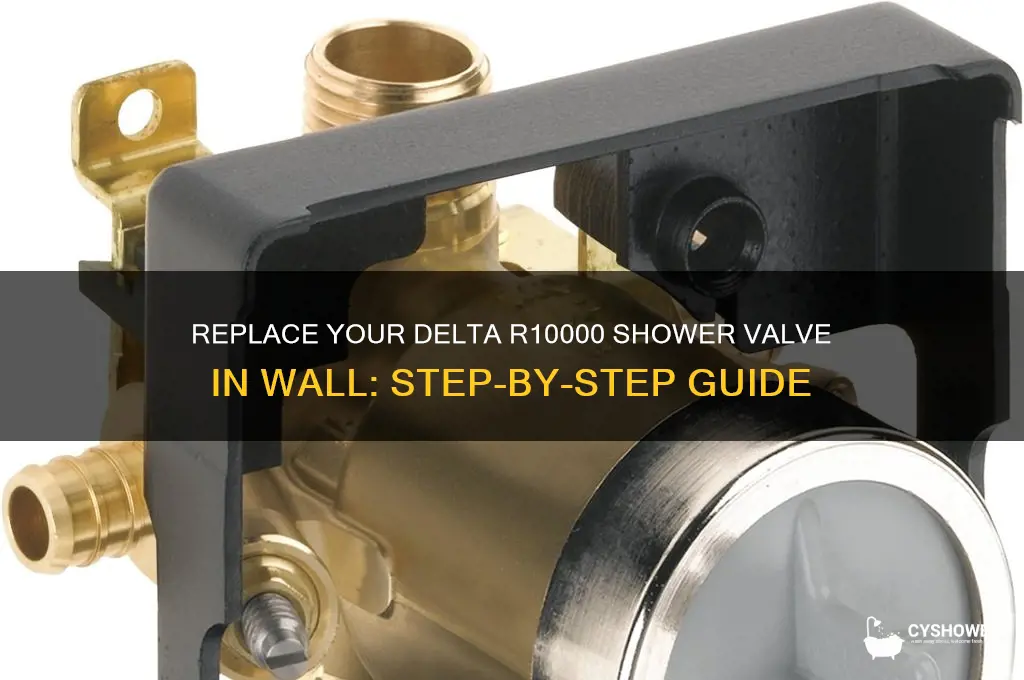

Replacing a Delta R10000 shower valve in the wall can seem daunting, but with the right tools and preparation, it’s a manageable DIY project. This valve is a common component in many shower systems, and over time, it may wear out or malfunction, requiring replacement. The process involves shutting off the water supply, accessing the valve behind the shower wall, removing the old valve, and installing the new one. It’s crucial to follow safety precautions, such as turning off the water and ensuring the area is dry to avoid electrical hazards. While the task requires some plumbing knowledge, step-by-step guides and proper tools can make it accessible for homeowners looking to save on professional costs. Always refer to Delta’s instructions or consult a plumber if unsure about any step.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver, pliers, adjustable wrench, utility knife, tub/shower valve socket tool, Teflon tape, replacement Delta R10000 valve cartridge |
| Safety Precautions | Turn off water supply to the shower, release water pressure by opening the shower valve |
| Accessing the Valve | Remove the shower handle and escutcheon plate to expose the valve cartridge |
| Removing the Old Cartridge | Use a puller tool or pliers to extract the old R10000 valve cartridge |
| Installing the New Cartridge | Insert the new Delta R10000 cartridge, ensuring proper alignment |
| Reassembling the Shower | Reattach the escutcheon plate and shower handle |
| Testing the Valve | Turn on the water supply and test the shower for leaks and proper function |
| Compatibility | Ensure the replacement cartridge is compatible with Delta R10000 series |
| Difficulty Level | Moderate (DIY-friendly with basic plumbing skills) |
| Time Required | Approximately 1-2 hours |
| Additional Tips | Use Teflon tape on threads to prevent leaks, follow Delta's installation guide |
| Common Issues | Difficulty removing old cartridge, misalignment of new cartridge |
| Cost of Replacement Cartridge | Typically $15-$30 (USD) depending on retailer |
| Warranty Check | Verify if the existing valve is under Delta's warranty before replacing |
Explore related products
What You'll Learn
- Turn off water supply Locate main shut-off valve, turn clockwise to stop water flow
- Remove shower handle Pry off cap, unscrew handle, and detach cartridge clip
- Access valve cartridge Cut wall access hole, expose valve body for cartridge removal
- Install new cartridge Insert replacement cartridge, reattach clip, and secure handle
- Test for leaks Turn water back on, check for leaks around valve and handle
Turn off water supply Locate main shut-off valve, turn clockwise to stop water flow
Before embarking on the task of replacing a Delta R10000 shower valve, it's crucial to understand the importance of turning off the water supply. This step is not just a precautionary measure; it's a fundamental requirement to prevent water damage, ensure safety, and facilitate a smooth replacement process. The first action is to locate the main shut-off valve, typically found near the water meter or where the main water line enters your home. In most residential setups, this valve is a gate valve or a ball valve, distinguishable by its round or lever-like handle.
The process of shutting off the water supply involves a simple yet precise action: turning the valve clockwise. This direction is universal for most shut-off valves and is often indicated by a ridge or a marking on the valve handle. For gate valves, a full turn (approximately 360 degrees) is usually required to completely stop the water flow. In contrast, ball valves often need only a quarter turn (90 degrees) to achieve the same result. It's essential to apply steady pressure when turning the valve to avoid damage, especially if the valve hasn't been operated in a long time.
A common oversight is assuming that the water supply is completely off without verifying. After turning the valve, open a faucet on the same water line to confirm that the water has indeed stopped flowing. This step is crucial as it prevents unexpected water release during the valve replacement, which could lead to flooding or other water-related damages. If water continues to flow, recheck the valve’s position and ensure it’s fully closed. In some cases, older valves may require replacement if they fail to shut off the water completely.
For those dealing with a Delta R10000 shower valve replacement, it’s also beneficial to consider the specific plumbing configuration of your home. In multi-story buildings, there might be additional shut-off valves for individual floors or sections. Identifying and closing these valves can provide an extra layer of security, ensuring that water is isolated to the specific area where the work is being done. This localized control can be particularly useful in minimizing disruption to other parts of the household.
Lastly, while the focus is on turning off the water supply, it’s equally important to plan for the reactivation of the water system post-replacement. Ensure that all connections are secure and leak-free before reopening the shut-off valve. Gradually turn the valve counterclockwise to restore water flow, checking for any leaks at the newly installed Delta R10000 shower valve and surrounding areas. This careful approach not only safeguards against potential issues but also ensures the longevity and efficiency of your updated shower system.
Easy Guide to Replacing Your Bristan Shower Cartridge Step-by-Step
You may want to see also
Explore related products
Remove shower handle Pry off cap, unscrew handle, and detach cartridge clip
The shower handle is often the gateway to accessing the Delta R10000 valve, and removing it requires precision and the right tools. Begin by prying off the decorative cap covering the screw—a flathead screwdriver works well here, but apply gentle force to avoid scratching the finish. This cap is typically held in place by friction, so a slight twist as you pry can help release it. Once exposed, unscrew the handle by turning the screw counterclockwise; a Phillips-head screwdriver is usually sufficient for this task. Keep track of the screw, as it’s easy to misplace and essential for reassembly.
With the handle removed, your next target is the cartridge clip, a small but critical component securing the valve cartridge in place. This clip is often made of plastic or metal and sits inside the valve body. Use needle-nose pliers to grip and detach it carefully, ensuring you don’t bend or break it. If the clip is stubborn, a light tap with a mallet on the pliers can provide the necessary force, but avoid excessive pressure to prevent damage to the valve.
This step is deceptively simple but demands attention to detail. For instance, if the cap is stuck due to mineral buildup, a quick soak in vinegar or a spray of lubricating oil can loosen it. Similarly, if the screw is stripped, a rubber band placed between the screwdriver and screw head can improve grip. These small adjustments can save time and frustration, turning a potentially tedious task into a straightforward process.
Comparing this step to other valve replacement tasks highlights its importance. While removing the handle and clip might seem minor, it’s the foundation for accessing the valve cartridge, the heart of the system. Skipping or rushing this step can lead to complications later, such as difficulty removing the cartridge or damaging internal components. By approaching it methodically, you ensure a smoother transition to the next stages of the replacement process.
In practice, this step is a blend of finesse and force. It’s not about brute strength but understanding the mechanics of the components. For example, applying too much force to pry the cap can damage the handle’s finish, while too little might leave it stuck. Similarly, detaching the cartridge clip requires a steady hand to avoid snapping it. By balancing these elements, you’ll efficiently clear the path to the valve, setting the stage for a successful replacement.
Easy DIY Guide: Replacing Your Shower Frame Glass Seal Strip
You may want to see also
Explore related products
Access valve cartridge Cut wall access hole, expose valve body for cartridge removal
Replacing a Delta R10000 shower valve cartridge often requires cutting an access hole in the wall to expose the valve body. This step is crucial because the valve is typically embedded within the wall, making direct access impossible without modification. The size of the access hole should be just large enough to accommodate your tools and provide clear visibility of the valve body, usually around 6 to 8 inches in diameter. Use a drywall saw or a reciprocating saw for precision, ensuring you avoid electrical wires or plumbing lines behind the wall. Always turn off the water supply before beginning this step to prevent accidental flooding.
Exposing the valve body is a delicate process that demands patience and attention to detail. Once the access hole is cut, carefully remove any insulation or debris around the valve. Inspect the valve body for signs of corrosion or damage, as this could affect the installation of the new cartridge. If the valve body is recessed too deeply, consider using a mirror and a flashlight to improve visibility. For added safety, wear safety goggles and gloves to protect against sharp edges and debris. This stage sets the foundation for a successful cartridge replacement, so take your time to ensure everything is properly exposed and accessible.
Comparing this method to alternative approaches highlights its practicality. Some homeowners might attempt to access the valve through the shower handle or trim plate, but this often proves insufficient for cartridge removal. Cutting an access hole, while more invasive, provides direct and unobstructed access to the valve body. It also allows for easier inspection and maintenance in the future. While it may seem daunting, the precision and control gained from this method far outweigh the temporary inconvenience of patching the wall afterward.
A persuasive argument for this approach lies in its long-term benefits. By cutting an access hole, you not only facilitate the current repair but also create a permanent access point for future maintenance. This foresight can save time and money down the line, as subsequent repairs will require less effort and fewer tools. Additionally, it ensures that the valve remains accessible without the need for repeated wall modifications. For those who value efficiency and preparedness, this method is not just a solution—it’s an investment in the longevity of your plumbing system.
Schluter Shower Tile Kits: Are They a Worthwhile Investment?
You may want to see also
Explore related products
Install new cartridge Insert replacement cartridge, reattach clip, and secure handle
The heart of the Delta R10000 shower valve replacement lies in the cartridge—a small but mighty component dictating water flow and temperature. Once you’ve accessed the valve (a task requiring wall demolition and careful disassembly), installing the new cartridge is a precise, multi-step process. Begin by aligning the replacement cartridge with the valve body, ensuring the notches or tabs match the corresponding grooves. This alignment is critical; a misaligned cartridge can lead to leaks or improper function. Gently press the cartridge into place, using even force to avoid damaging the seals.
Reattaching the clip is the next crucial step, securing the cartridge in position. Delta cartridges typically use a metal or plastic clip that snaps into a groove around the valve body. Position the clip carefully, ensuring it clicks into place with a satisfying snap. If the clip feels loose or misaligned, double-check the cartridge’s seating—a poorly secured clip can cause the cartridge to shift, rendering the valve inoperable. This step demands patience; rushing can lead to breakage or improper installation.
Securing the handle is where functionality meets aesthetics. Reattach the handle by sliding it onto the cartridge stem and fastening the screw or set screw at the base. Tighten it firmly but not excessively—overtightening can strip the threads or damage the cartridge. Test the handle’s movement to ensure it operates smoothly, adjusting the screw if necessary. A properly secured handle should feel solid, with no wobble or resistance when turning.
Practical tips can streamline this process. Use a flashlight to illuminate the valve body, making it easier to spot alignment marks. Keep a small container nearby to hold screws and clips, preventing loss during installation. If the cartridge feels stiff when inserting, apply a light coat of silicone grease to the O-rings, but avoid petroleum-based lubricants, which can degrade the seals. Finally, before reattaching the handle, run water through the valve to check for leaks—a quick test that can save you from redoing the entire process.
In summary, installing a new cartridge, reattaching the clip, and securing the handle are steps that demand precision and attention to detail. Each action builds on the last, creating a functional and reliable shower valve. By following these steps carefully, you ensure not only the longevity of the valve but also the comfort and safety of your shower experience.
Power Washing Tile Showers: Safe Cleaning Tips and Best Practices
You may want to see also
Explore related products
Test for leaks Turn water back on, check for leaks around valve and handle
After meticulously replacing your Delta R10000 shower valve, the moment of truth arrives: testing for leaks. This crucial step ensures your hard work doesn't result in water damage down the line.
The Process: With the new valve installed and secured, slowly turn the water supply back on. Start with a gentle flow, allowing pressure to build gradually. This minimizes stress on the new connections and reveals leaks that might otherwise go unnoticed under full pressure.
Observation is Key: As the water flows, meticulously inspect the valve body, handle connections, and any exposed piping. Look for even the slightest signs of moisture – a damp spot, a slow drip, or a faint hissing sound. Don't underestimate the power of a small leak; over time, it can cause significant damage.
Troubleshooting: If you detect a leak, don't panic. Turn off the water supply immediately. Common culprits include loose connections, damaged O-rings, or improperly aligned components. Double-check all connections, ensuring they are tightened securely but not overtightened, which can damage threads. Replace any suspect O-rings with new ones of the correct size.
Prevention is Paramount: Taking the time to thoroughly test for leaks after installation is a small investment that pays off in the long run. It prevents costly water damage, mold growth, and the hassle of future repairs. Remember, a leak-free shower valve ensures a relaxing shower experience, not a stressful plumbing emergency.
Waxing Shower Tiles: Is It Possible and How to Do It Right
You may want to see also
Frequently asked questions
Check the valve body or the original installation manual for the model number. The Delta R10000 is typically marked on the valve cartridge or the valve body itself.
You’ll need a screwdriver, adjustable wrench, pliers, utility knife, tub spout removal tool (if applicable), and possibly a reciprocating saw or drywall tools for wall access.
Yes, if the valve is accessible from the front (e.g., via a removable faceplate or access panel), you can replace the cartridge without opening the wall. However, if the valve is fully recessed, wall access may be necessary.
Locate the main water shut-off valve for your home or the individual shut-off valves for the shower, typically found near the water heater or under the shower. Turn them clockwise to shut off the water supply.
