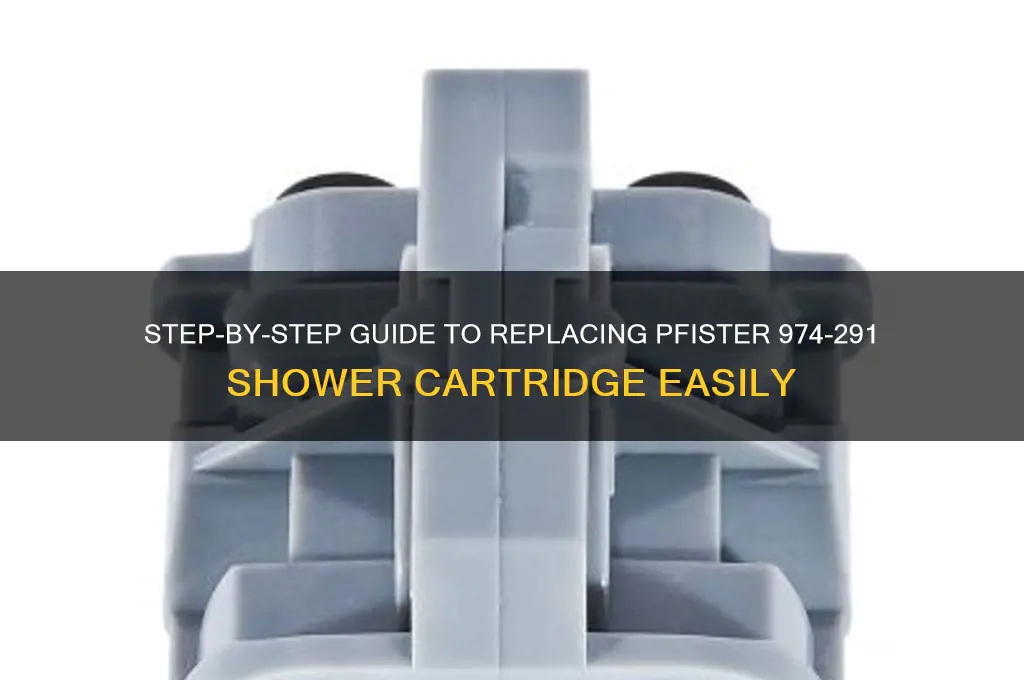

Replacing a Pfister shower cartridge, specifically the 974-291 model, is a straightforward DIY task that can restore your shower's functionality and water flow efficiency. This cartridge is a common component in Pfister shower valves, and over time, it may wear out or become clogged, leading to leaks or reduced water pressure. To replace it, you'll need basic plumbing tools such as a screwdriver, pliers, and possibly a cartridge puller. Start by shutting off the water supply to the shower, then remove the handle and escutcheon to access the cartridge. Carefully extract the old cartridge, clean the valve housing, and insert the new 974-291 cartridge, ensuring it aligns properly. Reassemble the components, turn the water back on, and test the shower to confirm the repair is successful. Following these steps will help you complete the replacement efficiently and effectively.
| Characteristics | Values |
|---|---|
| Cartridge Model | Pfister 974-291 |
| Compatibility | Fits Pfister Ladera and other select shower valve systems |
| Tools Required | Screwdriver, pliers, cartridge puller, adjustable wrench, Teflon tape |
| Replacement Steps | 1. Turn off water supply 2. Remove handle and escutcheon 3. Extract old cartridge 4. Insert new cartridge 5. Reassemble components 6. Test for leaks |
| Cartridge Material | Durable plastic and ceramic components |
| Functionality | Controls water temperature and flow |
| Difficulty Level | Moderate (DIY-friendly with basic plumbing skills) |
| Estimated Time | 30-60 minutes |
| Common Issues Fixed | Leaks, difficulty adjusting temperature, low water pressure |
| Replacement Frequency | Typically every 5-10 years depending on usage and water quality |
| Availability | Available at hardware stores, online retailers, or directly from Pfister |
| Price Range | $15 - $30 USD |
| Warranty | Covered under Pfister's lifetime warranty (check specific model details) |
| Additional Tips | Use Teflon tape on threads to ensure a watertight seal |
Explore related products
What You'll Learn
- Gather Tools and Parts: Collect pliers, screwdriver, replacement cartridge, and lubricant before starting the replacement process
- Shut Off Water Supply: Turn off water at the main valve or shower shutoff to prevent leaks
- Remove Handle and Trim: Unscrew handle, pry off trim plate to access the cartridge assembly
- Extract Old Cartridge: Use cartridge puller or pliers to carefully remove the damaged 974-291 cartridge
- Install New Cartridge: Insert replacement cartridge, apply lubricant, and reassemble handle and trim securely
Gather Tools and Parts: Collect pliers, screwdriver, replacement cartridge, and lubricant before starting the replacement process
Before diving into the replacement of your Pfister shower cartridge 974-291, it's crucial to assemble the necessary tools and parts to ensure a smooth and efficient process. This preparatory step not only saves time but also minimizes the risk of complications midway through the task. The essential items include pliers, a screwdriver, the replacement cartridge, and lubricant. Each of these tools plays a specific role in the process, and having them at hand will make the task more manageable.
From an analytical perspective, the selection of tools is not arbitrary. Pliers are needed for gripping and turning components that may be difficult to handle with bare hands, especially in tight spaces. A screwdriver, preferably a Phillips-head, is essential for removing screws that secure the cartridge housing. The replacement cartridge itself is the core component, and ensuring it is the correct model (974-291) is vital to avoid compatibility issues. Lubricant, such as silicone-based grease, is used to ease the installation of the new cartridge and ensure smooth operation of the shower handle.
Instructively, start by verifying that you have the exact replacement cartridge for your Pfister shower model. Compatibility is key, as using the wrong cartridge can lead to leaks or improper functioning. Once confirmed, gather your tools in a well-lit and accessible area. Lay out the pliers, screwdriver, and lubricant in a manner that allows you to reach them easily as you work. This organization prevents unnecessary pauses during the replacement process, keeping the workflow uninterrupted.
Persuasively, investing a few minutes in gathering and organizing your tools can save you from frustration and potential damage to your shower system. For instance, attempting to remove a stuck screw without the proper screwdriver can strip the screw head, complicating the repair. Similarly, applying lubricant to the new cartridge not only aids in installation but also prolongs the life of the component by reducing friction. These small steps contribute significantly to the overall success of the replacement.
Comparatively, while some homeowners might attempt to replace a shower cartridge with makeshift tools, this approach often leads to inefficiency and increased risk of error. For example, using a butter knife instead of a screwdriver can damage the surrounding components. In contrast, having the right tools ensures precision and safety. Additionally, the use of lubricant is a step often overlooked in DIY repairs, yet it is a practice borrowed from professional plumbing techniques, highlighting its importance.
Descriptively, imagine the scenario: you’re standing in front of your shower, ready to tackle the cartridge replacement. Your pliers are within arm’s reach, the screwdriver is poised for action, and the replacement cartridge sits nearby, ready to be installed. A small tube of silicone lubricant completes your toolkit. This setup not only looks professional but also feels empowering, as you’re fully prepared to handle each step of the process with confidence. By taking the time to gather and organize these tools, you’re setting the stage for a successful and stress-free repair.
Using Tic Tac Tiles in Showers: Pros, Cons, and Installation Tips
You may want to see also
Explore related products
Shut Off Water Supply: Turn off water at the main valve or shower shutoff to prevent leaks
Before embarking on the task of replacing a Pfister shower cartridge 974-291, it's crucial to address the elephant in the room: water supply. A simple yet often overlooked step, shutting off the water supply is the linchpin of a leak-free replacement process. Failure to do this can result in a flooded bathroom, water damage, and a hefty repair bill. To avoid such catastrophes, locate the main water valve or shower shutoff valve, typically found near the water heater or under the sink.
In a typical residential plumbing setup, the main water valve is a gate valve or ball valve, often marked with a bright color or tag for easy identification. Turning this valve clockwise will shut off the water supply to the entire house. However, if you only want to shut off water to the shower, look for a dedicated shower shutoff valve, usually located near the shower controls or in the basement. This valve is often a smaller, more discreet version of the main valve, requiring a clockwise turn to close. Be cautious not to overtighten, as this can damage the valve and lead to future leaks.
The consequences of skipping this step can be dire, particularly in older homes with corroded pipes or faulty shutoff valves. Imagine attempting to replace the cartridge, only to have water gushing out from the showerhead or faucet. Not only will this create a mess, but it can also cause structural damage to walls, floors, and ceilings. In extreme cases, water damage can lead to mold growth, compromising indoor air quality and posing health risks to occupants. By taking a few minutes to shut off the water supply, you can prevent these issues and ensure a smooth, stress-free cartridge replacement.
A practical tip for those unsure about the location of their shutoff valves is to consult the home's plumbing diagram or contact a professional plumber. In the absence of a diagram, a thorough inspection of the plumbing system can help identify the valves. Look for pipes leading to the shower and follow them back to the source, where you're likely to find the shutoff valve. If you're still unsure, consider marking the valves with tags or labels for future reference. This simple precaution can save time, effort, and potential damage in the long run, making it an essential aspect of the Pfister shower cartridge 974-291 replacement process.
In the context of DIY plumbing repairs, shutting off the water supply is a critical safety measure that should never be overlooked. By understanding the importance of this step and taking the necessary precautions, homeowners can approach the task of replacing a Pfister shower cartridge 974-291 with confidence. Remember, a little preparation goes a long way in preventing leaks, water damage, and other complications. As you embark on this repair, take a moment to locate and shut off the water supply – your bathroom (and your wallet) will thank you.
Using Comet Cleaner for Shower Tiles: Safe and Effective Tips
You may want to see also
Explore related products
Remove Handle and Trim: Unscrew handle, pry off trim plate to access the cartridge assembly
The first step in replacing the Pfister shower cartridge 974-291 is gaining access to the cartridge assembly, which requires removing the handle and trim. This process, while straightforward, demands attention to detail to avoid damaging the fixture or surrounding tiles. Begin by locating the screw that secures the handle to the valve body. In most Pfister models, this screw is hidden beneath a decorative cap or button at the center of the handle. Use a flathead screwdriver to gently pry off this cap, exposing the screw underneath. Once the cap is removed, use a Phillips screwdriver to unscrew the handle. Apply steady pressure and avoid over-tightening, as the screw threads are typically made of brass and can strip easily.
With the handle removed, the trim plate becomes accessible. The trim plate is the decorative cover that surrounds the handle and conceals the valve body. To remove it, insert a flathead screwdriver between the trim plate and the wall, taking care not to scratch the surrounding tile or fixture. Gently pry the trim plate away from the wall, working your way around its perimeter. Some trim plates may be held in place by clips or adhesive, so apply even pressure and be patient to avoid bending or breaking the plate. If the trim plate resists, check for hidden screws or additional securing mechanisms that may need to be released first.
Once the trim plate is removed, the cartridge assembly will be fully exposed, allowing you to proceed with the replacement. It’s worth noting that the design of Pfister shower valves can vary slightly between models, so if you encounter unexpected resistance or differences in the assembly, consult the specific model’s manual or a reliable online resource for guidance. For instance, some older Pfister models may have additional screws securing the trim plate, while newer ones might rely solely on snap-fit mechanisms. Understanding these nuances can save time and prevent frustration during the removal process.
A practical tip for this stage is to take photos or notes as you disassemble the handle and trim. This documentation can serve as a visual reference when reassembling the fixture, ensuring that each component is returned to its correct position. Additionally, keep track of screws and small parts by placing them in a labeled container or using a magnetic mat to prevent loss. By approaching this step methodically and with care, you’ll set the stage for a smooth cartridge replacement without unnecessary complications.
Can Shower Tile Overlap Drywall? Installation Tips and Best Practices
You may want to see also
Explore related products
Extract Old Cartridge: Use cartridge puller or pliers to carefully remove the damaged 974-291 cartridge
Removing the old Pfister 974-291 shower cartridge is a pivotal step in the replacement process, and it demands precision to avoid damaging surrounding components. Begin by shutting off the water supply to the shower to prevent any accidental spills or pressure issues. Once the water is off, disassemble the handle and escutcheon to expose the cartridge. This step often requires a screwdriver, so ensure you have the appropriate size and type to avoid stripping screws. With the cartridge visible, you’ll notice it’s seated firmly in place, held by years of mineral buildup or corrosion. This is where the cartridge puller or pliers come into play.
A cartridge puller is the ideal tool for this task, as it’s specifically designed to grip and extract cartridges without causing damage. If you don’t have one, a pair of adjustable pliers can work, but proceed with caution to avoid slipping and scratching the valve body. Position the puller or pliers firmly around the cartridge’s edges, ensuring an even grip. Apply steady, upward pressure to extract the cartridge. If it resists, avoid jerking or twisting, as this can break the cartridge or damage the valve. Instead, try gently wiggling it back and forth while pulling to loosen any mineral deposits.
For stubborn cartridges, consider using a lubricant like silicone-based spray or white vinegar to dissolve mineral buildup. Apply the lubricant around the cartridge and let it sit for 10–15 minutes before attempting extraction again. If the cartridge still won’t budge, inspect the valve body for any visible obstructions or damage. In rare cases, a severely corroded valve may require professional attention or replacement. However, with patience and the right tools, most cartridges can be removed successfully.
Once the cartridge is free, inspect the valve body for debris or damage. Clean the area thoroughly with a brush and vinegar solution to ensure the new cartridge seats properly. This step is crucial for preventing leaks and ensuring smooth operation. By taking your time and using the appropriate tools, extracting the old 974-291 cartridge becomes a manageable task, setting the stage for a successful replacement.
Effective Shower Floor Tile Cleaning and Sanitizing Tips for a Sparkling Bathroom
You may want to see also
Explore related products
Install New Cartridge: Insert replacement cartridge, apply lubricant, and reassemble handle and trim securely
With the old cartridge removed, it's time to install the new Pfister 974-291 cartridge, a crucial step in restoring your shower's functionality. This process demands precision and attention to detail to ensure a leak-free and smooth-operating shower valve. Begin by taking the replacement cartridge and aligning it with the valve body, ensuring the notches or keys on the cartridge match the corresponding grooves in the valve. This alignment is critical for proper installation and operation.
Instructively, the next step involves inserting the cartridge into the valve body. Apply gentle but firm pressure, pushing the cartridge in until it is fully seated. It's essential to avoid using excessive force, as this may damage the cartridge or valve. A useful tip is to use a non-marring tool, such as a plastic mallet or a piece of wood, to tap the cartridge into place if it doesn't slide in easily. This technique helps prevent damage to the cartridge's delicate components.
Now, let's focus on the often-overlooked aspect of lubrication. Applying a silicone-based lubricant to the cartridge's O-rings and seals is a persuasive measure to ensure optimal performance and longevity. This simple step reduces friction, allowing for smoother operation and minimizing wear and tear. A small amount of lubricant goes a long way; apply a thin, even coat to the O-rings, ensuring complete coverage without over-saturating. This precautionary measure can significantly extend the life of your new cartridge.
As you reassemble the handle and trim, take a comparative approach by referring to the disassembly process. Reattach the handle adapter, ensuring it is aligned correctly with the cartridge. Secure the handle by tightening the screw, being careful not to over-tighten, as this may cause damage. Reinstall the trim plate, taking note of any specific alignment requirements for your Pfister model. This step-by-step reassembly ensures that every component is securely in place, providing a professional finish.
In conclusion, installing a new Pfister 974-291 cartridge is a precise and rewarding task. By following these detailed steps, you can achieve a successful installation, ensuring your shower operates smoothly and efficiently. Remember, attention to detail, proper alignment, and the use of lubricant are key to a job well done, ultimately saving you from potential leaks and future maintenance issues. This process empowers you to tackle shower repairs with confidence and a sense of accomplishment.
Reinstalling Tile Over Concrete Shower Floors: A Step-by-Step Guide
You may want to see also
Frequently asked questions
You will need a Phillips screwdriver, an adjustable wrench or pliers, and possibly a cartridge puller if the old cartridge is stuck.
Remove the shower handle by unscrewing the screw underneath the handle cap. Then, pull off the escutcheon plate to expose the cartridge retaining nut.
Loosen the retaining nut with an adjustable wrench or pliers, then pull the cartridge out carefully. If it’s stuck, use a cartridge puller to extract it.
Insert the new cartridge into the valve body, ensuring it is aligned correctly. Reattach the retaining nut and tighten it securely, then reassemble the handle and escutcheon plate.
