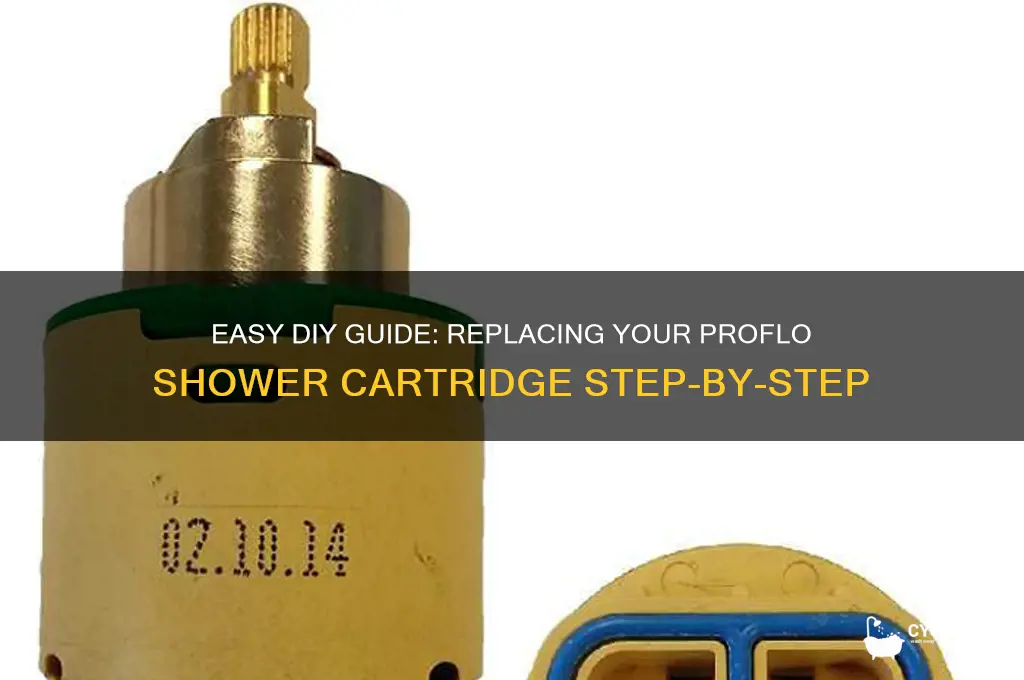

Replacing a ProFlo shower cartridge is a straightforward DIY task that can restore your shower’s functionality and water pressure. Over time, cartridges can wear out due to mineral buildup, corrosion, or regular use, leading to leaks or difficulty adjusting water temperature. To replace it, you’ll need basic tools like a screwdriver, pliers, and possibly a cartridge puller. Start by turning off the water supply and removing the shower handle to access the cartridge. Carefully extract the old cartridge, clean the valve, and insert the new one, ensuring it’s properly aligned. Reassemble the handle and test the shower to confirm it works smoothly. This process not only saves you from costly plumber fees but also extends the life of your shower system.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver, pliers, adjustable wrench, utility knife, replacement cartridge |
| Difficulty Level | Moderate |
| Time Required | 30-60 minutes |
| Steps | 1. Turn off water supply. 2. Remove handle and escutcheon plate. 3. Extract old cartridge using puller or pliers. 4. Insert new cartridge. 5. Reassemble handle and plate. 6. Turn on water and check for leaks. |
| Cartridge Type | Proflo-specific (model number required for exact replacement) |
| Common Issues | Leaks, difficulty turning handle, inconsistent water temperature |
| Safety Precautions | Ensure water is off before starting; avoid forcing tools to prevent damage |
| Cost of Replacement Cartridge | $15-$30 (varies by model) |
| Compatibility | Specific to Proflo shower valve models |
| Additional Tips | Use penetrating oil if cartridge is stuck; verify cartridge orientation before installation |
Explore related products
What You'll Learn
- Gather Tools and Materials: Phillips screwdriver, pliers, replacement cartridge, Teflon tape, and a towel
- Shut Off Water Supply: Locate and turn off the water valves for the shower
- Remove Shower Handle: Pry off the handle cap and unscrew the handle
- Extract Old Cartridge: Pull out the old cartridge using pliers or a cartridge puller
- Install New Cartridge: Insert the new cartridge, reattach the handle, and test for leaks
Gather Tools and Materials: Phillips screwdriver, pliers, replacement cartridge, Teflon tape, and a towel
Before diving into the replacement of a Proflo shower cartridge, it's essential to gather the necessary tools and materials to ensure a smooth and efficient process. A Phillips screwdriver is required to remove the screws holding the shower handle in place, typically ranging from #1 to #2 in size, depending on the model. Pliers, preferably adjustable or needle-nose, will aid in gripping and turning the cartridge retaining clip or nut, which can be stubborn due to mineral buildup or corrosion.
The replacement cartridge itself is the core component, and it's crucial to verify compatibility with your specific Proflo shower model. Cartridges are often labeled with part numbers or model identifiers, so cross-referencing with the manufacturer's documentation or consulting a plumbing professional can prevent costly mistakes. Teflon tape, also known as plumber's tape, is an unsung hero in this process, providing a vital seal between threaded connections. Apply 3-4 wraps of tape in a clockwise direction around the cartridge threads to ensure a watertight seal, taking care not to overtighten.
A towel, while seemingly mundane, serves multiple purposes in this endeavor. Firstly, it can be placed in the shower base to catch any falling screws, clips, or debris, preventing them from disappearing down the drain. Secondly, a towel can be used to wipe away excess moisture or debris from the work area, ensuring a clean and safe environment. Moreover, a folded towel can provide a soft cushion for the shower handle or trim plate, minimizing the risk of scratches or damage during removal and reinstallation.
As you assemble your toolkit, consider the following practical tips: keep a small container or magnetic parts tray nearby to store screws and clips in order, preventing loss or mix-ups. If your shower valve has a retaining nut, apply a small amount of penetrating oil (e.g., WD-40) 10-15 minutes prior to removal, allowing it to loosen any stubborn threads. Lastly, when working with Teflon tape, remember that a little goes a long way – excessive wrapping can lead to over-tightening and potential damage to the cartridge or valve body. By gathering these tools and materials with care and attention to detail, you'll be well-prepared to tackle the Proflo shower cartridge replacement with confidence and precision.
Tiling Over Formica Shower Walls: Is It Possible and How-To Guide
You may want to see also
Explore related products
Shut Off Water Supply: Locate and turn off the water valves for the shower
Before attempting to replace a ProFlo shower cartridge, it's crucial to shut off the water supply to prevent flooding and water damage. This step is often overlooked, but it's the foundation of a successful and stress-free repair. Start by identifying the location of the water valves for your shower. In most homes, these valves are situated near the shower, either in the bathroom itself or in an adjacent utility closet. If you're unsure, trace the pipes from the showerhead to their source; the valves are typically found along this path.
Once you’ve located the valves, take a moment to understand their mechanism. Shower water supply valves are usually either gate valves (round handles) or ball valves (lever handles). Gate valves require multiple turns to fully shut off the water, while ball valves need only a quarter turn. Ensure you turn the valves clockwise to close them, as this is the standard direction for shutting off water flow. If the valves are stiff or difficult to turn, apply gentle, steady pressure, and consider using a pair of adjustable pliers for added leverage. However, avoid forcing them to prevent damage.
After shutting off the valves, test the shower to confirm the water supply is completely off. Turn on the shower faucet and check if any water flows out. If there’s still water, double-check the valves to ensure they’re fully closed. In some cases, older plumbing systems may have hidden leaks or secondary valves, so it’s essential to verify the shutoff before proceeding. This step not only protects your workspace from water but also ensures a safer environment for handling tools and components.
A practical tip for homeowners is to label the valves after identifying them. Use a permanent marker or adhesive labels to indicate which valve controls the hot water and which controls the cold. This simple action saves time during future repairs and reduces the risk of confusion. Additionally, if your shower has a single valve controlling both hot and cold water, make a note of this for reference. Properly shutting off the water supply is a small but critical step that sets the stage for a smooth cartridge replacement process.
Can Toxic Mold Lurk Beneath Your Shower Tiles? Find Out Now!
You may want to see also
Explore related products
Remove Shower Handle: Pry off the handle cap and unscrew the handle
The shower handle is often the gateway to accessing the cartridge, and removing it requires a blend of precision and force. Start by locating the handle cap, a small, often decorative cover that conceals the screw holding the handle in place. Use a flathead screwdriver or a specialized tool like a handle puller to gently pry off the cap. Be cautious not to scratch the finish, as this component is typically exposed and visible. Once the cap is removed, you’ll expose the screw or Allen wrench fitting that secures the handle. Depending on the model, this may require a Phillips screwdriver, a hex key, or even a Torx bit. Unscrew the fastener counterclockwise, applying steady pressure to avoid stripping the threads. If the screw is stubborn, a drop of penetrating oil can help loosen it. With the fastener removed, the handle should lift off easily, revealing the cartridge assembly beneath.
Analyzing this step reveals its dual nature: it’s both straightforward and deceptive. While prying off the cap and unscrewing the handle seem simple, the devil is in the details. For instance, some Proflo models use a set screw hidden beneath a plastic insert, requiring careful probing to locate. Others may have a threaded handle that unscrews directly without a separate fastener. Understanding these variations ensures you don’t damage the handle or surrounding trim. A comparative look at other brands shows that Proflo’s design is user-friendly but still demands attention to avoid common pitfalls like over-tightening or misalignment.
From a practical standpoint, this step is where many DIYers encounter their first challenge. If the handle cap is stuck, avoid brute force—instead, apply gentle, consistent pressure with the screwdriver while wiggling it slightly to break the seal. For handles with corroded screws, a rust dissolver or a hairdryer set on low heat can soften the grip. Once the handle is off, inspect the underlying components for wear or mineral buildup, as this is an opportune moment to clean or replace additional parts. A persuasive argument here is that taking your time at this stage pays dividends later, as a damaged handle or stripped screw can turn a simple repair into a costly replacement.
Instructively, here’s a step-by-step breakdown: first, position the screwdriver or tool at the edge of the handle cap and apply upward pressure while twisting gently. Second, once the cap is off, identify the type of fastener (screw, Allen wrench, etc.) and use the appropriate tool to remove it. Third, lift the handle straight up, being mindful of any clips or grooves that may require wiggling for release. A descriptive tip: imagine the handle as a lid on a jar—you need to break the seal before twisting it off. Finally, with the handle removed, take a moment to assess the cartridge’s condition before proceeding to the next step. This methodical approach ensures efficiency and minimizes the risk of errors.
A cautionary note: while this step seems minor, it’s a common point of frustration. Overzealous prying can crack the handle cap, and forcing a stuck screw can strip it entirely. If you encounter resistance, pause and reassess. For example, if the cap won’t budge, try warming it with a hairdryer to expand the plastic. If the screw is stripped, a rubber band placed between the screwdriver and screw head can provide extra grip. These small adjustments can save time and prevent unnecessary damage. In conclusion, removing the shower handle is a delicate balance of force and finesse, setting the stage for a successful cartridge replacement.
Tiling Before Shower Enclosure Installation: Essential Steps for a Perfect Finish
You may want to see also
Explore related products
Extract Old Cartridge: Pull out the old cartridge using pliers or a cartridge puller
Removing the old cartridge is a pivotal step in replacing a Proflo shower cartridge, and it demands precision and the right tools. Start by ensuring the water supply is completely shut off to avoid any unexpected spills or pressure issues. Once confirmed, locate the cartridge within the shower valve. It’s typically hidden behind a decorative plate or handle, so remove these components carefully to expose the cartridge. This initial access is straightforward but crucial—skipping it can lead to unnecessary complications later.
The extraction process itself often requires more than just brute force. If the cartridge is stuck due to mineral buildup or corrosion, pliers can be your first line of defense. Grip the cartridge firmly with the pliers, applying steady, even pressure to pull it straight out. Avoid twisting or jerking, as this can damage the valve body. For cartridges that resist pliers, a cartridge puller becomes essential. This tool is specifically designed to grip and extract stubborn cartridges without causing collateral damage. Attach the puller securely and use its leverage to ease the cartridge out smoothly.
While the tools are important, technique plays an equally critical role. If the cartridge breaks during extraction, remnants left in the valve can complicate the replacement process. To prevent this, inspect the cartridge for signs of brittleness or corrosion beforehand. If it appears fragile, work slowly and consider using penetrating oil to loosen it. Additionally, keep a flashlight handy to illuminate the work area, ensuring you don’t miss any details that could hinder the process.
Comparing the pliers and cartridge puller methods highlights their respective strengths. Pliers are readily available and suffice for most standard removals, making them a go-to for DIY enthusiasts. However, a cartridge puller offers precision and force distribution, reducing the risk of breakage or valve damage. For those tackling a Proflo shower cartridge replacement for the first time, investing in a puller can save time and frustration, especially if the cartridge is deeply seated or corroded.
In conclusion, extracting the old cartridge is a task that blends simplicity with potential challenges. Armed with the right tools and a mindful approach, you can navigate this step efficiently. Remember, patience and preparation are key—whether you’re using pliers or a cartridge puller, the goal is to remove the cartridge intact and set the stage for a seamless replacement. This careful extraction ensures the new cartridge fits properly, restoring your shower’s functionality without unnecessary delays.
Easy Steps to Repair and Restore Shower Tile Grout
You may want to see also
Explore related products
Install New Cartridge: Insert the new cartridge, reattach the handle, and test for leaks
With the old cartridge removed, it's time to install the new one. This step is crucial, as a properly installed cartridge ensures smooth shower operation and prevents leaks. Begin by aligning the new cartridge with the valve body, ensuring the notches or tabs fit securely into their designated slots. Most Proflo cartridges have a universal design, but double-check the orientation to avoid misalignment. Gently but firmly press the cartridge into place, using a non-marring tool like a rubber mallet or the handle of a screwdriver if needed. Avoid excessive force, as it can damage the cartridge or valve.
Reattaching the handle is the next critical step. Slide the handle back onto the cartridge stem, ensuring it aligns with the hot and cold indicators. Secure it with the screw or setscrew provided, tightening it just enough to hold the handle firmly in place. Overtightening can strip the threads or damage the handle, so use a screwdriver with a torque-limiting feature if available. If your handle has a decorative cap, reattach it now, ensuring it sits flush and securely covers the screw.
Testing for leaks is the final and most important step in this phase. Turn on the water supply and slowly open the shower handle to check for leaks around the cartridge and handle. If you notice dripping or seepage, shut off the water and inspect the installation. Common issues include misaligned cartridges, loose handles, or damaged O-rings. Address these problems immediately to prevent water damage. Once you’re confident there are no leaks, test the handle’s full range of motion to ensure smooth operation and proper temperature control.
A practical tip for this stage is to use plumber’s tape or thread seal tape on the cartridge threads if your model requires it. This adds an extra layer of protection against leaks. Additionally, if you’re unsure about the cartridge’s orientation, refer to the manufacturer’s instructions or take a photo of the old cartridge before removal for comparison. This small step can save time and frustration during installation. By following these steps carefully, you’ll ensure a successful cartridge replacement and a fully functional shower.
Step-by-Step Guide to Installing Shower Tiles Like a Pro
You may want to see also
Frequently asked questions
You will need a Phillips screwdriver, an adjustable wrench or pliers, a cartridge puller (if the cartridge is stuck), and possibly a utility knife or scraper to remove old plumber’s tape or debris.
Check the model number of your shower valve, which is usually located on the valve body or in the installation manual. Use this number to find the compatible cartridge at a hardware store or online.
It’s highly recommended to turn off the water supply to the shower before replacing the cartridge to avoid water leakage and make the process easier.
Use a cartridge puller tool to grip and extract the cartridge. If you don’t have a puller, try soaking the area with penetrating oil (like WD-40) for a few hours to loosen it before attempting removal again.
Yes, it’s best to replace the O-rings and seals with new ones to ensure a proper seal and prevent leaks. Most replacement cartridges come with new seals, but check before installing.
