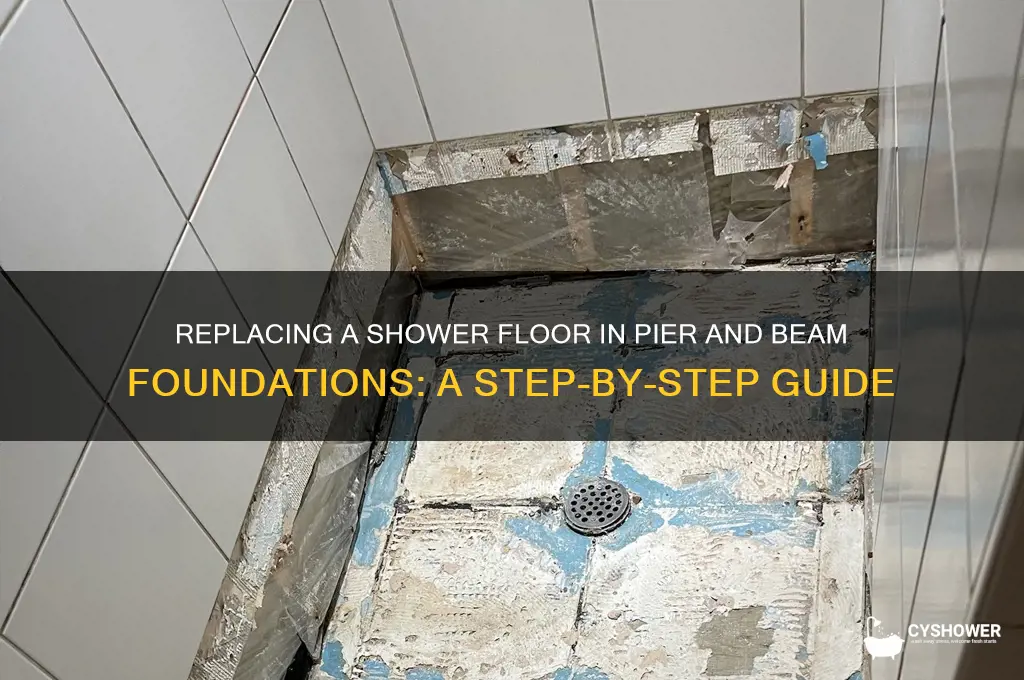

Replacing a shower floor in a pier and beam foundation requires careful planning and execution due to the unique structural setup. Unlike slab foundations, pier and beam systems involve elevated floors supported by piers and beams, which can complicate access to plumbing and subflooring. To begin, you’ll need to assess the damage, turn off the water supply, and remove the existing shower pan or tiles. Next, inspect the subfloor for rot or damage, as moisture in pier and beam homes often leads to wood deterioration. Repair or replace the subfloor as needed, ensuring proper slope for drainage. Install a new shower pan or waterproof membrane, followed by tiling or other finishes. Finally, reconnect plumbing and seal all edges to prevent future leaks, keeping in mind the importance of ventilation in pier and beam structures to avoid moisture buildup.
| Characteristics | Values |
|---|---|
| Foundation Type | Pier and Beam |
| Project Difficulty | Moderate to Difficult |
| Required Tools | Pry bar, hammer, utility knife, screwdriver, reciprocating saw, drill, level, measuring tape, safety gear (gloves, goggles) |
| Materials Needed | New shower pan or mortar base, waterproof membrane, cement backer board, tile (optional), thin-set mortar, grout, silicone caulk, screws, nails |
| Steps Involved | 1. Turn off water supply 2. Remove shower fixtures and walls 3. Pry up existing shower floor 4. Inspect and repair subfloor/joists if necessary 5. Install waterproof membrane 6. Build mortar base or install pre-made shower pan 7. Install cement backer board (if tiling) 8. Tile shower floor (optional) 9. Apply grout and silicone caulk 10. Reinstall shower fixtures and walls |
| Waterproofing | Essential; use waterproof membrane and ensure proper slope for drainage |
| Slope Requirement | 1/4 inch per foot toward drain |
| Common Challenges | Accessing and repairing damaged subfloor/joists in pier and beam foundation, ensuring proper waterproofing |
| Time Estimate | 2-4 days (depending on complexity and tiling) |
| Cost Estimate | $500-$2,500 (materials and tools; excludes professional labor) |
| Safety Considerations | Work in well-ventilated area, wear protective gear, handle tools carefully |
| Professional Help | Recommended if subfloor/joists are severely damaged or if unsure about waterproofing |
Explore related products
What You'll Learn
- Removing Old Shower Floor: Safely dismantle existing tiles, mortar, and waterproofing layers without damaging the subfloor
- Inspecting Pier and Beam Structure: Check for rot, pests, or damage in the crawl space before proceeding
- Preparing Subfloor Surface: Clean, level, and repair the subfloor to ensure proper drainage and tile adhesion
- Installing Waterproofing Membrane: Apply a reliable membrane to prevent water damage and leaks
- Laying New Tiles and Grout: Choose suitable tiles, set them evenly, and grout for a durable finish
Removing Old Shower Floor: Safely dismantle existing tiles, mortar, and waterproofing layers without damaging the subfloor
The first step in replacing a shower floor in a pier and beam structure is to carefully dismantle the existing materials without compromising the subfloor. Begin by scoring the grout lines between tiles with a utility knife or grout saw to prevent tiles from cracking during removal. This precision minimizes the risk of damaging the underlying mortar bed or waterproofing membrane. For stubborn tiles, use a flat-edged chisel and hammer, working gently to avoid striking the subfloor directly. Always wear safety goggles and gloves to protect against sharp tile edges and debris.
Once the tiles are removed, focus on the mortar bed, which is typically 1-2 inches thick and bonded to the subfloor. To avoid damaging the subfloor, use a cold chisel and lump hammer to chip away the mortar in small sections. Work methodically, starting from one corner and moving across the surface. If the mortar is particularly stubborn, consider using a rotary hammer with a chisel attachment, but maintain a light touch to prevent excessive vibration that could weaken the subfloor. For thinner mortar layers, a floor scraper with a sharp blade can be effective, but ensure the tool doesn’t dig into the wood below.
Waterproofing layers, such as rubber membranes or liquid coatings, require careful removal to preserve the subfloor’s integrity. If a membrane is present, use a heat gun to soften the adhesive and peel it back slowly, taking care not to tear the material and leave residue. For liquid waterproofing, scrape off as much as possible with a putty knife, then neutralize any remaining adhesive with a solvent recommended by the manufacturer. Always test the solvent on a small area first to ensure it doesn’t damage the subfloor. Proper ventilation is crucial when working with chemicals.
Throughout the removal process, inspect the subfloor for signs of water damage, rot, or structural weakness, especially in pier and beam constructions where moisture can accumulate. If the subfloor is compromised, consult a professional to assess whether repairs or replacement are necessary before proceeding. Preserving the subfloor’s integrity is critical, as it provides the foundation for the new shower floor and ensures long-term stability. By working meticulously and using the right tools, you can safely dismantle the old materials while safeguarding the underlying structure.
Complete Guide: Installing a Tile Shower from Start to Finish
You may want to see also
Explore related products
![Yellowstone Matte Pebbles Mosaic Tile for Shower Floor Bathroom Floor Tiles Non Slip [5 Sheets]](https://m.media-amazon.com/images/I/91wKv4Tq8JL._AC_UL320_.jpg)
Inspecting Pier and Beam Structure: Check for rot, pests, or damage in the crawl space before proceeding
Before diving into the shower floor replacement, a critical first step is to inspect the pier and beam structure beneath your home. This crawl space is the foundation of your project’s success, and overlooking it could lead to costly mistakes. Moisture, pests, and structural damage are silent culprits that thrive in hidden spaces, often going unnoticed until they cause significant problems. A thorough inspection ensures you’re not building on a compromised base, saving you time, money, and frustration in the long run.
Begin by equipping yourself with a bright flashlight, a moisture meter, and protective gear, including gloves and a respirator. Crawl spaces are often dusty, damp, and home to insects or rodents, so safety is paramount. Start by examining the wooden beams and piers for signs of rot, which typically appears as soft, discolored, or crumbling wood. Use the moisture meter to check for readings above 20%, as this indicates excessive moisture that could accelerate decay. Pay close attention to areas where wood meets concrete or soil, as these are common entry points for water.
Pests like termites and carpenter ants leave distinct clues: hollowed-out wood, frass (wood shavings or pellets), or mud tubes along beams. If you spot any of these, consult a pest control professional immediately. Structural damage, such as sagging beams, cracked piers, or shifting supports, requires expert assessment. Temporary fixes like shimming or propping are not solutions—they’re band-aids on a deeper issue. Addressing these problems before proceeding ensures your new shower floor won’t settle unevenly or fail prematurely.
Finally, consider the crawl space’s ventilation and drainage. Poor airflow or standing water exacerbates rot and pest infestations. Install vents or a dehumidifier if humidity levels exceed 50%. Ensure downspouts direct water away from the foundation, and grade the soil to prevent pooling. By treating the crawl space as an integral part of your project, you’re not just replacing a shower floor—you’re safeguarding your home’s structural integrity.
Using Hardibacker for Tile Shower Floors: Best Practices and Tips
You may want to see also
Explore related products
Preparing Subfloor Surface: Clean, level, and repair the subfloor to ensure proper drainage and tile adhesion
A clean, level, and structurally sound subfloor is the foundation of a successful shower floor replacement in pier and beam construction. Any imperfections in the subfloor will telegraph through the tile, compromising both aesthetics and functionality.
Begin by removing all debris, old adhesive, and loose material from the subfloor. Use a stiff-bristled broom, scraper, or wire brush to ensure a completely clean surface. For stubborn residue, consider a chemical adhesive remover, following manufacturer instructions for application and ventilation. Remember, even small particles can interfere with tile adhesion, so thoroughness is key.
Once clean, inspect the subfloor for unevenness. Minor dips or humps can be addressed with a self-leveling compound, typically mixed according to package directions and poured in thin layers. For more significant discrepancies, consider using a leveling compound specifically designed for shower applications, which often offer faster drying times and greater strength.
Don’t overlook the importance of structural integrity. Inspect the subfloor for rot, water damage, or weakened areas. Replace any compromised sections with new plywood, ensuring it’s cut to fit precisely and secured firmly to the joists. Use exterior-grade plywood for added moisture resistance, especially in pier and beam systems where ventilation is crucial.
Bleach and Watch: Safe Shower Tile Cleaning Tips Revealed
You may want to see also
Explore related products
![Cobalt Blue Pebble Tiles for Shower Floor Bathroom Floor Wall Mosaic Tile [Set of 5 Sheets]](https://m.media-amazon.com/images/I/A1YXVXfNUnL._AC_UL320_.jpg)
Installing Waterproofing Membrane: Apply a reliable membrane to prevent water damage and leaks
Water intrusion is the silent saboteur of pier and beam structures, especially in shower floors where constant moisture exposure is inevitable. Without a robust waterproofing membrane, even minor leaks can lead to rot, mold, and structural compromise over time. Selecting the right membrane—whether liquid-applied, sheet-based, or cementitious—is critical, but proper installation is equally vital. Inadequate adhesion, missed seams, or insufficient curing can render even the highest-quality membrane ineffective. This step is not merely precautionary; it’s foundational to the longevity of your shower floor.
Begin by ensuring the substrate is clean, dry, and free of debris. Any residual adhesive, grease, or loose particles can interfere with adhesion. For liquid membranes, follow the manufacturer’s instructions for mixing ratios—typically, a 1:1 or 2:1 ratio of part A to part B—and apply using a notched trowel or roller. Work in thin, even coats, allowing each layer to cure partially before adding the next. Sheet membranes, such as PVC or rubberized asphalt, require precise cutting and overlapping at seams, often sealed with compatible tape or adhesive. Cementitious membranes, applied as a slurry, demand thorough mixing and uniform application to achieve the specified thickness, usually 2–3 mm.
One common mistake is neglecting corners, edges, and penetrations. These areas are particularly vulnerable to water infiltration and require meticulous attention. Use a brush to apply membrane material into corners and around drains, ensuring full coverage. For drains, consider a pre-formed waterproof collar or seal the area with a compatible sealant after membrane installation. Another critical detail is the transition between the shower floor and walls. Extend the membrane vertically at least 6 inches onto adjacent walls or integrate it with the wall waterproofing system to create a continuous barrier.
Curing time is non-negotiable. Rushing this step can lead to delamination or reduced effectiveness. Liquid membranes typically require 24–48 hours to cure, depending on humidity and temperature, while cementitious options may need up to 72 hours. Avoid exposing the membrane to water or foot traffic during this period. Once cured, perform a flood test by filling the shower pan with water for 24 hours to check for leaks. Any pooling or seepage indicates a flaw in the membrane application that must be addressed before proceeding with tiling or finishing.
The investment in a high-quality waterproofing membrane and its proper installation pays dividends in the form of structural integrity and peace of mind. While the process demands precision and patience, the alternative—costly repairs due to water damage—is far more burdensome. Treat this step as the invisible armor that safeguards your pier and beam shower floor, ensuring it remains functional and beautiful for years to come.
Easy DIY Guide to Replacing Your Shower Exhaust Fan
You may want to see also
Explore related products
Laying New Tiles and Grout: Choose suitable tiles, set them evenly, and grout for a durable finish
Selecting the right tiles for your shower floor is crucial, as not all tiles are created equal in terms of durability and slip resistance. Porcelain or ceramic tiles with a textured surface are ideal, offering both strength and safety. Avoid glass or highly polished tiles, which can become hazardous when wet. Consider the size and shape of the tiles as well—smaller tiles, such as mosaics, can provide better traction and are easier to cut for fitting around drains or corners. For a pier and beam structure, where movement and settling may occur, flexible tiles like those made from rubber or vinyl could be a practical alternative, though they may lack the aesthetic appeal of traditional tiles.
Once you’ve chosen your tiles, setting them evenly is essential for both appearance and functionality. Begin by preparing the subfloor, ensuring it’s clean, level, and waterproofed with a suitable membrane. Use a high-quality tile adhesive, applying it with a notched trowel to create an even bed. Start laying tiles from the center of the shower floor outward, using spacers to maintain consistent gaps. Press each tile firmly into the adhesive, checking with a level to ensure it’s flat. For uneven pier and beam floors, consider using a self-leveling compound before tiling to minimize the risk of cracks or shifting over time.
Grouting is the final step that ties your tile installation together, providing both structural integrity and a finished look. Choose a grout that’s resistant to moisture and mold, such as epoxy or cementitious grout with a sealant additive. Mix the grout according to the manufacturer’s instructions, ensuring a smooth, lump-free consistency. Apply the grout diagonally across the tiles using a rubber float, pressing it into the joints. After the grout begins to set (typically 15–30 minutes), wipe the tiles with a damp sponge to remove excess grout, being careful not to pull grout from the joints. Allow the grout to cure fully, usually 24–48 hours, before using the shower.
A common mistake in tiling shower floors is rushing the process, which can lead to uneven tiles or poorly filled grout lines. Take your time, especially when working with a pier and beam foundation, as subtle shifts in the structure can affect tile alignment. If you’re unsure about your skills, consider hiring a professional for this step. Additionally, invest in quality tools like a tile cutter, rubber mallet, and grout float to ensure precision. Properly laid tiles and grout not only enhance the aesthetic of your shower but also contribute to its longevity, preventing water damage and mold growth in the long run.
Finally, maintenance is key to preserving your newly tiled shower floor. Regularly clean the grout with a mild detergent and a soft brush to prevent dirt buildup. Reapply a grout sealer every 1–2 years to protect against moisture infiltration. For pier and beam homes, periodically inspect the shower floor for any signs of movement or cracking, addressing issues promptly to avoid costly repairs. With the right materials, careful installation, and ongoing care, your tiled shower floor will remain a durable and attractive feature for years to come.
Revive Your Shower: Easy Steps to Reseal Tile Grout
You may want to see also
Frequently asked questions
First, remove the existing shower floor, including tiles, mortar, and waterproofing. Inspect the subfloor and joists for damage, repair as needed, and ensure proper slope for drainage. Install a new waterproof membrane, followed by a mortar bed, and finally lay new tiles or flooring material.
Use a high-quality waterproof membrane like PVC or CPE, ensuring it extends up the walls and is properly sealed at seams and corners. Test the membrane for leaks before proceeding with the mortar bed and tiling.
While DIY is possible for those with experience, hiring a professional is recommended due to the complexity of waterproofing, ensuring proper slope, and avoiding structural damage in a pier and beam foundation.
Use water-resistant materials like porcelain or ceramic tiles, natural stone, or waterproof flooring systems. Ensure the subfloor is sturdy and properly prepared with a mortar bed for longevity.
Inspect the subfloor and joists for mold, rot, or water damage. Replace any damaged wood, treat the area with a mold inhibitor, and ensure proper ventilation to prevent future issues.
