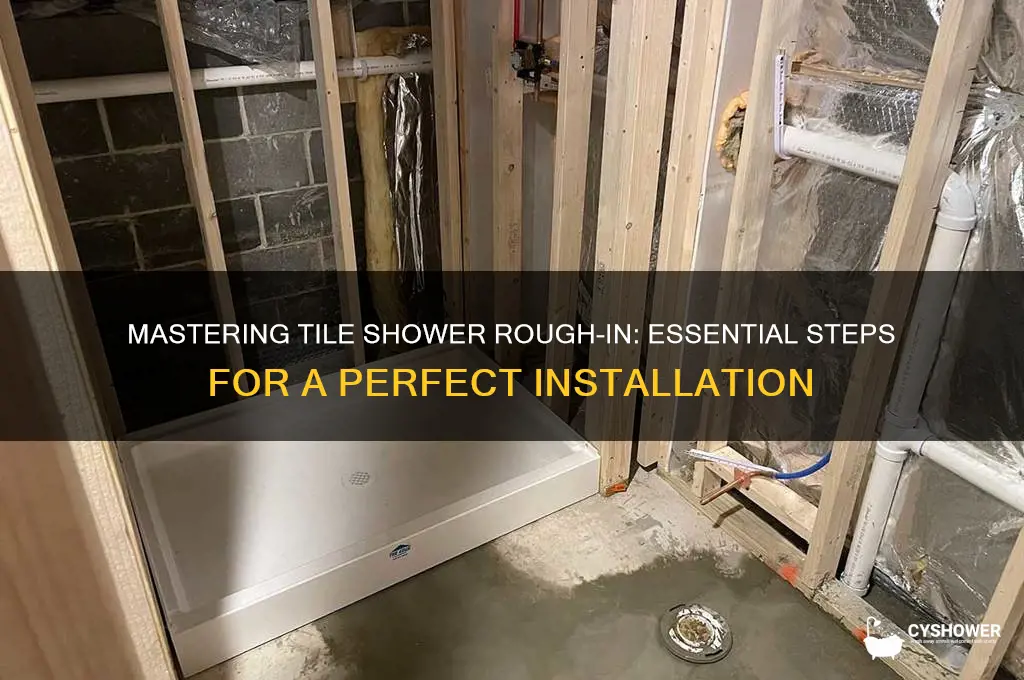

Roughing in a tile shower is a critical step in the bathroom renovation process, laying the groundwork for a durable and watertight installation. It involves preparing the shower’s substructure, including framing, waterproofing, and installing the necessary plumbing and drainage systems. Proper rough-in ensures the shower is structurally sound, prevents water damage, and provides a stable base for tile installation. This phase requires careful planning, precise measurements, and adherence to building codes to ensure functionality and longevity. By mastering the rough-in process, you can create a shower that not only looks great but also stands the test of time.
Explore related products
What You'll Learn
- Plan Shower Layout: Measure space, mark drain location, and outline shower walls for tile placement
- Install Shower Pan: Ensure proper slope for drainage and waterproof the base
- Waterproof Walls: Apply waterproofing membrane to walls to prevent moisture damage
- Set Shower Curb: Build and secure curb to contain water within the shower area
- Install Drain Assembly: Connect drain to plumbing and secure it in place
Plan Shower Layout: Measure space, mark drain location, and outline shower walls for tile placement
Accurate measurements are the foundation of a successful tile shower installation. Begin by measuring the length and width of your shower space, accounting for any alcoves or niches. Use a tape measure and record dimensions to the nearest 1/16 inch for precision. Consider the size of your chosen tiles and plan for grout lines, typically 1/8 inch for wall tiles and 1/4 inch for floor tiles. This ensures your layout is both functional and aesthetically pleasing.
The drain location dictates the slope of your shower floor, which is critical for proper water drainage. Mark the center of the drain using a level and a straightedge to ensure accuracy. From this point, plan a slope of 1/4 inch per foot toward the drain. This gradient prevents water pooling and reduces the risk of mold or mildew. Double-check your markings by pouring a small amount of water on the floor to confirm it flows toward the drain.
Outlining shower walls for tile placement requires careful planning to minimize cuts and ensure a cohesive design. Start by marking the height of your shower walls, typically 7 feet from the floor to the ceiling. Use a level to draw straight lines along the walls, ensuring they are plumb. Next, lay out your tiles dry to visualize the pattern and adjust for any offsets or focal points, such as a decorative band or niche. Mark the positions of whole tiles first, then measure and mark where cuts will be needed.
A practical tip for aligning tiles is to use a chalk line or laser level to create reference points. For example, snap a chalk line at the midpoint of each wall to ensure symmetry. If your shower includes a niche, outline its dimensions on the wall, ensuring it aligns with your tile layout. This step prevents awkward cuts and ensures the niche integrates seamlessly into the design.
Finally, consider the placement of fixtures like showerheads, valves, and soap dishes. Mark these locations on the walls, ensuring they align with your tile layout and are within reach. For instance, a showerhead should be positioned 72–78 inches above the floor for most adults. By integrating these elements into your layout, you create a functional and visually balanced shower space.
Tile Shower Drawbacks: Maintenance, Cost, and Installation Challenges Explained
You may want to see also
Explore related products
Install Shower Pan: Ensure proper slope for drainage and waterproof the base
A shower pan is the foundation of your tile shower, and its installation demands precision. Without a proper slope, water pools, leading to mold, mildew, and structural damage. Aim for a gradient of 1/4 inch per foot, directing water toward the drain. This slope isn't just a suggestion—it's a necessity for efficient drainage and long-term durability.
Achieving the correct slope begins with careful planning. Use a level and straightedge to mark the desired gradient on the subfloor. For a 3x3-foot shower, for instance, the back wall should be 3/4 inch higher than the drain. Mix a thin-set mortar or use a pre-sloped foam base, following manufacturer instructions for consistency. Apply the mortar in layers, compacting and smoothing each one to maintain the slope. A slight overapplication is better than under, as you can sand or grind excess later.
Waterproofing the shower pan is equally critical. Even a small breach can lead to costly repairs. Apply a liquid waterproofing membrane, such as a polymer-modified coating, in two coats. Ensure the first coat dries completely before applying the second, typically after 24 hours. Pay special attention to corners, seams, and the drain area, as these are common failure points. For added protection, install a waterproof membrane like PVC or CPE sheeting beneath the mortar bed, especially in high-moisture environments.
Comparing methods, a pre-formed shower pan offers convenience but limits customization. A mortar-based pan, while labor-intensive, allows for precise slope control and seamless integration with tile. If opting for mortar, consider using a pre-sloped drain kit to simplify the process. Regardless of the method, test the pan for leaks before tiling. Fill it with water and let it sit for 24 hours, checking for moisture below. This small step can prevent major headaches later.
In conclusion, installing a shower pan requires attention to detail and adherence to best practices. Proper slope ensures drainage, while waterproofing safeguards against leaks. By combining these elements, you create a reliable base for your tile shower, setting the stage for a functional and beautiful finished product. Skimping on this step may save time upfront but will cost you dearly in repairs down the line.
Fixing Cracked Shower Tiles: A Step-by-Step Repair Guide
You may want to see also
Explore related products
Waterproof Walls: Apply waterproofing membrane to walls to prevent moisture damage
Moisture is the silent enemy of any shower installation, capable of causing mold, mildew, and structural decay over time. To combat this, applying a waterproofing membrane to the walls is a non-negotiable step in the rough-in process. This barrier acts as a shield, preventing water from seeping into the substrate and ensuring the longevity of your tile shower. Without it, even the most meticulously laid tiles will eventually fail under the relentless assault of daily showers.
The application of a waterproofing membrane is both an art and a science. Begin by ensuring the walls are clean, dry, and free of debris. For optimal adhesion, use a notched trowel to apply the membrane in thin, even coats, following the manufacturer’s instructions for coverage rates—typically around 50–75 square feet per gallon. Pay special attention to corners, seams, and areas around fixtures, as these are common entry points for water. Allow each coat to cure fully before applying the next, usually 24–48 hours depending on humidity and temperature.
Not all waterproofing membranes are created equal. Liquid-applied membranes, such as those from brands like RedGard or Hydro Barrier, are popular for their ease of application and ability to conform to uneven surfaces. Sheet membranes, like those from Schluter Systems (e.g., Kerdi-Board), offer a more rigid solution, ideal for showers with heavy tile loads or complex designs. Choose a product that aligns with your project’s specific needs, considering factors like flexibility, curing time, and compatibility with your tile adhesive.
A common mistake is neglecting to extend the waterproofing membrane beyond the shower area. To prevent water migration, the membrane should overlap onto adjacent walls by at least 6 inches and onto the shower pan or floor by 2–3 inches. Additionally, test the membrane’s integrity before tiling by flooding the area with water for 24 hours, checking for leaks or weak spots. This precautionary step can save you from costly repairs down the line.
In the end, waterproofing walls is not just a step—it’s an investment in the durability and safety of your shower. By selecting the right membrane, applying it meticulously, and ensuring full coverage, you create a robust defense against moisture. This foundational layer, though hidden beneath the tiles, is what transforms a vulnerable structure into a waterproof sanctuary, ready to withstand years of use.
Does Flexing in a Shower Pan Cause Tile Cracks? Find Out
You may want to see also
Explore related products
Set Shower Curb: Build and secure curb to contain water within the shower area
A shower curb is more than a mere threshold; it’s the first line of defense against water escaping into your bathroom. Without a properly built and secured curb, even the most meticulously tiled shower will fail to contain water, leading to potential water damage, mold, and costly repairs. Think of it as the unsung hero of your shower system—invisible but indispensable.
Step-by-Step Construction: Begin by framing the curb using pressure-treated 2x4 lumber, ensuring it’s level and plumb. The curb should be at least 2 inches higher than the shower floor to effectively contain water. Attach it securely to the floor joists or subfloor using galvanized screws or nails to prevent movement. Next, apply a waterproof membrane, such as a liquid waterproofing compound or a peel-and-stick membrane, to the entire curb structure. This step is non-negotiable, as it prevents water infiltration into the wood. Finally, apply a layer of mortar mix to the curb, sloping it slightly toward the shower to encourage water runoff.
Material Considerations: While wood is commonly used for framing, consider using cement board or concrete blocks for added durability, especially in high-moisture environments. For the top of the curb, use a material that complements your tile design—natural stone, porcelain, or ceramic tiles are popular choices. Ensure the tiles are cut precisely to fit the curb’s dimensions, and use a waterproof thinset mortar to secure them in place.
Common Pitfalls to Avoid: One of the most frequent mistakes is neglecting to slope the curb correctly. A flat or improperly sloped curb will allow water to pool, defeating its purpose. Another error is skipping the waterproofing step, which can lead to rot and structural failure over time. Additionally, avoid using standard drywall screws or untreated wood, as these materials will deteriorate quickly in wet conditions.
Final Touches: Once the curb is tiled and the grout has cured, apply a bead of silicone caulk along the seam where the curb meets the shower floor and walls. This creates a flexible, watertight seal that accommodates minor shifts in the structure. Test the curb by running water into the shower and checking for leaks before proceeding with the rest of the tile installation. A well-built curb not only ensures a functional shower but also enhances the overall aesthetic, seamlessly integrating with your tile design.
By treating the shower curb as a critical component of your rough-in process, you’ll create a shower that’s not only beautiful but also built to last. It’s the kind of detail that separates a professional installation from an amateur one—and it’s worth getting right the first time.
Replacing a Tile Shower Pan: Is It a DIY Challenge?
You may want to see also
Explore related products
Install Drain Assembly: Connect drain to plumbing and secure it in place
The drain assembly is the unsung hero of your shower, quietly preventing water from pooling and mold from creeping in. Installing it correctly is crucial, as a misaligned or leaky drain can lead to costly repairs down the line. Begin by ensuring the drain pipe is cut to the proper height, typically flush with the shower floor. Use a hacksaw or PVC cutter for precision, and deburr the edges to avoid damaging the drain components.
Next, apply a bead of silicone sealant or plumber’s putty around the drain’s flange to create a watertight seal. This step is often overlooked but is essential for preventing water seepage beneath the shower pan. Thread the drain body onto the pipe, tightening it by hand before using a wrench to secure it firmly. Be cautious not to overtighten, as this can crack the drain or damage the pipe threads.
Once the drain is connected, test its alignment by placing a level on the flange. A misaligned drain will cause water to pool unevenly, defeating the purpose of your meticulously tiled shower. Adjust the height by adding or removing shims beneath the drain body until it’s perfectly level. This small detail ensures efficient drainage and a professional finish.
Finally, secure the drain strainer or cover according to the manufacturer’s instructions. Some models screw into place, while others require a snap-on mechanism. Double-check all connections for leaks by running water through the drain and inspecting for drips. A properly installed drain assembly not only functions flawlessly but also sets the stage for a seamless tile installation, blending form and function in your shower design.
Understanding Standard Tile Shower Dimensions for Your Bathroom Design
You may want to see also
Frequently asked questions
The first step is to plan the layout and ensure the shower area is framed correctly, including proper slope for drainage and support for the shower pan or liner.
Ensure the shower floor has a slope of at least 1/4 inch per foot toward the drain to allow water to flow efficiently and prevent standing water.
You’ll need a shower pan or liner, cement board or waterproof backer board, waterproofing membrane, screws, and a drain assembly.
Apply a waterproofing membrane to the walls and floor, following the manufacturer’s instructions. Common options include liquid waterproofing or sheet membranes.
A shower liner or pan acts as a secondary waterproofing layer, catching any water that penetrates the tile and grout, directing it to the drain, and preventing leaks.
