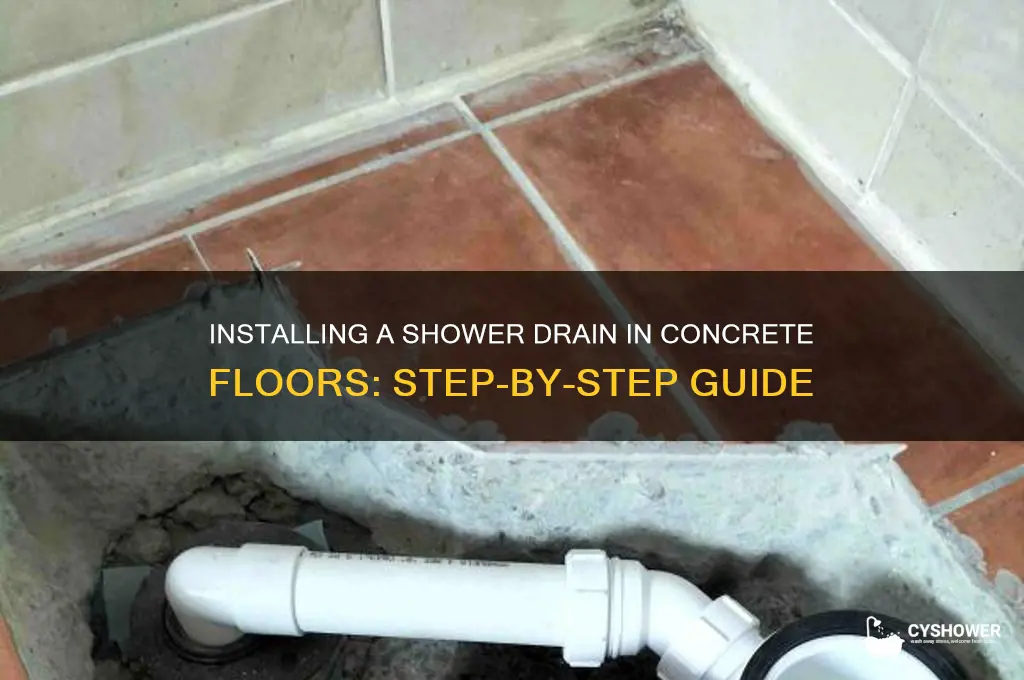

Setting a drain for a shower in a concrete floor requires careful planning and execution to ensure proper water drainage and prevent leaks. The process begins with determining the optimal location for the drain, typically at the lowest point of the shower area, and ensuring it aligns with the existing plumbing system. Next, the concrete floor must be cut and excavated to accommodate the drain assembly, which includes a drain body, strainer, and piping. It is crucial to slope the surrounding concrete toward the drain to facilitate water flow, often at a gradient of 1/4 inch per foot. Waterproofing the area around the drain with a suitable membrane is essential to protect the subfloor from moisture damage. Finally, the drain is installed, secured, and connected to the plumbing system, followed by testing for proper functionality before finishing the shower floor.
| Characteristics | Values |
|---|---|
| Drain Type | Linear drain or center drain (choose based on shower design) |
| Drain Location | Centered or along one edge, ensuring proper slope for water flow |
| Slope Requirement | 1/4 inch per foot (2% slope) toward the drain |
| Concrete Floor Preparation | Remove existing flooring, clean, and ensure the area is level |
| Drain Assembly | Includes drain body, grate, clamp ring, and waterproofing membrane |
| Waterproofing | Apply waterproofing membrane (e.g., liquid waterproofing or sheet membrane) around the drain and shower area |
| Rough-In Height | Set drain height to allow for slope, tile thickness, and mortar bed |
| Mortar Bed | Install a mortar bed to create the required slope toward the drain |
| Tile Installation | Install tiles following the slope, ensuring proper alignment with the drain |
| Drain Grate Installation | Secure the grate after tiling is complete |
| Tools Required | Hammer drill, rotary hammer, trowel, level, waterproofing tools, etc. |
| Material Compatibility | Ensure drain materials are compatible with concrete and waterproofing |
| Compliance | Follow local building codes and plumbing regulations |
| Time Frame | 2-3 days (including curing time for concrete and waterproofing) |
| Difficulty Level | Intermediate to advanced (requires precise slope and waterproofing) |
| Cost | Varies based on drain type, materials, and labor (approx. $200-$800) |
Explore related products
What You'll Learn
- Prepare Floor Opening: Cut precise hole in concrete, ensuring proper size and alignment for drain placement
- Install Drain Base: Secure drain body in opening, using mortar or adhesive for stability
- Create Slope: Slope concrete around drain to ensure water flows efficiently toward it
- Seal Drain Edges: Apply waterproof sealant to prevent leaks between drain and concrete
- Test Drain Functionality: Pour water to verify proper drainage and check for pooling or leaks
Prepare Floor Opening: Cut precise hole in concrete, ensuring proper size and alignment for drain placement
To prepare the floor opening for a shower drain in a concrete floor, the first step is to determine the exact location and size of the hole required. Measure the dimensions of your shower drain assembly, typically found in the manufacturer's instructions, and mark the center point of the drain on the concrete floor. Ensure this spot aligns with your shower's layout and plumbing plans. Accuracy at this stage is crucial to avoid complications later.
Once the center point is marked, use a straight edge or carpenter's square to draw the outline of the hole. The size should accommodate the drain body and allow for a slight gap around the edges for adjustments during installation. Double-check the alignment and dimensions before proceeding, as mistakes in this step can be costly and time-consuming to correct.
With the outline in place, equip yourself with the appropriate tools for cutting concrete. A concrete saw with a diamond blade is the most effective tool for this task, as it provides precision and control. Wear safety gear, including eye protection, gloves, and a dust mask, to protect yourself from debris and dust. Begin cutting along the marked lines, maintaining a steady hand and consistent speed to ensure a clean and accurate cut.
After cutting through the concrete, remove the excess material carefully. Use a chisel and hammer to break away any remaining pieces and ensure the edges of the hole are smooth and free of debris. Vacuum or brush away any dust and small particles to create a clean work area. Inspect the hole to confirm it matches the required size and alignment for the drain assembly.
Finally, test-fit the drain body into the opening to ensure proper alignment and fit. Make any necessary adjustments by slightly enlarging the hole or smoothing the edges. This step is essential to guarantee that the drain sits flush with the floor and functions correctly. Once satisfied with the fit, proceed with the next steps of installing the drain assembly according to the manufacturer's guidelines.
Fix Your Thermostatic Shower Valve: Step-by-Step Repair Guide
You may want to see also
Explore related products
Install Drain Base: Secure drain body in opening, using mortar or adhesive for stability
Before securing the drain body, ensure the opening in the concrete floor is clean and free of debris. Use a wire brush or vacuum to remove any dust, concrete remnants, or loose particles. The opening should be precisely the size recommended by the drain manufacturer to ensure a proper fit. If adjustments are needed, use a masonry saw or grinder to refine the edges, ensuring they are smooth and even. This preparation is crucial for a stable and watertight installation.
Once the opening is ready, position the drain body into the hole, ensuring it sits level with the surrounding floor. Use a level tool to verify that the drain is perfectly horizontal, as any tilt can lead to improper drainage. If the drain body has adjustable feet or extensions, adjust them to achieve the correct height and alignment. Double-check the positioning to ensure the drain is centered and flush with the floor surface before proceeding to secure it.
To secure the drain body, apply a high-quality mortar or adhesive specifically designed for wet environments. Mix the mortar according to the manufacturer’s instructions, ensuring a thick, consistent consistency. Apply a generous layer of mortar or adhesive to the underside of the drain flange and around the edges of the opening. Press the drain firmly into place, ensuring full contact between the mortar and the concrete floor. Use a trowel to remove any excess mortar that squeezes out from the sides.
For added stability, consider using mechanical fasteners such as screws or bolts if the drain body is designed for them. Pre-drill holes through the drain flange and into the concrete, then secure the drain with stainless steel screws or bolts to prevent corrosion. Tighten the fasteners evenly to avoid warping the drain body. This step is optional but provides extra assurance, especially in high-traffic shower areas.
Allow the mortar or adhesive to cure fully according to the product’s recommended drying time, typically 24 to 48 hours. Avoid any water exposure or heavy use during this period to ensure the drain is securely bonded to the concrete floor. Once cured, test the drain by pouring water into it to ensure proper flow and check for any leaks around the edges. If everything is secure and watertight, proceed with the next steps of shower installation, such as waterproofing and tiling.
Easy DIY Guide to Repairing Your Shower Enclosure Quickly
You may want to see also
Explore related products
Create Slope: Slope concrete around drain to ensure water flows efficiently toward it
To create an effective slope around the shower drain in a concrete floor, precision and planning are essential. Begin by marking the area where the slope will be formed, ensuring it extends outward from the drain in all directions. The slope should be gradual, typically around 1/4 inch per foot, to allow water to flow smoothly toward the drain without pooling. Use a straightedge or level to verify the slope’s consistency, as an uneven surface can lead to water stagnation. Before pouring the concrete, ensure the subfloor is clean, dry, and free of debris to achieve proper adhesion.
Once the area is prepared, mix the concrete according to the manufacturer’s instructions, ensuring it has a workable consistency. Pour the concrete around the drain, starting from the outer edges and working inward. Use a trowel or screed to spread the concrete evenly, maintaining the marked slope. It’s crucial to work quickly but carefully, as concrete sets rapidly. Periodically check the slope with a level or straightedge to ensure it remains consistent and directs water toward the drain. If adjustments are needed, make them while the concrete is still pliable.
After the initial pour, allow the concrete to set slightly but not fully harden. Then, use a float or trowel to smooth the surface and refine the slope. Pay close attention to the area immediately surrounding the drain, as this is where water will naturally accumulate. Ensure the slope is seamless and free of any ridges or dips that could impede water flow. If the drain has a collar or flange, ensure the concrete is properly integrated around it to prevent leaks.
Once the concrete is smoothed and the slope is confirmed, allow it to cure according to the recommended time frame. During this period, protect the area from foot traffic and moisture to avoid compromising the slope’s integrity. After curing, test the slope by spraying water across the surface to ensure it flows directly toward the drain. If any adjustments are needed, they can be made with a concrete grinder or additional thin-set mortar, though it’s best to get it right during the initial pour.
Finally, install the shower pan or waterproofing membrane over the sloped concrete, ensuring it adheres properly to the surface. The slope beneath will work in conjunction with the waterproofing layer to direct water toward the drain, preventing leaks and water damage. Properly sloped concrete not only ensures efficient drainage but also extends the life of the shower system by minimizing standing water and moisture buildup. With careful planning and execution, this step is fundamental to a successful shower drain installation in a concrete floor.
Effective Tools and Products to Unclog Your Shower Drain Fast
You may want to see also
Explore related products
Seal Drain Edges: Apply waterproof sealant to prevent leaks between drain and concrete
Sealing the edges of the shower drain is a critical step in preventing water leaks and ensuring the longevity of your shower installation in a concrete floor. Begin by thoroughly cleaning the area around the drain to remove any dust, debris, or residue from the concrete cutting process. Use a stiff brush or vacuum to ensure the surface is completely clean, as any contaminants can compromise the adhesion of the sealant. Once the area is clean, inspect the gap between the drain assembly and the concrete to ensure it is uniform and free of irregularities.
Next, select a high-quality waterproof sealant specifically designed for wet areas, such as silicone or polyurethane sealant. These materials are flexible, durable, and resistant to moisture, making them ideal for sealing shower drains in concrete floors. Before applying the sealant, prepare the area by masking off the edges of the drain and the surrounding concrete with painter’s tape. This will create a neat finish and prevent excess sealant from adhering to unwanted areas. Ensure the tape is securely pressed down to avoid seepage underneath.
Apply the sealant generously to the gap between the drain and the concrete, using a caulking gun for precision. Start at one end of the drain and work your way around, maintaining a consistent bead of sealant. Use a sealant smoothing tool or a gloved finger dipped in water to tool the sealant, creating a smooth, even surface that fully fills the gap. Pay close attention to corners and edges, as these areas are prone to cracking and leakage if not properly sealed. Allow the sealant to cure according to the manufacturer’s instructions, typically 24 to 48 hours, depending on the product.
After the sealant has cured, remove the masking tape carefully to reveal a clean, professional finish. Inspect the sealed edges to ensure there are no gaps, cracks, or thin spots that could allow water to penetrate. If any issues are found, apply additional sealant to address them. Properly sealing the drain edges not only prevents water from seeping into the concrete substrate but also protects against mold, mildew, and structural damage over time.
Finally, test the drain for leaks by running water through it and checking for any signs of moisture around the sealed edges. If no leaks are detected, proceed with the remaining shower installation steps, such as waterproofing the walls and floor. By taking the time to seal the drain edges correctly, you ensure a watertight shower that will remain functional and leak-free for years to come.
Quick Fixes for Unclogging Your Slow Draining Shower Easily
You may want to see also
Explore related products
Test Drain Functionality: Pour water to verify proper drainage and check for pooling or leaks
Once the shower drain has been installed in the concrete floor, it’s crucial to test its functionality to ensure it works as intended. Testing the drain involves pouring water to verify proper drainage and checking for any pooling or leaks. Begin by slowly pouring a few gallons of water directly into the drain. Observe how quickly the water disappears; it should flow smoothly without hesitation. If the water drains slowly or backs up, this could indicate a clog, improper slope, or incorrect installation of the drain pipe. Address any issues immediately to prevent future problems.
Next, inspect the area around the drain for pooling water. Even minor pooling can lead to water seepage into the concrete, causing damage over time. Use a level to ensure the shower floor slopes correctly toward the drain. If pooling occurs, it may be necessary to adjust the slope by grinding down the concrete or adding a thin layer of mortar. Additionally, check the edges of the drain for any gaps or cracks where water might escape. Seal these areas with a waterproof sealant to prevent leaks.
After testing the drain itself, examine the underside of the concrete floor for any signs of leakage. If the shower is on a second floor or above a living space, inspect the ceiling or walls below for water stains or dampness. For ground-level showers, look for moisture accumulation in the crawl space or basement. Leaks often indicate a problem with the drain’s waterproofing or the integrity of the pipe connections. If leaks are detected, disassemble the drain assembly, reapply waterproofing materials, and ensure all connections are tight and secure.
To further validate the drain’s functionality, perform a prolonged water test. Pour water continuously into the drain for several minutes, simulating heavy shower usage. Monitor the drain’s performance and the surrounding area for the entire duration. This test helps identify issues that may not appear during a brief water pour, such as slow drainage or hidden leaks. If the drain passes this test without pooling or leaks, it’s likely installed correctly. However, if problems persist, consult a professional plumber or contractor to assess and rectify the issue.
Finally, document the test results for future reference. Note any adjustments made during the testing process and ensure all waterproofing and sealing work is completed before proceeding with tiling or finishing the shower floor. Properly testing the drain functionality not only ensures the shower’s efficiency but also protects the structural integrity of the concrete floor and surrounding areas. Taking the time to thoroughly test the drain will save time and money by preventing costly repairs down the line.
Quick DIY Fix for Hairline Cracks in Your Shower Enclosure
You may want to see also
Frequently asked questions
The shower floor should slope toward the drain at a minimum gradient of 1/4 inch per foot (approximately 2%). This ensures proper water drainage and prevents standing water. Use a level and marking tools to plan the slope before cutting or modifying the concrete.
You’ll need a concrete saw or rotary hammer with a masonry bit, safety gear (gloves, goggles, dust mask), a measuring tape, and a marker. For precision, consider using a diamond blade for the saw to ensure a clean cut.
First, cut the opening for the drain using the appropriate tools. Then, ensure the drain assembly fits properly and apply a waterproof sealant around the edges. Connect the drain to the plumbing system, test for leaks, and finally, apply a waterproof membrane over the concrete before tiling.
If the existing floor is level and allows for proper slope, you may be able to use a low-profile drain or adjust the drain height with a drain extender. However, breaking the concrete is often necessary to achieve the required slope and ensure proper drainage.
