Setting the drain in a tile shower during a hot mop installation is a critical step that ensures proper water drainage and prevents leaks. Hot mopping involves applying a waterproof layer of mortar to the shower floor, and the drain must be correctly positioned and secured to integrate seamlessly with this layer. To begin, the drain assembly should be installed at the lowest point of the shower floor, ensuring it aligns with the pre-sloped substrate. A waterproof membrane is then applied around the drain to create a barrier against moisture. Once the membrane is in place, a layer of mortar is carefully built up around the drain, sloping it toward the drain opening to facilitate water flow. This process requires precision to avoid cracks or gaps that could compromise the shower’s waterproofing. Properly setting the drain not only ensures functionality but also extends the lifespan of the shower by preventing water damage beneath the tiles.
| Characteristics | Values |
|---|---|
| Drain Type | Linear or center drain |
| Hot Mop Material | Clay-based mortar (typically Portland cement and sand mix) |
| Application Method | Hand-troweled in a thick, consistent layer |
| Thickness | 1.5 to 2 inches (38 to 50 mm) |
| Slope Requirement | 1/4 inch per foot (2% slope) toward the drain |
| Curing Time | 24 to 48 hours before waterproofing |
| Waterproofing Layer | Liquid membrane or sheet membrane applied over hot mop |
| Tile Setting | Directly over the waterproofed hot mop layer |
| Grout Type | Unsanded or sanded grout depending on tile spacing |
| Maintenance | Regular sealing of grout and tiles; inspect for cracks or leaks |
| Skill Level Required | Advanced (professional installation recommended) |
| Cost | Higher than traditional methods due to labor and materials |
| Durability | Highly durable and waterproof when installed correctly |
| Common Use | Tile showers, steam rooms, and wet areas |
| Tools Needed | Trowel, mixing tools, waterproofing materials, tile cutter |
| Drying Conditions | Controlled environment (low humidity, moderate temperature) |
Explore related products
What You'll Learn
- Prepare the Shower Pan: Ensure proper slope, clean surface, and waterproof membrane installation for effective drainage
- Apply Hot Mop Material: Heat and spread asphalt or tar evenly to create a waterproof barrier
- Install Drain Assembly: Secure the drain body, clamp, and grate, ensuring alignment with the shower pan slope
- Test for Leaks: Flood the pan with water to check for proper drainage and waterproofing integrity
- Finish Tile Installation: Lay tiles over the hot mop layer, ensuring adhesion and seamless integration with the drain
Prepare the Shower Pan: Ensure proper slope, clean surface, and waterproof membrane installation for effective drainage
A properly prepared shower pan is the foundation of a leak-free, long-lasting tile shower. Think of it as the invisible hero, directing water towards the drain and preventing moisture from seeping into your subfloor.
Achieving this requires meticulous attention to three key elements: slope, cleanliness, and waterproofing.
Imagine a shallow bowl tilted ever so slightly – that's the essence of the slope. A minimum gradient of 1/4 inch per foot is crucial, ensuring water doesn't pool and stagnate. This gentle incline guides water directly to the drain, preventing soap scum buildup and potential mold growth.
Before laying any waterproofing membrane, the shower pan surface must be immaculate. Remove all debris, dust, and loose particles. Any imperfections will compromise the membrane's adhesion, leading to potential leaks. Think of it as preparing a canvas for a masterpiece – a smooth, clean surface is essential for a flawless finish.
Once the slope is established and the surface is pristine, it's time for the waterproofing membrane. This acts as a barrier, preventing water from penetrating the substrate. Choose a membrane specifically designed for wet areas, such as a liquid-applied membrane or a sheet membrane. Follow the manufacturer's instructions meticulously, ensuring complete coverage and proper curing time.
Remember, a well-prepared shower pan is an investment in the longevity and functionality of your tile shower. Skimping on slope, cleanliness, or waterproofing will inevitably lead to costly repairs down the line. By following these steps diligently, you'll create a shower that not only looks beautiful but also performs flawlessly for years to come.
Tile Shower Marble Threshold: Pros, Cons, and Design Considerations
You may want to see also
Explore related products
Apply Hot Mop Material: Heat and spread asphalt or tar evenly to create a waterproof barrier
The application of hot mop material is a critical step in creating a waterproof barrier for your tile shower, ensuring longevity and preventing water damage. This traditional method, often favored by professionals, involves heating and spreading asphalt or tar to form a seamless, impermeable layer. The process begins with heating the asphalt or tar to a specific temperature, typically between 350°F and 400°F, using a specialized kettle or hot mop machine. This temperature range ensures the material is pliable enough to spread evenly but not so hot that it becomes difficult to handle or compromises its adhesive properties.
Once heated, the material is applied in thin, even layers using a mop or trowel, starting from the drain and working outward. The key to success lies in maintaining consistent thickness and ensuring complete coverage, especially around corners, seams, and potential weak points. For optimal results, aim for a layer thickness of approximately 1/8 inch, as this provides sufficient waterproofing without adding unnecessary bulk. It’s essential to work quickly but methodically, as the material cools rapidly and becomes harder to manipulate.
A common mistake is uneven application, which can lead to gaps or thin spots that compromise the barrier’s integrity. To avoid this, use a notched trowel to gauge the thickness and ensure uniformity. Additionally, consider applying the material in multiple passes, allowing each layer to cool slightly before adding the next. This technique enhances adhesion and reduces the risk of cracking or peeling over time. For areas prone to heavy water exposure, such as shower floors, a double layer of hot mop material is highly recommended.
While asphalt and tar are the most commonly used materials, modern alternatives like modified asphalt emulsions offer improved flexibility and ease of application. These emulsions can be applied at lower temperatures, reducing the risk of burns and fumes. However, traditional hot mop methods remain unparalleled in terms of durability and reliability, making them the preferred choice for high-moisture environments. Regardless of the material chosen, proper surface preparation is crucial. Ensure the substrate is clean, dry, and free of debris to promote maximum adhesion.
In conclusion, applying hot mop material is a meticulous process that demands precision and attention to detail. By heating the asphalt or tar to the correct temperature, spreading it evenly, and addressing potential problem areas, you can create a robust waterproof barrier that protects your tile shower for years to come. Whether you’re a DIY enthusiast or a seasoned professional, mastering this technique ensures a leak-free, durable installation that stands the test of time.
Choosing the Right Backer Board for Shower Tile Installation
You may want to see also
Explore related products

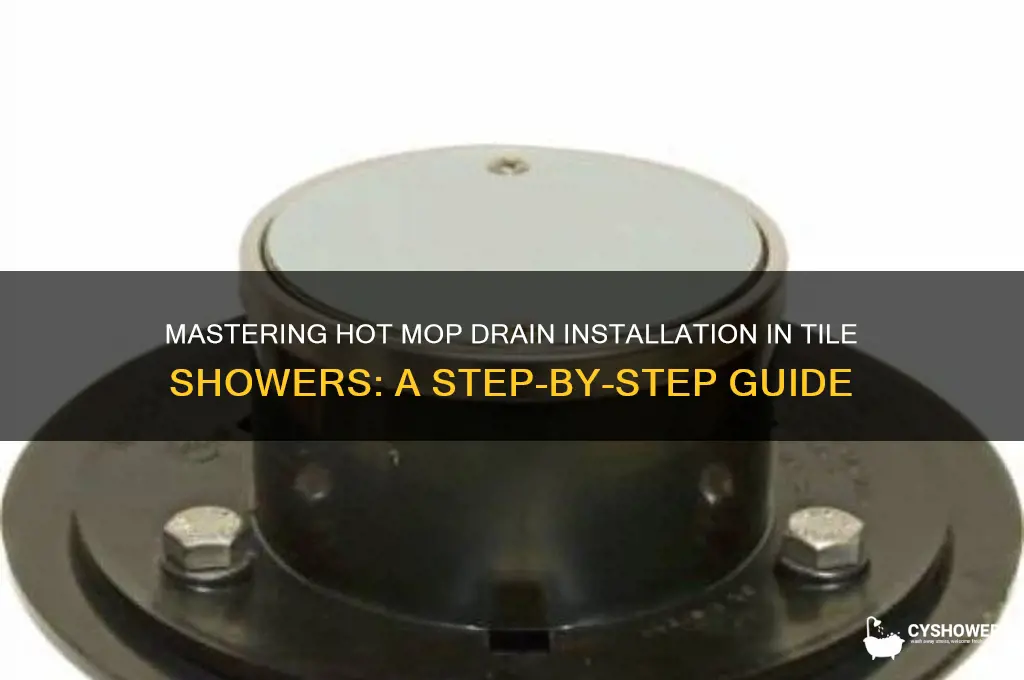

Install Drain Assembly: Secure the drain body, clamp, and grate, ensuring alignment with the shower pan slope
The drain assembly is the unsung hero of a tile shower hot mop, quietly preventing water from pooling and causing damage. Installing it correctly is crucial, and the process begins with securing the drain body, clamp, and grate while ensuring alignment with the shower pan slope. This alignment is vital for proper drainage, preventing water from accumulating and leading to mold, mildew, or structural issues.
Start by placing the drain body into the pre-cut hole in the shower pan, ensuring it fits snugly. The drain body should sit flush with the surface, with its weep holes facing downward to allow water to flow freely. Next, attach the clamp underneath the shower pan, tightening it securely to hold the drain body in place. Over-tightening can damage the pan, so use a torque wrench set to 20-25 foot-pounds for precision. This step is where many DIYers falter, so take your time to ensure a watertight seal.
The grate, often the only visible part of the drain assembly, must align perfectly with the shower pan slope. Hold it in place and check that it sits level with the surrounding tile. If the grate is misaligned, water will pool around it, defeating the purpose of the slope. Use a level and adjust the grate’s position as needed before securing it with screws. For a seamless look, choose a grate that complements your tile design—matte finishes blend well with natural stone, while polished options suit modern aesthetics.
A common mistake is neglecting to test the drain before tiling. Pour water into the shower pan and observe its flow. If it drains slowly or pools, recheck the alignment of the drain body and grate. This simple test can save hours of rework later. Additionally, apply a bead of silicone sealant around the drain body’s edge to create a secondary barrier against leaks. This step is often overlooked but adds an extra layer of protection.
In conclusion, securing the drain body, clamp, and grate with precise alignment to the shower pan slope is a critical step in hot mop installation. It requires attention to detail, from torque settings to visual alignment, but the payoff is a functional, leak-free shower. By following these steps and testing your work, you’ll ensure the drain assembly performs its role flawlessly, preserving the integrity of your tile shower for years to come.
Safe Shower Solutions: Best Non-Slip Products for Slippery Tile Floors
You may want to see also
Explore related products
Test for Leaks: Flood the pan with water to check for proper drainage and waterproofing integrity
Before tiling your shower, ensuring the drain pan is leak-free is critical. A single missed crack or weak seal can lead to water damage, mold, and costly repairs down the line. This is where the flood test comes in—a simple yet indispensable step in the hot mop waterproofing process.
By flooding the pan with water, you simulate real-world shower conditions, exposing any potential weaknesses in the waterproofing membrane or drain assembly. This test isn't just a recommendation; it's a necessity for any shower installation that aims to stand the test of time.
Conducting the Flood Test:
- Preparation: After installing the shower pan liner and ensuring the drain is securely attached, thoroughly clean the pan's surface, removing any debris or residue.
- Water Level: Fill the pan with water to a depth of at least 2 inches above the drain. This ensures the water pressure adequately tests the waterproofing integrity.
- Observation Period: Let the water sit for a minimum of 24 hours. This allows time for any leaks to become apparent, even slow seeps that might not be immediately visible.
- Inspection: After the waiting period, carefully inspect the area beneath the shower pan for any signs of moisture. This includes checking the ceiling below (if applicable) and any adjacent walls.
Interpreting Results:
- No Leaks: If no moisture is detected, congratulations! Your waterproofing is likely sound, and you can proceed with confidence.
- Minor Leaks: Small leaks around the drain or at seams may indicate a need for additional sealing. Carefully identify the source and apply a suitable waterproofing sealant, following manufacturer instructions.
- Major Leaks: Significant leaks suggest a more serious issue, such as a poorly installed liner or a faulty drain assembly. In these cases, it's best to consult a professional plumber or waterproofing specialist to assess and rectify the problem.
Remember: The flood test is a crucial investment of time that can save you from future headaches and expenses. Don't skip this step – a watertight shower starts with a leak-free pan.
Best Shower Floor Tile Options: Durability, Style, and Safety Tips
You may want to see also
Explore related products
Finish Tile Installation: Lay tiles over the hot mop layer, ensuring adhesion and seamless integration with the drain
The final stage of a hot mop shower installation demands precision: laying tiles over the hot mop layer while ensuring a watertight seal around the drain. This step is critical, as improper adhesion or gaps can lead to water infiltration, mold, and structural damage. Begin by allowing the hot mop layer to cure fully, typically 24–48 hours, depending on humidity and temperature. Once cured, the surface should be firm but slightly tacky, providing an ideal base for tile adhesion.
To achieve seamless integration with the drain, start by dry-fitting tiles around the drain assembly. Use a tile spacer to maintain consistent gaps and ensure the drain remains centered. If adjustments are needed, trim tiles with a wet saw, ensuring clean, precise cuts. Apply a waterproof thin-set mortar to the hot mop layer using a notched trowel, following the manufacturer’s recommended coverage rate (typically 1/4-inch notch for most tiles). Press tiles firmly into the mortar, using a slight twisting motion to enhance adhesion. Work in small sections to avoid premature drying of the mortar.
One common mistake is neglecting to slope tiles toward the drain. Use a level to ensure a gradual slope of 1/4 inch per foot, directing water efficiently. For added protection, apply a waterproof membrane over the mortar before tiling, especially in high-moisture areas. Once tiles are set, allow the mortar to cure for at least 24 hours before grouting. Use an unsanded grout for joints under 1/8 inch and a sanded grout for larger gaps, ensuring color consistency with your tile design.
The drain assembly requires special attention. Ensure the tile edges meet the drain flange without gaps. If necessary, use a waterproof sealant (e.g., silicone caulk) around the drain to prevent water seepage. Test the drain by pouring water over the tiled surface before grouting to verify proper flow and identify potential leaks. Address any issues immediately to avoid costly repairs later.
In conclusion, finishing tile installation over a hot mop layer requires meticulous planning, precise execution, and attention to detail. By ensuring proper adhesion, maintaining a consistent slope, and integrating the drain seamlessly, you create a durable, waterproof shower surface. This step-by-step approach not only enhances the aesthetic appeal but also safeguards your investment against water damage, ensuring longevity and functionality.
Fixing Shower Tile Holes: A Step-by-Step Repair Guide
You may want to see also
Frequently asked questions
Hot mopping is a waterproofing technique that involves applying a layer of hot asphalt and fiberglass cloth to the shower pan before tiling. It is necessary for a tile shower drain because it creates a waterproof barrier that prevents water from seeping through the tile and grout, protecting the subfloor and structure from water damage.
To prepare the shower pan for hot mopping, ensure the area is clean, dry, and free of debris. Install the drain assembly according to the manufacturer’s instructions, ensuring it is level and securely anchored. The shower pan should slope slightly toward the drain to allow proper water flow. Once the drain is set, the area is ready for the hot mop application.
While it is possible to use alternative waterproofing methods like liquid membranes, hot mopping is considered one of the most reliable and traditional methods for ensuring a waterproof shower pan. Skipping hot mopping increases the risk of leaks and water damage, especially in areas with high moisture exposure. It is highly recommended for long-term durability.
