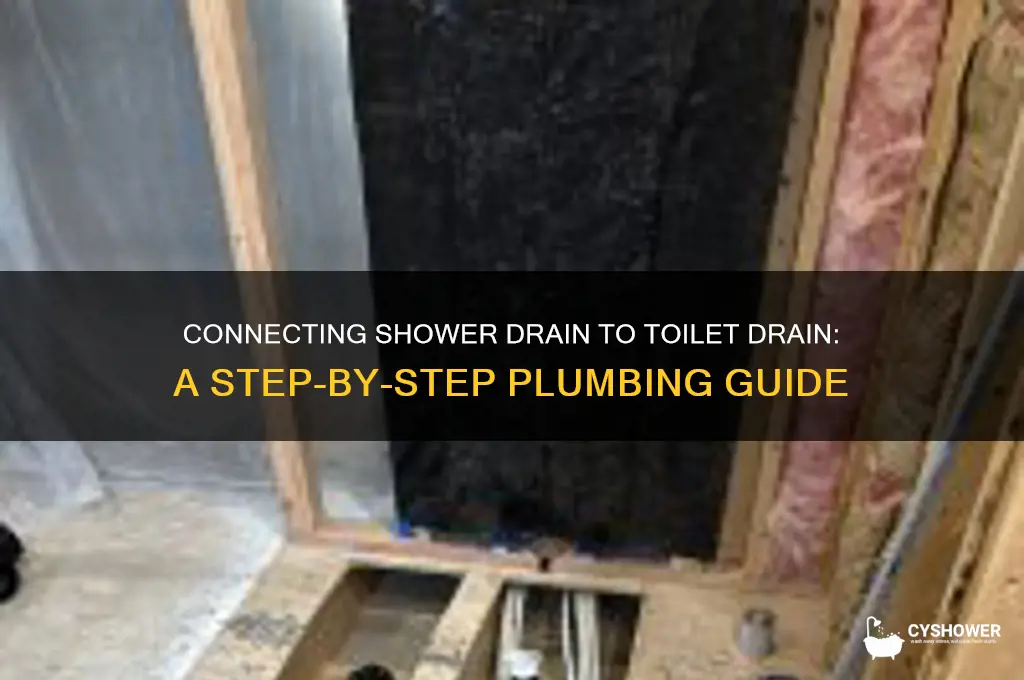

Tying a shower drain into a toilet drain is a plumbing task that requires careful planning and execution to ensure proper drainage and compliance with local building codes. This process involves connecting the shower drainpipe to the existing toilet drain line, typically using a sanitary tee fitting to maintain the correct slope for water flow. It’s essential to assess the distance between the two fixtures, the size of the drainpipes, and the overall layout of the plumbing system to avoid issues like clogs or backflow. Proper venting is also crucial to prevent airlocks and ensure efficient drainage. While this project can be DIY for experienced homeowners, consulting a professional plumber is recommended to ensure the work meets safety and regulatory standards.
| Characteristics | Values |
|---|---|
| Purpose | To connect a shower drain to an existing toilet drain for efficient plumbing. |
| Required Tools | PVC pipes, fittings, hacksaw, drill, primer, cement, plunger, measuring tape. |
| Pipe Material | PVC (Polyvinyl Chlorine) is commonly used for its durability and ease of installation. |
| Pipe Size | Typically 2-inch diameter for shower drains and 3-inch for toilet drains. |
| Ventilation Requirement | A vent pipe must be installed to prevent airlocks and ensure proper drainage. |
| Slope/Gradient | 1/4 inch per foot slope is required for proper water flow. |
| Permits | Local building codes may require permits; check with your municipality. |
| Difficulty Level | Intermediate to advanced; professional assistance may be needed. |
| Cost | $50-$200 depending on materials and labor. |
| Time Required | 4-8 hours depending on experience and complexity. |
| Common Challenges | Aligning pipes, ensuring proper slope, and avoiding leaks. |
| Maintenance | Regularly check for clogs and leaks; clean drains periodically. |
| Alternative Methods | Using a sanitary tee fitting or a wye fitting for better flow management. |
| Code Compliance | Must adhere to local plumbing codes and regulations. |
| Environmental Impact | Efficient drainage reduces water backup and potential water damage. |
| Safety Precautions | Wear gloves and safety goggles; ensure proper ventilation during work. |
Explore related products
What You'll Learn
- Venting Requirements: Ensure proper venting to prevent suction issues and maintain drain efficiency
- Pipe Sizing: Use correct pipe diameters to avoid clogs and ensure smooth water flow
- Slope and Gradient: Maintain a 1/4-inch per foot slope for optimal drainage
- Connecting Fixtures: Securely join shower and toilet drains using Y-fittings and proper seals
- Local Plumbing Codes: Check regulations to ensure compliance with safety and legal standards
Venting Requirements: Ensure proper venting to prevent suction issues and maintain drain efficiency
When tying a shower drain into a toilet drain, proper venting is critical to prevent suction issues, maintain drain efficiency, and ensure the plumbing system functions correctly. Venting allows air to enter the drain system, equalizing pressure and preventing water locks or siphoning effects that can disrupt flow. Without adequate venting, you may experience slow drainage, gurgling noises, or even sewer gases backing up into your home. Therefore, understanding and implementing venting requirements is essential for a successful installation.
The first step in ensuring proper venting is to identify the existing venting system in your home. Most plumbing systems have a main vent stack that runs vertically from the sewer line to the roof, allowing air to escape. When tying a shower drain into a toilet drain, you must ensure that the combined drain line is connected to this vent stack or has its own dedicated vent. If the existing vent stack is not accessible or insufficient, you may need to install an additional vent pipe. This vent pipe should be at least 1.5 inches in diameter and extend vertically to the roof, following local plumbing codes.
Another important consideration is the distance between the new drain connection and the vent. Plumbing codes typically require that the vent be within a certain horizontal distance from the drain to ensure effective venting. For example, the International Plumbing Code (IPC) specifies that the vent should be within 5 feet of the drain fitting for a 2-inch drain pipe. If the vent is too far away, you may need to install an air admittance valve (AAV) as an alternative venting solution. AAVs are mechanical vents that allow air to enter the drain system without requiring a direct connection to the vent stack, but they must be installed according to manufacturer guidelines and local codes.
Proper slope and alignment of the drain pipes are also crucial for venting efficiency. The combined shower and toilet drain line should have a consistent slope of 1/4 inch per foot toward the main sewer line to ensure water flows freely and does not create blockages. Additionally, avoid sharp turns or offsets in the drain pipe, as these can restrict airflow and reduce venting effectiveness. Use 45-degree elbows instead of 90-degree turns to maintain smooth airflow and minimize resistance.
Finally, consult local plumbing codes and regulations before proceeding with the installation. Venting requirements can vary by jurisdiction, and failure to comply may result in failed inspections or costly repairs. Hiring a licensed plumber to assess your system and ensure proper venting is highly recommended, especially if you are unsure about the process. Proper venting not only ensures the efficiency of your plumbing system but also protects your home from potential health hazards associated with sewer gases. By prioritizing venting requirements, you can achieve a safe, functional, and code-compliant connection between your shower and toilet drains.
Easy Shower Caulking Repair: Step-by-Step Guide to Fix and Refresh
You may want to see also
Explore related products
Pipe Sizing: Use correct pipe diameters to avoid clogs and ensure smooth water flow
When tying a shower drain into a toilet drain, proper pipe sizing is crucial to prevent clogs and ensure efficient water flow. The first step is to understand the required pipe diameters for both the shower and toilet drains. Typically, a shower drain uses a 2-inch pipe, while a toilet drain is connected to a 3-inch or 4-inch soil stack. The goal is to seamlessly integrate the shower drain into the larger toilet drain system without restricting flow. Using a pipe diameter that is too small can lead to backups, while an oversized pipe may not be practical or necessary. Always refer to local plumbing codes to ensure compliance with regulations regarding pipe sizes and venting requirements.
To avoid clogs, the connection between the shower drain and the toilet drain must be carefully planned. When joining a 2-inch shower drain pipe to a larger toilet drain, use a wye fitting or a sanitary tee to create a smooth transition. This ensures that water and waste flow efficiently without creating sharp turns or obstructions that could trap debris. The wye fitting should be installed at a 45-degree angle to maintain the proper slope, which is typically 1/4 inch per foot for drain pipes. Proper slope is essential to allow gravity to move water and waste downward without pooling, which can lead to blockages over time.
Another critical aspect of pipe sizing is ensuring adequate venting for the combined system. When tying into a toilet drain, the existing vent stack should be evaluated to confirm it can handle the additional flow from the shower. If the vent is undersized, it may need to be upgraded to prevent airlocks and slow drainage. The vent pipe diameter should generally match the size of the drain pipe it serves, ensuring that air can freely move in and out of the system. Without proper venting, negative pressure can build up, causing water to drain slowly or gurgle, which are signs of an inefficient system.
Material selection also plays a role in pipe sizing and overall system performance. PVC pipes are commonly used for drain systems due to their durability, corrosion resistance, and ease of installation. Ensure that all pipes and fittings are compatible in terms of material and size to avoid leaks or weak points in the system. Additionally, use proper adhesives and secure fittings tightly to maintain a watertight seal. Incorrectly sized or poorly connected pipes can lead to leaks, which may cause water damage and mold growth in the surrounding area.
Finally, test the system thoroughly after installation to ensure proper flow and functionality. Run water through the shower drain while checking for any signs of backup or slow drainage. Flush the toilet multiple times to simulate maximum flow and observe how the combined system performs. If issues arise, inspect the pipe connections, slope, and venting to identify and rectify the problem. By carefully selecting the correct pipe diameters, using appropriate fittings, and ensuring proper slope and venting, you can successfully tie a shower drain into a toilet drain while maintaining smooth and clog-free water flow.
Repairing Fiberglass Shower Enclosures: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Slope and Gradient: Maintain a 1/4-inch per foot slope for optimal drainage
When tying a shower drain into a toilet drain, ensuring the correct slope and gradient is crucial for efficient drainage and preventing clogs. The recommended slope for drain pipes is 1/4 inch per foot, which translates to a 2% gradient. This slope allows wastewater to flow smoothly toward the main drain line without pooling or slowing down. To achieve this, measure the distance from the shower drain to the toilet drain and calculate the necessary drop. For example, if the distance is 10 feet, the shower drain should be 2.5 inches lower than the point where it connects to the toilet drain. Use a level and measuring tape to ensure accuracy during installation.
Maintaining the proper slope is not just about the initial drop but also about consistency throughout the pipe run. Avoid sharp angles or flat sections that could disrupt the flow. If the pipe needs to change direction, use long-sweep elbows or bends to preserve the gradient. These fittings allow water to navigate turns without losing momentum or leaving residue behind. Remember, even a slight deviation from the 1/4-inch per foot slope can lead to standing water, which can cause odors, blockages, or damage over time.
In some cases, achieving the correct slope might require adjusting the height of the shower drain or the toilet drain connection. This can be done by installing a drain extension or modifying the subfloor. If the existing layout doesn’t allow for the proper slope, consider rerouting the pipe or consulting a professional plumber. It’s better to invest time in getting the slope right than to face drainage issues later. Always double-check measurements and use a laser level for precision, especially in longer pipe runs.
Another important aspect is ensuring the slope aligns with local plumbing codes, as some jurisdictions may have specific requirements. While 1/4 inch per foot is the standard, codes can vary, so verify before proceeding. Additionally, when connecting the shower drain to the toilet drain, ensure the pipe size is compatible and that all joints are properly sealed to prevent leaks. Use PVC primer and cement for secure connections, and test the system with water before finalizing the installation.
Finally, test the slope by pouring water into the shower drain and observing its flow. The water should move steadily toward the toilet drain without hesitation. If you notice any pooling or slow drainage, recheck the slope and make adjustments as needed. Proper slope and gradient are the foundation of a functional drainage system, ensuring longevity and reliability for years to come. By prioritizing this aspect, you’ll avoid common issues and create a seamless connection between the shower and toilet drains.
Quick DIY Guide to Tightening Loose Shower Fixtures in Bathtubs
You may want to see also
Explore related products
Connecting Fixtures: Securely join shower and toilet drains using Y-fittings and proper seals
When connecting a shower drain to a toilet drain, using Y-fittings and ensuring proper seals is essential for a secure and leak-free installation. Begin by locating the existing toilet drain pipe, typically a 3-inch or 4-inch PVC or ABS pipe. Measure and mark the spot where the Y-fitting will be installed, ensuring it is positioned to accommodate the shower drain pipe while maintaining proper slope for drainage. The Y-fitting should be oriented so that the vertical leg aligns with the existing toilet drain, and one of the horizontal branches will connect to the shower drain. This configuration allows both fixtures to drain efficiently into the main line.
Next, cut the existing toilet drain pipe at the marked location using a hacksaw or PVC cutter, ensuring a clean, straight cut. Deburr the edges of the pipe to ensure a smooth fit. Dry-fit the Y-fitting into place to verify alignment and slope, making adjustments as needed. The shower drain pipe should connect to the Y-fitting at a slight downward angle (typically 1/4 inch per foot) to promote proper flow. Once the alignment is confirmed, disassemble the fitting and prepare the pipes for permanent installation.
Apply primer to the cut ends of the toilet drain pipe and the sockets of the Y-fitting, following manufacturer instructions for the specific type of pipe (PVC or ABS). Then, coat the primed surfaces with solvent cement, ensuring even coverage. Quickly insert the toilet drain pipes into the Y-fitting and hold them firmly in place for a few seconds to allow the cement to set. Wipe away any excess cement with a rag. Repeat this process to connect the shower drain pipe to the remaining branch of the Y-fitting, ensuring all connections are secure and properly aligned.
Proper sealing is critical to prevent leaks at the joints. Use rubber gaskets or sealing rings provided with the Y-fitting to create a watertight seal between the pipes and fittings. If the fittings do not include gaskets, apply a high-quality pipe thread sealant or silicone caulk to the joints before assembly. Double-check that all connections are tight and secure, but avoid over-tightening to prevent damaging the pipes or fittings. Allow the solvent cement to cure fully according to the manufacturer’s guidelines before testing the system.
Finally, test the system for leaks by running water through the shower and toilet drains. Inspect all joints for signs of moisture or dripping. If leaks are detected, tighten the connections slightly or apply additional sealant as needed. Once the system is confirmed to be leak-free, insulate the pipes if necessary and secure them in place using pipe straps or hangers to prevent movement and ensure long-term reliability. Properly connecting shower and toilet drains using Y-fittings and seals not only ensures efficient drainage but also minimizes the risk of future plumbing issues.
Efficiently Draining Your Ecotemp Outdoor Shower: A Step-by-Step Guide
You may want to see also
Explore related products
Local Plumbing Codes: Check regulations to ensure compliance with safety and legal standards
When considering tying a shower drain into a toilet drain, one of the most critical steps is to check local plumbing codes to ensure compliance with safety and legal standards. Plumbing codes are established by local municipalities or jurisdictions to regulate the design, installation, and maintenance of plumbing systems. These codes are designed to protect public health, safety, and welfare by ensuring that plumbing systems are installed correctly and function efficiently. Ignoring these regulations can result in costly fines, system failures, or even legal consequences. Therefore, before proceeding with any plumbing modifications, it’s essential to consult your local building department or a licensed plumber to understand the specific requirements in your area.
Local plumbing codes often dictate the minimum pipe sizes, venting requirements, and slope gradients necessary for proper drainage. For instance, tying a shower drain into a toilet drain may require specific venting to prevent airlocks and ensure wastewater flows smoothly. Codes may also specify the materials that can be used for pipes, such as PVC or ABS, and whether certain connections are permitted. Additionally, some jurisdictions prohibit connecting certain fixtures due to potential backflow risks or overloading the existing system. Understanding these details is crucial to avoid creating a plumbing system that is inefficient or hazardous.
Another important aspect of local plumbing codes is compliance with backflow prevention measures. Backflow occurs when water flows in the opposite direction, potentially contaminating the clean water supply. Codes often require the installation of backflow preventers or air gaps to mitigate this risk. When tying a shower drain into a toilet drain, you must ensure that the design does not compromise the integrity of the system or introduce backflow hazards. A professional plumber can help assess whether your proposed setup meets these requirements and recommend necessary modifications.
Furthermore, local codes may impose permitting and inspection requirements for plumbing modifications. Many jurisdictions mandate that any alterations to a plumbing system be approved by the building department and inspected by a certified official. This ensures that the work is done correctly and adheres to all safety standards. Failing to obtain the necessary permits or pass inspections can result in penalties and may require you to redo the work at your own expense. Always verify the permitting process in your area before starting the project.
Lastly, it’s important to recognize that plumbing codes can vary significantly by location, even within the same state or region. What is permissible in one area may be prohibited in another. Factors such as local climate, soil conditions, and population density can influence these regulations. Therefore, relying on general advice or DIY guides without consulting local codes can lead to non-compliance. By prioritizing adherence to local plumbing codes, you not only ensure the safety and legality of your project but also contribute to the overall integrity of your home’s plumbing system. Always prioritize professional guidance to navigate these complexities effectively.
Repositioning Your Shower Drain: A Step-by-Step DIY Guide
You may want to see also
Frequently asked questions
No, it is not recommended to tie a shower drain directly into a toilet drain. Plumbing codes typically prohibit this practice because it can lead to clogs, backflow, and sanitation issues. Shower drains and toilet drains serve different purposes and require separate venting systems.
The proper way is to connect the shower drain to the main drain stack or a dedicated branch line, ensuring it has its own vent to prevent airlocks and maintain proper drainage. Consult a licensed plumber to ensure compliance with local codes.
Yes, tying a shower drain into a toilet drain can cause plumbing problems such as slow drainage, clogs, and sewer gases backing up into the shower. It also violates most building codes and can void warranties or insurance claims.
Yes, most jurisdictions require a permit for plumbing modifications, including tying a shower drain into a toilet drain. It’s best to consult local building codes and hire a licensed plumber to ensure the work is done safely and legally.
