Noah Rivers

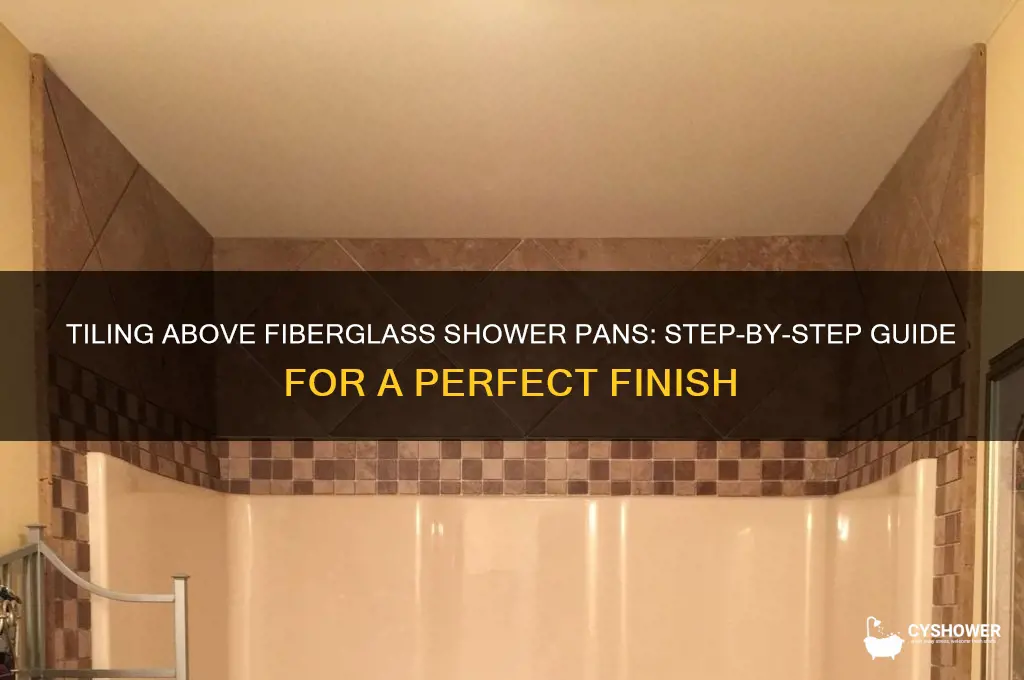

Tiling above a fiberglass shower pan can significantly enhance the aesthetic appeal and durability of your bathroom, but it requires careful planning and execution to ensure a waterproof and long-lasting finish. The process involves preparing the surface, selecting the right materials, and using proper techniques to avoid damaging the fiberglass base. Key steps include cleaning the shower pan thoroughly, applying a suitable waterproofing membrane, and using a flexible adhesive and grout to accommodate any movement between the fiberglass and tile. Additionally, ensuring proper slope and drainage is crucial to prevent water pooling. With the right tools and attention to detail, this project can transform your shower into a sleek and functional space.
| Characteristics | Values |
|---|---|
| Surface Preparation | Clean the fiberglass pan thoroughly with a degreaser and roughen the surface with sandpaper (100-120 grit) to improve tile adhesion. |
| Waterproofing | Apply a waterproofing membrane (e.g., liquid waterproofing or cementitious waterproofing) to the walls and corners to prevent water penetration. |
| Backer Board Installation | Install cement board or a suitable backer board over the studs, ensuring it extends slightly below the shower pan lip for proper tile support. |
| Tile Adhesive | Use a polymer-modified thin-set mortar specifically designed for wet areas to ensure strong adhesion and water resistance. |
| Tile Selection | Choose tiles suitable for wet areas, such as ceramic or porcelain, with a slip-resistant finish for safety. |
| Grout | Use epoxy or waterproof grout to fill tile joints, as it resists mold and mildew better than standard grout. |
| Expansion Joints | Incorporate expansion joints between the tile and shower pan to accommodate movement and prevent cracking. |
| Sealing | Apply a high-quality silicone sealant at the junction between the tile and shower pan to create a watertight seal. |
| Drain Alignment | Ensure the tile slope directs water toward the shower drain, typically a 1/4 inch per foot gradient. |
| Curing Time | Allow the thin-set and grout to cure fully (typically 24-48 hours) before exposing the area to water. |
| Maintenance | Regularly clean the grout and sealant to prevent mold and mildew buildup, and reapply sealant as needed. |
Explore related products
What You'll Learn
- Prepare the Surface: Clean, dry, and ensure the shower pan is level before tiling
- Choose Waterproof Materials: Select moisture-resistant tiles, adhesive, and grout for durability
- Plan Tile Layout: Measure and mark to avoid small cuts; start at eye level
- Apply Thinset Mortar: Use a notched trowel for even adhesive distribution
- Grout and Seal: Fill gaps with grout, then seal tiles and grout lines to prevent leaks
Prepare the Surface: Clean, dry, and ensure the shower pan is level before tiling
A level, clean, and dry surface is the foundation of a successful tile installation above a fiberglass shower pan. Any deviation from these conditions can lead to adhesive failure, uneven tiles, or water infiltration. Start by inspecting the shower pan for levelness using a long spirit level. Even a slight tilt can cause water to pool, compromising both aesthetics and functionality. If the pan isn’t level, shim the low areas with thin strips of plastic or rubber, ensuring they’re securely placed beneath the pan’s edges. Avoid using organic materials like wood, as they can degrade in the wet environment.
Cleaning the fiberglass surface is equally critical. Grease, soap scum, or even manufacturing residues can prevent tile adhesive from bonding properly. Use a non-abrasive scrub pad and a degreasing cleaner, such as a mixture of trisodium phosphate (TSP) and water (follow the manufacturer’s dilution ratio, typically ½ cup TSP per gallon of water). Rinse thoroughly with clean water and allow the surface to dry completely. For stubborn residues, consider using a fiberglass-safe solvent, but test in an inconspicuous area first to avoid damage.
Drying the shower pan is a step often overlooked but essential. Moisture trapped beneath the tiles can lead to mold growth or adhesive breakdown. After cleaning, leave the shower pan exposed to air for at least 24 hours, or use a fan to expedite drying. Test for dryness by taping a small plastic sheet to the surface for 24 hours; if condensation forms underneath, the area isn’t ready. In humid climates, consider using a dehumidifier to ensure optimal conditions.
Ensuring the surface is ready for tiling involves more than just cleaning and drying—it’s about creating a stable base. If the shower pan has a textured surface, lightly sand it with 120-grit sandpaper to improve adhesive grip. For added adhesion, apply a fiberglass-compatible primer, such as an epoxy or latex-based product, following the manufacturer’s instructions. This step not only enhances bonding but also seals the surface, reducing the risk of water penetration.
Finally, double-check the levelness of the shower pan one last time before proceeding. Even minor adjustments at this stage can prevent major headaches later. Once the surface is clean, dry, and level, you’ve laid the groundwork for a durable and visually appealing tile installation. Skipping these preparatory steps may save time initially but will likely lead to costly repairs down the line.
Do You Need Waterproof Membrane for Shower Tile Installation?
You may want to see also
Explore related products
Choose Waterproof Materials: Select moisture-resistant tiles, adhesive, and grout for durability
In the humid, steamy environment of a shower, not all tiles are created equal. Porcelain and ceramic tiles with a water absorption rate of less than 0.5% are ideal for shower walls above a fiberglass pan. These dense, non-porous materials resist moisture penetration, preventing warping, cracking, or mold growth. Avoid natural stone or highly porous tiles like limestone, which can absorb water and deteriorate over time.
Selecting the right adhesive is just as critical as choosing the tile itself. Opt for a waterproof, polymer-modified thin-set mortar specifically designed for wet areas. These adhesives create a strong bond between the tile and substrate while remaining flexible enough to accommodate minor movements without cracking. Follow the manufacturer’s instructions for mixing ratios—typically 5-6 quarts of water per 50-pound bag—and allow the adhesive to cure fully before grouting.
Grout, often overlooked, plays a pivotal role in the longevity of your tiled shower. Use a waterproof, stain-resistant epoxy or cementitious grout with a built-in sealant. Epoxy grout, while more expensive and challenging to work with, offers superior resistance to moisture and stains. For cementitious grout, apply a penetrating grout sealer after curing to enhance water resistance. Ensure grout lines are consistent (1/16 to 1/8 inch) and fully filled to prevent water seepage behind tiles.
A common mistake is neglecting the substrate preparation. Before tiling, ensure the wall surface is clean, dry, and properly waterproofed. Install a waterproof membrane, such as a liquid waterproofing agent or a sheet membrane, over the fiberglass pan and up the walls. This additional layer acts as a secondary barrier against water intrusion, safeguarding both the tile installation and the underlying structure.
Finally, consider the long-term maintenance of your materials. While waterproof tiles, adhesive, and grout provide durability, periodic sealing (every 1-2 years) and regular cleaning with non-abrasive products will extend their lifespan. Inspect grout lines annually for cracks or gaps, repairing them promptly to prevent water damage. By investing in high-quality, moisture-resistant materials and following proper installation techniques, you’ll create a shower that remains functional and aesthetically pleasing for years to come.
Can Suction Hooks Stick to Tile Shower Walls? Find Out Here
You may want to see also
Explore related products
Plan Tile Layout: Measure and mark to avoid small cuts; start at eye level
A well-planned tile layout can make or break the appearance of your shower walls. Starting at eye level ensures that the most visible area is aesthetically pleasing and symmetrical, drawing attention away from any minor imperfections elsewhere. This approach also simplifies the installation process, as it allows you to work downward, naturally accommodating the slope of the fiberglass shower pan for proper drainage.
To avoid awkward, narrow cuts along the top and bottom rows, measure the height of your shower walls and divide it by the height of your tiles. Adjust the starting point at eye level (typically around 60–64 inches from the floor) to ensure full tiles fit evenly above and below. Use a level and pencil to mark horizontal reference lines, ensuring alignment across the entire surface. For example, if your tiles are 4 inches tall and your wall height is 80 inches, starting at 60 inches allows for two full tiles above and five below, minimizing waste.
Consider the grout lines as part of your layout. A common mistake is neglecting the grout joint thickness, which can throw off your entire pattern. Use tile spacers to account for grout lines (typically 1/16 to 1/8 inch) and ensure your measurements include this extra space. For instance, if using 12-inch tiles with 1/8-inch grout lines, each tile plus grout joint will occupy 12.125 inches. This precision prevents slivers of tile at the edges, which are difficult to cut and install cleanly.
Dry-fit your tiles before committing to mortar or adhesive. Lay out the tiles along your marked lines to visualize the pattern and confirm your measurements. This step is crucial for identifying potential issues, such as uneven walls or miscalculations, without the permanence of adhesive. If adjustments are needed, tweak your starting point or consider using a different tile size to achieve a more balanced layout.
Finally, prioritize functionality alongside aesthetics. While starting at eye level enhances visual appeal, ensure your layout doesn’t interfere with shower fixtures like valves or shelves. Measure the placement of these elements and adjust your tile pattern accordingly. For example, if a valve plate sits at 48 inches, plan your layout so that a full tile or a consistent grout line aligns with it, maintaining a cohesive look. This blend of precision and adaptability ensures a professional finish that complements both the fiberglass pan and the overall shower design.
Best Cleaners for Porcelain Shower Tiles: Effective and Safe Solutions
You may want to see also
Explore related products
Apply Thinset Mortar: Use a notched trowel for even adhesive distribution
Thinset mortar is the backbone of any successful tile installation, especially in a wet environment like a shower. Its adhesive strength and water resistance make it the go-to choice for professionals. However, achieving a strong bond relies on proper application, and that's where the notched trowel comes in.
Think of it as the artist's brush for your tiling project.
The notched trowel's teeth create ridges in the thinset, ensuring an even and consistent layer of adhesive. This ridged pattern allows air pockets to escape, preventing voids that could weaken the bond. The size of the notch on your trowel is crucial. For most wall tiles, a 1/4 inch V-notch trowel is recommended. This size provides enough adhesive for a secure hold without excessive buildup.
Always follow the manufacturer's instructions on the thinset packaging for specific notch size recommendations based on tile size and type.
Applying thinset with a notched trowel is a technique that requires practice. Hold the trowel at a 45-degree angle and spread the mortar in a thin, even layer, ensuring the ridges are consistent. Work in small sections, typically no larger than what you can tile in 15-20 minutes, to prevent the thinset from drying before you set the tiles.
Remember, the goal is to create a bed of adhesive that fully supports the tile. Press the tile firmly into the thinset, using a slight twisting motion to ensure complete contact and to embed the tile into the ridges. This process, known as "back-buttering," helps to fill any gaps and further strengthens the bond.
Why Your Ceramic Tile Shower is Leaking: Common Causes & Fixes
You may want to see also
Explore related products
Grout and Seal: Fill gaps with grout, then seal tiles and grout lines to prevent leaks
Grout acts as the unsung hero in tiling, binding tiles together and preventing water intrusion. When tiling above a fiberglass shower pan, the grout’s role is critical—it fills the gaps between tiles, creating a watertight barrier that protects the substrate from moisture damage. Choose a sanded grout for joints wider than 1/8 inch, as it provides better durability in high-moisture areas. Unsanded grout is suitable for narrower joints, reducing the risk of scratching polished tiles. Mix the grout according to the manufacturer’s instructions, typically using a 1:4 ratio of grout to water, and apply it with a rubber float at a 45-degree angle, pressing it firmly into the joints. Allow it to set for 10–15 minutes before beginning the sealing process.
Sealing is the final, non-negotiable step in waterproofing your tiled shower walls. Grout is porous, making it susceptible to water absorption, mold, and mildew. A high-quality penetrating sealer creates an invisible barrier that repels water and stains without altering the grout’s appearance. Apply the sealer 48–72 hours after grouting, ensuring the grout is fully cured. Use a small brush or applicator bottle to coat the grout lines evenly, wiping excess sealer from the tile surfaces with a clean cloth. Reapply the sealer annually, or as recommended by the product, to maintain its protective properties. Neglecting this step can lead to costly water damage, as moisture seeps behind tiles and compromises the fiberglass pan below.
Comparing grout and sealant options reveals a balance between aesthetics and functionality. Epoxy grout, for instance, is highly durable and stain-resistant, making it ideal for showers, but its rigid nature can be unforgiving on uneven surfaces. Silicone-based sealants offer flexibility and ease of application but may require more frequent reapplication. For a seamless look, match the grout color to the tiles, but consider a contrasting shade to highlight intricate patterns. When sealing, opt for a product with antimicrobial properties to inhibit mold growth, especially in humid climates. The investment in quality materials and meticulous application pays dividends in longevity and maintenance.
Practical tips can streamline the grouting and sealing process. Work in small sections to avoid grout drying prematurely, which can lead to cracking. Use a grout release agent on tiles before grouting to simplify cleanup. After sealing, avoid using harsh chemicals or abrasive cleaners that can degrade the sealant. Instead, maintain the grout with pH-neutral cleaners and a soft-bristle brush. For DIYers, practice on a small area to master the technique before tackling the entire shower. Professional installation may be worth the expense for complex designs or large areas, ensuring precision and adherence to waterproofing standards. With proper grouting and sealing, your tiled shower walls will remain both functional and beautiful for years to come.
Is Mold on Tile Showers Normal? Causes and Prevention Tips
You may want to see also
Frequently asked questions
Yes, you can tile directly onto a fiberglass shower pan, but proper preparation is essential. Clean the surface thoroughly, roughen it with sandpaper, and apply a suitable primer to ensure the tile adhesive bonds effectively.
Use a waterproof, flexible tile adhesive designed for wet areas, such as a polymer-modified thinset mortar. This ensures strong adhesion and accommodates minor movements in the fiberglass material.
Yes, waterproofing is crucial. Apply a waterproofing membrane or liquid waterproofing product to the walls and corners before tiling to prevent water penetration and potential leaks.
Use a level and mark guidelines on the wall to ensure straight tile placement. Start tiling at the bottom edge of the shower pan, using spacers to maintain consistent gaps, and adjust as needed for a seamless transition.
Yes, large-format tiles can be used, but ensure the fiberglass pan is structurally sound and the adhesive is applied evenly. Larger tiles may require additional support and careful handling to avoid cracking during installation.
