Preparing a shower for tiling is a crucial step in ensuring a durable and waterproof finish. The process begins with thoroughly cleaning the shower area to remove any dirt, grease, or soap scum, followed by inspecting and repairing any damage to the walls or floor. Next, apply a waterproof membrane or barrier, such as a liquid waterproofing compound or cement backer board, to protect against moisture penetration. Properly leveling the surface and ensuring all corners and seams are sealed are essential to prevent water from seeping behind the tiles. Finally, plan the tile layout and mark reference lines to guide the installation, ensuring a professional and long-lasting result.
| Characteristics | Values |
|---|---|
| Surface Preparation | Ensure walls are clean, dry, and free of soap scum, grease, or debris. |
| Waterproofing | Apply a waterproofing membrane (e.g., liquid waterproofing or sheet membrane) to walls and floor. |
| Backer Board Installation | Use cement board (e.g., HardieBacker) for walls and secure with corrosion-resistant screws. |
| Alcove and Niche Prep | Pre-waterproof and reinforce niches or alcoves with backer board. |
| Slope and Drainage | Ensure the shower floor slopes toward the drain (1/4 inch per foot gradient). |
| Seam Taping | Tape and fill all backer board seams with waterproof tape and thinset mortar. |
| Dry Layout | Plan tile layout to minimize cuts and ensure symmetry, especially for accent tiles. |
| Mortar Bed (Optional) | Install a mortar bed for traditional shower pans or use pre-sloped pans. |
| Expansion Joints | Include expansion joints between shower and adjacent walls/floor to prevent cracking. |
| Vapor Barrier (Optional) | Install a vapor barrier behind backer board in high-moisture areas. |
| Tile Adhesive | Use waterproof thinset mortar suitable for shower applications. |
| Grout Selection | Choose sanded or unsanded grout with a waterproof sealant for durability. |
| Curing Time | Allow waterproofing membrane and thinset to cure fully (follow manufacturer’s instructions). |
| Ventilation | Ensure proper bathroom ventilation to prevent mold and mildew. |
| Compliance with Codes | Follow local building codes for shower construction and waterproofing. |
| Tools Required | Notched trowel, utility knife, screwdriver, waterproof tape, sponge, etc. |
| Time Frame | Typically 2-3 days for prep, depending on drying and curing times. |
Explore related products
$21.75 $24.99
What You'll Learn
- Surface Inspection: Check walls for damage, ensure they're dry, clean, and structurally sound before tiling
- Waterproofing: Apply waterproof membrane to prevent moisture damage behind tiles
- Layout Planning: Measure space, mark tile layout, and plan cuts for corners and fixtures
- Mortar Application: Spread thin-set mortar evenly using a notched trowel for proper adhesion
- Grout Preparation: Choose grout type, mix according to instructions, and prepare for application
Surface Inspection: Check walls for damage, ensure they're dry, clean, and structurally sound before tiling
Before you lay a single tile, your shower walls demand scrutiny. Cracks, holes, or warping aren't just eyesores; they're invitations for water infiltration and future headaches. Imagine tiles adhering to a compromised surface – a recipe for loose tiles, mold, and costly repairs. A thorough surface inspection is your first line of defense.
Run your hands along the walls, feeling for any unevenness or weaknesses. Tap gently with a hammer – a hollow sound signals potential delamination or structural issues. Don't underestimate the power of a bright light; it reveals hairline cracks and surface imperfections that might escape the naked eye.
Think of your shower walls as the foundation of your tiling project. A weak foundation leads to a crumbling structure. Similarly, damaged, damp, or dirty walls will compromise the adhesion and longevity of your tiles. Moisture trapped beneath tiles breeds mold and mildew, while debris prevents proper bonding.
Imagine trying to glue paper to a greasy surface – it simply won't hold. The same principle applies to tiling.
This inspection isn't merely a cursory glance. It's a meticulous process requiring both visual and tactile assessment. Look for signs of water damage like discoloration, peeling paint, or efflorescence (a white, powdery residue). Feel for any give in the walls, indicating potential rot or structural weakness. Remember, a thorough inspection now saves you time, money, and frustration later.
Address any issues before proceeding. Repair cracks with appropriate patching compounds, ensuring they're completely dry before tiling. Replace damaged drywall or backer board entirely. If moisture is present, identify and fix the source of the leak. Clean the walls thoroughly, removing all soap scum, grease, and debris. A clean, dry, and structurally sound surface is the cornerstone of a successful shower tiling project.
Should You Remove Backerboard When Replacing Shower Tile? Expert Advice
You may want to see also
Explore related products

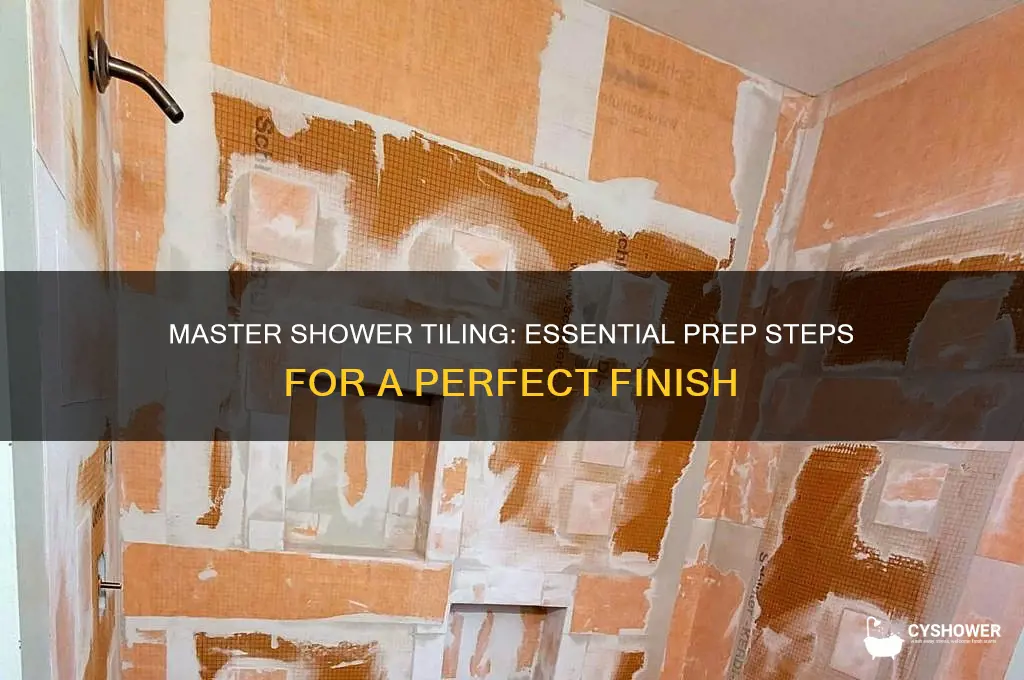

Waterproofing: Apply waterproof membrane to prevent moisture damage behind tiles
Moisture is the silent enemy of any tiled shower, seeping through grout lines and compromising the integrity of walls over time. Without a robust waterproofing system, even the most meticulously laid tiles will eventually succumb to mold, mildew, and structural damage. This is where a waterproof membrane becomes indispensable—a critical barrier that safeguards your investment and ensures longevity.
Applying a waterproof membrane is a precise process that demands attention to detail. Begin by cleaning the substrate thoroughly, removing any debris, dust, or grease that could hinder adhesion. For cement board or concrete walls, use a liquid-applied membrane like a polymer-modified waterproofing coating. Apply it evenly with a roller or brush, ensuring complete coverage, especially at corners, seams, and penetrations. Follow the manufacturer’s instructions for drying time, typically 24 hours, before proceeding. For more complex installations, consider a sheet membrane, such as PVC or CPE, which is adhered to the substrate using a compatible adhesive or peel-and-stick method. Whichever option you choose, ensure all seams are overlapped and sealed according to the product guidelines.
One common mistake is neglecting to waterproof critical areas like niches, benches, and curbs. These features require meticulous detailing, as they are prone to water pooling and penetration. Apply the membrane to the entire surface, including the sides and bottom of niches, and extend it at least 2 inches beyond the niche edges to integrate seamlessly with the surrounding walls. For curbs, ensure the membrane wraps over the top edge and extends onto the shower floor by at least 6 inches to create a continuous barrier.
While waterproofing membranes are essential, they are not foolproof without proper installation. Avoid rushing the process, as uneven application or missed spots can lead to costly repairs down the line. Additionally, be cautious of incompatible materials—some membranes require specific primers or adhesives, so always consult the manufacturer’s recommendations. For DIY enthusiasts, consider starting with a smaller project to hone your skills before tackling a full shower installation.
In conclusion, waterproofing is the backbone of a durable tiled shower. By investing time and care into applying a waterproof membrane, you create a resilient barrier that protects against moisture damage, ensuring your shower remains both functional and beautiful for years to come. Treat this step as non-negotiable—it’s the difference between a job done and a job done right.
Glass Tile for Shower Floors: Pros, Cons, and Durability Explained
You may want to see also
Explore related products
Layout Planning: Measure space, mark tile layout, and plan cuts for corners and fixtures
Accurate measurements are the foundation of a successful tile layout. Begin by measuring the shower walls, noting the height, width, and any irregularities like niches or alcoves. Use a laser measure or tape measure for precision, and record dimensions in both inches and centimeters for flexibility. Double-check your measurements to avoid costly mistakes, as even a quarter-inch error can disrupt the entire pattern.
Once measurements are confirmed, mark the tile layout directly on the shower walls using a level and pencil. Start by finding the center point of each wall and snap chalk lines vertically and horizontally to create a grid. This ensures tiles are evenly distributed and minimizes the need for awkward cuts. For showers with multiple walls, align the layout so that corner tiles match in size and pattern, creating a cohesive look.
Planning cuts for corners, fixtures, and edges is where precision meets creativity. Use a tile spacer to account for grout lines, typically 1/16 to 1/8 inch wide. For corners, measure the angle and mark tiles accordingly, ensuring cuts fit snugly without gaps. Around fixtures like showerheads or valves, trace the outline onto a tile and cut it to fit, using a wet saw for clean, accurate edges. Always cut tiles face-up to avoid chipping the glazed surface.
Consider the tile size and pattern when planning the layout. Larger tiles can make a small shower feel more spacious, but they may require more cuts around fixtures. Mosaic tiles offer flexibility but can be time-consuming to install. Dry-fit tiles on the floor to visualize the layout before committing, adjusting as needed to avoid slivers along edges. This step ensures a professional finish and saves time during installation.
Finally, account for natural focal points and eye lines. Center the tile pattern at eye level or align it with a prominent feature like a shower niche. Avoid placing cut tiles in highly visible areas by adjusting the starting point of your layout. This strategic planning ensures the shower not only functions well but also looks intentionally designed, elevating the overall aesthetic.
Tiling Your Shower: A Smart Choice or Costly Mistake?
You may want to see also
Explore related products
Mortar Application: Spread thin-set mortar evenly using a notched trowel for proper adhesion
The notched trowel isn't just a tool; it's the key to a tile installation that lasts. Its teeth create ridges in the thin-set mortar, ensuring optimal adhesion by maximizing contact points between the mortar and both the substrate and tile. Think of it as creating a microscopic mountain range for the mortar to grip onto.
Skip this crucial step, and you risk tiles popping loose, grout cracking, and water seeping behind the tiles, leading to mold and mildew.
Choosing the right notch size is crucial. For most shower tile installations, a 1/4" x 1/4" square-notched trowel is standard. This size provides sufficient mortar depth for proper adhesion without creating excessive thickness that could lead to uneven tiles. Larger tiles or uneven surfaces might require a larger notch size, while smaller mosaic tiles may need a finer notch. Always consult the manufacturer's recommendations for both the tile and the thin-set mortar.
Technique matters as much as the tool. Hold the trowel at a 45-degree angle to the surface and apply firm, even pressure as you spread the mortar. Work in small sections, ensuring complete coverage without overloading the area. The mortar should be combed in one direction only, creating consistent ridges. Avoid back-combing, as this can weaken the bond.
Remember, you're aiming for a thin, even layer, not a thick, globby mess.
Don't rush the process. Allow the mortar to "slake" for 10-15 minutes after mixing. This allows the polymers in the thin-set to fully activate, resulting in a stronger bond. Once applied, work within the mortar's open time, typically 20-30 minutes, to set the tiles. Exceeding this time can lead to weakened adhesion.
Finally, remember that proper mortar application is just one part of a successful shower tile installation. A well-prepared substrate, waterproof membrane, and correct tile spacing are equally important. By mastering the art of mortar application with a notched trowel, you're laying the foundation for a beautiful and durable shower that will stand the test of time.
Bullnose Tile Placement: Perfecting Your Shower Pan's Edge Finish
You may want to see also
Explore related products
Grout Preparation: Choose grout type, mix according to instructions, and prepare for application
Selecting the right grout type is the cornerstone of a durable and aesthetically pleasing shower tile installation. Grout not only fills the gaps between tiles but also provides structural integrity and water resistance. For showers, epoxy grout is often the superior choice due to its stain and water resistance, making it ideal for wet environments. However, if you’re working on a budget or prefer easier application, unsanded grout (for joints under 1/8 inch) or sanded grout (for joints 1/8 inch or larger) can suffice with proper sealing. Consider the tile color and size, as well as the desired final look, when choosing grout color—a contrasting grout can highlight tile patterns, while a matching grout creates a seamless appearance.
Once the grout type is selected, mixing it correctly is critical to ensure proper adhesion and longevity. Follow the manufacturer’s instructions precisely, as ratios and mixing times vary by product. For epoxy grout, mix the two components thoroughly, typically in a 1:1 ratio, ensuring no streaks remain. For cementitious grout, gradually add water to the powder while stirring until a smooth, peanut butter-like consistency is achieved. Overmixing or adding too much water can weaken the grout, while undermixing leaves it lumpy and difficult to apply. Use a margin trowel and a mixing bucket for consistency, and always wear gloves to protect your skin from chemicals.
Preparation for grout application begins with ensuring the tile joints are clean and free of debris. After tile installation and before grouting, remove excess thinset from the joints using a utility knife or grout saw. Allow the thinset to cure for at least 24 hours before grouting to prevent shrinkage cracks. Next, apply a grout release or sealant to the tiles, especially if using natural stone or porous materials, to prevent grout from bonding to the tile surface. This step simplifies cleanup and ensures a professional finish.
Timing is crucial when applying grout. Work in small sections to avoid drying before application, as grout becomes unworkable once it sets. Use a rubber grout float held at a 45-degree angle to press grout into the joints, ensuring it fills completely. Wipe diagonal strokes across the tiles to remove excess grout without pulling it from the joints. After 10–15 minutes, use a damp sponge to lightly clean the tile surface, rinsing frequently to avoid pushing dirt into the grout lines. Allow the grout to cure for 24–48 hours before sealing, if necessary, to protect against moisture and stains.
In conclusion, grout preparation is a meticulous process that demands attention to detail. From selecting the right type to mixing and applying it correctly, each step influences the final result. By following these guidelines, you can achieve a shower installation that is not only visually appealing but also built to withstand the test of time and daily use.
Best Sealant for Tile Showers: Waterproof, Durable, and Long-Lasting Options
You may want to see also
Frequently asked questions
You’ll need cement board or waterproof backer board, waterproof membrane (like liquid or sheet membranes), thin-set mortar, screws, tape, and sealant.
Remove old tiles or drywall, install cement board, apply a waterproof membrane, and ensure all seams are sealed with tape and thinset.
Yes, waterproofing is essential. Use a waterproof membrane on walls, floors, and corners to prevent water damage and mold growth.
Use a mortar bed or pre-sloped shower pan to create a proper slope toward the drain, ensuring water drains efficiently.
Apply waterproof membrane to niches and corners, ensuring all edges are sealed. Use corner beads or tape for added protection against leaks.
