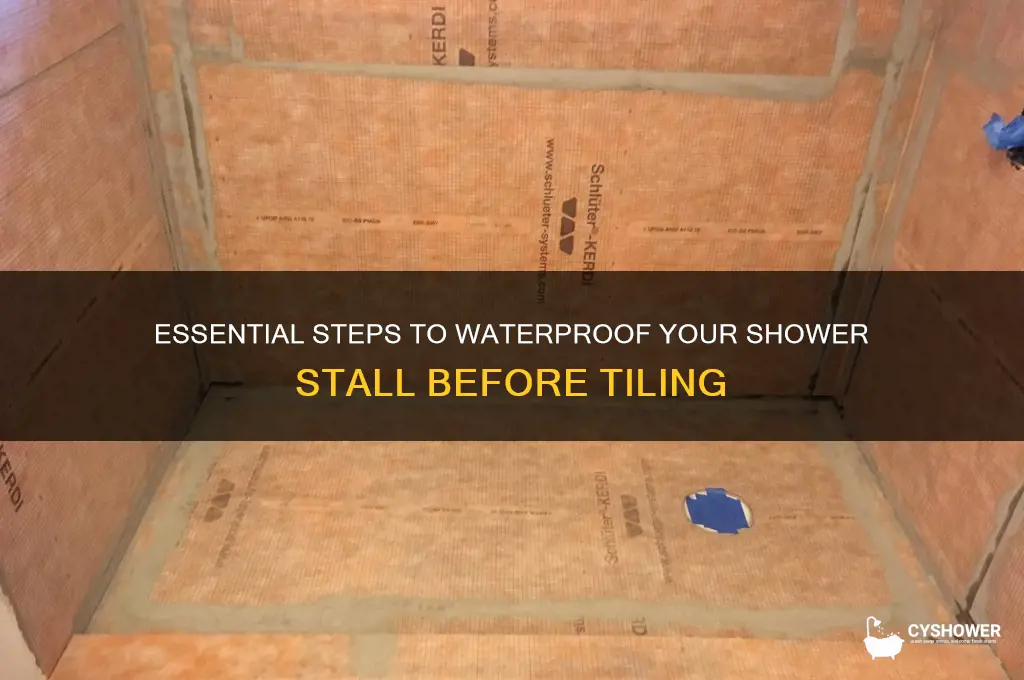

Waterproofing a shower stall before tiling is a critical step to prevent water damage, mold, and structural issues in your bathroom. Proper waterproofing ensures that moisture does not seep through the walls or floor, protecting the underlying structure and extending the life of your shower. The process typically involves applying a waterproof membrane or barrier to the substrate, such as cement board or drywall, before installing tiles. Common materials include liquid waterproofing membranes, sheet membranes, or waterproof paints, each offering different levels of protection and ease of application. Following manufacturer guidelines and ensuring all seams, corners, and penetrations are fully sealed are essential for a successful and durable waterproof installation.
| Characteristics | Values |
|---|---|
| Surface Preparation | Clean and dry the shower stall surface, remove debris, and repair cracks or damages. |
| Waterproofing Membrane Type | Liquid waterproofing membranes (e.g., RedGuard, Hydro Ban), sheet membranes (e.g., Kerdi). |
| Application Method | Brush, roller, or trowel for liquid membranes; adhesive or staple for sheet membranes. |
| Drying/Curing Time | Typically 24-48 hours for liquid membranes; sheet membranes are ready immediately. |
| Seam Treatment | Overlap seams by 2-4 inches for sheet membranes; ensure liquid membranes cover seams fully. |
| Corner and Edge Treatment | Reinforce corners and edges with fabric or additional membrane layers. |
| Compatibility with Tile Adhesive | Ensure waterproofing membrane is compatible with the tile adhesive to avoid bonding issues. |
| Ventilation During Application | Work in a well-ventilated area, especially for liquid membranes with strong fumes. |
| Temperature Requirements | Apply within manufacturer-recommended temperature ranges (usually 40°F to 90°F). |
| Warranty and Durability | Check manufacturer warranties; most offer 10+ years of protection against water damage. |
| Eco-Friendly Options | Some liquid membranes are low-VOC or eco-friendly (e.g., Laticrete Hydro Ban). |
| Cost | Liquid membranes: $0.50-$2.00/sq. ft.; sheet membranes: $1.00-$3.00/sq. ft. |
| DIY vs. Professional Installation | DIY-friendly for liquid membranes; sheet membranes may require professional installation. |
| Maintenance | Inspect annually for cracks or damage; reapply if necessary. |
Explore related products
What You'll Learn
- Prepare Surface: Clean, repair cracks, ensure smooth, dry surface before waterproofing
- Choose Membrane: Select suitable waterproofing membrane (liquid, sheet, or cementitious)
- Apply Membrane: Follow manufacturer’s instructions for even, complete coverage
- Seal Corners: Focus on corners, edges, and seams for leak prevention
- Test Waterproofing: Allow to cure, then flood test for 24 hours before tiling
Prepare Surface: Clean, repair cracks, ensure smooth, dry surface before waterproofing
A poorly prepared surface is the Achilles' heel of any waterproofing effort. Even the most advanced membrane will fail if applied to a dirty, cracked, or uneven substrate. Think of it as laying a foundation for a house – a shaky base guarantees future problems.
Before any waterproofing begins, meticulous surface preparation is non-negotiable.
The Cleaning Crusade: Dirt, grime, soap scum, and even residual adhesives act as barriers, preventing proper adhesion of waterproofing materials. Use a trisodium phosphate (TSP) solution (follow manufacturer's dilution instructions) and a stiff brush to scrub every inch of the shower stall. Rinse thoroughly and allow the surface to dry completely. For stubborn stains, consider a commercial degreaser specifically designed for bathroom surfaces.
Remember, a clean surface is a receptive surface, ensuring the waterproofing membrane bonds effectively.
Crack Attack: Even hairline cracks can compromise waterproofing, allowing moisture to seep behind tiles and breed mold. Inspect the shower stall meticulously, using a bright light source to highlight imperfections. For small cracks (less than 1/8 inch), a high-quality, flexible silicone caulk is sufficient. Wider cracks require a more robust solution: a polymer-modified cementitious patching compound, applied in thin layers and allowed to cure fully before proceeding.
Smooth Operator: Uneven surfaces create pockets where water can pool, undermining waterproofing efforts. Sand down any rough patches, high spots, or protrusions using medium-grit sandpaper. For larger imperfections, consider a self-leveling floor compound, following the manufacturer's instructions for mixing and application. The goal is a uniformly smooth surface, free of bumps or dips, ensuring even coverage of the waterproofing membrane.
Pro Tip: After sanding, vacuum thoroughly and wipe down the surface with a damp cloth to remove all dust particles.
Dry as a Bone: Moisture is the enemy of waterproofing. Ensure the shower stall is completely dry before applying any waterproofing materials. Use a moisture meter to confirm that the substrate's moisture content is within the manufacturer's recommended range for the chosen waterproofing product. In humid climates or after extensive cleaning, allow for ample drying time, potentially using fans or dehumidifiers to expedite the process. Remember, rushing this step can lead to blistering, peeling, or delamination of the waterproofing membrane.
Is Your Tile Shower-Ready? A Guide to Choosing Safe Wall Tiles
You may want to see also
Explore related products
Choose Membrane: Select suitable waterproofing membrane (liquid, sheet, or cementitious)
Selecting the right waterproofing membrane is a critical decision in shower stall preparation, as it directly impacts the longevity and effectiveness of the waterproofing system. The three primary types—liquid, sheet, and cementitious—each offer distinct advantages and are suited to different scenarios. Liquid membranes, for example, are highly versatile and can conform to complex shapes and corners, making them ideal for showers with intricate designs. They are applied in coats, typically requiring a minimum thickness of 1.5–2 mm, and cure to form a seamless barrier. However, they demand precise application and adequate drying time, often 24–48 hours between coats, to ensure optimal performance.
Sheet membranes, on the other hand, provide a robust, pre-formed barrier that is particularly effective in high-moisture areas. Made from materials like PVC or rubber, they are installed in large sheets, which are then bonded to the substrate using adhesive or heat welding. This method is labor-intensive but offers immediate waterproofing upon installation. Sheet membranes are especially useful in commercial projects or where rapid turnaround is required. However, they may not be as forgiving for DIYers due to the precision needed in cutting and sealing seams.
Cementitious membranes are a popular choice for their ease of use and compatibility with tile installations. These water-resistant coatings are applied like mortar, often in a 2–3 mm layer, and bond directly to the substrate. They are highly durable and can be tiled over immediately after curing, typically within 24 hours. Cementitious membranes are particularly effective in wet areas with heavy traffic, such as showers, but may require additional reinforcement in corners or joints for maximum protection.
When choosing a membrane, consider the project’s specific needs, such as the shower’s size, complexity, and intended use. Liquid membranes excel in custom designs, sheet membranes offer unmatched durability, and cementitious options provide a quick, tile-ready surface. Always follow manufacturer guidelines for application, including surface preparation, temperature conditions, and curing times. For instance, liquid membranes should not be applied in temperatures below 5°C (41°F), while cementitious coatings require a clean, porous substrate for proper adhesion. By carefully evaluating these factors, you can select a membrane that ensures a watertight shower stall, ready for tiling and long-term use.
Easy DIY Guide to Repairing Shower Stall Tile Damage
You may want to see also
Explore related products
Apply Membrane: Follow manufacturer’s instructions for even, complete coverage
Applying a waterproofing membrane is a critical step in preparing a shower stall for tile, but its success hinges on precise execution. Manufacturers design these membranes with specific application methods to ensure maximum effectiveness, and deviating from their instructions can compromise the entire waterproofing system. For instance, some membranes require a primer coat to enhance adhesion, while others mandate a specific drying time between layers. Ignoring these details can lead to gaps, uneven coverage, or poor bonding, leaving your shower vulnerable to water damage.
Consider the application process as a meticulous art. Start by thoroughly cleaning and preparing the substrate—ensure it’s free of dust, grease, and debris. Follow the manufacturer’s guidelines for mixing the membrane material, if applicable, as incorrect ratios can affect its curing properties. Use a notched trowel or roller to apply the membrane, maintaining consistent pressure to achieve the recommended thickness, typically 1/16 to 1/8 inch. Pay special attention to corners, seams, and penetrations, as these areas are prone to water infiltration. For example, Kerdi-Band is often used to reinforce corners, while liquid membranes like RedGuard require multiple coats for complete coverage.
A common mistake is rushing the application or skipping layers to save time. This can result in thin spots or missed areas, which water will exploit over time. Take your time and apply the membrane in thin, even coats, allowing each layer to cure fully before adding the next. For liquid membranes, use a paint roller for large areas and a brush for edges and corners to ensure thorough coverage. Sheet membranes, like those from Schluter Systems, require careful placement and pressing to eliminate air bubbles and ensure full adhesion.
Caution is also necessary when working with waterproofing membranes, as some contain chemicals that require proper ventilation and protective gear. Always wear gloves, goggles, and a mask, and work in a well-ventilated area. Additionally, be mindful of temperature and humidity conditions, as extreme weather can affect the membrane’s curing process. Most membranes perform best when applied in temperatures between 50°F and 90°F, with moderate humidity levels.
In conclusion, applying a waterproofing membrane is not just about covering the surface—it’s about following a precise protocol to create an impenetrable barrier. By adhering strictly to the manufacturer’s instructions, you ensure even, complete coverage that will protect your shower stall for years to come. Treat this step with the attention it deserves, and your tiling project will stand the test of time.
Mastering Uneven Natural Stone Tiling for Stunning Shower Walls
You may want to see also
Explore related products
Seal Corners: Focus on corners, edges, and seams for leak prevention
Corners, edges, and seams are the Achilles' heel of any shower stall. These vulnerable areas, where walls meet floors or panels join, are prime spots for water infiltration. Even the smallest gap or crack can lead to leaks, mold growth, and structural damage over time.
Think of it like a chain: only as strong as its weakest link.
To fortify these critical junctions, a multi-layered approach is essential. Begin by applying a generous bead of silicone sealant specifically formulated for wet areas. Opt for a high-quality, mold-resistant product, ensuring complete coverage along the entire length of the corner or seam. Use a caulking gun for precise application, smoothing the sealant with a damp finger or specialized tool for a professional finish. Allow ample curing time, typically 24 hours, before proceeding.
For added protection, consider incorporating a waterproof membrane. This flexible sheet material, often made of PVC or rubber, adheres to the substrate and bridges potential gaps, creating a continuous barrier against moisture. Carefully cut the membrane to fit the corner, ensuring overlapping seams are sealed with compatible adhesive.
While sealing corners may seem like a minor detail, its impact on the longevity of your shower is significant. By dedicating extra attention to these vulnerable areas, you're investing in peace of mind and avoiding costly repairs down the line. Remember, a watertight seal is the foundation of a durable and enjoyable shower experience.
Waxing Shower Tile: Benefits, Risks, and Best Practices Explained
You may want to see also
Explore related products
Test Waterproofing: Allow to cure, then flood test for 24 hours before tiling
After applying a waterproofing membrane to your shower stall, patience is your greatest ally. The membrane needs time to cure fully, a process that typically takes 24 to 48 hours, depending on the product and environmental conditions. Rushing this step can compromise the integrity of the waterproofing, leading to potential leaks and costly repairs down the line. Think of it as the foundation of your shower’s longevity—skipping or shortening the cure time is akin to building a house on quicksand.
Once the membrane has cured, the flood test becomes your ultimate quality check. This involves filling the shower stall with water to a depth of approximately 1–2 inches and letting it sit for 24 hours. The goal is to simulate prolonged water exposure and identify any weak points in the waterproofing. To perform this test, seal off the drain using a removable plug or a custom-fit barrier, ensuring no water escapes. Mark the water level with tape or a marker to monitor for any drops, which could indicate a leak.
During the flood test, inspect adjacent walls, floors, and ceilings for signs of moisture. Use a moisture meter or simply observe for dampness, discoloration, or swelling. If any issues arise, address them immediately by reapplying the waterproofing membrane or consulting a professional. This step is not just precautionary—it’s a critical diagnostic tool that can save you from future headaches. For example, a small pinhole leak might go unnoticed during installation but become glaringly obvious during the flood test, allowing you to fix it before tiling.
Practical tips can enhance the effectiveness of this process. Maintain a consistent room temperature (ideally 60–80°F) during curing to ensure the membrane sets properly. Avoid walking on or touching the cured membrane before the flood test to prevent damage. If using liquid waterproofing membranes, apply them in thin, even coats to avoid cracking during curing. For sheet membranes, ensure all seams are securely bonded and reinforced with compatible sealant.
In conclusion, the flood test is not an optional step—it’s a necessity. It transforms guesswork into certainty, ensuring your shower stall is truly waterproof before tiling begins. By investing this extra day in testing, you safeguard your investment and guarantee a shower that stands the test of time. Remember, waterproofing is invisible work, but its success is anything but—it’s the difference between a pristine bathroom and a costly disaster.
Mastering Round Shower Bases: Tiling Tips for a Seamless Finish
You may want to see also
Frequently asked questions
You will need a waterproof membrane (such as liquid waterproofing or sheet membranes), a trowel or roller for application, primer, sealant, and possibly a fabric or mesh for reinforcing corners and seams.
It’s best to waterproof the entire shower stall, including walls, floor, and corners, to prevent water intrusion. Focus especially on areas prone to leaks, such as corners, niches, and the floor-wall junction.
No, cement board and drywall are not waterproof. Apply a waterproofing membrane over these surfaces to create a barrier against moisture.
Drying times vary by product, but most waterproofing membranes require 24–48 hours to cure fully before tiling can begin. Always check the manufacturer’s instructions.
Yes, using a primer is often recommended as it helps the waterproofing membrane adhere better to the substrate, ensuring a more effective and durable seal.
