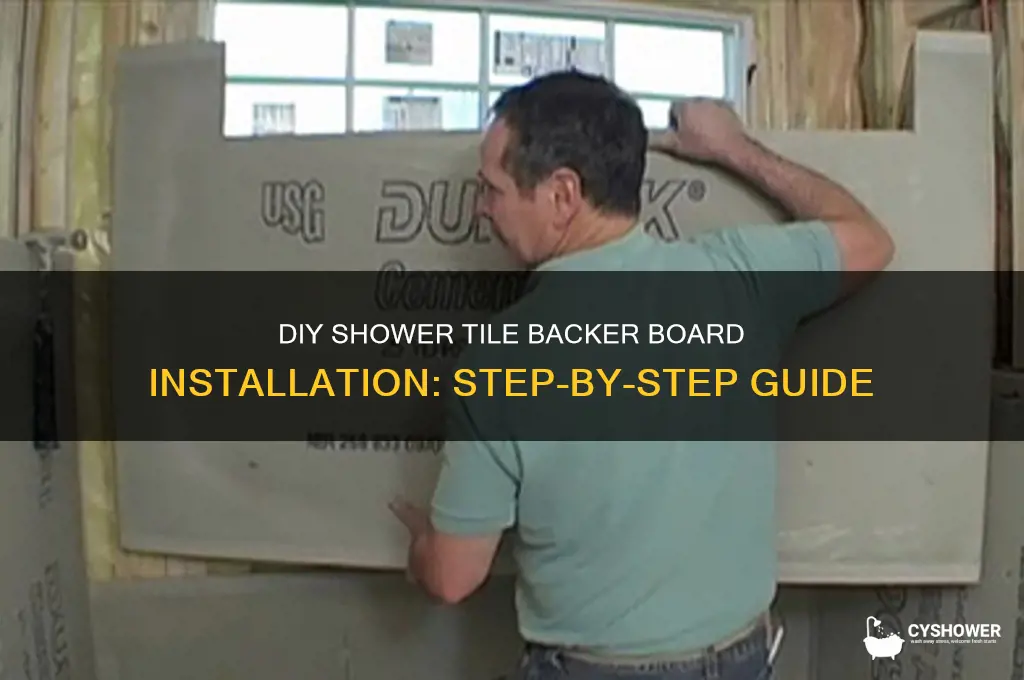

Installing tile backer board in a shower is a crucial step in any DIY bathroom renovation, as it provides a stable, waterproof foundation for your tiles. This project requires careful planning and precision to ensure a durable and long-lasting result. Begin by preparing the shower area, ensuring all surfaces are clean and free of debris. Measure and cut the backer board to fit the walls, using a utility knife or specialized cutting tool. Apply a waterproof membrane or sealant to the backer board and secure it to the wall studs using corrosion-resistant screws and washers. Ensure proper spacing and alignment for a seamless finish. Once installed, apply a waterproofing treatment to the seams and corners to prevent moisture penetration. With attention to detail and the right tools, installing tile backer board in your shower can be a rewarding DIY task that sets the stage for a beautiful and functional tiled shower.
| Characteristics | Values |
|---|---|
| Purpose | Provides a stable, waterproof base for shower tiles. |
| Materials Needed | Tile backer board (e.g., cement board), screws, waterproof membrane, tape, thin-set mortar, trowel, utility knife, drill, screwdriver. |
| Tools Required | Utility knife, drill, screwdriver, trowel, tape measure, level, safety gear (gloves, goggles). |
| Preparation Steps | Ensure walls are clean, dry, and free of debris; plan layout to minimize cuts. |
| Waterproofing | Apply a waterproof membrane (e.g., liquid waterproofing or sheet membrane) to walls before installing backer board. |
| Installation Method | Attach backer board to studs using corrosion-resistant screws (spaced 6-8 inches apart); stagger seams and avoid aligning joints. |
| Sealing Joints | Use fiberglass mesh tape and thin-set mortar to cover seams and corners for added waterproofing. |
| Cutting Backer Board | Score with a utility knife and snap; use a carbide-tipped blade for precise cuts. |
| Drying Time | Allow thin-set and waterproofing to dry completely (follow manufacturer’s instructions). |
| Tile Installation | Install tiles directly onto the backer board using thin-set mortar after backer board is fully prepared. |
| Safety Precautions | Wear gloves, goggles, and a dust mask when cutting backer board to avoid silica dust inhalation. |
| Common Mistakes to Avoid | Over-tightening screws (can crack board), not waterproofing properly, aligning seams vertically. |
| Cost | Varies by brand and size; typically $10-$20 per sheet (3x5 feet). |
| Difficulty Level | Moderate; requires basic DIY skills and attention to detail. |
| Time Required | 1-2 days (including drying time for waterproofing and thin-set). |
| Maintenance | Inspect periodically for cracks or damage; repair as needed to maintain waterproofing integrity. |
Explore related products
What You'll Learn
- Prepare Shower Area: Remove old tiles, clean surface, ensure walls are dry and structurally sound
- Measure and Cut Boards: Measure walls, mark boards, cut with utility knife or saw
- Apply Adhesive: Spread thin-set mortar evenly, press boards firmly, use notched trowel
- Secure with Screws: Fasten boards to studs using corrosion-resistant screws, maintain spacing
- Seal Joints and Edges: Apply waterproof tape to seams, seal edges with silicone caulk
Prepare Shower Area: Remove old tiles, clean surface, ensure walls are dry and structurally sound
Before you can install tile backer board in your shower, the existing surface must be a clean slate—literally. Start by removing old tiles, a task that requires both patience and precision. Use a hammer and chisel to carefully break and pry away the tiles, working from the bottom up to minimize damage to the underlying wall. For stubborn adhesive, a power tool like a rotary hammer with a tile-removal attachment can expedite the process. Safety is paramount: wear gloves, goggles, and a dust mask to protect against sharp edges and airborne particles.
Once the tiles are gone, the real preparation begins. Clean the surface thoroughly to remove any residual adhesive, grout, or debris. A mixture of warm water and mild detergent works well for this, followed by a rinse with clean water. For tougher residue, consider using a chemical adhesive remover, but ensure it’s compatible with your wall material and follow the manufacturer’s instructions. A clean surface ensures proper adhesion of the backer board, preventing future issues like cracking or mold growth.
Drying the walls is a step often overlooked but critical to the success of your project. Moisture trapped behind the backer board can lead to mold, mildew, or structural damage. Use fans or a dehumidifier to speed up the drying process, and test the walls with a moisture meter to ensure they’re completely dry. If you’re working in an older home, inspect for signs of water damage or rot, addressing any issues before proceeding. Structurally sound walls are non-negotiable—repair or replace compromised areas to create a stable foundation for the backer board.
Finally, assess the wall’s readiness for installation. Check for evenness by running a straightedge or level across the surface. Minor imperfections can be smoothed with a thin layer of thinset mortar, but significant unevenness may require additional patching or professional intervention. By meticulously preparing the shower area, you’re not just setting the stage for the backer board—you’re ensuring the longevity and durability of your entire tile installation.
Best Tools and Materials for Regrouting Your Shower Tile
You may want to see also
Explore related products
Measure and Cut Boards: Measure walls, mark boards, cut with utility knife or saw
Accurate measurements are the cornerstone of a successful tile backer board installation. Begin by measuring the height and width of each wall where the boards will be installed. Account for any protrusions like shower valves or niches, and note their exact locations. Use a straightedge and pencil to mark these dimensions directly onto the backer boards. Precision at this stage prevents gaps or overlaps that could compromise the integrity of your shower.
Once measurements are marked, cutting the boards becomes a straightforward task. For straight cuts, a utility knife with a sharp blade is ideal. Score the board’s surface along the marked line, applying firm, even pressure. For thicker boards or curved cuts, a jigsaw with a carbide-tipped blade is more efficient. Always cut with the board’s coated side facing up to minimize chipping. Wear safety goggles and a dust mask to protect against fiberglass particles, especially when cutting cement board.
When dealing with corners or irregular shapes, consider using a combination of straight and angled cuts. For example, a 45-degree cut at the corner of a board can create a seamless joint when two pieces meet. If your shower has a niche, measure its dimensions carefully and cut the board to fit snugly around it. Double-check all cuts against the wall before securing them to ensure a perfect fit.
A practical tip for minimizing waste is to plan your cuts strategically. Lay out the boards on a flat surface and arrange them to match the wall layout. Use smaller offcuts for areas like the bottom row or around fixtures. This not only reduces material waste but also saves time during installation. Remember, the goal is to create a continuous, watertight surface that will support your tile installation for years to come.
Top Shower Door Anchors for Secure Tile Installation Guide
You may want to see also
Explore related products
Apply Adhesive: Spread thin-set mortar evenly, press boards firmly, use notched trowel
Applying adhesive correctly is the linchpin of a successful tile backer board installation in your shower. The process begins with thin-set mortar, a cement-based adhesive specifically designed for wet environments. Spread it evenly across the substrate using a notched trowel, ensuring the grooves created by the trowel’s teeth are consistent. This pattern allows air to escape and creates a mechanical bond between the mortar and the backer board. Aim for a layer roughly 1/8 to 1/4 inch thick, depending on the trowel notch size recommended by the manufacturer. Skimping on mortar or applying it unevenly can lead to voids, reducing the board’s stability and water resistance.
Once the mortar is applied, press the backer board firmly into place, starting from one edge and working your way across. Use a slight twisting motion as you press to ensure the board makes full contact with the adhesive. This step is where the notched trowel’s work pays off: the grooves collapse slightly, creating suction and a strong bond. Avoid sliding the board once it’s in position, as this can disrupt the mortar and weaken the hold. For larger boards, enlist a helper to ensure alignment and even pressure.
The notched trowel isn’t just a tool—it’s a precision instrument in this process. Choose the correct notch size based on the backer board’s thickness and the mortar’s consistency. For standard 1/2-inch backer boards, a 1/4-inch x 1/4-inch square-notch trowel is often ideal. If the mortar is too wet or too dry, adjust its consistency before applying it. Too wet, and it’ll shrink excessively; too dry, and it won’t adhere properly. Test a small area first to ensure the mortar spreads smoothly and holds the board firmly.
While pressing the board, pay attention to edges and corners, as these areas are prone to gaps. Use a tapping block and rubber mallet to ensure the board sits flush against the substrate and adjacent boards. Overlapping joints should be staggered, and seams should be taped and filled with thin-set to prevent water intrusion. Remember, the goal is a seamless, watertight surface that will support tiles for years to come.
Finally, allow the adhesive to cure fully before proceeding with tiling. This typically takes 24 to 48 hours, depending on humidity and temperature. Rushing this step can compromise the bond, leading to cracks or loose tiles down the line. Patience here ensures your DIY shower project stands the test of time, both functionally and aesthetically.
Replace Your Bath Shower Diverter Behind Tile: A Step-by-Step Guide
You may want to see also
Explore related products
Secure with Screws: Fasten boards to studs using corrosion-resistant screws, maintain spacing
Securing tile backer boards with screws is a critical step in ensuring a durable and watertight shower installation. Unlike adhesives alone, screws provide mechanical strength, preventing boards from shifting or warping under the weight of tiles and moisture. For this task, corrosion-resistant screws are non-negotiable. Standard screws will rust over time, compromising the integrity of the installation. Opt for stainless steel or hot-dipped galvanized screws, typically 1-1/4 to 1-1/2 inches in length, to penetrate the backer board and firmly anchor into the studs.
The process begins with marking stud locations through the backer board. Use a stud finder to identify where the wooden or metal studs are positioned behind the board. Once marked, pre-drill holes slightly smaller than the screw diameter to prevent cracking the backer board. Spacing is equally important: screws should be placed every 8 to 12 inches along the studs, with additional screws around the perimeter and near corners for added stability. Overdriving screws is a common mistake—tighten them just enough to secure the board without breaking the surface.
Maintaining proper spacing between boards is another key consideration. Leave a 1/8-inch gap between backer board sheets to allow for expansion and contraction. This gap should be filled with a waterproof sealant or tape designed for tile backer boards. Failure to do so can lead to cracking or water infiltration, undermining the entire installation. Think of the screws and spacing as the skeleton of your shower—they provide structure and longevity, ensuring the tiles remain secure for years to come.
While the process may seem straightforward, precision is paramount. Misaligned screws or uneven spacing can create weak points in the installation. For DIYers, it’s helpful to work in sections, securing one board at a time and double-checking alignment before moving on. If you’re working with larger shower areas, consider enlisting a helper to hold boards in place while you fasten them. Remember, the goal is not just to attach the boards but to create a seamless, watertight foundation for your tile work.
Finally, take a step back and inspect your work before proceeding to the next phase. Ensure all screws are flush with the surface and that the boards are securely fastened without gaps or movement. This attention to detail will pay dividends when you begin tiling, as a stable backer board installation makes for smoother tile placement and a more professional finish. In the world of DIY shower installations, securing backer boards with screws isn’t just a step—it’s the backbone of your project.
Mastering Shower Floor Tiling: A Step-by-Step Bathroom DIY Guide
You may want to see also
Explore related products
Seal Joints and Edges: Apply waterproof tape to seams, seal edges with silicone caulk
Water intrusion is the silent enemy of any shower installation, capable of causing mold, rot, and structural damage over time. Sealing joints and edges of tile backer board is a critical step in preventing moisture from seeping behind tiles and compromising the integrity of your DIY project. This process involves two primary materials: waterproof tape for seams and silicone caulk for edges, each serving a distinct purpose in creating a watertight barrier.
Begin by applying waterproof tape to all seams where backer board panels meet. This tape, often fiberglass mesh or a specialized waterproofing membrane, acts as a bridge over the gap, preventing water from penetrating the joint. Press the tape firmly into place, ensuring it adheres smoothly without wrinkles or bubbles. For added protection, consider using a thin layer of thinset mortar beneath the tape to create a stronger bond. This step is particularly crucial in corners and along the bottom edge of the backer board, where water tends to accumulate.
Next, seal the edges of the backer board with silicone caulk, focusing on areas where the board meets the shower curb, walls, or floor. Silicone caulk is flexible, durable, and resistant to moisture, making it ideal for this application. Use a caulking gun to apply a consistent bead of caulk, smoothing it with a damp finger or a caulk-smoothing tool for a professional finish. Allow the caulk to cure fully, typically 24 hours, before proceeding with tile installation. Avoid using latex caulk, as it lacks the flexibility and longevity of silicone in wet environments.
A common mistake is neglecting to seal the top edge of the backer board, assuming it will be covered by tile. However, water can migrate upward through capillary action, so apply caulk along the top edge as well. Additionally, if your shower includes niches or alcoves, pay extra attention to these areas, as they often have multiple seams and edges that require thorough sealing.
In summary, sealing joints and edges with waterproof tape and silicone caulk is a non-negotiable step in installing tile backer board for a shower. Done correctly, it ensures a watertight envelope that protects your investment and maintains the longevity of your DIY project. Take the time to execute this step meticulously—your future self will thank you when the shower remains leak-free for years to come.
Best Adhesives for Securing Tiles to Shower Walls: A Complete Guide
You may want to see also
Frequently asked questions
Tile backer board is a waterproof or water-resistant panel used as a substrate for tile installations. It provides a stable, durable surface for tiles and prevents moisture from damaging the wall structure, making it essential for shower areas.
You’ll need tile backer board, waterproof screws or nails, a utility knife, a drill, a screwdriver, a tape measure, a level, a pencil, and waterproof tape or sealant. Optional tools include a jigsaw for cutting curves.
Ensure the walls are clean, dry, and free of debris. Remove any existing drywall or old tiles. Check for level and plumb, and mark the stud locations to ensure proper attachment of the backer board.
Use a utility knife or jigsaw to score and cut the backer board. For curves or tight spaces, a jigsaw with a fine-tooth blade works best. Measure twice and cut once to ensure accuracy.
Yes, sealing the seams and edges is crucial for waterproofing. Use waterproof tape or sealant to cover all joints and edges before tiling. Follow the manufacturer’s instructions for proper application.
