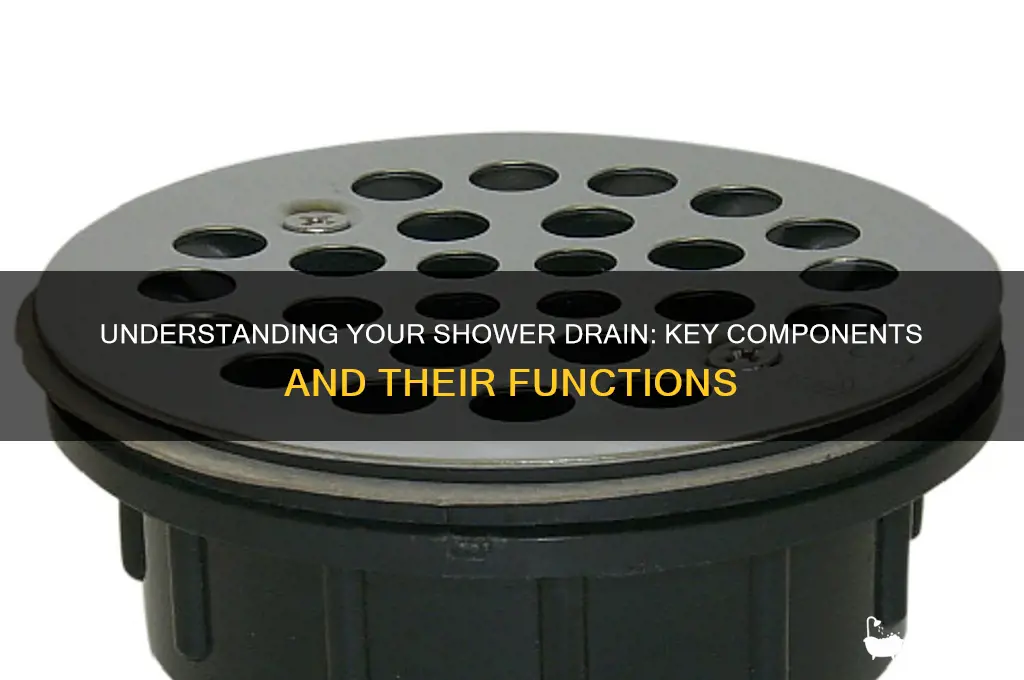

A shower drain is a crucial component of any bathroom, designed to efficiently remove water and prevent flooding. Understanding its parts is essential for maintenance and troubleshooting. The main components include the drain cover, which sits on top and prevents debris from entering the system; the strainer or grate, which catches hair and other particles; the drain body, a cylindrical pipe that connects to the plumbing system; and the P-trap, a curved section beneath the drain body that holds water to block sewer gases from entering the bathroom. Additionally, some drains feature a removable stopper or a pop-up mechanism for water retention when needed. Each part plays a vital role in ensuring proper drainage and maintaining a clean, functional shower.
| Characteristics | Values |
|---|---|
| Strainer | A removable cover that catches hair, soap scum, and other debris to prevent clogs. Typically made of metal or plastic. |
| Drain Body | The main pipe component that connects to the plumbing system, usually made of PVC or ABS plastic. |
| Drain Flange | A circular piece that sits between the strainer and the shower pan, providing a watertight seal and finished look. |
| Slip Joint | A connector that allows for easy installation and adjustment of the drain height, often used in shower drain assemblies. |
| P-Trap | A curved pipe beneath the drain body that holds water to prevent sewer gases from entering the bathroom. |
| Tailpiece | The vertical pipe that extends from the drain body to the P-trap, directing water downward. |
| Shower Pan | The waterproof base of the shower that slopes toward the drain to ensure proper water flow. |
| Sealant/Gasket | Used between components (e.g., flange and shower pan) to create a watertight seal and prevent leaks. |
| Overflow Drain (Optional) | A secondary drain in some showers to prevent water from overflowing if the primary drain is clogged. |
| Threaded Adapter (Optional) | Used to connect the drain body to the plumbing system, especially in older installations. |
Explore related products
What You'll Learn
Drain Cover Types
When it comes to shower drain components, the drain cover is a crucial element that not only affects the aesthetics of your bathroom but also plays a significant role in preventing debris from clogging the drain. Drain cover types vary widely, each designed to cater to different preferences, styles, and functional needs. Understanding the various options available can help you make an informed decision when selecting or replacing a shower drain cover.
Square and Round Drain Covers are among the most common types, characterized by their simple yet effective designs. Square covers often feature a grid pattern or a solid surface with small perforations to allow water to flow through while catching hair and other particles. Round drain covers, on the other hand, typically have a circular shape with a similar perforated or grated surface. Both types are available in various materials, including stainless steel, brass, and plastic, each offering different levels of durability and resistance to corrosion.
Tile Insert Drain Covers offer a seamless and integrated look, as they are designed to blend in with the surrounding shower floor tiles. These covers consist of a frame that holds a removable tile insert, allowing the drain to virtually disappear into the shower floor. This type is particularly popular in modern and minimalist bathroom designs. The tile insert can be replaced to match new tiles if you decide to renovate your shower area, making it a versatile choice.
For those seeking a more decorative touch, Patterned and Textured Drain Covers provide an opportunity to add a unique element to the shower space. These covers come in various designs, from intricate patterns and motifs to textured surfaces that mimic natural materials like stone or wood. While they serve the same functional purpose as other drain covers, their aesthetic appeal can enhance the overall design of the bathroom. Materials range from metals like bronze and copper to more exotic options, ensuring there’s a style to suit every taste.
Removable and Cleanable Drain Covers are designed with maintenance in mind, featuring easy-to-remove mechanisms that allow for regular cleaning to prevent clogs. Some models have a lift-and-turn design, while others may slide or pop out for access to the drain trap. This type is ideal for households with high shower usage or for those who prefer a low-maintenance option. Many of these covers also come with additional features like anti-microbial coatings to inhibit the growth of mold and mildew.
Lastly, ADA-Compliant Drain Covers are specifically designed to meet the requirements of the Americans with Disabilities Act, ensuring they are safe and accessible for all users. These covers often have a low profile and smooth edges to prevent tripping hazards, making them suitable for barrier-free showers. They are typically made from durable materials to withstand heavy use and are available in both standard and custom sizes to accommodate various shower configurations. Choosing the right drain cover type depends on your specific needs, whether it’s for functionality, aesthetics, or compliance with accessibility standards.
Easy DIY Guide to Repairing Your Shower Glass Panel
You may want to see also
Explore related products
P-Trap Functionality
The P-trap is a crucial component of a shower drain system, serving a vital function in maintaining proper plumbing operation and indoor air quality. This curved pipe, typically shaped like the letter "P," is designed to hold a small amount of water at all times, creating a barrier that prevents sewer gases from entering the living space. The P-trap's functionality is rooted in its ability to utilize the principles of gravity and fluid dynamics to maintain this water seal, which is essential for a healthy and odor-free environment.
In terms of its operation, the P-trap works by allowing wastewater to flow through the curved pipe, with the force of gravity pulling the water down and around the bend. As the water exits the P-trap, a small amount remains pooled in the curved section, effectively sealing off the drain pipe from the sewer system below. This water seal not only blocks unpleasant odors from rising up through the drain but also prevents insects, rodents, and other pests from entering the building through the plumbing system. The P-trap's design is relatively simple, yet its functionality is critical to the overall performance of the shower drain.
One of the key aspects of P-trap functionality is its ability to maintain the water seal over time. To achieve this, the P-trap must be properly installed and vented, allowing air to flow through the system and preventing suction from breaking the water seal. Additionally, the P-trap should be periodically inspected and cleaned to remove any debris or buildup that could compromise its performance. If the P-trap becomes clogged or damaged, the water seal may be broken, allowing sewer gases to escape and potentially causing unpleasant odors or even health hazards. Regular maintenance and prompt repairs are essential to ensuring the P-trap continues to function effectively.
The P-trap's functionality is also influenced by the surrounding plumbing system, including the vent stack and drain pipes. A properly designed and installed plumbing system will ensure that the P-trap is adequately vented, allowing air to flow through the system and maintaining the water seal. In contrast, a poorly designed or installed system can lead to problems such as slow draining, gurgling noises, or even sewer gas leaks. When installing or repairing a shower drain, it is crucial to consider the P-trap's relationship with the rest of the plumbing system to ensure optimal functionality and prevent potential issues.
In addition to its primary function of blocking sewer gases, the P-trap also plays a role in preventing clogs and backups in the plumbing system. By trapping debris and other materials that may be present in the wastewater, the P-trap helps to protect the drain pipes from blockages and reduces the risk of backups. However, this also means that the P-trap itself can become clogged over time, requiring regular cleaning and maintenance to ensure it continues to function effectively. By understanding the importance of P-trap functionality and taking steps to maintain and protect this critical component, homeowners can help ensure a healthy, odor-free, and efficiently functioning shower drain system.
Moving a Shower Drain: Challenges and Solutions for DIY Enthusiasts
You may want to see also
Explore related products
Shower Drain Strainer
A shower drain strainer is an essential component of any shower drain system, designed to prevent hair, soap scum, and other debris from clogging the drainpipe. It is typically the first line of defense in maintaining a free-flowing shower drain. The strainer is usually a round or square-shaped cover made of durable materials such as stainless steel, plastic, or brass, featuring numerous small holes or a fine mesh that allows water to pass through while trapping larger particles. This simple yet effective mechanism helps to minimize the need for frequent drain cleaning and reduces the risk of costly plumbing issues.
When selecting a shower drain strainer, it’s important to consider the size and compatibility with your existing drain assembly. Most strainers are designed to fit standard drain openings, but measurements should be verified to ensure a proper fit. Additionally, the material of the strainer plays a crucial role in its durability and aesthetic appeal. Stainless steel strainers are highly recommended for their rust-resistant properties and longevity, while plastic options are more budget-friendly but may wear out faster. Some strainers also come with added features, such as a removable basket or a weighted design to keep them securely in place.
Installing a shower drain strainer is a straightforward process that typically requires no special tools. Start by removing any existing drain cover or debris from the drain opening. Place the strainer directly over the drain, ensuring it sits flush with the shower floor. Some strainers may have a screw or locking mechanism to secure them in place, while others rely on their weight and friction. Regular maintenance involves lifting the strainer periodically to clean out accumulated hair and debris, which can be done in seconds. This routine care significantly extends the life of both the strainer and the overall drain system.
Beyond functionality, shower drain strainers can also enhance the appearance of your shower. They come in various finishes, including chrome, brushed nickel, and oil-rubbed bronze, allowing you to match them with your bathroom’s decor. Some designs even incorporate decorative patterns or textures for a more personalized touch. While the primary purpose of a strainer is practical, choosing one that complements your style can add a subtle yet impactful element to your shower space.
In summary, a shower drain strainer is a small but vital part of a shower drain system, serving to prevent clogs and maintain proper drainage. Its design, material, and ease of installation make it a practical addition to any shower. By selecting the right strainer and performing regular maintenance, you can ensure a clean, efficient, and aesthetically pleasing shower experience. Whether prioritizing durability, style, or affordability, there’s a shower drain strainer suited to every need.
Easy Fixes for a Sticking Shower Door: Smooth Sliding Solutions
You may want to see also
Explore related products
Drain Pipe Sizes
When it comes to shower drain systems, understanding the appropriate drain pipe sizes is crucial for efficient water flow and preventing clogs. The drain pipe is a vital component that connects the shower drain to the main plumbing system, allowing wastewater to exit the shower area. Standard drain pipe sizes for residential showers typically range from 1.5 inches to 2 inches in diameter. The most common size used is 2 inches, as it provides ample capacity for water flow and reduces the likelihood of blockages caused by soap scum, hair, and other debris. However, in some older homes or specific plumbing configurations, 1.5-inch pipes might be present, though they are generally less efficient for modern shower setups.
Selecting the correct drain pipe size depends on several factors, including local building codes, the shower’s expected water volume, and the layout of the plumbing system. Building codes often dictate minimum pipe diameters to ensure proper drainage and prevent backups. For instance, a 2-inch pipe is usually required for shower drains to accommodate the flow rate of modern showerheads, which can exceed 2 gallons per minute. It’s essential to consult local regulations or a professional plumber to ensure compliance and optimal performance. Additionally, the pipe size should align with the fittings and traps used in the drain assembly to maintain a consistent diameter throughout the system.
Another consideration is the compatibility of the drain pipe size with other components of the shower drain, such as the drain body, trap, and vent system. The trap, typically a P-trap or S-trap, must match the pipe size to ensure proper sealing and prevent sewer gases from entering the bathroom. A 2-inch drain pipe will require a corresponding 2-inch trap, while a 1.5-inch pipe will need a smaller trap. The vent system, which helps equalize air pressure in the drain pipes, should also be sized appropriately to work efficiently with the chosen pipe diameter. Mismatched sizes can lead to poor drainage, gurgling noises, or even sewer gas leaks.
For DIY installations or renovations, measuring existing pipes and planning the layout carefully is essential. If replacing or extending drain pipes, ensure that the new pipes match the existing system’s diameter to avoid bottlenecks or inefficiencies. In some cases, adapters or reducers may be necessary to connect pipes of different sizes, but these should be used sparingly to maintain optimal flow. It’s also important to consider the slope of the drain pipe, typically 1/4 inch per foot, to ensure water flows smoothly toward the main sewer line.
Lastly, while 2-inch drain pipes are standard for showers, larger sizes like 3 inches are sometimes used in commercial settings or for specialized applications. However, for residential showers, sticking to the 2-inch standard is generally sufficient and cost-effective. Always prioritize quality materials, such as PVC or ABS pipes, which are durable, corrosion-resistant, and easy to install. By carefully selecting the correct drain pipe size and ensuring proper installation, you can maintain a functional and long-lasting shower drain system.
Easy Steps to Reverse and Repair Your Backwards Shower Faucet
You may want to see also
Explore related products
Overflow Prevention Mechanisms
Another critical mechanism is the drain cover or strainer, which serves as the first line of defense against overflow. The strainer is designed with small openings that allow water to pass while trapping hair, soap scum, and other debris. By preventing clogs, the strainer ensures that water flows freely into the drain pipe, reducing the risk of backup. Regular cleaning of the strainer is crucial to maintain its effectiveness in overflow prevention.
The P-trap is another vital component in overflow prevention. Located beneath the shower drain, the P-trap is a curved pipe that holds a small amount of water, creating a barrier that prevents sewer gases from entering the bathroom. Additionally, the P-trap helps regulate water flow and can catch debris that slips past the strainer, further reducing the likelihood of clogs that could lead to overflow. Ensuring the P-trap is intact and properly installed is key to its functionality.
In some advanced shower drain systems, automatic shut-off valves are incorporated as an additional overflow prevention measure. These valves are triggered by sensors that detect abnormal water levels in the drain. When activated, the valve closes, stopping the flow of water into the drain and preventing overflow. This mechanism is particularly useful in commercial settings or homes with high water usage, where the risk of overflow is greater.
Lastly, the ventilation system connected to the shower drain plays an indirect but crucial role in overflow prevention. Proper ventilation ensures that air can flow freely through the plumbing system, allowing water to drain efficiently without creating suction or backpressure. Without adequate ventilation, water may drain slowly, increasing the risk of overflow. Ensuring the vent pipes are clear and properly installed is essential for maintaining the overall effectiveness of the shower drain system in preventing overflow.
Easy Fixes for Sliding Shower Doors with Faulty Hinges
You may want to see also
Frequently asked questions
The top part of a shower drain is called the drain cover or strainer. It is designed to catch hair, soap scum, and other debris while allowing water to flow through.
The shower drain body is the main component that connects the drain cover to the plumbing system. Its purpose is to direct water from the shower floor into the drain pipe, ensuring proper drainage and preventing water from pooling.
The shower drain tailpiece is a vertical pipe that extends downward from the drain body into the plumbing system. Its primary function is to connect the drain body to the P-trap, which prevents sewer gases from entering the bathroom while allowing water to flow out.
