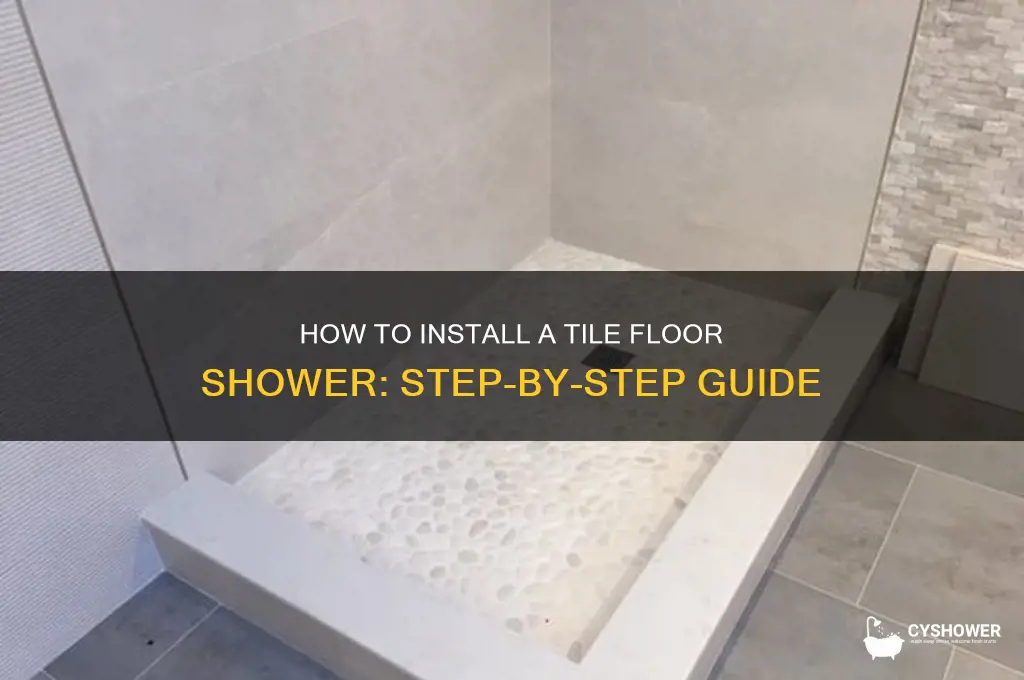

Installing a tile floor shower is a detailed process that requires careful planning and execution to ensure durability, water resistance, and aesthetic appeal. The steps typically begin with preparing the shower area, which includes removing any existing materials, ensuring the subfloor is level, and installing a waterproof membrane to prevent moisture damage. Next, a mortar bed or cement backer board is laid to create a stable base for the tiles. Once the base is ready, tiles are carefully laid out and adhered using a suitable tile adhesive, ensuring proper spacing with tile spacers. After the adhesive sets, grout is applied to fill the gaps between tiles, followed by sealing the grout and tiles to protect against water and stains. Finally, the shower fixtures, such as the drain and walls, are installed and tested for leaks, completing the transformation into a functional and stylish shower space.
| Characteristics | Values |
|---|---|
| Preparation | Plan layout, gather tools/materials, remove old shower, inspect substrate. |
| Waterproofing | Install waterproof membrane (e.g., liquid or sheet membrane). |
| Shower Pan Installation | Build or install pre-fabricated shower pan with proper slope for drainage. |
| Substrate Preparation | Ensure substrate is clean, flat, and dry (use cement backer board if needed). |
| Layout and Dry Fit | Plan tile layout, dry fit tiles without adhesive to ensure alignment. |
| Tile Adhesive Application | Apply thinset mortar using a notched trowel. |
| Tile Installation | Set tiles firmly into adhesive, using spacers for consistent gaps. |
| Grouting | Apply grout after tiles set (24-48 hours), wipe off excess, and clean. |
| Sealing | Seal grout and tiles with a waterproof sealant. |
| Drain Installation | Install shower drain assembly, ensuring proper alignment and waterproofing. |
| Wall Tile Installation (Optional) | Repeat tiling process for shower walls if applicable. |
| Final Inspection | Check for leaks, ensure all tiles are secure, and test drainage. |
| Tools Required | Tile cutter, trowel, sponge, grout float, level, waterproof membrane, etc. |
| Materials Required | Tiles, thinset, grout, sealant, cement backer board, shower pan, etc. |
| Timeframe | Typically 3-5 days, depending on drying times and complexity. |
| Skill Level | Intermediate to advanced DIY or professional installation recommended. |
Explore related products
What You'll Learn
- Prepare the Shower Base: Ensure proper slope, clean surface, and waterproof membrane installation for tile adhesion
- Layout and Design: Plan tile pattern, measure space, and mark centerlines for accurate tile placement
- Apply Thinset Mortar: Spread thinset evenly, comb for adhesion, and work in small sections
- Set and Align Tiles: Press tiles firmly, use spacers, and adjust for level and alignment
- Grout and Seal: Fill grout lines, wipe excess, and apply sealant to protect tiles and grout
Prepare the Shower Base: Ensure proper slope, clean surface, and waterproof membrane installation for tile adhesion
A properly prepared shower base is the foundation of a successful tile installation, ensuring longevity and preventing water damage. The first critical step is establishing the correct slope, typically a ¼ inch per foot gradient toward the drain. This slope facilitates efficient water drainage, preventing pooling and potential leaks. Achieving this requires careful planning and execution, often involving a mortar bed or a pre-sloped shower pan. For DIY enthusiasts, using a level and straightedge to check the slope at multiple points can help ensure accuracy.
Once the slope is set, the surface must be meticulously cleaned to promote optimal tile adhesion. Any debris, dust, or residue left on the substrate can compromise the bond between the tile and the mortar. A thorough sweep followed by a damp mop is usually sufficient, but stubborn contaminants may require a mild detergent or specialized cleaner. It’s essential to allow the surface to dry completely before proceeding, as moisture can interfere with the adhesion process. For cement-based substrates, lightly roughening the surface with sandpaper can enhance grip, though this step is often unnecessary with modern thinset mortars.
The installation of a waterproof membrane is arguably the most critical aspect of preparing the shower base. This barrier prevents water from seeping through the tile and grout, protecting the underlying structure from mold, rot, and deterioration. Common materials include liquid waterproofing membranes, sheet membranes, or waterproof backer boards. When applying liquid membranes, follow the manufacturer’s instructions for coverage rates—typically, two coats are required, with the second applied at a 90-degree angle to the first. Allow ample drying time, often 24 hours, before proceeding with tile installation.
While the process may seem straightforward, there are pitfalls to avoid. Overlooking the importance of a proper slope can lead to standing water and mold issues, while inadequate surface preparation can result in tiles popping loose over time. Similarly, cutting corners on waterproofing is a recipe for disaster, as even small breaches can cause significant damage. Investing time and attention to these details not only ensures a professional finish but also safeguards the integrity of the entire shower system. By prioritizing slope, cleanliness, and waterproofing, you lay the groundwork for a durable and visually appealing tile floor shower.
Should Shower Tile Extend Past the Tub? Pros, Cons, and Tips
You may want to see also
Explore related products
Layout and Design: Plan tile pattern, measure space, and mark centerlines for accurate tile placement
Before laying a single tile, envision the final look. Will you opt for a classic grid pattern, a herringbone design, or a custom mosaic? The chosen pattern dictates tile size, spacing, and overall aesthetic. Consider the shower's dimensions and your skill level. Complex patterns demand precision and often result in more waste. For beginners, a straightforward grid layout using larger tiles minimizes cuts and simplifies installation.
Sketch your design on paper, factoring in the shower floor's slope for drainage. This visual guide ensures a cohesive look and helps calculate the required tile quantity.
Accurate measurements are the cornerstone of a successful tile installation. Measure the shower floor's length and width at multiple points, accounting for any irregularities. Subtract the width of your chosen grout lines from each measurement to determine the actual tile coverage area. Divide this area by the square footage of a single tile to estimate the total number needed, adding 10-15% for cuts and breakage. Remember, it's better to have extra tiles than to run short mid-project.
Utilize a laser level or chalk line to mark reference points on the walls and floor. These lines will guide tile placement, ensuring straight rows and columns.
Finding the center of the shower floor is crucial for symmetrical tile layouts. Snap chalk lines from the midpoint of each wall, intersecting at the center point. This "crosshair" serves as the starting point for tile placement, ensuring balanced rows radiating outward. For diagonal patterns, adjust the centerlines accordingly. Double-check all markings for accuracy before proceeding, as errors at this stage will compound throughout the installation.
Consider using tile spacers to maintain consistent grout lines. These small plastic crosses ensure even spacing between tiles, preventing uneven gaps. For a more organic look, opt for a tighter grout line and hand-adjust tile placement. Remember, the layout and design phase is your opportunity to experiment and refine your vision. Take your time, plan meticulously, and don't be afraid to seek inspiration from online tutorials or design magazines. A well-executed tile pattern elevates the entire shower, transforming it from functional to fabulous.
Should You Seal Ceramic Tile Around Your Shower? Pros and Cons
You may want to see also
Explore related products
Apply Thinset Mortar: Spread thinset evenly, comb for adhesion, and work in small sections
Applying thinset mortar is a critical step in installing a tile floor shower, as it ensures a strong bond between the substrate and the tiles. To begin, mix the thinset according to the manufacturer’s instructions, typically using a 5:1 ratio of powder to water for standard applications. Use a margin trowel to achieve a smooth, lump-free consistency, similar to peanut butter. Once mixed, spread the thinset evenly over the substrate using a notched trowel. The notch size depends on the tile size—a 1/4-inch notch is common for most shower tiles. Hold the trowel at a 45-degree angle and apply firm, even pressure to create ridges in the mortar, which maximize adhesion.
Combing the thinset is a step often overlooked but essential for optimal tile bonding. After spreading the mortar, drag the notched edge of the trowel across the surface in one direction to create consistent grooves. This process ensures that air pockets are eliminated and that the mortar adheres uniformly to the tile’s back. Proper combing also prevents tiles from shifting during installation, which is particularly important in shower floors where water exposure can weaken bonds over time. Think of it as laying the groundwork for a durable, watertight surface.
Working in small sections is a practical strategy to maintain control over the thinset’s setting time and ensure precision in tile placement. Divide the shower floor into manageable areas, such as 2x2 or 3x3-foot sections. Apply thinset to one section at a time, immediately placing tiles before the mortar begins to dry. This approach prevents the thinset from skinning over, which can weaken the bond. For larger shower areas, enlist a helper to ensure tiles are set efficiently while the mortar is still workable.
While applying thinset, be mindful of temperature and humidity, as these factors influence drying time. In humid conditions, thinset may take longer to set, while in dry environments, it can dry too quickly. Aim to work in a controlled environment, ideally between 60–80°F. If the mortar starts to dry before tiles are placed, scrape it off and reapply fresh thinset. Additionally, avoid overworking the mortar once tiles are set, as this can disrupt adhesion. Patience and attention to detail in this phase will pay off in the longevity of the shower floor.
Finally, consider the type of thinset used for shower installations. Modified thinset, which includes polymer additives, is highly recommended for wet areas due to its superior bonding strength and flexibility. Unmodified thinset, while cheaper, lacks the same water resistance and is better suited for dry areas. Investing in the right material ensures the shower floor can withstand constant moisture exposure without cracking or loosening tiles. By spreading thinset evenly, combing for adhesion, and working in small sections, you create a foundation that not only holds tiles securely but also protects the underlying structure from water damage.
Is RedGuard Necessary for Tile Showers? Pros, Cons, and Alternatives
You may want to see also
Explore related products
Set and Align Tiles: Press tiles firmly, use spacers, and adjust for level and alignment
Pressing tiles firmly into the mortar is the first critical step in ensuring a stable and long-lasting shower floor. Use the flat side of a trowel or a tile setter to apply even pressure, starting from the center of the tile and moving outward. This technique helps to eliminate air pockets and ensures maximum contact between the tile and the mortar, which is essential for adhesion. Avoid pressing too hard, as this can cause the mortar to squeeze out excessively, but apply enough force to embed the tile securely.
Spacers are indispensable tools for maintaining consistent gaps between tiles, which not only enhance the aesthetic appeal but also allow for grout application. Place 2mm or 3mm spacers at the corners and along the edges of each tile, depending on the desired grout line width. For shower floors, smaller grout lines (2mm) are often preferred for a sleeker look and easier cleaning. Ensure spacers are snug but not forced, as this can misalign tiles. Periodically step back to check that the spacers are maintaining uniform spacing across the entire area.
Achieving a level surface is paramount in a shower installation to prevent water pooling and ensure proper drainage. Use a level tool to check each tile immediately after setting it, both horizontally and vertically. If a tile is uneven, gently lift it, add or remove mortar as needed, and reset it. For larger tiles or uneven substrates, consider using a self-leveling compound before tiling. Remember, minor adjustments now save significant effort later, as correcting misaligned tiles after the mortar sets is nearly impossible.
Alignment is as crucial as leveling, especially in a shower where visual consistency is key. Start by establishing straight reference lines using a chalk snapper or laser level, both horizontally and vertically. Align the first row of tiles with these lines, ensuring they are square to the walls and center of the shower. For diagonal or patterned layouts, double-check angles and symmetry at each step. If tiles need to be cut to fit, measure twice and cut once, ensuring the cut edges align seamlessly with adjacent tiles.
Finally, take a step back periodically to assess the overall alignment and level of the tiles. Walk around the shower area and view the tiles from different angles, including at eye level and from a distance. Look for any inconsistencies in spacing, height, or pattern. Address any issues immediately, as mortar begins to set within 30–60 minutes. Once satisfied with the layout, allow the mortar to cure fully (typically 24–48 hours) before removing spacers and grouting. This meticulous approach ensures a professional finish that is both functional and visually appealing.
Exploring Shower Tile Materials: Composition, Durability, and Design Options
You may want to see also
Explore related products
Grout and Seal: Fill grout lines, wipe excess, and apply sealant to protect tiles and grout
Grout is the unsung hero of any tile installation, binding tiles together and preventing water intrusion. Yet, its application is both an art and a science. Begin by mixing your grout according to the manufacturer’s instructions—typically a 1:4 ratio of grout to water for standard cementitious grout. Use a grout float to press the mixture into the joints at a 45-degree angle, ensuring the lines are fully saturated. Work in small sections to maintain control, as grout sets quickly. The key is to fill the lines completely without leaving voids, which can compromise the installation.
Once the grout is in place, the next step is to remove excess grout from the tile surfaces. Wait 15–20 minutes after grouting to allow it to firm up slightly—this prevents it from smearing. Use a damp sponge and lightly wipe the tiles in a diagonal motion, avoiding direct pressure on the grout lines. Change the rinse water frequently to avoid redepositing grout onto the tiles. This step requires patience; rushing can pull grout from the joints or scratch the tiles. Repeat the process until the tiles are clean and the grout lines are smooth.
Sealing is the final, critical step to protect both tiles and grout from moisture, stains, and mold. Choose a penetrating sealant designed for your grout type—epoxy-based sealants are ideal for showers due to their water resistance. Apply the sealant using a small brush or applicator bottle, ensuring it saturates the grout lines. Wipe off any excess from the tile surfaces immediately with a clean cloth. Allow the sealant to cure for 24–48 hours before exposing it to water. Reapply sealant every 1–2 years, depending on usage, to maintain protection.
A common mistake is skipping the sealing step or using the wrong product, which can lead to grout deterioration and water damage. For example, using a topical sealant on porous grout can trap moisture beneath the surface, fostering mold growth. Conversely, a high-quality penetrating sealant not only protects but also enhances the grout’s appearance. Always test the sealant on a small area first to ensure compatibility with your tiles and grout. Properly executed, grouting and sealing transform a collection of tiles into a durable, waterproof shower floor.
Ceramic Tile Under Fiberglass Shower Pan: Pros, Cons, and Best Practices
You may want to see also
Frequently asked questions
Begin by planning the layout and gathering materials such as tiles, thinset mortar, waterproofing membrane, and tools like a trowel, tile cutter, and notched spreader. Remove the existing shower floor and ensure the subfloor is clean, level, and structurally sound.
Apply a waterproofing membrane to the subfloor, walls, and corners according to the manufacturer’s instructions. Common options include liquid waterproofing or sheet membranes. Allow the membrane to cure completely before proceeding.
Using a notched trowel, spread thinset mortar evenly over the waterproofed surface, ensuring the notches create consistent ridges. Work in small sections to prevent the thinset from drying before tiles are placed.
Start laying tiles from the center of the shower floor outward, using spacers to maintain consistent grout lines. Press tiles firmly into the thinset to ensure proper adhesion. Use a tile cutter or wet saw for precise cuts around edges and corners.
Allow the thinset to cure for at least 24 hours. Mix and apply grout, ensuring all gaps between tiles are filled. Wipe away excess grout with a damp sponge. Finally, seal the grout and tiles with a waterproof sealant to protect against moisture and stains.
