A shower drain trap is a crucial component of your plumbing system, designed to prevent sewer gases from entering your home while allowing water to flow freely. Typically located directly beneath the shower drain, it resembles a curved or U-shaped pipe, often made of PVC or metal. This U-shape holds a small amount of water, creating a barrier that blocks odors and gases from rising into your bathroom. The trap is usually concealed within the floor or wall, connected to the drain pipe, and may include a cleanout plug or access point for maintenance. Its design is simple yet effective, ensuring both functionality and hygiene in your shower area.
| Characteristics | Values |
|---|---|
| Shape | Typically U-shaped or P-shaped, designed to hold a small amount of water. |
| Material | Commonly made of PVC, ABS plastic, brass, or stainless steel. |
| Size | Standard sizes range from 1.5 to 2 inches in diameter, depending on local plumbing codes. |
| Location | Installed beneath the shower drain, often within the floor or wall structure. |
| Function | Prevents sewer gases from entering the bathroom by maintaining a water seal. |
| Design | Includes a curved or angled section to trap water and block gas flow. |
| Components | May include a trap adapter, tailpiece, and cleanout access for maintenance. |
| Ventilation | Often connected to a vent stack to allow air flow and prevent siphoning. |
| Maintenance | Requires periodic cleaning to remove hair, soap scum, and debris. |
| Appearance | Usually hidden from view, but visible during installation or maintenance. |
Explore related products
$12.97 $14.99
What You'll Learn
- Trap Shape and Size: Common shapes (P-trap, S-trap) and standard dimensions for shower drain traps
- Material Types: PVC, ABS, or metal materials used in constructing shower drain traps
- Internal Components: Overview of trap bends, seals, and cleanout access points
- Installation Position: Proper placement under the shower drain to ensure effective water sealing
- Visual Identification: How to locate and recognize a shower drain trap in your plumbing system
Trap Shape and Size: Common shapes (P-trap, S-trap) and standard dimensions for shower drain traps
Shower drain traps are essential components of plumbing systems, designed to prevent sewer gases from entering the living space while allowing water to flow freely. The shape and size of these traps are critical to their functionality and compatibility with different plumbing setups. Among the most common shapes are the P-trap and S-trap, each with distinct characteristics suited to specific applications. The P-trap is named for its P-like shape, featuring a horizontal inlet, a downward bend, a horizontal section, and a curved outlet that points downward. This design effectively retains a small amount of water, creating a barrier against sewer gases. P-traps are widely used in residential and commercial settings due to their reliability and ease of installation. On the other hand, the S-trap has an S-shaped design with two sharp bends, one downward and one upward, before connecting to the drainpipe. While S-traps are less common today due to their tendency to dry out and allow gas escape, they are still found in older plumbing systems.
The P-trap is the more popular choice for shower drain traps due to its efficient design and compliance with modern plumbing codes. Standard dimensions for P-traps typically include a 1.5-inch or 2-inch diameter, which aligns with common shower drain pipe sizes. The horizontal sections of the P-trap are usually around 4 to 6 inches long, while the vertical drop ranges from 6 to 12 inches, depending on the specific model and installation requirements. These dimensions ensure proper water seal formation and adequate clearance for maintenance. The compact nature of P-traps makes them ideal for tight spaces, such as under showers or sinks, where larger traps would be impractical.
S-traps, though less prevalent, have specific dimensions that cater to their unique design. They typically feature a 1.5-inch or 2-inch diameter, similar to P-traps, but their dual bends require more vertical space. The vertical drop between the two bends is usually around 6 to 8 inches, with the horizontal sections measuring approximately 4 to 6 inches each. Despite their size, S-traps are often avoided in new installations due to their higher risk of drying out, which compromises their ability to block sewer gases effectively. However, understanding their dimensions is crucial for maintaining or replacing them in older plumbing systems.
When selecting a shower drain trap, it’s important to consider both the shape and size to ensure compatibility with the existing plumbing layout. For instance, a P-trap’s compact design makes it suitable for most modern showers, while an S-trap might require additional space and careful installation to function properly. Additionally, local building codes often dictate the type and size of traps allowed, so compliance is essential. Standard dimensions for both P-traps and S-traps are widely available, making it easier to find the right fit for any shower drain system.
In summary, the P-trap and S-trap are the primary shapes for shower drain traps, each with specific dimensions tailored to their design and function. P-traps, with their 1.5-inch or 2-inch diameter and compact layout, are the preferred choice for modern installations. S-traps, while less common, have similar diameters but require more vertical space due to their dual bends. Understanding these shapes and their standard dimensions ensures proper installation, efficient water flow, and effective prevention of sewer gas intrusion in shower drain systems.
Quick Fixes: Unfreeze Your Shower Drain in Simple Steps
You may want to see also
Explore related products
Material Types: PVC, ABS, or metal materials used in constructing shower drain traps
When it comes to constructing shower drain traps, the choice of material is crucial for durability, functionality, and compatibility with plumbing systems. The most commonly used materials are PVC (Polyvinyl Chloride), ABS (Acrylonitrile Butadiene Styrene), and metal (such as brass or stainless steel). Each material offers distinct advantages and considerations, making them suitable for different applications. Understanding these differences helps homeowners and plumbers select the best option for their specific needs.
PVC is one of the most popular materials for shower drain traps due to its affordability, lightweight nature, and resistance to corrosion and chemical damage. PVC traps are easy to install and are often used in residential settings. They are available in standard sizes and shapes, typically featuring a J-bend or P-trap design to prevent sewer gases from entering the bathroom. However, PVC is less durable than metal and can become brittle over time when exposed to high temperatures or direct sunlight. It is also not recommended for use with hot water applications, as it may warp or degrade.
ABS is another common material for shower drain traps, particularly in colder climates. ABS is more flexible than PVC, making it less prone to cracking in freezing temperatures. It is also lightweight and easy to work with, though it is generally more expensive than PVC. ABS traps are resistant to impact and corrosion but are not as heat-resistant as PVC. Additionally, ABS cannot be used with certain solvents or adhesives, which can limit its compatibility with some plumbing systems. It is often identified by its black color, distinguishing it from white or gray PVC.
Metal materials, such as brass or stainless steel, are favored for their durability and longevity. Brass traps, in particular, offer a high-end aesthetic and are resistant to corrosion, making them ideal for humid environments like bathrooms. Stainless steel traps are equally durable and are often used in commercial or industrial settings due to their strength and resistance to rust. Metal traps are more expensive than PVC or ABS but are less likely to crack, warp, or degrade over time. They are also suitable for both hot and cold water applications, providing greater versatility. However, metal traps can be heavier and more challenging to install, requiring additional tools and expertise.
In summary, the choice between PVC, ABS, and metal for shower drain traps depends on factors such as budget, climate, and intended use. PVC and ABS are cost-effective and easy to install, making them suitable for most residential applications, while metal traps offer superior durability and are ideal for high-demand or commercial environments. Regardless of the material chosen, ensuring proper installation and maintenance is key to preventing leaks and maintaining the trap’s functionality. Always check local building codes to ensure compliance with material requirements for shower drain traps.
Quick Fixes for a Shower That Won’t Turn Off
You may want to see also
Explore related products
Internal Components: Overview of trap bends, seals, and cleanout access points
A shower drain trap is an essential component of your plumbing system, designed to prevent sewer gases from entering your home while allowing water to flow freely. When examining the internal components of a shower drain trap, three key elements stand out: trap bends, seals, and cleanout access points. These components work together to ensure efficient drainage and maintain a healthy plumbing environment.
Trap Bends are the curved or P-shaped sections of the drain pipe that retain a small amount of water, creating a barrier between your home and the sewer system. This water seal blocks gases from rising into your shower area. Typically made of PVC, ABS, or metal, trap bends come in various designs, including the standard P-trap and the more compact S-trap. The P-trap is the most common in residential showers due to its effectiveness and ease of installation. It features a 90-degree bend followed by a downward and upward curve, forming a "P" shape. This design ensures that the water seal remains intact while allowing debris to pass through without clogging.
Seals play a critical role in maintaining the integrity of the trap. These are usually made of rubber or silicone and are positioned at connection points, such as where the trap meets the drain pipe or the shower base. Seals prevent water leakage and ensure that the trap functions correctly. Over time, seals can degrade due to exposure to moisture, chemicals, and temperature fluctuations, so regular inspection and replacement are necessary to avoid leaks and maintain the water barrier.
Cleanout Access Points are essential for maintenance and troubleshooting. These are openings or removable caps located along the drain pipe, often near the trap, that allow access for cleaning or unclogging. Cleanout points are particularly useful for removing hair, soap scum, and other debris that accumulate over time. Some traps are designed with a removable trap arm or a T-fitting with a plug, making it easier to clear blockages without disassembling the entire drain system. Regularly accessing these points can prevent major clogs and ensure the longevity of your shower drain trap.
Understanding these internal components—trap bends, seals, and cleanout access points—is crucial for maintaining a functional and odor-free shower drain. Each part serves a specific purpose, from creating a water seal to providing access for maintenance. By familiarizing yourself with these elements, you can better address issues and ensure your shower drain operates efficiently for years to come. Regular inspection and upkeep of these components will save you from potential plumbing headaches and costly repairs.
Fixing a Leaking Grohe Shower Valve: Step-by-Step Repair Guide
You may want to see also
Explore related products
Installation Position: Proper placement under the shower drain to ensure effective water sealing
When installing a shower drain trap, proper placement is crucial to ensure effective water sealing and prevent sewer gases from entering your home. The trap should be positioned directly under the shower drain, typically within the drain pipe system. It is designed to hold a small amount of water at all times, creating a barrier that blocks gases from the sewer system while allowing wastewater to flow freely. The ideal location for the trap is as close to the drain as possible, usually within the first few inches of the drain pipe, to minimize the risk of clogs and ensure efficient drainage.
To achieve proper placement, start by identifying the correct height for the trap. It should be installed at a level that allows for a gradual slope from the shower drain to the trap, ensuring water flows smoothly without pooling. A common rule of thumb is to maintain a slope of 1/4 inch per foot of pipe to facilitate proper drainage. The trap’s inlet should align with the bottom of the shower drain assembly, ensuring a seamless connection that prevents leaks and maintains the water seal.
The orientation of the trap is equally important. Most shower drain traps are P-traps, shaped like the letter "P," and should be installed with the horizontal arm parallel to the floor. This position ensures the water seal remains intact while allowing wastewater to pass through without obstruction. The trap’s outlet should connect to the main drain pipe, maintaining the required slope to direct water away from the shower area. Proper alignment and orientation are essential to avoid siphonic action, which can break the water seal and render the trap ineffective.
During installation, ensure the trap is securely fastened to the drain pipe using appropriate fittings and seals. Use plumber’s tape or thread sealant on threaded connections to prevent leaks, and tighten all joints carefully to avoid damaging the pipes. Double-check that the trap is level and aligned correctly before finalizing the installation. A misaligned trap can lead to improper sealing, clogs, or even sewer gas infiltration, defeating its purpose.
Finally, test the trap’s effectiveness after installation by running water through the shower drain and checking for leaks or drainage issues. The water should flow smoothly, and the trap should retain a small amount of water in its curved section, indicating a proper seal. If any issues arise, recheck the trap’s position, slope, and connections to ensure everything is installed correctly. Proper placement of the shower drain trap not only ensures effective water sealing but also contributes to the overall functionality and safety of your shower drainage system.
Quick Guide to Repairing Your Mira Shower Hose Easily
You may want to see also
Explore related products

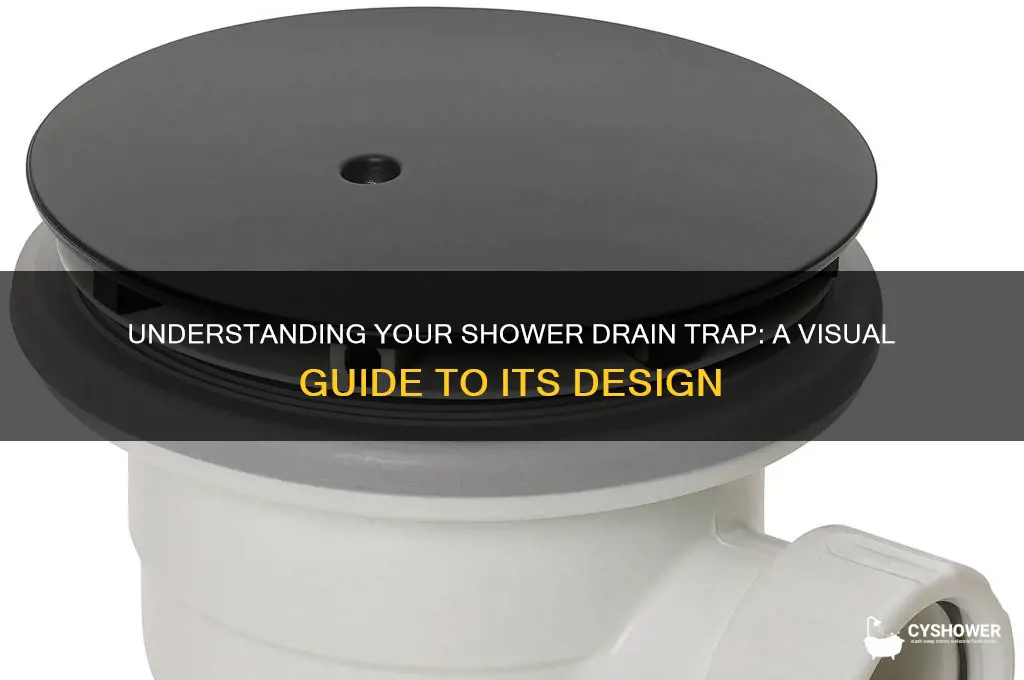

Visual Identification: How to locate and recognize a shower drain trap in your plumbing system
A shower drain trap is an essential component of your plumbing system, designed to prevent sewer gases from entering your home while allowing water to flow freely. To visually identify a shower drain trap, start by examining the area directly beneath your shower drain. In most residential setups, the trap is located within the floor or wall cavity below the shower. If you have access to a basement, crawl space, or utility room, this is typically the best place to begin your search. Look for a curved or P-shaped pipe segment, which is the hallmark of a drain trap. This distinctive shape is usually made of PVC, ABS, or metal, depending on the age and type of your plumbing system.
Once you’ve located the general area, focus on the pipe configuration. The shower drain trap is usually part of a larger drain assembly that connects to the main waste line. It is positioned immediately below the shower drain and is often the lowest point in the drainpipe. The trap itself will appear as a horizontal pipe that dips down and then rises again, forming a "U" or "P" shape. This design retains a small amount of water, creating a barrier that blocks gases from rising back up into the shower area. If the trap is accessible, you may notice a cleanout plug or access point nearby, which allows for maintenance or clearing of clogs.
In some cases, the shower drain trap may be concealed within a wall or floor, making it less visible. If you cannot see the trap directly, look for a vent pipe or additional plumbing lines that connect to the drain system. The trap is typically located near these connections, as it must be integrated into the overall drainage and venting system. If your shower is on a second floor or in a slab foundation, the trap may be embedded in the floor structure, requiring you to trace the drainpipe from the shower to identify its location.
To confirm you’ve found the shower drain trap, observe the pipe’s orientation and function. The trap should be positioned so that water flows downward into the curved section and then upward before continuing into the main drain line. This design ensures proper drainage while maintaining the water seal. If you’re unsure, compare what you see with images of typical shower drain traps online, which often feature a P-trap or similar configuration. Familiarizing yourself with these visual cues will make it easier to identify the trap in your specific plumbing setup.
Finally, if you’re still having trouble locating the shower drain trap, consider consulting a plumbing diagram for your home or seeking professional assistance. A plumber can quickly identify the trap and provide guidance on its maintenance or repair. Understanding the visual characteristics of a shower drain trap not only helps in locating it but also ensures you can address any issues, such as clogs or leaks, effectively. By knowing what to look for, you’ll be better equipped to maintain your plumbing system and keep your shower functioning smoothly.
Boost Your Shower Pressure on a Budget: Easy DIY Fixes
You may want to see also
Frequently asked questions
A shower drain trap typically looks like a curved or J-shaped pipe located beneath the drain. It is usually made of PVC or metal and is designed to hold a small amount of water to prevent sewer gases from entering the bathroom.
The trap is usually the first bend or curve in the drain pipe directly below the shower floor. It is often visible if you remove the drain cover and look down into the pipe, or by accessing it from beneath the shower (if there is crawl space or basement access).
No, shower drain traps can vary in shape and size depending on the plumbing system. Common shapes include P-traps (two 90-degree bends) and J-traps (a single curved bend). The size typically ranges from 1.5 to 2 inches in diameter.
In some cases, yes. If your shower has a removable drain cover, you may be able to see the trap by looking down into the drain. However, for a clearer view, you may need to remove the drain assembly or access it from below if possible.
