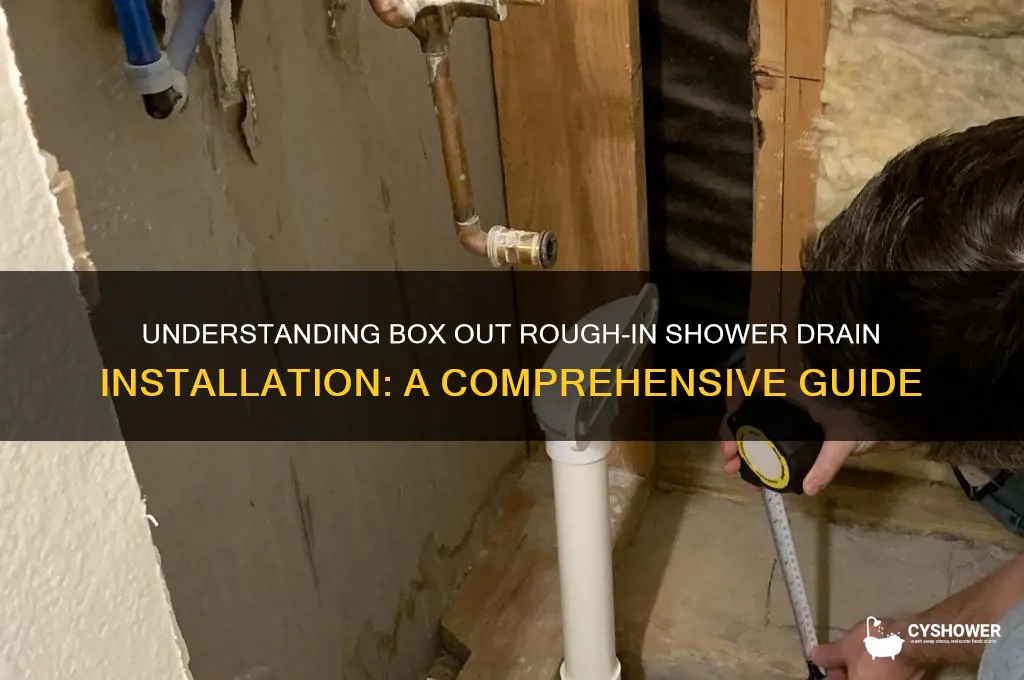

A box out on a rough-in shower drain is a crucial step in shower installation, ensuring proper drainage and waterproofing. It involves creating a framed structure, typically made of wood or metal, around the shower drain location before tiling or finishing the shower floor. This box-out provides a solid base for the drain assembly and allows for precise alignment and slope to direct water toward the drain. Properly executing a box out is essential for preventing leaks, water damage, and ensuring the longevity of the shower system, making it a fundamental aspect of any shower construction or renovation project.
| Characteristics | Values |
|---|---|
| Definition | A box out on a rough-in shower drain is a framed enclosure built around the shower drain during the rough plumbing stage. |
| Purpose | Creates a recessed area to accommodate the shower drain assembly and allow for proper slope and waterproofing. |
| Materials | Typically constructed from 2x4 lumber, cement board, or other moisture-resistant materials. |
| Size | Varies depending on the drain size and local building codes, but commonly around 12" x 12" or larger. |
| Slope | Sloped towards the drain to ensure proper water drainage (typically 1/4" per foot). |
| Waterproofing | Requires waterproofing membrane (e.g., liquid waterproofing, cementitious coatings) to prevent leaks. |
| Rough-In Height | Drain should be set at the correct height during rough-in to allow for proper slope and finished floor thickness. |
| Compatibility | Must be compatible with the chosen shower drain type (e.g., standard, linear, trench). |
| Building Code Compliance | Must adhere to local plumbing and building codes for size, slope, and waterproofing requirements. |
| Installation Stage | Completed during the rough plumbing stage before waterproofing and tile installation. |
| Importance | Essential for a watertight shower installation, preventing leaks and water damage. |
Explore related products
What You'll Learn
- Understanding Box Out Purpose: Defines shower drain rough-in support structure for tile or waterproofing
- Materials for Box Out: Common materials include cement board, metal studs, or waterproof membranes
- Box Out Dimensions: Matches drain size, ensuring proper slope and tile thickness clearance
- Waterproofing Box Out: Essential to prevent leaks; use membranes or waterproof coatings
- Installing Box Out: Securely frame around drain, ensuring stability for tile installation
Understanding Box Out Purpose: Defines shower drain rough-in support structure for tile or waterproofing
A box out on a rough-in shower drain is a critical component in shower construction, serving as a support structure that ensures proper installation of the shower drain, tile, and waterproofing systems. Its primary purpose is to create a stable and level base around the drain, which is essential for both functional and aesthetic reasons. Without a box out, the drain assembly might not align correctly with the surrounding tile or waterproofing membrane, leading to leaks, uneven surfaces, or structural failures over time. Understanding the box out’s role is key to achieving a durable and watertight shower installation.
The box out acts as a framing structure that defines the rough-in dimensions of the shower drain, providing a solid foundation for the drain assembly. It is typically constructed using materials like cement board, mortar, or waterproof foam, which are shaped to fit the specific size and shape of the drain. This structure ensures that the drain is securely anchored and positioned at the correct height relative to the finished shower floor. By establishing this precise alignment, the box out prevents shifting or settling of the drain during and after installation, which could compromise the integrity of the waterproofing system.
In addition to supporting the drain, the box out plays a vital role in integrating the waterproofing membrane into the shower assembly. The membrane, which is applied over the box out and surrounding areas, relies on the box out’s smooth and even surface to adhere properly. Any gaps, voids, or irregularities in the box out can create weak points where water may penetrate, leading to mold, mildew, or structural damage. Thus, the box out not only supports the drain but also ensures a seamless transition between the drain and the waterproofing layer, enhancing the shower’s overall resilience to moisture.
For tile installations, the box out provides a level and stable substrate that allows tiles to be laid evenly around the drain. This is particularly important in showers, where tiles must slope gently toward the drain to facilitate proper drainage. The box out ensures that the tiles align correctly with the drain’s top surface, preventing lips or gaps that could trap water or debris. Moreover, it helps maintain the structural integrity of the tile bed, reducing the risk of cracking or shifting under the weight of the tiles and grout.
In summary, the box out on a rough-in shower drain is a fundamental element that defines the support structure for both tile and waterproofing systems. It ensures the drain is securely positioned, provides a stable base for tiling, and facilitates the proper application of waterproofing membranes. By understanding its purpose and importance, contractors and DIY enthusiasts can avoid common pitfalls and achieve a shower installation that is not only functional but also long-lasting and leak-free. Properly executing the box out is a critical step in any shower project, contributing to the overall success and durability of the finished space.
