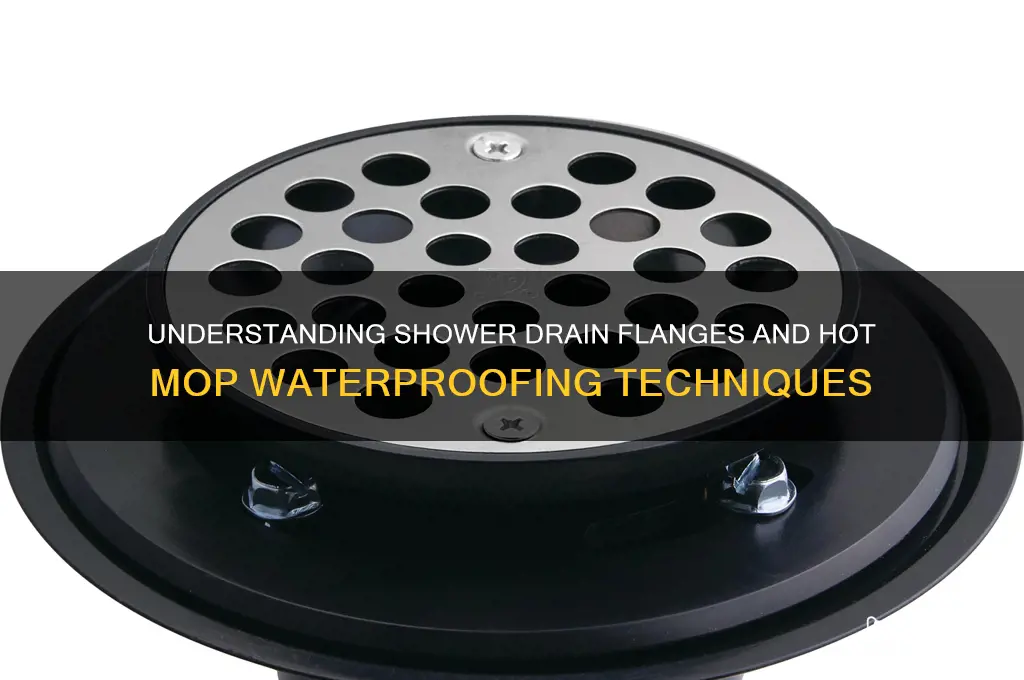

A shower drain with a flange hot mop is a specialized waterproofing system used in shower installations to prevent water leakage and ensure long-term durability. The flange, a raised edge around the drain, provides a secure base for the hot mop, a traditional waterproofing method that involves applying layers of hot asphalt and fiberglass fabric. This combination creates a seamless, watertight barrier beneath the shower floor, protecting the subfloor and surrounding structures from moisture damage. Ideal for tile showers, this system is favored for its reliability and ability to handle heavy water exposure, making it a popular choice in both residential and commercial construction.
| Characteristics | Values |
|---|---|
| Definition | A shower drain with a flange hot mop is a drain assembly where the flange (lip or edge) is sealed using a hot mop waterproofing method, typically involving asphalt or tar. |
| Flange Material | Commonly made of stainless steel, brass, or PVC for durability and corrosion resistance. |
| Hot Mop Waterproofing | Involves applying hot asphalt or tar to create a waterproof barrier around the flange, preventing water leakage. |
| Purpose | To ensure a watertight seal between the shower drain and the surrounding substrate, preventing water damage. |
| Installation | Requires professional installation due to the hot mop process and precise sealing techniques. |
| Compatibility | Suitable for tile or stone showers where waterproofing is critical. |
| Maintenance | Low maintenance, but periodic inspection of the seal is recommended. |
| Cost | Higher initial cost due to specialized materials and labor. |
| Durability | Highly durable, especially with proper installation and waterproofing. |
| Aesthetic | The flange is typically hidden beneath the finished flooring surface. |
| Common Use | Primarily used in residential and commercial shower installations. |
Explore related products
What You'll Learn
Flange Purpose and Function
A shower drain with a flange hot mop is a specific type of shower drain installation that combines a flanged drain with a hot mop waterproofing method. The flange in this context serves multiple critical purposes, ensuring both structural integrity and waterproofing in wet areas like showers. Its primary function is to provide a secure, watertight seal between the drain assembly and the surrounding substrate, preventing water infiltration that could lead to mold, rot, or structural damage.
The purpose of the flange is twofold: first, it acts as a barrier to contain water within the shower area, directing it toward the drain. Second, it creates a smooth transition between the drain and the shower floor, facilitating proper slope and drainage. The flange is typically made of durable materials like PVC, ABS, or metal, ensuring longevity and resistance to corrosion in wet environments. Its design includes a raised lip or edge that overlaps the shower pan or hot mop layer, creating a secure bonding surface for waterproofing materials.
In the context of a hot mop installation, the flange plays a crucial role in integrating with the waterproofing system. Hot mopping involves applying multiple layers of hot asphalt and fiberglass fabric to create a seamless, waterproof membrane. The flange is embedded into this membrane, ensuring that the drain is fully integrated into the waterproofing layer. This prevents water from seeping beneath the shower floor or through gaps around the drain, which could compromise the entire system.
Another key function of the flange is to provide a stable base for the drain assembly. During installation, the flange is secured to the subfloor, ensuring the drain remains firmly in place despite constant exposure to water and foot traffic. This stability is essential for maintaining the integrity of the waterproofing system and preventing leaks over time. Additionally, the flange often includes pre-drilled holes or attachment points for securing the drain grate or cover, further enhancing its functionality.
Finally, the flange aids in maintenance and repair. Its raised design allows for easier access to the drain for cleaning or unclogging, as it prevents debris from accumulating around the edges. In the event of a drain replacement or repair, the flange ensures that the new drain can be seamlessly integrated into the existing waterproofing system without compromising its integrity. Overall, the flange is an indispensable component of a shower drain with a flange hot mop, combining waterproofing, stability, and practicality in one essential element.
Easy DIY Guide to Repairing Your Swing Shower Door Quickly
You may want to see also
Explore related products
Hot Mop Waterproofing Method
The Hot Mop Waterproofing Method is a traditional and highly effective technique used primarily in shower and bathroom construction to create a waterproof barrier. This method is particularly crucial when installing a shower drain with a flange, as it ensures that water is contained and does not seep into the subfloor or surrounding structures, preventing potential water damage and mold growth. The process involves applying multiple layers of hot asphalt or tar and reinforcing fabric to create a seamless, impermeable membrane. This method has been trusted for decades due to its durability and reliability in wet environments.
The first step in the Hot Mop Waterproofing Method is preparing the substrate. The area to be waterproofed, including the shower pan and surrounding walls, must be clean, dry, and free of debris. Any cracks or imperfections should be repaired to ensure a smooth surface. The shower drain with a flange is installed at this stage, ensuring it is securely anchored and properly aligned. The flange of the drain is designed to integrate seamlessly with the waterproofing membrane, providing a watertight seal around the drain opening.
Once the substrate is prepared, the application of the hot mop begins. A kettle is used to heat the asphalt or tar to a specific temperature, typically around 400°F (204°C). The hot material is then mopped onto the surface in a thin, even layer using a specialized mop. Immediately after applying the asphalt, a layer of reinforcing fabric (often fiberglass or polyester) is embedded into the hot material. This fabric adds strength and flexibility to the membrane, allowing it to withstand movement and stress without cracking. Additional layers of hot asphalt and fabric are applied, typically three to four layers, to ensure maximum waterproofing.
The final layer of the Hot Mop Waterproofing Method is often finished with a smooth coat of asphalt or a protective coating to seal the surface. This top layer ensures that the membrane is resistant to wear and tear and provides a base for tile or other finishes. Around the shower drain with a flange, special attention is given to ensure the membrane is tightly adhered and fully encapsulates the flange, creating a continuous barrier against water intrusion. This meticulous process is what makes the Hot Mop Method superior to other waterproofing techniques, especially in areas prone to heavy water exposure.
One of the key advantages of the Hot Mop Waterproofing Method is its ability to conform to irregular shapes and angles, making it ideal for custom shower installations. The hot asphalt can be worked into corners, curves, and around fixtures with precision, ensuring complete coverage. Additionally, the method’s longevity is well-documented, with properly installed hot mop systems lasting for decades without failure. However, it is essential to hire experienced professionals for this task, as the application requires skill and knowledge to achieve the desired results. When combined with a shower drain featuring a flange, the Hot Mop Waterproofing Method provides a robust solution for creating a leak-free shower environment.
Fix Low Pressure on Your Triton T80 Shower: Easy Steps
You may want to see also
Explore related products
Shower Drain Installation Steps
A shower drain with a flange hot mop is a specific type of shower drain installation that involves using a flanged drain body and applying a hot mop waterproofing membrane around it. This method ensures a watertight seal and is commonly used in tile showers. Below are the detailed steps for installing a shower drain with a flange hot mop:
Step 1: Prepare the Subfloor and Layout
Begin by ensuring the subfloor is clean, level, and structurally sound. Remove any debris or old materials. Mark the center point for the shower drain based on your shower layout. Cut a hole in the subfloor using the drain body as a template, ensuring it fits snugly. Double-check that the drain aligns with the plumbing rough-in below. If necessary, adjust the hole size to accommodate the flanged drain body. This step is crucial for a proper fit and to ensure the drain is centered in the shower pan.
Step 2: Install the Flanged Shower Drain
Place the flanged shower drain into the hole, ensuring the flange sits flat on the subfloor. Secure the drain body from below using the manufacturer’s recommended method, typically with screws or bolts. Apply a bead of silicone caulk or waterproof sealant around the underside of the flange to create a preliminary seal. This prevents water from seeping beneath the flange during the hot mop process. Tighten all connections and ensure the drain is level to allow proper water flow.
Step 3: Apply the Hot Mop Waterproofing Membrane
Hot mopping involves applying a layer of hot asphalt or tar around the drain and shower pan to create a waterproof barrier. Heat the waterproofing material until it reaches the appropriate consistency and temperature. Using a trowel or mop, carefully apply the hot material around the drain flange, ensuring it adheres evenly and completely covers the area. Work the material up the sides of the flange to create a seamless seal. Allow the hot mop layer to cool and cure according to the manufacturer’s instructions. This step is essential for preventing leaks and ensuring long-term durability.
Step 4: Install the Shower Pan Liner
Once the hot mop layer is cured, install a shower pan liner (typically made of PVC or chlorine-tolerant vinyl) over the waterproofed area. Ensure the liner extends up the walls and overlaps the hot mopped area by at least 3 inches. Secure the liner to the walls using approved fasteners or clamps. Trim any excess liner material, leaving enough to integrate with the wall waterproofing. This additional layer provides a secondary barrier against water intrusion.
Step 5: Finish the Shower Drain Installation
With the waterproofing complete, install the drain cover or grate according to the manufacturer’s instructions. Ensure it fits securely and aligns with the finished floor height. Test the drain by pouring water into the shower pan to verify proper drainage and check for any leaks. If no issues are found, proceed with tiling the shower floor and walls, ensuring the tiles slope toward the drain for efficient water flow.
By following these steps, you can successfully install a shower drain with a flange hot mop, ensuring a watertight and durable shower system. This method is particularly effective in preventing leaks and is ideal for tile showers where waterproofing is critical.
Easy DIY Guide to Repairing Cracks in Your Shower Stall Floor
You may want to see also
Explore related products
Flange Material Options Overview
A shower drain with a flange hot mop is a specialized installation method where a shower drain is fitted with a flange—a protruding rim or edge—that is embedded into a hot mopped waterproofing membrane. This system ensures a watertight seal between the drain and the shower pan, preventing leaks and water damage. The flange plays a critical role in this setup, as it provides a secure base for the hot mop material to adhere to, creating a seamless barrier against moisture. When selecting a flange for this application, the material choice is paramount, as it directly impacts durability, compatibility, and overall performance. Below is an overview of the most common flange material options available.
Stainless Steel Flanges are among the most popular choices due to their corrosion resistance and longevity. Stainless steel is ideal for wet environments like showers, as it withstands constant exposure to water and cleaning chemicals without rusting or degrading. Additionally, its sleek appearance complements modern bathroom designs. However, stainless steel flanges are typically more expensive than other options, which may be a consideration for budget-conscious projects. They are also heavier, requiring careful installation to ensure proper alignment and stability during the hot mop process.
PVC (Polyvinyl Chloride) Flanges offer a cost-effective alternative to stainless steel, making them a common choice for residential applications. PVC is lightweight, easy to install, and resistant to corrosion and chemical damage. Its flexibility allows it to conform well to the hot mopped membrane, ensuring a tight seal. However, PVC may not be as durable as metal options and can degrade over time under prolonged exposure to high temperatures or harsh chemicals. It is also less aesthetically versatile, often limited to utilitarian designs.
Brass Flanges are another durable option, known for their strength and resistance to corrosion. Brass provides a more traditional or luxurious appearance compared to stainless steel or PVC, making it a preferred choice for high-end bathroom installations. It also offers excellent compatibility with hot mop materials, as it can withstand the heat and pressure applied during installation. However, brass is prone to tarnishing over time, requiring periodic maintenance to retain its appearance. Additionally, it is more expensive than PVC and may not be suitable for all budgets.
ABS (Acrylonitrile Butadiene Styrene) Flanges are lightweight and affordable, making them a practical choice for quick installations. ABS is resistant to impact and chemicals, ensuring durability in wet environments. However, it is less heat-resistant than other materials, which can be a concern during the hot mop process if not handled carefully. ABS flanges are also less rigid than metal options, which may affect their long-term stability under heavy use. Despite these limitations, ABS remains a viable option for temporary or low-traffic shower installations.
In summary, the choice of flange material for a shower drain with a flange hot mop depends on factors such as budget, durability requirements, aesthetic preferences, and installation conditions. Stainless steel and brass offer premium durability and appearance but come at a higher cost, while PVC and ABS provide budget-friendly alternatives with their own sets of advantages and limitations. Understanding these material options ensures that the selected flange meets the specific needs of the project, resulting in a reliable and long-lasting waterproofing solution.
Fixing Shower Taps in Australia: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Hot Mop vs. Modern Alternatives
A shower drain with a flange hot mop refers to a traditional waterproofing method used in shower installations, particularly in older homes or regions with specific building codes. The "hot mop" technique involves applying hot asphalt or tar (the "mop") over the shower pan and extending it up the walls to create a waterproof barrier. The flange, a raised edge around the drain, ensures a secure seal between the drain and the hot mop layer. While this method has been a staple in waterproofing for decades, modern alternatives have emerged, offering different benefits and drawbacks.
Hot Mop: Pros and Cons
Hot mop waterproofing is renowned for its durability and reliability. The asphalt or tar creates a seamless, monolithic barrier that effectively prevents water penetration. Its longevity is a significant advantage, as properly installed hot mop systems can last for decades without requiring maintenance. However, the process is labor-intensive, messy, and requires skilled professionals to ensure proper application. The use of hot materials also poses safety risks, and the strong odor can be unpleasant. Additionally, hot mop is less flexible than modern alternatives, making it less suitable for complex shower designs or retrofits.
Modern Alternatives: Innovations in Waterproofing
Modern alternatives to hot mop include liquid waterproofing membranes, sheet membranes, and prefabricated shower pans. Liquid membranes, such as those made from polyurethane or acrylic, are applied with a roller or brush and cure to form a flexible, waterproof layer. Sheet membranes, often made of PVC or rubber, are adhered to the substrate and provide a quick, clean installation. Prefabricated shower pans come with integrated waterproofing and are ideal for streamlined installations. These methods are generally easier to install, more versatile, and compatible with a wider range of shower designs.
Installation of hot mop is time-consuming and requires specialized skills, making it more expensive upfront compared to many modern alternatives. Liquid and sheet membranes, on the other hand, can often be installed by DIYers or less specialized contractors, reducing labor costs. Prefabricated shower pans offer the quickest installation but may limit customization. While hot mop’s initial cost is higher, its long-term durability can offset expenses over time. Modern alternatives may require more frequent maintenance or replacement, depending on the product and installation quality.
Performance and Suitability
Hot mop excels in high-moisture environments and is often preferred in regions with strict waterproofing codes. Its seamless nature makes it highly effective at preventing leaks. Modern alternatives, particularly liquid membranes, offer comparable waterproofing performance with the added benefit of flexibility, making them suitable for intricate tile layouts or uneven surfaces. However, the success of modern methods depends heavily on proper application, whereas hot mop’s robustness is more forgiving of minor installation errors.
Environmental and Health Considerations
Hot mop’s use of asphalt or tar raises environmental and health concerns due to the release of volatile organic compounds (VOCs) during application. Modern alternatives, especially water-based liquid membranes, are often more eco-friendly and safer for indoor use. For those prioritizing sustainability or indoor air quality, modern waterproofing methods are typically the better choice.
In summary, the decision between hot mop and modern alternatives depends on factors such as budget, project complexity, and long-term goals. While hot mop remains a trusted, durable option, modern alternatives offer flexibility, ease of installation, and environmental benefits, making them increasingly popular in contemporary shower designs.
Fix Your Shower Enema: Quick DIY Repair Guide for Beginners
You may want to see also
Frequently asked questions
A shower drain with a flange hot mop is a type of shower drain installation where the drain is integrated with a flange (a raised edge) and sealed using a hot mop method. The hot mop involves applying hot asphalt or tar to create a waterproof barrier around the drain, preventing leaks.
The flange provides a secure base for the drain and ensures a tight seal when combined with the hot mop waterproofing. It helps direct water into the drain while preventing moisture from seeping beneath the shower pan or tile.
The hot mop method involves heating asphalt or tar and applying it in layers around the flange and drain area. Fiberglass or burlap fabric is embedded between the layers to reinforce the waterproofing membrane, creating a durable and leak-proof seal.
This method offers superior waterproofing, durability, and longevity compared to other sealing techniques. It is particularly effective in preventing water damage in shower installations, making it a reliable choice for wet areas.
