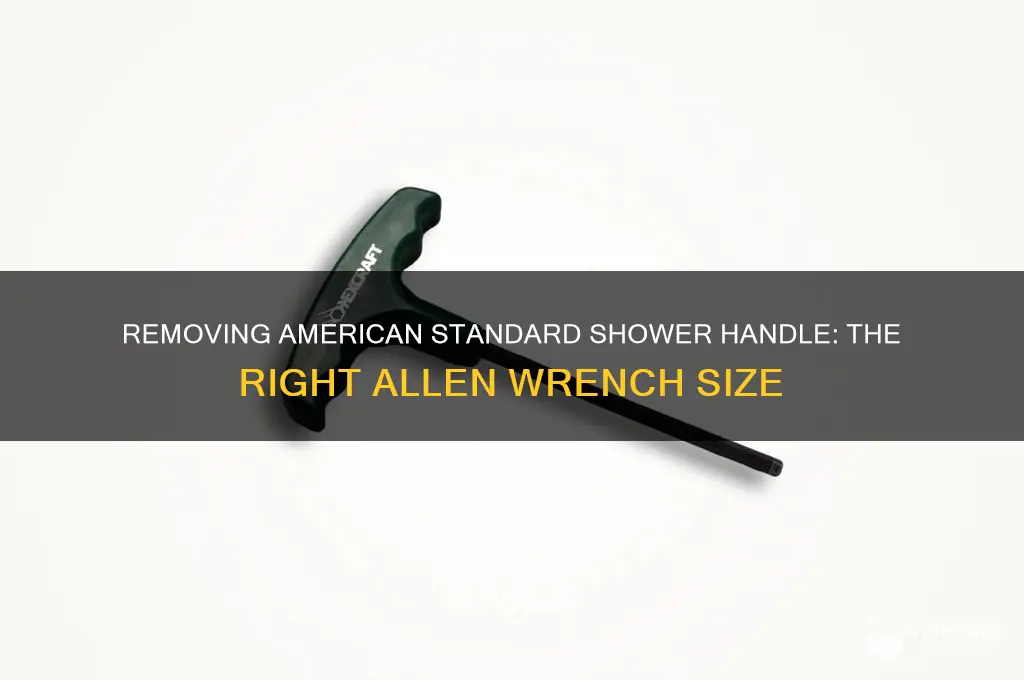

When it comes to removing an American Standard shower handle, identifying the correct size Allen wrench is crucial for a smooth and damage-free process. Most American Standard shower handles use a set screw that requires a specific Allen wrench size, typically ranging from 1/8 inch to 3/32 inch. To determine the right size, inspect the screw head for any markings or measure the diameter of the screw recess. Using the wrong size can strip the screw or damage the handle, so it’s essential to verify the size before attempting removal. Once the correct Allen wrench is identified, insert it into the screw head and turn counterclockwise to loosen and remove the handle. Always handle with care to avoid unnecessary wear or breakage.
| Characteristics | Values |
|---|---|
| Allen Wrench Size | Typically 7/64-inch or 3/32-inch |
| Shower Handle Type | American Standard |
| Compatibility | Most American Standard models |
| Wrench Type | Hex Key (Allen Wrench) |
| Material | Steel or hardened alloy |
| Usage | Removing set screw on handle |
| Alternative Tools | Small flathead screwdriver |
| Set Screw Location | Underneath the handle cap |
| Handle Removal Purpose | Repair or replacement |
| Additional Tools Needed | None (usually) |
Explore related products
What You'll Learn
- Identify Handle Type: Determine if the handle is a single-control, dual-control, or pressure-balance model
- Check Screw Head Size: Measure the screw head to find the correct Allen wrench size
- Common Sizes: Most American Standard handles use 1/8, 3/32, or 7/64 Allen wrenches
- Tools Needed: Ensure you have a hex key set or individual Allen wrenches for removal
- Removal Steps: Insert the wrench, turn counterclockwise, and gently pry off the handle
Identify Handle Type: Determine if the handle is a single-control, dual-control, or pressure-balance model
Before attempting to remove an American Standard shower handle, it's crucial to identify the type of handle you're dealing with. Shower handles can be categorized into three main types: single-control, dual-control, and pressure-balance models. Each type has distinct features and requires a specific approach for removal. Understanding these differences will not only help you select the correct Allen wrench size but also ensure a smoother repair or replacement process.
Analyzing Handle Types:
Single-control handles are the simplest, regulating both temperature and flow with a single lever or knob. They are often found in older installations and budget-friendly models. Dual-control handles, on the other hand, separate temperature and flow into two distinct controls, offering more precise adjustments. Pressure-balance handles are designed to maintain a consistent water temperature, even when other fixtures are in use, making them a safety-focused choice for modern showers. Recognizing these characteristics will guide you in identifying your handle type accurately.
Practical Identification Steps:
To determine your handle type, start by observing its design. A single-control handle typically has one lever or knob, while a dual-control handle will have two separate controls, often labeled for hot and cold. Pressure-balance handles usually feature a single lever with a separate volume control or a built-in mechanism to stabilize temperature. Additionally, check the handle’s base for markings or model numbers, which can provide further clues. For instance, American Standard’s pressure-balance handles often include terms like "TempAssure" in their model descriptions.
Cautions and Considerations:
Misidentifying the handle type can lead to unnecessary complications, such as using the wrong tools or damaging the fixture. For example, pressure-balance handles often require a specific Allen wrench size due to their internal mechanisms, while single-control handles may use a more standard size. Always cross-reference your observations with the manufacturer’s documentation or online resources to confirm the handle type. If unsure, consult a professional to avoid costly mistakes.
Identifying whether your American Standard shower handle is a single-control, dual-control, or pressure-balance model is the first step toward a successful repair. This knowledge not only helps in selecting the correct Allen wrench size but also ensures you approach the task with the right technique. By carefully examining the handle’s design, controls, and markings, you can confidently proceed with the removal process, saving time and effort in the long run.
Effective Tips to Remove Mold from Your Shower Cap Easily
You may want to see also
Explore related products
$10.98 $13.99
Check Screw Head Size: Measure the screw head to find the correct Allen wrench size
The screw head size is the key to unlocking the right Allen wrench for your American Standard shower handle. A mismatch here can lead to stripped screws or damaged tools, turning a simple task into a frustrating ordeal. Measuring the screw head diameter accurately is the first step in avoiding these pitfalls. Use a caliper or a ruler with precise markings to determine the size in millimeters or inches. This measurement will directly correspond to the Allen wrench size you need, ensuring a snug fit and efficient removal.
Instructively, the process is straightforward but requires attention to detail. Start by cleaning the screw head to remove any debris or buildup that might skew your measurement. Position your caliper or ruler across the flat sides of the screw head, not the corners, to get an accurate diameter. If using a ruler, align it carefully and note the measurement at the widest point. Common sizes for shower handle screws are 2mm, 2.5mm, or 3mm, but American Standard models may vary, so precision is crucial. Once measured, select an Allen wrench that matches this size exactly.
Persuasively, investing time in this step pays dividends. A correctly sized Allen wrench not only makes the task quicker but also protects your tools and fixtures. Using the wrong size can strip the screw head, requiring drilling or extraction tools, or damage the wrench itself. For those tackling DIY repairs, this small effort ensures a professional outcome. It’s a simple yet critical step that separates a smooth repair from a costly mistake.
Comparatively, while some might guess the wrench size based on visual inspection, this approach is unreliable. Screw heads can appear similar in size but differ by fractions of a millimeter, which is enough to cause problems. For instance, a 2.5mm wrench might seem to fit a 2.7mm screw head but will likely slip or strip under pressure. Measuring eliminates this guesswork, providing certainty where estimation falls short. It’s a small step that makes a significant difference in the outcome.
Descriptively, imagine the screw head as a tiny gateway to your repair. Its size, though small, holds immense importance. The Allen wrench you choose must act as the perfect key, sliding in effortlessly to turn the screw without resistance. A well-measured fit ensures this harmony, while a misjudged size disrupts it. By treating this step with care, you transform a potential obstacle into a seamless part of the process, bringing you one step closer to a functioning shower handle.
Step-by-Step Guide to Removing a Shower Mixer Valve Easily
You may want to see also
Explore related products
Common Sizes: Most American Standard handles use 1/8, 3/32, or 7/64 Allen wrenches
Removing an American Standard shower handle often requires an Allen wrench, and knowing the right size can save you time and frustration. Among the most common sizes are 1/8, 3/32, and 7/64 inches. These dimensions are not arbitrary; they align with the standard screw sizes used in American Standard’s designs. If you’re unsure which one to use, start with the 3/32-inch wrench, as it’s the most frequently used size for this purpose. Having these three sizes on hand ensures you’re prepared for most scenarios.
The 1/8-inch Allen wrench is slightly larger and typically used for handles with more robust screws or older models. It’s less common but still essential for certain American Standard designs. The 7/64-inch wrench, on the other hand, is the smallest of the trio and often fits newer or more compact handles. Understanding these size variations helps you avoid stripping screws or damaging the handle, which can complicate the removal process.
To determine the correct size, inspect the screw head carefully. The recess should match the wrench’s tip snugly. If the wrench feels loose or doesn’t fit, try the next size up or down. Applying gentle pressure while testing the fit can prevent unnecessary wear on the screw. Remember, forcing the wrong size can ruin the screw head, making removal nearly impossible without professional help.
A practical tip is to keep these wrench sizes in a labeled kit for easy access. Many homeowners find it helpful to test all three sizes before applying force, ensuring the right fit. Additionally, applying a small amount of penetrating oil to the screw can ease removal, especially if it’s rusted or stuck. This simple preparation can make the task smoother and more efficient.
In summary, while 1/8, 3/32, and 7/64-inch Allen wrenches are the go-to sizes for American Standard shower handles, the 3/32-inch is often the first to try. Knowing when to use each size and how to test for the right fit can streamline the process. With the correct tool and a bit of patience, removing the handle becomes a straightforward task, avoiding unnecessary complications.
Fixing a Stuck Shower Handle: Removing Corroded Fixtures Easily
You may want to see also
Explore related products
Tools Needed: Ensure you have a hex key set or individual Allen wrenches for removal
Removing an American Standard shower handle often requires a specific tool: an Allen wrench, also known as a hex key. These handles typically secure with a set screw featuring a hexagonal socket, demanding precision to avoid damage. Before attempting removal, ensure you have the correct size Allen wrench. American Standard shower handles commonly use 3/32-inch or 7/64-inch hex keys, though sizes can vary by model. Always verify the screw size by visually inspecting the handle or consulting the manufacturer’s documentation.
A hex key set is the most practical tool for this task, offering a range of sizes in a compact, organized package. Sets often include both metric and standard sizes, ensuring you’re prepared for any screw type. If you lack a full set, individual Allen wrenches are a viable alternative, though they require more storage space and organization. When selecting individual wrenches, opt for those with a ball end, which allows for angled access to screws in tight spaces—a common scenario with shower handles.
Using the wrong size Allen wrench can strip the screw head or damage the handle, complicating removal and potentially requiring professional intervention. To avoid this, test the fit of the hex key in the screw before applying force. The wrench should insert smoothly without wiggle, indicating a proper match. If the fit feels loose or tight, switch to a different size immediately.
For added convenience, consider a long-arm hex key or an L-shaped wrench, which provides extra leverage and reach. These designs are particularly useful when the set screw is recessed or difficult to access. Additionally, keep a magnetic tip or pickup tool handy to retrieve dropped screws or wrenches, especially in tight bathroom spaces where small parts can easily disappear.
Finally, approach the task with patience and precision. Apply steady, controlled force when turning the Allen wrench to avoid slipping or over-tightening. If the screw resists, use a penetrating oil to loosen corrosion or debris. By equipping yourself with the right tools and techniques, you’ll ensure a smooth, damage-free removal process.
Easy Steps to Remove a Curved Shower Bracket Safely and Efficiently
You may want to see also
Explore related products
$26.99 $29.99
Removal Steps: Insert the wrench, turn counterclockwise, and gently pry off the handle
The size of the Allen wrench required to remove an American Standard shower handle typically ranges from 1/8 inch to 5/32 inch, depending on the model. Identifying the correct size is crucial to avoid stripping the screw or damaging the handle. Once you’ve confirmed the size, the removal process is straightforward but requires precision. Begin by inserting the Allen wrench into the set screw located on the underside or side of the handle. Ensure the wrench is fully seated in the screw head to maximize torque and minimize slippage.
Turning the wrench counterclockwise is the next critical step. Apply steady, even pressure to loosen the set screw. Avoid using excessive force, as this can damage the screw or the surrounding fixture. If the screw resists, consider applying a small amount of penetrating oil to loosen any corrosion or buildup. Once the screw is removed, set it aside in a secure place to prevent loss, as it will be needed for reassembly.
With the set screw removed, gently pry off the shower handle. Use a flathead screwdriver or a plastic prying tool to avoid scratching the finish. Insert the tool between the handle and the fixture, applying gentle leverage to dislodge the handle. Be patient and work slowly to prevent bending or breaking any internal components. If the handle feels stuck, check for additional screws or clips that may still be securing it in place.
After the handle is removed, inspect the underlying components for wear, corrosion, or damage. This is an opportune time to clean the area or replace any faulty parts before installing a new handle. By following these steps carefully, you can efficiently remove an American Standard shower handle without causing unnecessary damage or complications.
Effective Techniques to Remove Glued Shower Pipes Easily and Safely
You may want to see also
Frequently asked questions
Typically, a 7/64-inch or 3/32-inch Allen wrench is required to remove an American Standard shower handle, depending on the model.
Check the user manual or inspect the screw head for markings. If unavailable, test with common sizes like 7/64-inch or 3/32-inch until you find the right fit.
Yes, a 2.5mm or 3mm metric Allen wrench may work, as they are close equivalents to 3/32-inch and 7/64-inch, respectively.
Ensure the wrench is fully inserted and aligned. If it still doesn’t fit, try a different size or contact American Standard for model-specific guidance.
You can use a flathead screwdriver or a small hex key as a temporary solution, but the correct Allen wrench size is recommended to avoid damaging the screw.
