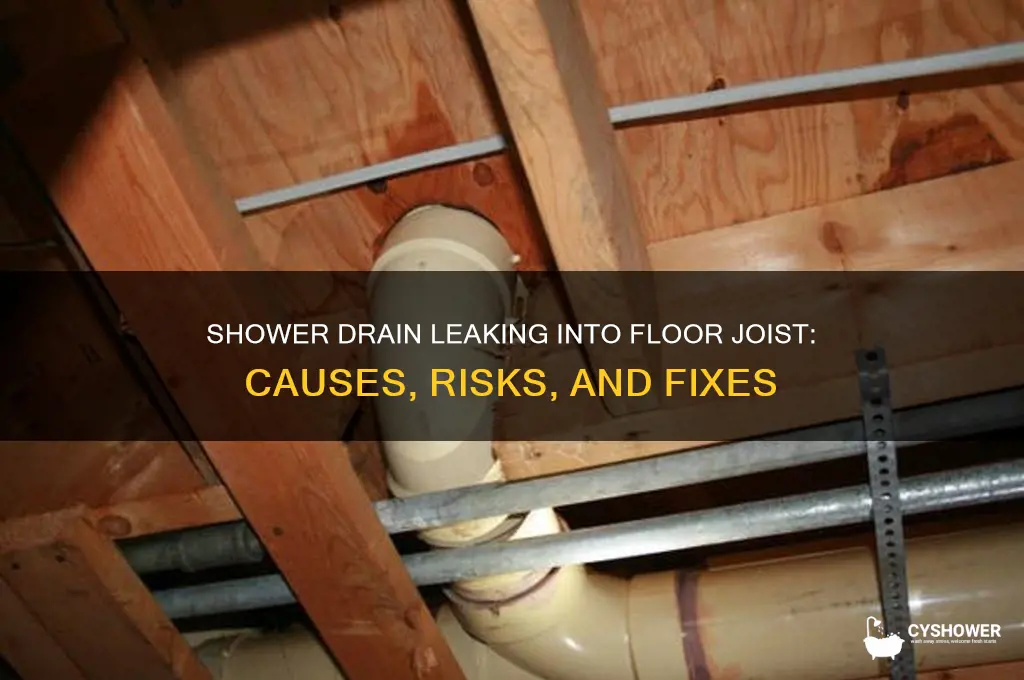

When a shower drain runs into a floor joist, it poses a significant risk to the structural integrity and safety of a home. This issue often arises in older homes or during improper plumbing installations, where the drain pipe is not correctly routed through the joist but instead terminates directly into it. Over time, water leakage from the drain can saturate the wood, leading to rot, mold growth, and potential weakening of the joist. If left unaddressed, this can compromise the stability of the floor and even the entire structure. Identifying and rectifying this problem promptly is crucial, typically involving rerouting the drain pipe and repairing or replacing the damaged joist to prevent further damage and ensure the home’s safety.
| Characteristics | Values |
|---|---|
| Cause | Improper plumbing installation or lack of proper slope in the drain pipe. |
| Consequences | Water damage to floor joists, subflooring, and surrounding structures; mold and mildew growth; structural weakening; foul odors. |
| Signs | Water stains on ceilings below, sagging floors, musty smells, visible mold, or water pooling around the shower area. |
| Prevention | Ensure proper slope (1/4 inch per foot) in drain pipes, use correct pipe size, and install a P-trap to prevent sewer gases. |
| Remediation | Repair or replace damaged joists, subflooring, and drywall; treat mold; reroute or re-slope the drain pipe; waterproof affected areas. |
| Cost | Varies widely; minor repairs ($500-$1,500), extensive damage ($5,000-$15,000+), depending on extent of damage and labor. |
| Professional Help | Plumbers, contractors, or mold remediation specialists may be required for proper diagnosis and repair. |
| Building Code Compliance | Ensure all plumbing work meets local building codes to avoid future issues and ensure safety. |
Explore related products
What You'll Learn
- Preventing Water Damage - How to stop water from seeping into joists and causing rot
- Proper Drain Installation - Ensuring shower drains are correctly aligned to avoid joist interference
- Repairing Damaged Joists - Steps to fix or replace floor joists affected by water
- Waterproofing Techniques - Methods to protect joists from moisture and leaks
- Inspecting for Leaks - How to detect and address shower drain leaks early
Preventing Water Damage - How to stop water from seeping into joists and causing rot
Water damage from shower drains running into floor joists is a serious issue that can lead to rot, structural instability, and costly repairs. The primary goal is to prevent water from coming into contact with the joists in the first place. One of the most effective ways to achieve this is by ensuring proper installation of the shower drain and surrounding waterproofing systems. During installation, the drain should be positioned so that it does not penetrate the joist directly. Instead, it should be located in a way that allows water to flow into a P-trap and then into the main drain line without compromising the structural integrity of the joist. If the drain must pass through a joist, a professional should notch or bore the joist with extreme precision, ensuring minimal material removal and reinforcing the area to maintain strength.
Waterproofing is another critical step in preventing water damage to floor joists. Apply a high-quality waterproofing membrane to the shower floor and walls before tiling. This membrane acts as a barrier, preventing water from seeping through grout lines or cracks and reaching the joists below. Additionally, consider installing a waterproof liner or pan under the shower floor, especially in older homes where the original construction may not have included modern waterproofing techniques. Regularly inspect the shower area for signs of leaks, such as water stains on the ceiling below or dampness around the drain, and address any issues immediately.
Proper ventilation is essential to minimize moisture buildup, which can contribute to rot in floor joists. Ensure the bathroom has an exhaust fan that vents directly to the outside, and use it consistently during and after showers. This reduces humidity levels and helps dry out the area, protecting the joists from prolonged exposure to moisture. If the bathroom lacks proper ventilation, consider installing a new exhaust fan or improving the existing system to meet current building codes.
For existing installations where the shower drain runs into a floor joist, proactive measures can still be taken to prevent water damage. Inspect the area beneath the shower for signs of moisture or rot, such as discoloration, soft spots, or a musty odor. If damage is detected, consult a professional to assess the extent of the issue and recommend repairs. In some cases, it may be necessary to reroute the drain to avoid the joist or reinforce the affected area with additional support. Applying a wood preservative or sealant to the joists can also provide an extra layer of protection against moisture.
Finally, regular maintenance is key to preventing water damage to floor joists. Periodically check the shower drain for clogs or leaks, as standing water can increase the risk of seepage. Replace worn or damaged caulk around the shower base and tiles to maintain a watertight seal. If you notice any cracks in the shower floor or walls, repair them promptly to prevent water infiltration. By staying vigilant and addressing potential issues early, you can protect your floor joists from rot and ensure the longevity of your home’s structure.
Quick Guide to Repairing a Leaking Delta Shower Valve
You may want to see also
Explore related products
Proper Drain Installation - Ensuring shower drains are correctly aligned to avoid joist interference
When installing a shower drain, ensuring proper alignment is crucial to avoid interference with floor joists, which can lead to structural damage, leaks, and costly repairs. The first step in proper drain installation is to carefully plan the layout of the shower area in relation to the floor joists. Use a stud finder to locate the joists and mark their positions on the subfloor. The ideal scenario is to position the shower drain between joists, allowing for a straight and unobstructed path for the drain pipe. If this is not possible, the drain must be aligned in a way that minimizes interference with the joists.
To achieve correct alignment, measure the distance between the center of the shower drain and the nearest joists. Ensure that the drain pipe will have sufficient clearance to slope properly for drainage without cutting into or weakening the joists. A common mistake is to force the drain pipe through a joist, which compromises the structural integrity of the floor. Instead, consider using offset drain connections or adjusting the shower base position slightly to align the drain with the joist spacing. Proper planning at this stage can prevent significant issues during installation.
Once the alignment is confirmed, install the shower drain according to the manufacturer’s instructions, ensuring it is level and securely fastened to the shower base. The drain pipe should be connected with a proper slope, typically 1/4 inch per foot, to ensure efficient water flow. If the drain must pass near a joist, use a drain pipe with a flexible coupling or a custom fitting to navigate around the obstruction without compromising the joist. Avoid sharp bends or kinks in the pipe, as these can impede water flow and lead to clogs.
After the drain is installed, inspect the area to ensure there is no contact between the drain pipe and the joists. If adjustments are needed, make them before proceeding with the final waterproofing and tiling. It’s also essential to test the drain for leaks by filling the shower pan with water and checking for any signs of moisture below the floor. Proper installation not only ensures the longevity of the shower system but also protects the structural integrity of the floor joists.
Finally, if you encounter a situation where the shower drain must run directly into a joist, consult a professional plumber or contractor. They can provide solutions such as relocating the drain, using specialized fittings, or reinforcing the joist to accommodate the drain pipe safely. Taking the time to ensure proper drain installation and alignment will save time, money, and potential headaches in the long run, ensuring a functional and durable shower system.
Quick Fixes for a Clogged Shower Drain: DIY Solutions That Work
You may want to see also
Explore related products
Repairing Damaged Joists - Steps to fix or replace floor joists affected by water
When a shower drain runs into a floor joist, prolonged exposure to moisture can lead to rot, weakening the structural integrity of the joist. Repairing or replacing damaged joists is essential to prevent further damage and ensure the safety of the floor. The first step in addressing this issue is to assess the extent of the damage. Inspect the joist for signs of rot, such as discoloration, softness, or crumbling wood. Use a screwdriver or awl to probe the wood; if it easily penetrates, the joist is compromised. Additionally, check for mold or mildew, which often accompanies water damage. If the damage is localized and minimal, you may be able to repair the joist. However, if the rot is extensive or the joist is severely weakened, replacement is necessary.
To repair a damaged joist, start by removing the rotted wood. Use a chisel or reciprocating saw to carefully cut away the affected area, ensuring you do not compromise the structural integrity of the surrounding wood. Once the damaged section is removed, measure and cut a new piece of lumber to fit the void. Treat the replacement wood with a wood preservative to prevent future rot. Secure the new piece in place using construction adhesive and galvanized screws or nails, ensuring it is flush with the existing joist. For added strength, consider sistering the repair by attaching a new joist alongside the damaged one using metal joist hangers or through-bolts. This method distributes the load and reinforces the structure.
If the joist requires replacement, begin by shoring up the floor to support the weight above. Use adjustable steel posts or wooden supports to temporarily bear the load. Carefully remove the damaged joist by cutting it into manageable sections with a reciprocating saw. Be cautious not to damage plumbing, electrical wiring, or adjacent joists. Measure and cut a new joist to match the original dimensions, ensuring it fits snugly into the joist bays. Treat the new joist with a water-resistant sealant, especially if it will be near a shower drain. Secure the replacement joist using joist hangers, ensuring it is properly aligned and fastened to the ledger board and adjacent joists.
After repairing or replacing the joist, address the root cause of the water damage to prevent recurrence. Inspect the shower drain and plumbing for leaks, and ensure proper waterproofing around the shower area. Consider installing a drain pan or waterproofing membrane to redirect water away from the joists. Additionally, improve ventilation in the area to reduce moisture buildup. Once the joist is repaired or replaced and the cause of the damage is resolved, reinstall the subflooring and finish flooring, ensuring everything is securely fastened.
Finally, monitor the repaired or replaced joist for any signs of further damage. Regularly inspect the area for moisture, mold, or structural issues, especially after heavy use of the shower. Taking proactive measures to maintain the integrity of the joists and prevent water intrusion will help avoid future problems. By following these steps, you can effectively repair or replace floor joists affected by water damage from a shower drain, restoring the structural stability and safety of your floor.
Easy DIY Guide: Repairing Your Shower Pull-Up Faucet Quickly
You may want to see also
Explore related products
Waterproofing Techniques - Methods to protect joists from moisture and leaks
When a shower drain runs into a floor joist, it creates a vulnerable point where moisture can accumulate and cause damage over time. Protecting the joists from moisture and leaks is crucial to prevent rot, mold, and structural deterioration. Here are several waterproofing techniques and methods to safeguard joists in such scenarios.
- Install a Proper Drainage System: The first line of defense is ensuring that water is directed away from the joists effectively. Install a waterproof drain pan under the shower base or tile floor. This pan should slope toward the drain to prevent water pooling. Additionally, use a clamping drain that seals tightly to the drain pipe, reducing the risk of leaks at the connection point. Ensure the drain pipe is properly aligned and secured to avoid any gaps where water could seep into the joist cavity.
- Apply Waterproof Membranes: Waterproof membranes are essential for creating a barrier against moisture. Apply a liquid waterproofing membrane or a sheet membrane (like PVC or CPE) to the entire shower floor and walls before tiling. Extend the membrane at least 6 inches beyond the shower area to protect adjacent surfaces. For added protection around the drain, use a membrane that can be molded around the pipe and sealed tightly. This prevents water from migrating into the joist space through capillary action.
- Seal Joist Penetrations: Any openings or penetrations in the joists, such as those created by the drain pipe, must be sealed meticulously. Use a high-quality silicone or polyurethane sealant to fill gaps around the pipe where it passes through the joist. Ensure the sealant is compatible with the materials involved and provides a flexible, watertight seal. Regularly inspect these seals for cracks or deterioration and reapply sealant as needed.
- Use Water-Resistant Materials: When constructing or repairing the area around the shower drain, opt for water-resistant materials. Pressure-treated lumber can be used for joists in areas prone to moisture, though it’s essential to ensure compatibility with other materials to avoid corrosion. For subflooring, consider using cement backer board or marine-grade plywood, which are more resistant to water damage than standard plywood. These materials provide an additional layer of protection against moisture infiltration.
- Implement Regular Inspections and Maintenance: Even with proper waterproofing measures in place, regular inspections are vital to catch potential issues early. Check for signs of moisture, such as discoloration, warping, or mold, around the shower drain and joists. Test the drain periodically to ensure it’s functioning correctly and not backing up. Address any leaks or damage immediately to prevent long-term structural issues. Additionally, maintain proper ventilation in the bathroom to reduce humidity levels, which can exacerbate moisture problems.
By combining these waterproofing techniques—proper drainage, waterproof membranes, sealed penetrations, water-resistant materials, and regular maintenance—you can effectively protect floor joists from moisture and leaks when a shower drain runs into them. This proactive approach ensures the longevity and integrity of the structure while preventing costly repairs down the line.
Quick Fix: Unclog Your Shower Drain Using a Plunger Easily
You may want to see also
Explore related products
Inspecting for Leaks - How to detect and address shower drain leaks early
When a shower drain runs into a floor joist, it’s crucial to inspect for leaks early to prevent structural damage, mold growth, and costly repairs. Start by visually examining the area beneath the shower, typically accessed through a basement or crawl space. Look for signs of water stains, discoloration, or warping on the floor joist and surrounding wood. If the joist is directly beneath the drain, even minor leaks can saturate the wood over time, compromising its integrity. Use a flashlight to inspect hard-to-see areas, and check for any pooling water or damp insulation, which are clear indicators of an active leak.
Next, perform a water test to confirm the presence of a leak. Begin by completely drying the area beneath the shower and around the floor joist. Then, run water through the shower drain for several minutes, allowing it to flow at a normal rate. After stopping the water, immediately inspect the area below for any signs of moisture. If water appears within minutes, it’s likely the drain is leaking directly into the joist or surrounding structure. This test helps pinpoint the source of the leak and confirms whether the drain assembly or pipe connections are compromised.
If a leak is detected, address it promptly to prevent further damage. Start by identifying the exact location of the leak. Common culprits include a cracked drain pipe, loose fittings, or a failed waterproof membrane around the drain. In cases where the drain runs into the joist, the issue may stem from improper installation or deterioration of the pipe material. If the leak is minor and accessible, you may be able to tighten fittings or apply a waterproof sealant. However, if the damage is extensive or the pipe is embedded in the joist, professional intervention is necessary to avoid structural risks.
For leaks that have already caused damage to the floor joist, assess the extent of the wood rot or decay. Soft, crumbly wood or visible mold growth indicates significant moisture intrusion. In such cases, the affected portion of the joist may need to be repaired or replaced by a structural contractor. Additionally, ensure the shower drain is rerouted or reinstalled correctly to prevent future leaks. This may involve installing a new drain assembly or adding a protective barrier between the drain pipe and the joist.
Regular maintenance is key to avoiding shower drain leaks, especially when the drain runs into a floor joist. Periodically inspect the drain for clogs, as standing water can weaken seals and lead to leaks. Check the condition of the drain pipe and fittings annually, and replace any deteriorating components. If your home is older or the plumbing system hasn’t been updated, consider consulting a plumber to evaluate the drain’s integrity. Early detection and proactive measures can save you from the headaches of water damage and ensure the longevity of your home’s structure.
Repairing Cracked Plastic Shower Walls: A Step-by-Step DIY Guide
You may want to see also
Frequently asked questions
When a shower drain runs into a floor joist, it can lead to water damage, rot, and structural issues over time, as the joist is not designed to handle moisture.
You can inspect the plumbing layout or consult the home’s blueprints. Alternatively, a plumber can trace the drain pipe to determine if it intersects with a joist.
No, it is not safe. Water exposure can weaken the joist, compromising the structural integrity of the floor and potentially leading to costly repairs.
The best solution is to reroute the drain pipe away from the joist, ensuring it runs through a proper drain system. This may require professional plumbing assistance.
Signs include sagging floors, mold or mildew odors, visible water stains, or soft spots in the floor near the shower area.
