Liam Brooks

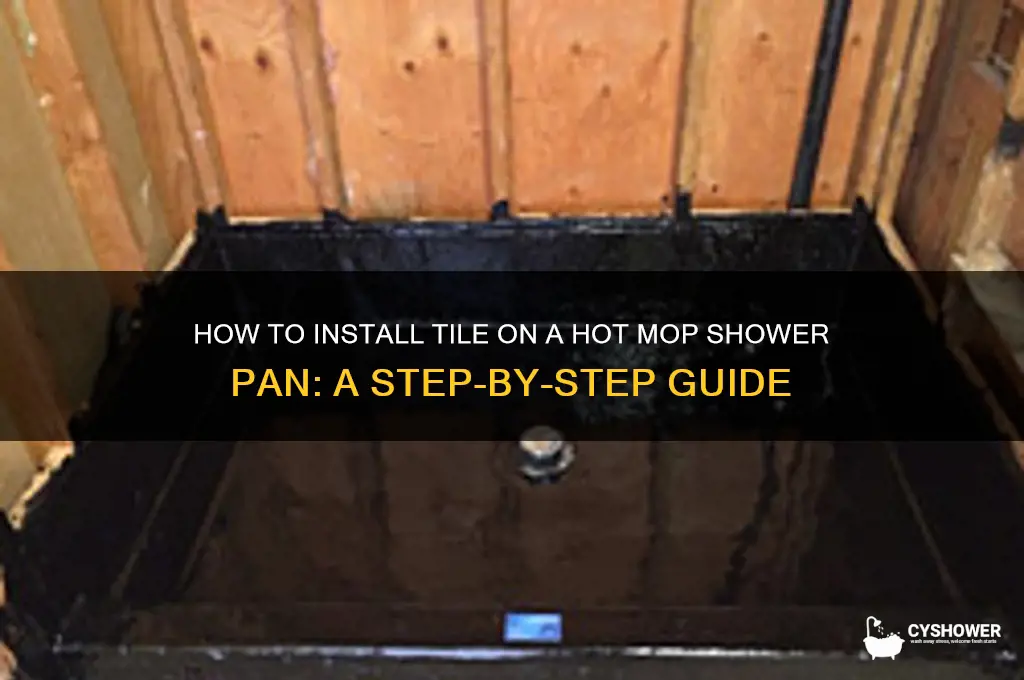

Installing tile on a hot mop shower pan requires careful preparation and precision to ensure a waterproof and durable finish. Hot mop shower pans, traditionally made with a layer of hot asphalt and fiberglass, provide a robust base for tiling but demand specific techniques to avoid cracks, leaks, or adhesion issues. The process begins with thoroughly cleaning and priming the pan to create a suitable bonding surface. Next, applying a waterproofing membrane, such as a liquid waterproofing compound or a fabric membrane, is essential to protect against moisture penetration. Once the membrane is dry, a layer of thin-set mortar is spread evenly, and tiles are carefully laid, ensuring proper alignment and spacing. Grouting follows, with attention to sealing the edges and corners to prevent water intrusion. Proper curing time and final sealing of the grout and tiles are critical to achieving a long-lasting, leak-free shower installation.
| Characteristics | Values |
|---|---|
| Professional Expertise Required | Yes, specialized waterproofing and tiling skills are essential. |
| Waterproofing Method | Hot mop (hot asphalt or tar applied in layers with fiberglass or felt). |
| Slope Requirement | 1/4 inch per foot slope toward the drain for proper water drainage. |
| Drying Time | 24-48 hours for hot mop to cure before tiling. |
| Tile Compatibility | Suitable for ceramic, porcelain, or natural stone tiles. |
| Mortar Type | Thinset mortar specifically designed for wet areas. |
| Grout Type | Epoxy or cementitious grout with waterproofing additives. |
| Expansion Joints | Required to accommodate movement and prevent cracking. |
| Sealing | Grout and tile seams must be sealed with a waterproof sealant. |
| Cost | Higher due to specialized labor and materials. |
| Durability | Highly durable and long-lasting when installed correctly. |
| Installation Time | Longer than traditional methods due to hot mop curing time. |
| Maintenance | Regular sealing and inspection to ensure waterproofing integrity. |
| Best For | High-moisture areas like showers and steam rooms. |
| DIY Feasibility | Not recommended; requires professional installation. |
Explore related products
What You'll Learn
Prepare the Shower Pan Surface
A hot mop shower pan, known for its waterproof integrity, demands meticulous surface preparation before tile installation. The pan’s smooth, tar-based surface lacks the porosity tile adhesive requires for mechanical grip. Without proper treatment, tiles risk delamination, leading to costly repairs. This vulnerability underscores the critical need for surface profiling and cleaning, ensuring the adhesive bonds effectively to the pan.
Profiling the Surface: Begin by roughening the hot mop surface to create a mechanical bond for the tile adhesive. Use a diamond cup wheel or coarse grit sandpaper (80-grit) to abrade the pan, focusing on areas where tile will adhere. Avoid over-sanding, as excessive heat can soften the tar layer. Work in sections, maintaining consistent pressure to achieve uniform texture. This step transforms the slick surface into a receptive substrate, enhancing adhesive grip.
Cleaning and Priming: After profiling, remove all dust and debris with a HEPA-filtered vacuum and a damp cloth. Residue compromises adhesion, so thorough cleaning is non-negotiable. Follow with a primer specifically formulated for non-porous surfaces, such as a latex or epoxy-based product. Apply a thin, even coat using a roller or brush, allowing it to dry completely (typically 2–4 hours, depending on humidity). Priming seals the surface, improving adhesive bonding and reducing the risk of moisture infiltration.
Addressing Substrate Movement: Hot mop pans can flex slightly under load, potentially cracking tiles over time. To mitigate this, install a decoupling membrane between the pan and tile. Products like Ditra or Kerdi provide a flexible layer that absorbs movement, protecting the tile installation. Secure the membrane with a thin-set mortar, ensuring full coverage and firm adhesion to the primed pan. This additional step safeguards the longevity of the tile work, even on a traditionally rigid substrate.
Final Inspection and Layout: Before setting tiles, inspect the prepared surface for consistency in texture and cleanliness. Verify that the primer is fully cured and the membrane (if used) is securely bonded. Dry-fit tiles to ensure proper alignment and spacing, making adjustments for slope and drainage. This preparatory diligence ensures a seamless transition to tile installation, minimizing errors and maximizing durability. By treating the hot mop pan as a dynamic substrate, rather than a static one, you create a foundation resilient to both moisture and movement.
Perfect Shower Valve Installation: Ideal Tile Hole Size Guide
You may want to see also
Explore related products
Apply Hot Mop Waterproofing Membrane
Hot mop waterproofing is a time-tested method for creating a seamless, watertight barrier beneath tile installations, particularly in shower pans. Unlike modern sheet membranes, hot mop involves applying multiple layers of hot asphalt and fiberglass fabric, creating a durable, flexible, and highly effective waterproofing system. This traditional technique remains a preferred choice for professionals seeking long-term protection against water intrusion in wet areas.
Application Process: Begin by ensuring the shower pan substrate is clean, dry, and structurally sound. Heat the asphalt compound to a specific temperature (typically 350°F to 400°F) using a specialized kettle. Apply the first layer of hot asphalt with a mop, working it into the substrate to create a uniform base coat. Immediately embed a layer of fiberglass fabric into the hot asphalt, smoothing out any wrinkles or air pockets. Repeat this process, applying additional layers of asphalt and fabric until the desired thickness is achieved (usually 3 to 4 layers). Allow each layer to cool slightly before applying the next to ensure proper adhesion.
Key Considerations: Precision and timing are critical during hot mop application. The asphalt must be hot enough to remain fluid during application but not so hot that it damages the fiberglass or substrate. Work in small sections to maintain control and ensure even coverage. Proper ventilation is essential due to the fumes emitted by the hot asphalt. Protective gear, including heat-resistant gloves and respirators, is mandatory for safety.
Advantages Over Alternatives: Compared to pre-formed shower pans or liquid waterproofing membranes, hot mop offers superior durability and adaptability. Its ability to conform to irregular shapes and angles makes it ideal for custom shower designs. Additionally, hot mop’s longevity—often exceeding 20 years—outperforms many modern alternatives, making it a cost-effective choice for high-moisture environments.
Post-Application Tips: Once the hot mop membrane has cured (typically 24 to 48 hours), it’s ready for tile installation. Use a suitable thin-set mortar and ensure tiles are properly spaced and aligned. Grout lines should be sealed to prevent water penetration at the tile surface. Regular maintenance, such as inspecting for cracks or damage, will extend the life of the hot mop system and ensure continued waterproofing performance.
Top Shower Tile and Grout Cleaner: Effective Solutions for Sparkling Results
You may want to see also
Explore related products
Set Tile Mortar Bed Properly
A properly set tile mortar bed is the unsung hero of a durable, leak-free shower pan, especially when paired with a hot mop system. This critical layer, often overlooked, serves as the foundation for your tile installation, ensuring stability, water resistance, and longevity. Without a well-executed mortar bed, even the most exquisite tiles can fail, leading to costly repairs and water damage.
Preparation is Key: Before laying the mortar, ensure the hot mop shower pan is clean, dry, and free of debris. The pan’s surface should be roughened slightly to promote adhesion. Mix your mortar according to the manufacturer’s instructions, typically using a 5:1 ratio of sand to cement for a thick, consistent slurry. Aim for a peanut butter-like consistency—too wet, and it’ll shrink excessively; too dry, and it won’t bond properly.
Application Technique: Start by spreading a 1- to 1.5-inch layer of mortar over the shower pan, using a trowel to create a uniform slope toward the drain. This slope is non-negotiable; it ensures water drains efficiently, preventing pooling and leaks. Work in small sections, pressing the mortar firmly to eliminate air pockets. For added strength, embed a layer of wire mesh or fiberglass into the wet mortar before it sets.
Curing and Testing: Allow the mortar bed to cure for at least 24–48 hours, depending on humidity and temperature. Once cured, test the slope by spraying water across the surface—it should flow seamlessly toward the drain. Any standing water indicates an uneven slope, requiring additional mortar adjustments. Patience during curing is crucial; rushing this step compromises the entire installation.
Final Touches: After the mortar bed is fully cured, apply a waterproofing membrane over it, especially in areas prone to moisture penetration. This extra layer acts as a safeguard, ensuring the hot mop system and mortar bed work in tandem to repel water. Only then should you proceed with tile installation, confident that your foundation is rock-solid.
Mastering the mortar bed is a blend of precision, patience, and technique. Done right, it transforms a vulnerable shower pan into a fortress against water damage, setting the stage for a flawless tile installation that stands the test of time.
Perfect Shower Tile Colors to Complement Gray Laminate Flooring
You may want to see also
Explore related products
Install Tiles on Shower Pan
Installing tiles on a hot mop shower pan requires precision and attention to detail to ensure a waterproof and durable finish. The hot mop method, which involves layering hot asphalt and fiberglass cloth, creates a robust shower pan that can withstand moisture. However, tiling over this surface demands careful preparation to avoid cracks or adhesion issues. Start by ensuring the hot mop surface is clean, smooth, and fully cured. Any imperfections should be sanded or filled to create a uniform base. Applying a waterproofing membrane over the hot mop layer adds an extra safeguard against leaks, especially at corners and seams.
The choice of tile adhesive is critical for success. Use a polymer-modified thinset mortar, which offers superior bonding strength and flexibility compared to standard thinset. This is particularly important because the hot mop surface can expand and contract with temperature changes. Apply the thinset using a notched trowel, ensuring consistent coverage to prevent air pockets. For small or intricate tiles, consider using a smaller notch size to achieve better adhesion. Allow the adhesive to set according to the manufacturer’s instructions before proceeding.
Grouting is another step that requires careful consideration. Choose a high-quality, waterproof grout to further protect against moisture infiltration. Epoxy grout is an excellent option for shower pans due to its stain and water resistance. When applying grout, work in small sections and press it firmly into the joints. Wipe away excess grout with a damp sponge, but avoid over-cleaning, as this can weaken the grout lines. After grouting, apply a grout sealer to enhance durability and ease of maintenance.
One common mistake to avoid is neglecting expansion joints. Even with flexible thinset, tiles installed over a hot mop shower pan can still crack if the surface moves. Incorporate expansion joints at intervals recommended by the tile manufacturer, typically every 8 to 12 feet. These joints allow for movement without damaging the tile installation. Use a flexible caulk that matches the grout color to fill these joints, ensuring a seamless and functional finish.
Finally, proper curing time is essential for long-term success. Allow the tile installation to cure for at least 48 hours before exposing it to water. During this period, avoid walking on the tiles or placing heavy objects on them. Once cured, test the shower pan for leaks by filling it with water and letting it sit for 24 hours. Inspect the area below the shower for any signs of moisture. If no leaks are detected, the installation is ready for regular use. With careful planning and execution, tiling over a hot mop shower pan can result in a beautiful, leak-free shower that stands the test of time.
Standard Walk-In Tiled Shower Dimensions: What’s the Average Size?
You may want to see also
Explore related products
Grout and Seal Tile Joints
Grout lines are the unsung heroes of a tiled shower pan, yet they often become the weakest link if not properly installed and sealed. The hot mop shower pan, a traditional waterproofing method, demands meticulous attention to grout and sealing to prevent water intrusion. Unlike standard tile installations, the hot mop base requires a grout that can withstand both moisture and the unique movement of the pan. Epoxy grout, known for its durability and water resistance, is the preferred choice here. Its non-porous nature ensures that water doesn’t seep through, protecting the hot mop layer beneath. However, standard cementitious grout can suffice if sealed correctly, though it’s less forgiving in wet environments.
Sealing grout joints is not just a recommendation—it’s a necessity, especially in a hot mop shower pan. Waterproofing the grout prevents moisture from reaching the substrate, which could lead to mold, mildew, or structural damage. Apply a penetrating grout sealer after the grout cures for at least 72 hours. For best results, use a silicone-based sealer, as it bonds well with both epoxy and cementitious grout. Reapply the sealer annually, or as needed, to maintain its protective barrier. A common mistake is over-applying sealer, which can leave a residue or haze. Wipe off excess sealer immediately with a clean, damp cloth to avoid this issue.
The process of grouting and sealing tile joints over a hot mop shower pan requires precision and patience. Start by ensuring the tile is set evenly, with consistent joint spacing. Use a grout float to press the grout into the joints, working diagonally to avoid trapping air. After grouting, allow it to set for 10–15 minutes before cleaning the tile surface with a damp sponge. Avoid walking on or disturbing the grout for at least 24 hours. Once cured, apply the sealer in thin, even coats, focusing on the grout lines. Test the sealer’s effectiveness by splashing water on the grout—if it beads up, the seal is successful.
Comparing epoxy and cementitious grout reveals why the former is superior for hot mop shower pans. Epoxy grout is more expensive and harder to work with, but its resistance to stains, chemicals, and water makes it ideal for wet areas. Cementitious grout, while easier to apply and more forgiving during installation, requires vigilant sealing and maintenance. For DIY installers, the choice often comes down to budget and skill level, but professionals typically opt for epoxy to ensure long-term performance. Regardless of the grout type, sealing is non-negotiable—it’s the final step that safeguards the entire system.
In practice, the success of a hot mop shower pan hinges on the integrity of its grout and sealant. Skipping or rushing these steps can lead to costly repairs down the line. For instance, a poorly sealed grout joint can allow water to penetrate the hot mop layer, causing it to delaminate or crack. Regular inspections of the grout and sealant can catch issues early, extending the life of the shower pan. Think of grout and sealant as the armor protecting the hot mop base—without them, even the most robust waterproofing system is vulnerable. By prioritizing these details, you ensure a shower pan that not only looks great but also stands the test of time.
Top Shower Pan Options for Tiled Showers: A Comprehensive Guide
You may want to see also
Frequently asked questions
A hot mop shower pan is a waterproof layer made by applying hot asphalt and fiberglass fabric to the shower floor. It is crucial for tile installations because it prevents water from seeping through the tile and causing damage to the subfloor or surrounding structures.
You can install tile directly on a hot mop shower pan, but it’s essential to ensure the surface is clean, dry, and free of debris. Some professionals recommend applying a bonding agent or thin-set mortar to improve adhesion between the tile and the pan.
Ceramic or porcelain tiles are ideal for hot mop shower pans due to their durability and water resistance. During installation, use a polymer-modified thin-set mortar and ensure proper slope toward the drain. Grout lines should be sealed to prevent water infiltration.
