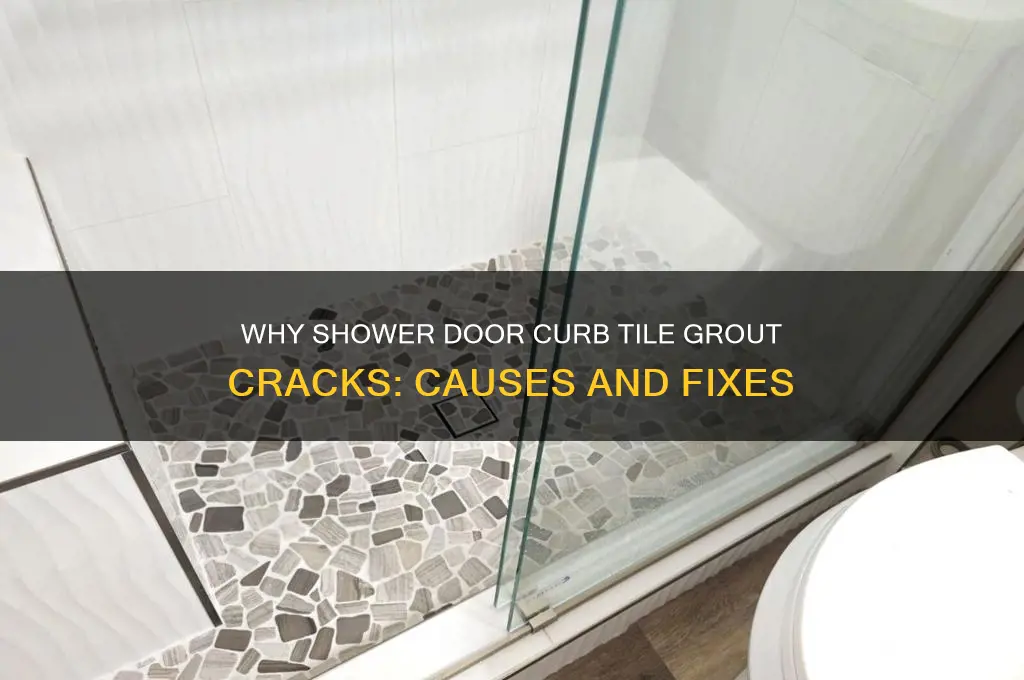

Tile grout cracking on the curb under a shower door is a common issue that often stems from a combination of factors, including water exposure, movement, and improper installation. The curb, which acts as a barrier to prevent water from escaping the shower area, is frequently subjected to moisture and temperature fluctuations, causing the grout to expand and contract. Over time, this can lead to hairline cracks or more significant damage. Additionally, the weight and movement of the shower door, especially if it swings open and closed frequently, can exert pressure on the curb, further weakening the grout. Poor initial installation, such as inadequate sealing or using low-quality materials, can also contribute to premature cracking. Addressing this issue promptly is essential to prevent water leakage, mold growth, and potential structural damage to the surrounding area.
| Characteristics | Values |
|---|---|
| Movement and Expansion | Grout is rigid and does not flex well. The curb under the shower door experiences frequent movement (e.g., opening/closing the door, shifting weight), causing stress and cracking. |
| Water Exposure | Excessive moisture weakens grout over time, especially if it’s not sealed properly. Water penetration accelerates deterioration and cracking. |
| Improper Installation | Inadequate grout mixing, insufficient curing time, or incorrect grout type (e.g., sanded vs. unsanded) can lead to premature cracking. |
| Lack of Expansion Joints | Without expansion joints, grout has no room to move as materials expand/contract due to temperature or moisture changes. |
| Low-Quality Grout | Subpar grout materials lack durability and are more prone to cracking under stress. |
| Heavy Traffic | Frequent use of the shower door area increases pressure on the grout, accelerating wear and cracking. |
| Settling of the Structure | Minor shifts in the building foundation or floor can create stress on the grout, leading to cracks. |
| Inadequate Substrate Preparation | Poorly prepared surfaces (e.g., uneven or dirty) prevent proper grout adhesion, making it more susceptible to cracking. |
| Chemical Damage | Harsh cleaning agents or chemicals can degrade grout, reducing its strength and causing cracks. |
| Aging and Wear | Over time, grout naturally deteriorates, becoming brittle and more prone to cracking, especially in high-use areas. |
Explore related products
What You'll Learn
- Improper Installation Techniques: Incorrect grout mixing or application can lead to weak, crack-prone grout
- Excessive Moisture Exposure: Water seepage under the door weakens grout over time
- Movement in Shower Curb: Structural shifting or settling causes stress, cracking grout
- Low-Quality Grout Materials: Subpar grout lacks durability, cracks easily under pressure
- Lack of Expansion Joints: Without gaps, grout has no room to expand/contract, leading to cracks
Improper Installation Techniques: Incorrect grout mixing or application can lead to weak, crack-prone grout
Grout cracking on the curb under a shower door often stems from improper installation techniques, particularly in the mixing and application phases. Achieving the right consistency is critical; grout that is too dry or too wet compromises its structural integrity. Manufacturers typically recommend a water-to-grout ratio of 1:4 by volume, but deviations from this can lead to weak bonds. For instance, adding excess water to make the grout more pliable during application dilutes the cementitious properties, reducing its strength and making it prone to cracking under stress. Conversely, insufficient water results in a crumbly mixture that fails to fill gaps effectively, leaving voids that weaken the grout over time.
The application process itself demands precision and patience. Grout should be pressed firmly into the joints using a rubber float, ensuring it fully penetrates the space between tiles. A common mistake is rushing this step, leading to uneven distribution or incomplete filling. For curbs under shower doors, where movement and moisture are constant, this oversight is particularly costly. The grout must act as a cohesive unit, binding the tiles together while resisting water infiltration. Skipping the process of striking the joints at a diagonal angle to compact the grout further exacerbates the problem, leaving it susceptible to shrinkage cracks as it cures.
Curing conditions play a pivotal role in grout durability, yet they are often overlooked. Grout requires a controlled environment to cure properly—typically 72 hours of consistent moisture and moderate temperature. In practice, installers might neglect to mist the grout periodically or cover it with plastic to retain moisture, leading to premature drying. This causes the grout to shrink excessively, creating hairline cracks that widen over time. For shower curbs, where water exposure is frequent, improper curing not only weakens the grout but also compromises its ability to repel moisture, accelerating deterioration.
To avoid these pitfalls, follow a systematic approach. Begin by measuring water and grout accurately, using a graduated container to ensure the correct ratio. Mix the components thoroughly for at least 5–7 minutes, allowing the mixture to rest for 10 minutes before remixing briefly—a process known as "slaking." During application, work in small sections, pressing the grout deeply into the joints and removing excess promptly. After striking the joints, protect the grout from rapid drying by misting it lightly and covering it with a breathable material. These steps, though time-consuming, are essential for creating grout that withstands the unique stresses of a shower curb environment.
Peel and Stick Shower Tiles: A Waterproof, DIY Bathroom Solution?
You may want to see also
Explore related products
Excessive Moisture Exposure: Water seepage under the door weakens grout over time
Water seepage under the shower door is a silent culprit behind grout deterioration. Unlike areas with proper drainage, the curb beneath the door often lacks adequate waterproofing, allowing moisture to penetrate the grout lines. Over time, this constant exposure weakens the grout’s binder, causing it to crack, crumble, or discolor. The problem is exacerbated in showers with high water pressure or frequent use, where even small gaps in the door seal can lead to significant water accumulation at the curb.
To mitigate this, inspect the shower door seal regularly for wear or damage. Replace worn seals with high-quality vinyl or magnetic strips, ensuring a snug fit to minimize water escape. Additionally, apply a waterproof sealant along the curb’s grout lines as a preventive measure. Silicone-based sealants are ideal due to their flexibility and resistance to moisture. Reapply every 12–18 months, depending on shower usage and humidity levels in your area.
A comparative analysis reveals that showers with frameless glass doors often experience more water seepage than framed doors, as the latter typically have better-integrated seals. If you have a frameless door, consider installing a sweep—a rubber or plastic strip attached to the bottom of the door—to redirect water back into the shower. This simple addition can significantly reduce moisture exposure to the curb grout.
For existing grout damage, removal and replacement are necessary. Use a grout saw or oscillating tool to carefully remove cracked grout, ensuring the tile edges remain intact. Mix new grout according to manufacturer instructions, pressing it firmly into the lines. Allow it to cure for 24–48 hours before sealing. Pair this repair with improved water management practices to prevent recurrence.
Finally, incorporate routine maintenance into your bathroom care. After each shower, wipe down the curb and door threshold to remove standing water. Install a squeegee near the shower for convenience, encouraging consistent use. By addressing both the source of moisture and the grout’s vulnerability, you can extend the life of your shower curb and avoid costly repairs down the line.
Choosing the Best Shower Floor Tile: Waterproof, Durable, and Stylish Options
You may want to see also
Explore related products
Movement in Shower Curb: Structural shifting or settling causes stress, cracking grout
Grout cracking on the shower curb beneath the door often signals underlying movement in the structure. This movement can stem from the natural settling of a building, shifts in the foundation, or even the expansion and contraction of materials due to temperature and moisture changes. Unlike static areas of the shower, the curb is particularly vulnerable because it bridges the transition between the shower floor and the bathroom floor, absorbing stresses from both sides. Over time, these forces can cause the grout to weaken and crack, compromising both aesthetics and functionality.
To address this issue, start by inspecting the curb for signs of movement, such as uneven tiles or gaps between the curb and adjacent surfaces. If structural settling is suspected, consult a professional to assess the foundation or subfloor. Minor shifts may be mitigated by reinforcing the curb with a flexible membrane during regrouting, which allows for slight movement without damaging the grout. For example, using an unmodified epoxy grout instead of traditional cementitious grout can provide greater flexibility and durability in areas prone to movement.
Preventive measures are equally important. Ensure proper waterproofing during installation, as water infiltration can exacerbate movement by weakening the substrate. Additionally, install expansion joints in the grout lines to accommodate natural material shifts. These joints should be placed every 8 to 12 feet, depending on the size of the curb and the materials used. Regularly inspect the area for early signs of cracking and address them promptly to prevent water damage and mold growth.
Comparing this issue to other common grout problems highlights its unique challenges. While surface-level cracks in wall tiles often result from improper grout mixing or cleaning, curb grout cracking is deeply tied to structural integrity. Unlike cosmetic fixes, solutions here require a holistic approach, combining material upgrades, structural assessments, and proactive maintenance. Ignoring these cracks can lead to more severe issues, such as water seeping into the subfloor or compromising the shower pan’s seal.
In conclusion, grout cracking on the shower curb is more than a cosmetic nuisance—it’s a warning sign of structural movement. By understanding the root causes and implementing targeted solutions, homeowners can preserve the longevity of their shower systems. Whether through professional intervention, material upgrades, or preventive measures, addressing this issue early ensures both functionality and peace of mind.
Stocking Your Slate Tile Shower: Essential Items for Style and Function
You may want to see also
Explore related products
Low-Quality Grout Materials: Subpar grout lacks durability, cracks easily under pressure
Grout cracking on the curb under a shower door often signals a deeper issue with material quality. Low-quality grout, typically cheaper and less durable, lacks the necessary tensile strength to withstand the constant pressure and movement in this high-moisture area. Unlike premium grouts, which contain polymers or latex additives for flexibility and resilience, subpar options rely on basic cementitious mixtures that harden rigidly. This rigidity makes them prone to cracking when exposed to the weight shifts from opening and closing the shower door or the thermal expansion and contraction caused by temperature fluctuations.
Consider the installation process: even if tiles are laid perfectly, inferior grout can undermine the entire system. For instance, grout with inadequate bonding agents fails to adhere strongly to both the tile and substrate, creating weak points that crack under stress. A practical tip for homeowners is to inspect grout packaging for terms like "sanded," "unsanded," or "polymer-modified." Sanded grout, while suitable for wider joints, may still crack if it lacks polymer additives. For shower curbs, opt for epoxy or furan grouts, which offer superior durability and moisture resistance, though they require precise mixing ratios (typically 1:1 by volume) and faster application due to shorter working times.
The consequences of using low-quality grout extend beyond aesthetics. Cracked grout allows water to penetrate the substrate, leading to mold growth, tile loosening, or even structural damage over time. A comparative analysis shows that while premium grouts may cost 20-30% more upfront, they save money in the long run by reducing maintenance and repair needs. For example, a polymer-modified grout priced at $30 per bag can last over a decade in a shower curb, whereas a $15 bag of basic cementitious grout may crack within 2-3 years, requiring replacement.
To mitigate risks, follow these steps: first, assess the grout’s flexibility by pressing it with a fingernail—if it feels brittle, it’s likely subpar. Second, during installation, ensure the grout is mixed to a smooth, peanut butter-like consistency and applied in thin layers to avoid shrinkage cracks. Finally, seal the grout immediately after curing (typically 72 hours) with a penetrating sealer to enhance water resistance. By prioritizing quality materials and proper techniques, homeowners can prevent the recurring issue of grout cracking under the shower door curb.
Effective Ways to Remove Yellow Stains from Shower Tiles
You may want to see also
Explore related products
Lack of Expansion Joints: Without gaps, grout has no room to expand/contract, leading to cracks
Grout, the unsung hero of tile installations, is often overlooked until it fails. One common failure point is the curb under the shower door, where grout cracks can appear seemingly overnight. The culprit? A lack of expansion joints. These small gaps, typically 1/8 inch wide, are essential for accommodating the natural movement of building materials. Without them, grout is trapped between rigid tiles and a stationary curb, leaving it no room to breathe as temperature and moisture levels fluctuate.
Imagine a rubber band stretched taut between two fixed points. Apply heat, and it expands; expose it to cold, and it contracts. Grout behaves similarly, but unlike a rubber band, it’s brittle. When forced to expand or contract without relief, it cracks under the stress. This is particularly evident on shower curbs, where water exposure and temperature shifts are frequent. Expansion joints act as release valves, allowing grout to move without fracturing. For optimal results, incorporate joints every 8 to 12 feet in tile fields and at every change in plane, such as where the curb meets the floor.
The absence of expansion joints isn’t just a technical oversight—it’s a recipe for recurring repairs. Cracked grout not only looks unsightly but also compromises the shower’s waterproofing, allowing moisture to seep beneath tiles and foster mold or structural damage. Retrofitting expansion joints into an existing installation is labor-intensive, often requiring grout removal and recaulking with a flexible sealant. Prevention, however, is straightforward: during installation, use a utility knife to score grout lines at strategic intervals, then fill these gaps with silicone caulk instead of grout. This simple step can double the lifespan of your grout.
Comparing installations with and without expansion joints highlights their importance. In a case study, two identical showers were built side by side. The first lacked expansion joints, while the second included them at the curb and every 10 feet. After a year, the first shower exhibited multiple grout cracks, particularly at the curb, while the second remained intact. The takeaway? Expansion joints aren’t optional—they’re essential. For DIYers, mark joint locations with painter’s tape before grouting to ensure precision. Professionals should educate clients on the long-term benefits of this small but critical detail.
Finally, consider the curb under the shower door as a high-stress zone. It endures constant foot traffic, water exposure, and temperature swings. Without expansion joints, the grout here is under perpetual siege. To mitigate this, use a high-quality, sanded caulk designed for wet areas in place of traditional grout at the curb. Apply it in a smooth, continuous bead, ensuring it adheres to both the tile and the curb. Inspect the area annually and reapply caulk as needed. By prioritizing flexibility in this vulnerable area, you can prevent cracks and maintain a watertight seal, preserving both the aesthetics and functionality of your shower.
Resealing Marble Shower Tiles: Essential Maintenance for Longevity and Beauty
You may want to see also
Frequently asked questions
Grout cracking in this area is often due to movement or shifting of the curb, frequent water exposure, or improper installation. The curb under the shower door experiences constant moisture and pressure, which can weaken the grout over time.
Yes, water damage is a common cause of grout cracking. Prolonged exposure to moisture can erode grout, especially if it wasn't sealed properly. Water can seep into the grout lines, causing it to expand and contract, leading to cracks.
To prevent cracking, ensure the grout is properly sealed during installation and reapply sealant regularly. Use flexible grout or caulk in areas prone to movement, and address any underlying issues like uneven settling or improper curb construction. Regular maintenance and reducing water exposure can also help.
