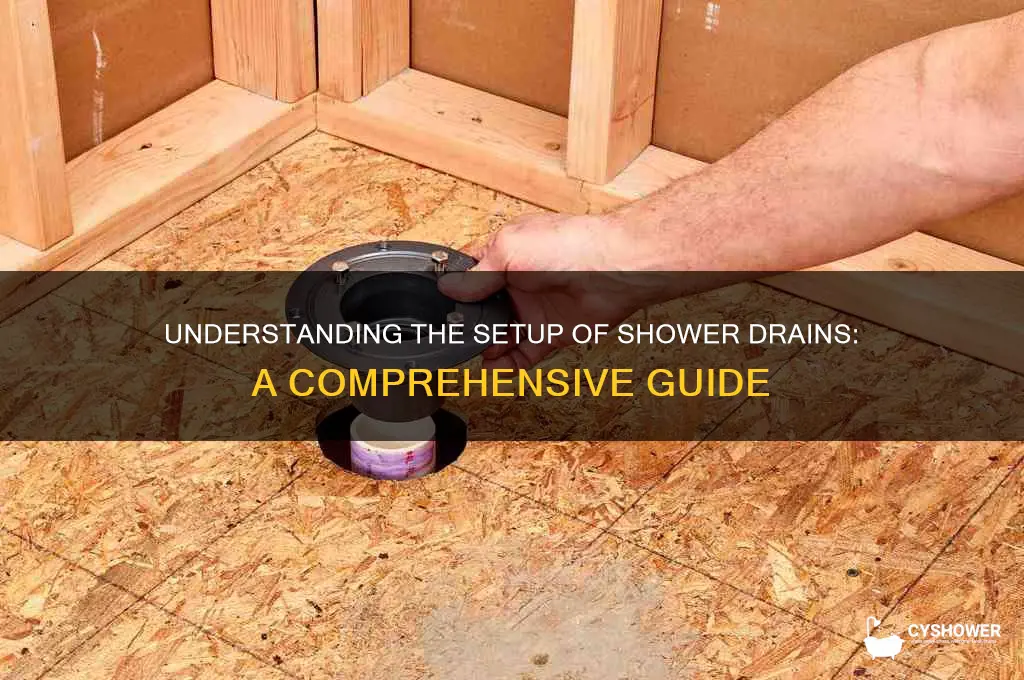

Shower drains are essential components of any bathroom, designed to efficiently remove water and prevent standing pools that could lead to mold, mildew, or slips. Typically, a shower drain consists of a drain body installed directly into the shower floor, connected to a P-trap beneath the surface, which prevents sewer gases from entering the home while allowing water to flow freely. The drain is often covered with a grate or strainer to catch hair, soap scum, and other debris, ensuring the system remains clog-free. Proper installation involves precise waterproofing, sloping the shower floor toward the drain, and ensuring the P-trap is correctly aligned with the plumbing system. Modern setups may also include additional features like linear drains or tileable drains for a seamless, custom look. Understanding the setup of shower drains is crucial for both installation and maintenance, ensuring long-term functionality and hygiene.
| Characteristics | Values |
|---|---|
| Drain Type | Linear, Center, Corner, or Custom |
| Material | PVC, ABS, Stainless Steel, Brass, or Copper |
| Size | 2 inches (standard), 1.5 inches (smaller showers), or custom |
| Grate Style | Tile-Insert, Perforated, Patterned, or Decorative |
| Water Flow Rate | 2-8 gallons per minute (GPM), depending on drain size and design |
| Trap Type | P-trap, S-trap, or Bottle trap |
| Waterproofing | Requires waterproof membrane (e.g., PVC liner, liquid waterproofing) |
| Slope/Pitch | 1/4 inch per foot (minimum) toward the drain |
| Rough-In Height | Adjustable, typically 2-4 inches below shower floor |
| Ventilation | Requires vent stack connection to prevent siphoning and odors |
| Cleanout Access | Optional, but recommended for maintenance |
| Compliance | Must meet local plumbing codes (e.g., IPC, UPC) |
| Installation Method | Mortar bed, foam base, or pre-sloped shower pan |
| Additional Features | Hair catchers, removable grates, or integrated overflow |
| Compatibility | Must match shower pan or tile thickness for seamless integration |
Explore related products
What You'll Learn
Drain Location Planning
When planning the location of a shower drain, several critical factors must be considered to ensure proper functionality, efficiency, and compliance with building codes. The primary goal is to position the drain in a way that facilitates effective water flow while minimizing the risk of clogs and standing water. Start by identifying the lowest point in the shower area, as this is the natural point where water will gravitate. The drain should be placed at this lowest point to allow gravity to assist in water drainage. Additionally, consider the slope of the shower floor, which should be designed to direct water toward the drain. A typical slope ranges from 1/4 to 1/2 inch per foot, ensuring water does not pool elsewhere.
The size and shape of the shower also play a significant role in drain location planning. For rectangular or square showers, the drain is often centered along one of the shorter walls, allowing for a consistent slope across the entire floor. In larger or irregularly shaped showers, multiple drains or a linear drain system may be necessary to manage water flow effectively. Linear drains, which are longer and narrower, are particularly useful in modern, open-concept showers or those with minimal framing, as they can be placed along the shower threshold or against a wall without disrupting the design aesthetic.
Another important consideration is the proximity of the drain to fixtures and shower users. The drain should be positioned away from the main showering area to prevent debris, such as hair and soap scum, from accumulating directly over it. Placing the drain near the shower entrance or along a side wall can help reduce the amount of debris that enters the drain while still ensuring efficient water removal. Additionally, avoid locating the drain directly beneath fixtures like showerheads or body sprays, as this can lead to excessive water pressure and potential splashing.
Plumbing and structural constraints must also be factored into drain location planning. Ensure that the chosen location allows for proper connection to the existing plumbing system, including adequate space for piping and ventilation. Consult local building codes to verify minimum requirements for drain size, slope, and placement. In renovations or retrofits, the existing plumbing layout may dictate the drain’s position, requiring creative solutions to achieve optimal drainage. For example, if the drain cannot be centered, a trench drain or off-center linear drain might be necessary.
Finally, consider the overall design and user experience when planning the drain location. In barrier-free or walk-in showers, the drain should be seamlessly integrated into the floor to maintain a sleek, unobtrusive appearance. For showers with custom tilework or intricate designs, the drain should be positioned to complement the layout rather than disrupt it. Some homeowners opt for decorative drain covers to enhance the aesthetic appeal. By balancing functionality, compliance, and design, careful drain location planning ensures a shower that is both practical and visually pleasing.
Effective Ways to Unclog Your Shower Drain Quickly and Easily
You may want to see also
Explore related products
P-Trap Installation Steps
Begin by ensuring the shower drain body is securely installed in the shower pan or floor. The drain body should be tightly sealed with a gasket or plumber’s putty to prevent leaks. Once the drain body is in place, attach the drain tailpiece to it. The tailpiece is a vertical pipe that extends downward from the drain body and will connect to the P-trap. Make sure the tailpiece is aligned properly and secured with threading or adhesive, depending on the material. This step is crucial for ensuring a smooth flow of water into the P-trap.
Next, prepare the P-trap assembly by laying out its components: the trap itself, two slip nuts, and two washers. The P-trap is a curved pipe that prevents sewer gases from entering the shower by trapping water inside it. Slide a washer and slip nut onto the horizontal outlet arm of the P-trap, followed by another washer and slip nut onto the tailpiece extending from the drain. Position the P-trap so that the outlet arm aligns with the direction of the drainpipe leading to the wall or floor. Tighten the slip nuts by hand, ensuring the washers are seated properly to create a watertight seal.
With the P-trap in place, connect the outlet arm to the drainpipe extending from the wall or floor. Depending on your setup, this may involve using a 90-degree elbow or a straight pipe. Secure the connection with additional slip nuts and washers, tightening them by hand and then using pliers or a wrench to ensure a snug fit. Be careful not to overtighten, as this can damage the pipes or fittings. Double-check that all connections are aligned and secure before proceeding.
After assembling the P-trap and connecting it to the drainpipe, test the system for leaks. Pour water down the shower drain and inspect all joints for signs of leakage. If leaks are detected, loosen the slip nuts slightly, reposition the washers, and tighten again. Once the system is leak-free, secure the P-trap to the wall or floor using pipe hangers or straps to prevent movement and strain on the connections. This step ensures the P-trap remains stable and functional over time.
Finally, install the shower drain cover or grate over the drain body, ensuring it fits securely. Test the shower by running water and checking for proper drainage and no leaks. Proper P-trap installation is essential for maintaining a functional shower drain system and preventing sewer gases from entering the bathroom. Following these steps carefully will result in a reliable and long-lasting setup.
Does Your Sink Drain Connect to Your Shower Drain? Explained
You may want to see also
Explore related products
Choosing Drain Materials
When choosing drain materials for your shower setup, it’s essential to consider durability, compatibility with your plumbing system, and aesthetic appeal. The most common materials for shower drains include stainless steel, brass, PVC, and ABS plastic. Stainless steel is a popular choice due to its corrosion resistance, longevity, and modern look. It is ideal for high-moisture environments like showers and pairs well with contemporary bathroom designs. Brass drains offer a more traditional or luxurious appearance and are highly durable, though they may require occasional polishing to maintain their shine. Both stainless steel and brass are excellent choices for their strength and resistance to rust and tarnish.
For those on a budget or working on DIY projects, PVC (polyvinyl chloride) and ABS (acrylonitrile butadiene styrene) plastic drains are lightweight, affordable, and easy to install. However, they may not be as durable or visually appealing as metal options. PVC and ABS are best suited for basic installations or areas where the drain is less visible. It’s crucial to ensure these materials comply with local building codes, as some regions restrict their use in certain applications. Additionally, plastic drains may not withstand high temperatures or heavy loads as effectively as metal alternatives.
Another factor to consider is the finish and design of the drain material. Stainless steel and brass drains often come in various finishes, such as brushed, polished, or oil-rubbed, allowing you to match them with your shower fixtures and overall bathroom style. If you’re aiming for a seamless or tile-integrated look, some drains are designed with removable covers that can be replaced with tiles or stones to blend into the shower floor. This customization option is typically available in metal drains rather than plastic ones.
Compatibility with your existing plumbing system is also critical. Metal drains, such as stainless steel or brass, are generally compatible with most piping materials, including copper, PVC, and PEX. However, if you’re using plastic drains, ensure they are compatible with your piping to avoid leaks or improper fitting. It’s advisable to consult a plumber or refer to manufacturer guidelines to confirm compatibility before making a purchase.
Lastly, consider the environmental impact and maintenance requirements of the drain material. Stainless steel and brass are recyclable and long-lasting, making them more sustainable choices. Plastic drains, while less expensive, may degrade over time and contribute to waste. Metal drains typically require minimal maintenance, while brass may need occasional cleaning to prevent water spots or oxidation. By weighing these factors, you can select a drain material that not only fits your shower setup but also aligns with your long-term needs and preferences.
Choosing the Right Width for Your Linear Shower Drain
You may want to see also
Explore related products
Waterproofing Techniques
When setting up shower drains, waterproofing is a critical aspect to prevent water damage, mold growth, and structural issues. The first step in waterproofing involves preparing the substrate. Ensure the shower floor and walls are clean, dry, and free of debris. Any cracks or imperfections should be repaired using a suitable patching compound. The substrate must be smooth and even to allow for proper adhesion of waterproofing materials. For concrete or cement substrates, it’s essential to let them cure fully before applying any waterproofing layers.
The next technique is applying a liquid waterproofing membrane. This is a popular method due to its flexibility and ease of application. Liquid membranes are typically rolled or brushed onto the substrate in multiple coats, ensuring complete coverage, especially in corners and around the drain assembly. Products like waterproof coatings or sealants are designed to create a seamless barrier that prevents water penetration. Allow each coat to dry thoroughly before applying the next, following the manufacturer’s instructions for optimal results.
Another effective waterproofing technique is using sheet membranes or waterproofing boards. These are pre-formed materials that are installed over the substrate, particularly in areas prone to high moisture exposure, such as shower walls and floors. Sheet membranes are often made of materials like PVC, rubber, or foam and are secured using adhesives or mechanical fasteners. Around the drain, the membrane should be carefully cut and fitted to ensure a watertight seal. This method is especially useful for complex shapes and provides robust protection against water intrusion.
Sealing the shower drain assembly is a crucial step in waterproofing. The drain must be properly integrated into the waterproofing system to prevent leaks. Use a waterproof sealant or gasket around the drain flange to create a secure bond between the drain and the waterproofing membrane. Some drains come with pre-installed waterproofing components, but it’s always a good idea to add an extra layer of sealant for added protection. Ensure the drain is level and aligned with the slope of the shower floor to facilitate proper water flow.
Finally, testing the waterproofing system before completing the installation is essential. One common method is the flood test, where the shower area is filled with water and left for 24 hours to check for leaks. If no water seeps through, the waterproofing is successful. If leaks are detected, identify and repair the weak points before proceeding. Proper waterproofing not only ensures the longevity of the shower but also protects the underlying structure from potential water damage.
Quick DIY Guide: Repairing Your Shower Door Bottom Seal Easily
You may want to see also
Explore related products
Venting System Setup
The venting system is a critical component of shower drain setup, ensuring proper airflow and preventing issues like slow drainage or sewer gases from entering the home. A well-designed venting system allows air to enter the plumbing system, equalizing pressure and facilitating efficient water flow. The vent stack, typically a vertical pipe connected to the main drain line, extends through the roof, providing an exit point for gases and a pathway for air intake. When installing a shower drain, it's essential to connect it to this venting system to maintain optimal performance.
To set up the venting system for a shower drain, start by identifying the nearest vent stack or branch vent. The shower drain should be connected to this venting system via a vent pipe, typically made of PVC or ABS material. The vent pipe must be sized according to local plumbing codes, ensuring it’s large enough to handle the expected airflow. A common practice is to use a 2-inch vent pipe for residential shower drains, though this may vary based on the overall plumbing layout and local regulations. The vent pipe should slope slightly toward the vent stack to prevent water accumulation and ensure proper airflow.
Next, install a sanitary tee fitting at the shower drain location to connect the drain pipe to the vent pipe. The horizontal branch of the tee should align with the shower drain, while the vertical branch connects to the vent pipe. Ensure all connections are secure and properly sealed with solvent cement or threaded fittings, depending on the pipe material. The vent pipe should then extend upward, connecting to the main vent stack or a branch vent line. It’s crucial to avoid sharp bends or obstructions in the vent pipe, as these can impede airflow and reduce system efficiency.
Proper venting also requires attention to the distance between the shower drain and the vent connection. Plumbing codes often specify a maximum horizontal distance between the drain and the vent to ensure effective venting. If this distance is exceeded, an additional vent or a different venting configuration, such as an S-trap with a vented arm, may be necessary. Always consult local building codes to ensure compliance and avoid potential plumbing issues.
Finally, ensure the vent stack terminates correctly above the roofline, with a vent cap or hood installed to prevent debris and pests from entering while allowing gases to escape. The vent terminal should be located at least 12 inches above the roof and away from windows or other openings to prevent sewer gases from re-entering the building. Properly setting up the venting system not only ensures efficient shower drain operation but also contributes to the overall health and safety of the plumbing system.
Effective Steps to Seal Your Shower Tray Drain Properly
You may want to see also
Frequently asked questions
The most common size for a shower drain is 2 inches in diameter, though some older homes may have 1.5-inch drains. Always check local plumbing codes for specific requirements.
A shower drain is typically connected to the plumbing system via a P-trap, which prevents sewer gases from entering the bathroom. The P-trap is then connected to the main drain line using PVC or ABS piping.
Yes, a shower drain can be installed on a concrete slab, but it requires careful planning. The slab must be cut to accommodate the drain and slope properly for water drainage. A professional plumber is often recommended for this task.
The shower drain strainer acts as a barrier to catch hair, soap scum, and other debris, preventing clogs in the drain pipe. It is removable for easy cleaning and maintenance.
