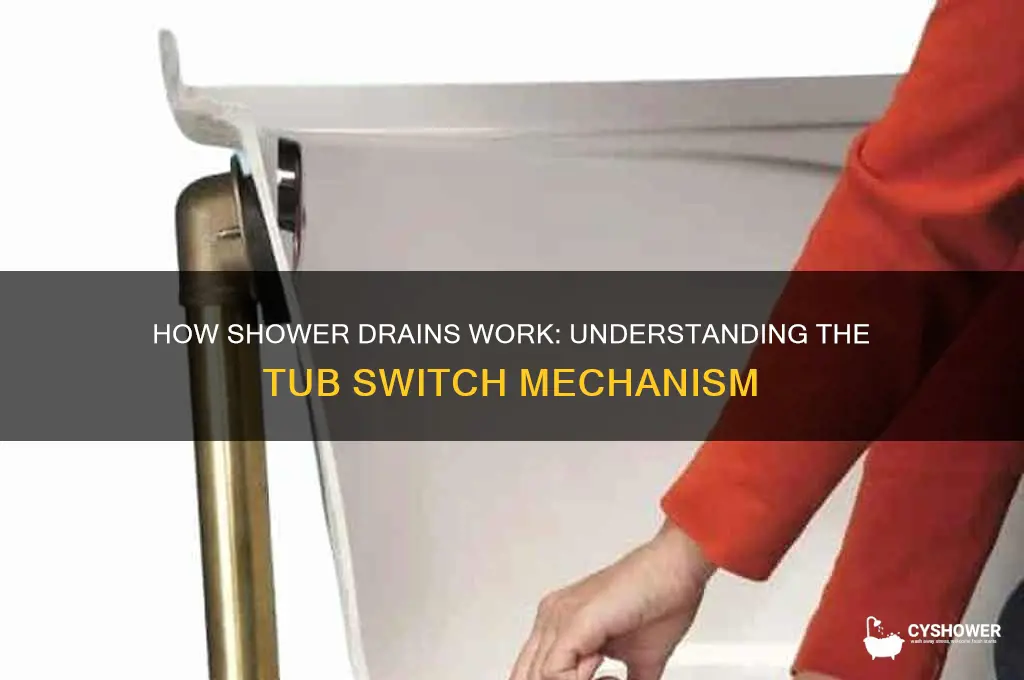

Shower drains are essential components of any bathroom, designed to efficiently remove water while preventing clogs and backups. One common feature in many shower and tub setups is the tub switch, a mechanism that allows users to divert water flow between the showerhead and the tub faucet. Understanding how shower drains work in conjunction with the tub switch is crucial for maintaining proper drainage and preventing water-related issues. The drain system typically consists of a strainer to catch hair and debris, a P-trap to block sewer gases, and a pipe that channels water into the main plumbing system. When the tub switch is engaged, it redirects water flow, ensuring that the drain remains functional regardless of whether you’re taking a shower or filling the tub. Proper installation and regular maintenance of both the drain and the tub switch are key to avoiding common problems like slow drainage or leaks.
| Characteristics | Values |
|---|---|
| Mechanism | A tub switch (also known as a diverter valve) redirects water flow from the tub faucet to the showerhead. It operates via a mechanical or push-button mechanism. |
| Location | Typically located on the tub spout or as a separate valve near the shower controls. |
| Types | 1. Pull-Up Diverter: Pulling the tub spout activates the shower. 2. Three-Valve Diverter: A separate valve controls flow between tub and shower. 3. Push-Button Diverter: Pressing a button redirects water to the showerhead. |
| Drain System | The drain works independently of the switch. It consists of a strainer, drain pipe, P-trap (to prevent sewer gases), and vent stack for airflow. |
| Water Flow | When the switch is activated, water is diverted from the tub spout to the shower riser and showerhead. |
| Maintenance | Regular cleaning of the strainer and checking for clogs in the drain pipe are essential. Diverter valves may need replacement if they leak or fail to switch properly. |
| Material | Common materials include brass, plastic, or stainless steel for durability and corrosion resistance. |
| Installation | Requires plumbing expertise for proper installation and alignment with the shower and tub systems. |
| Functionality | Ensures efficient water redirection without affecting the drain's operation, which remains constant regardless of the switch position. |
Explore related products
What You'll Learn
- Pop-up Drain Mechanism: Explains how the tub switch lifts and lowers the stopper to control water flow
- Overflow Drain Function: Describes the secondary drain preventing water from spilling over the tub edge
- P-Trap Role: Details how the P-trap blocks sewer gases while allowing water to pass
- Switch Types: Compares different tub switch designs, such as toe-tap, lift-and-turn, and twist mechanisms
- Clog Prevention: Highlights how proper maintenance and drain covers prevent hair and debris buildup
Pop-up Drain Mechanism: Explains how the tub switch lifts and lowers the stopper to control water flow
The pop-up drain mechanism is a common feature in bathtubs and some shower setups, allowing users to easily control the flow of water by lifting or lowering the stopper. This system is typically operated by a tub switch, often referred to as a lift-and-turn or rocker switch, which is connected to the drain assembly. When the switch is activated, it engages a series of components that either open or close the drain, effectively controlling whether water remains in the tub or flows out. Understanding how this mechanism works can help troubleshoot issues and ensure proper maintenance.
At the heart of the pop-up drain mechanism is the stopper, which sits directly over the drain opening. The stopper is connected to a vertical rod, often called the lift rod, which runs through the overflow plate or escutcheon. The lift rod is, in turn, linked to the tub switch via a horizontal rod or linkage assembly. When the tub switch is flipped or turned, it moves the horizontal rod, which pulls or pushes the lift rod up or down. This vertical movement of the lift rod causes the stopper to rise or lower, opening or closing the drain.
The linkage between the tub switch and the lift rod is crucial for the mechanism’s functionality. In many designs, the horizontal rod is connected to the lift rod by a pivoting arm or clevis strap, which allows for smooth movement without binding. Adjusting the length of the horizontal rod or the position of the clevis strap can fine-tune the alignment of the stopper, ensuring it seals properly when closed and lifts fully when open. This adjustability is particularly useful when installing or repairing the drain assembly.
When the tub switch is in the "closed" position, the stopper is lowered into the drain, creating a seal that prevents water from flowing out. This is achieved by the weight of the stopper and the tension in the lift rod, which holds it in place. To open the drain, the tub switch is moved to the "open" position, pulling the lift rod upward and lifting the stopper out of the drain. Water can then flow freely into the drainpipe. The simplicity of this design makes it reliable and easy to operate, though occasional cleaning and lubrication of the moving parts are necessary to prevent corrosion or stiffness.
In some pop-up drain mechanisms, a spring is incorporated into the assembly to assist in returning the stopper to its closed position when the tub switch is released. This spring also provides tension to keep the stopper securely in place when the drain is closed. Over time, the spring may weaken or break, causing the stopper to function improperly. Replacing the spring or adjusting the linkage can often resolve such issues. By understanding the interplay between the tub switch, lift rod, and stopper, homeowners can effectively maintain and repair their pop-up drain mechanisms, ensuring optimal performance.
