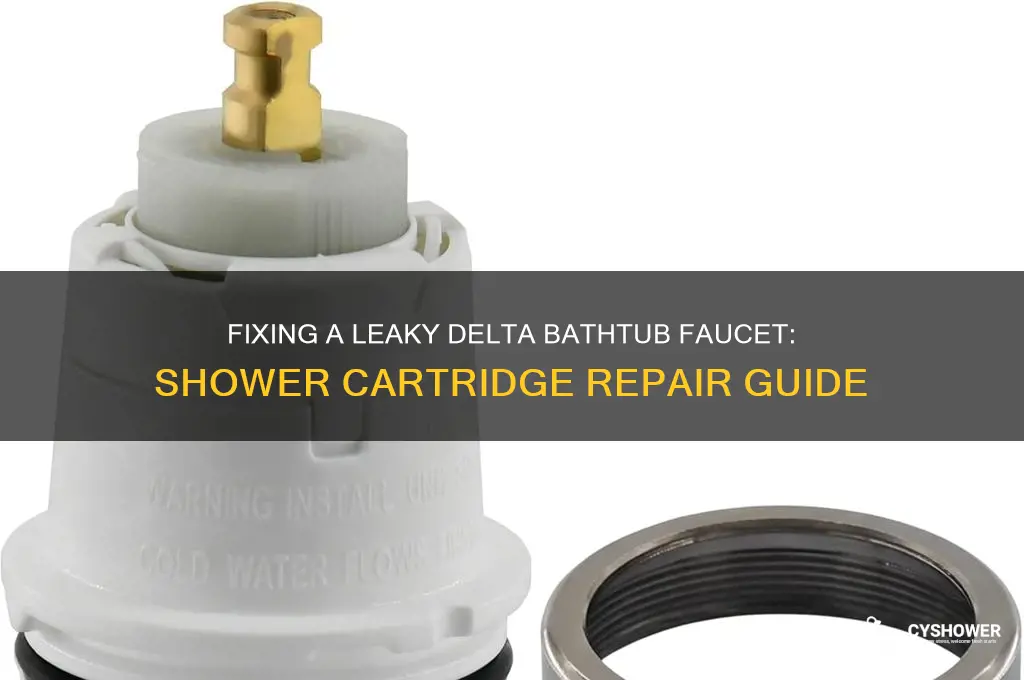

Fixing a leaky bathtub faucet with a Delta shower cartridge is a common DIY task that can save you money and prevent water waste. The issue typically arises from worn-out seals or a malfunctioning cartridge, which allows water to seep through even when the faucet is turned off. To address this, you’ll need to gather basic tools like a screwdriver, pliers, and a replacement cartridge specific to your Delta model. Start by shutting off the water supply to the faucet, then disassemble the handle and escutcheon to access the cartridge. Carefully remove the old cartridge, clean the housing, and install the new one, ensuring it’s properly aligned. Reassemble the faucet, turn the water back on, and test for leaks. Following these steps will restore your faucet’s functionality and efficiency.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver, pliers, Allen wrench, cartridge puller, replacement cartridge |
| Steps | 1. Turn off water supply 2. Remove handle and escutcheon 3. Extract old cartridge 4. Install new cartridge 5. Reassemble faucet |
| Cartridge Type | Delta RP19804 or RP46074 (depends on model) |
| Common Causes of Leak | Worn-out cartridge, mineral buildup, or damaged O-rings |
| Difficulty Level | Moderate |
| Time Required | 30-60 minutes |
| Cost of Replacement Cartridge | $10-$20 (USD) |
| Additional Tips | Clean cartridge area before installation, apply plumber’s grease |
| Safety Precautions | Ensure water is off, avoid over-tightening screws |
| Compatibility | Delta Monitor or Delta 13/14 series faucets |
| Warranty Check | Delta faucets often come with a lifetime warranty; check before repairing |
Explore related products
What You'll Learn
Identify Delta Cartridge Type
Identifying the correct Delta cartridge type is the first and most crucial step in fixing a leaky bathtub faucet or shower. Delta faucets use different cartridge models depending on the age and series of the fixture. The most common types are the Delta 1300/1400 series, RP19804 (P-series), and RP46463 (Monitor series) cartridges. To begin, you’ll need to turn off the water supply to the faucet to avoid any mess during the inspection. Locate the shut-off valves under the sink or tub, or turn off the main water supply if individual valves are not available.
Once the water is off, remove the faucet handle to access the cartridge. This typically involves prying off the handle cap (if present) and unscrewing the handle screw. Lift the handle away to expose the cartridge cover or bonnet nut. For Delta Monitor series faucets, you may need to remove a sleeve or escutcheon before accessing the cartridge. Carefully examine the cartridge for any markings or labels, as Delta often stamps the model number directly on the cartridge. Common markings include "1300/1400," "P-series," or "Monitor."
If the cartridge is unmarked or difficult to identify visually, measure its dimensions. Delta cartridges vary in size, and measuring the diameter and length can help narrow down the type. For example, the 1300/1400 series cartridge is typically 2.4 inches long, while the RP19804 (P-series) is slightly shorter. The RP46463 (Monitor series) cartridge is often distinguished by its unique design, featuring a pressure balance mechanism to prevent scalding.
Another method to identify the cartridge type is to refer to the faucet’s model number, usually found on the original packaging or on the faucet itself. Visit Delta’s official website or consult their customer service with the model number to determine the correct cartridge. If the model number is unavailable, take the old cartridge to a hardware store for comparison with available replacements.
Lastly, consider the age of your faucet. Older Delta faucets (pre-2006) are more likely to use the 1300/1400 series cartridges, while newer models often feature the P-series or Monitor series cartridges. Knowing the approximate age of your fixture can provide additional context for identifying the correct cartridge type. Once identified, purchase the appropriate replacement cartridge to proceed with the repair.
