Fix Your Thermostatic Mixer Shower: Step-By-Step Repair Guide

Fixing a thermostatic mixer shower can be a straightforward task if approached methodically, ensuring both safety and functionality. These showers are designed to blend hot and cold water to maintain a consistent temperature, but issues like fluctuating temperatures, leaks, or complete failure can arise due to worn-out cartridges, limescale buildup, or faulty valves. To address these problems, start by isolating the water supply and removing the shower handle to access the cartridge. Inspect the cartridge for damage or wear and replace it if necessary, ensuring it’s compatible with your model. Additionally, clean or descale the showerhead and valves to improve water flow and temperature control. If the issue persists, check the thermostatic valve for faults and consider replacing it. Always follow manufacturer guidelines and, if unsure, consult a professional to avoid further damage or safety risks.

Diagnose Common Issues: Identify leaks, temperature fluctuations, or low pressure to pinpoint the problem

When diagnosing issues with a thermostatic mixer shower, start by identifying leaks, as they are a common problem that can stem from various components. Check the showerhead, hose, and valve connections for visible drips or pooling water. Leaks often occur due to worn-out O-rings, damaged seals, or loose fittings. To pinpoint the source, turn the shower on and off while observing each area closely. If the leak is at the showerhead or hose, it may require replacing the washer or tightening the connection. If the leak is at the valve, disassemble the handle and inspect the cartridge or internal seals for damage, replacing them if necessary.

Temperature fluctuations are another frequent issue with thermostatic mixer showers, often caused by a faulty thermostatic cartridge or inadequate water pressure. If the water temperature alternates between hot and cold unpredictably, the cartridge may be worn out or clogged with debris. To diagnose this, test the shower at different times of the day to rule out external factors like simultaneous water usage in the household. If the problem persists, remove the handle and inspect the cartridge for limescale buildup or damage. Cleaning or replacing the cartridge is typically the solution, ensuring the thermostatic mechanism functions correctly.

Low water pressure can significantly impact the performance of a thermostatic mixer shower, making it less efficient and enjoyable. Start by checking if the issue is isolated to the shower or affects other fixtures in the house. If it’s only the shower, the problem may lie in the showerhead, hose, or valve. Clogged showerheads are a common culprit, so remove and clean it to clear any limescale or debris. If the hose is kinked or damaged, replace it. For issues within the valve, check for blockages in the filters or non-return valves, which can restrict water flow. Flushing the system or replacing these components may resolve the problem.

To further diagnose low pressure, test the hot and cold supplies individually by disconnecting the valve and running each supply separately. If one supply has low pressure, the issue may be with the plumbing or stopcock for that line. If both supplies are weak, the problem could be within the valve itself, such as a faulty diverter or internal blockage. In such cases, disassembling the valve and inspecting its components is necessary to identify and rectify the issue.

Lastly, combining observations can help pinpoint the root cause of multiple issues. For example, if you notice both temperature fluctuations and low pressure, the thermostatic cartridge may be failing to balance the water flow correctly. Similarly, leaks combined with low pressure could indicate a problem with the valve’s internal mechanism or seals. By systematically checking each component and its function, you can accurately diagnose the problem and take the appropriate steps to fix your thermostatic mixer shower.

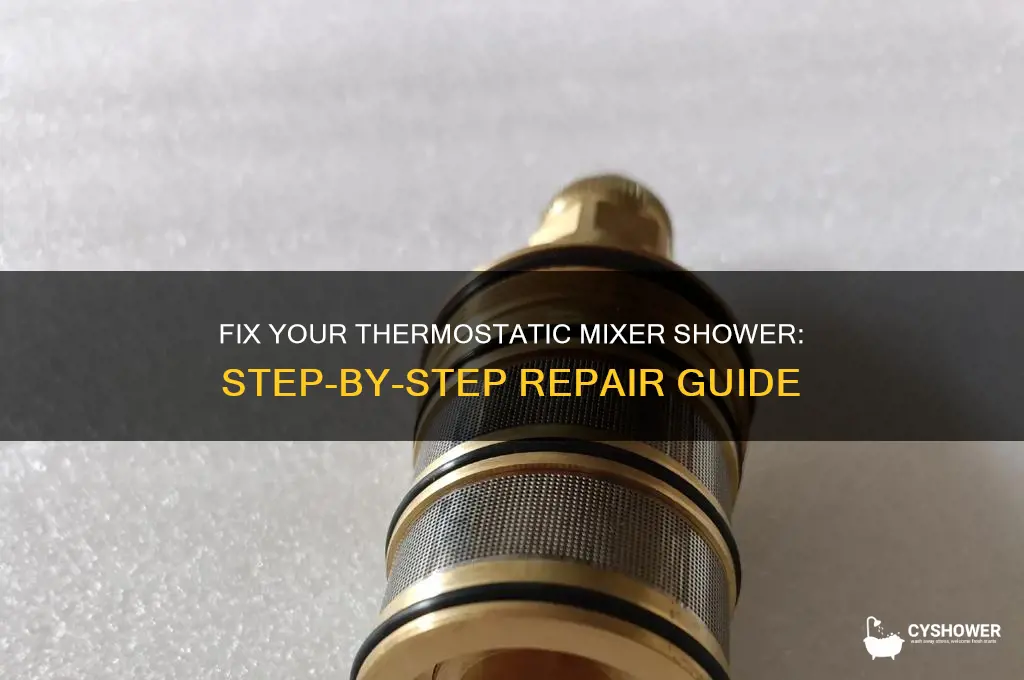

Replace Worn Cartridge: Remove the handle, access, and replace the faulty thermostatic cartridge

If your thermostatic mixer shower is experiencing temperature fluctuations or inconsistent water flow, a worn-out cartridge could be the culprit. Replacing the faulty thermostatic cartridge is a common fix that can restore your shower’s functionality. Begin by turning off the water supply to the shower to avoid any leaks during the repair process. Locate the handle of the shower, which is typically secured by a screw or a decorative cap. Use a screwdriver to remove the screw or pry off the cap carefully to expose the handle’s retaining mechanism. Once the screw is removed, gently pull the handle away from the shower valve to access the cartridge.

With the handle removed, you’ll need to access the thermostatic cartridge. This often involves unscrewing a retaining plate or collar that holds the cartridge in place. Use the appropriate tool, such as a wrench or pliers, to loosen and remove this component. Be cautious not to damage any surrounding parts. Once the retaining plate is removed, you should be able to see the cartridge. Take note of its orientation and position before removing it, as this will help when installing the new cartridge. Carefully pull the old cartridge out of the valve body, ensuring no debris or remnants are left behind.

Next, prepare the new thermostatic cartridge for installation. Ensure it is the correct replacement model for your specific shower unit. Some cartridges may require lubrication or specific alignment before insertion. Follow the manufacturer’s instructions for any preparatory steps. Insert the new cartridge into the valve body, aligning it in the same position as the old one. Reattach the retaining plate or collar, tightening it securely but not overly, to avoid damaging the new cartridge.

After the cartridge is installed, reattach the shower handle by aligning it with the valve and securing it with the retaining screw or cap. Turn the water supply back on and test the shower to ensure the new cartridge is functioning correctly. Check for any leaks around the handle or valve and tighten connections if necessary. If the shower operates smoothly with consistent temperature control, the replacement was successful.

Finally, clean up any tools and materials used during the repair. Regular maintenance, such as checking for wear and tear on cartridges, can prevent future issues with your thermostatic mixer shower. Replacing a worn cartridge is a straightforward task that can save you from more extensive repairs or the need to replace the entire shower unit. With patience and attention to detail, you can restore your shower’s performance efficiently.

Clean Shower Components: Descale showerhead, hose, and mixer to restore proper water flow

Start by addressing the showerhead, as limescale buildup is a common culprit for reduced water flow in thermostatic mixer showers. Remove the showerhead by unscrewing it from the hose (use a cloth for grip if it’s tight). Fill a bowl with equal parts white vinegar and water, ensuring the solution fully submerges the showerhead. Let it soak for at least 2 hours, or overnight for severe scaling. After soaking, scrub the nozzles with an old toothbrush to dislodge any remaining limescale. Rinse thoroughly and reattach the showerhead to the hose, checking for leaks.

Next, focus on the shower hose, which can also accumulate limescale and debris internally. Detach the hose from both the mixer valve and the showerhead. Fill a basin with the same vinegar-water solution and submerge the hose entirely. Allow it to soak for 1-2 hours, then flush the hose with clean water by running water through it for several minutes. If the hose is visibly damaged or still clogged after cleaning, consider replacing it to ensure optimal water flow.

The thermostatic mixer itself may also require descaling, especially if water flow is inconsistent or weak. Turn off the water supply to the shower to avoid spills. Disassemble the mixer faceplate and remove any visible limescale using a cloth or brush. For internal descaling, use a descaling solution specifically designed for shower valves, following the manufacturer’s instructions. If the mixer has a cartridge, inspect it for limescale or damage, and clean or replace it as needed. Reassemble the mixer and turn the water supply back on, testing for improved flow.

For stubborn limescale, consider using a commercial descaling agent or a mixture of lemon juice and baking soda as an alternative to vinegar. Apply the solution directly to affected areas, let it sit for 15-30 minutes, then scrub and rinse thoroughly. Regular maintenance, such as monthly wipes with a damp cloth and quarterly descaling, can prevent future buildup and ensure your thermostatic mixer shower operates efficiently.

Finally, test the shower after cleaning all components. Run both hot and cold water to check for balanced flow and temperature control. If issues persist, the problem may lie in the thermostatic cartridge or internal valves, requiring further inspection or professional assistance. Consistent cleaning of the showerhead, hose, and mixer not only restores water flow but also extends the lifespan of your thermostatic mixer shower.

Adjust Temperature Settings: Recalibrate the thermostatic valve to ensure accurate temperature control

Adjusting the temperature settings on a thermostatic mixer shower often involves recalibrating the thermostatic valve to ensure it accurately controls the water temperature. Over time, the valve’s internal mechanism can become misaligned or worn, leading to inconsistent temperature output. To begin, turn off the water supply to the shower to avoid any accidents during the process. Locate the thermostatic valve, which is typically found behind the shower control panel. Remove the panel by unscrewing the screws or prying it off carefully, depending on the model. Once exposed, identify the temperature control dial or knob, which is usually marked with temperature indicators.

Next, check the current temperature setting by turning on the shower and observing the water temperature. If the water is too hot or too cold, the valve likely needs recalibration. Most thermostatic valves have a small adjustment screw or dial located beneath the main control knob. Use a screwdriver to turn this screw clockwise to increase the temperature or counterclockwise to decrease it. Make small adjustments, as even minor changes can significantly impact the water temperature. After each adjustment, test the shower again to monitor the temperature change.

If the valve has a safety stop to prevent scalding, ensure it is correctly set. This stop is often a button or lever that limits the maximum temperature. Adjust it according to the manufacturer’s instructions to ensure safe operation. Some valves may require removing a cover or cap to access the safety stop mechanism. Refer to the user manual for specific details on your model, as designs can vary widely.

Once you’ve made the necessary adjustments, reassemble the control panel and turn the water supply back on. Test the shower again to ensure the temperature is now accurate and consistent. If the issue persists, the thermostatic cartridge inside the valve may be faulty and need replacement. However, recalibration often resolves minor temperature control issues without the need for a full replacement.

Regular maintenance, such as cleaning the valve and checking for limescale buildup, can prevent future temperature control problems. If you’re unsure about any step, consult a professional plumber to avoid damaging the valve or compromising safety. Recalibrating the thermostatic valve is a straightforward process that can restore precise temperature control to your mixer shower, enhancing your showering experience.

Check for Blockages: Inspect pipes and filters for debris causing reduced water pressure

When addressing reduced water pressure in a thermostatic mixer shower, one of the first steps is to check for blockages in the pipes and filters. Debris such as limescale, rust, or sediment can accumulate over time, restricting water flow and affecting the shower’s performance. Begin by turning off the water supply to the shower to avoid any accidents during inspection. Locate the inlet filters, which are typically found at the points where the hot and cold water pipes connect to the shower valve. These filters are designed to trap particles but can become clogged, leading to reduced pressure.

To inspect the filters, carefully unscrew the nuts holding the pipes to the valve using an adjustable wrench or pliers. Be gentle to avoid damaging the threads. Once the pipes are detached, remove the filters and examine them for any buildup. If you notice limescale or debris, clean the filters thoroughly using a brush or an old toothbrush. For stubborn deposits, soak the filters in a solution of equal parts white vinegar and water for 30 minutes to an hour. This will help dissolve the limescale. After cleaning, rinse the filters under running water to ensure all debris is removed.

Next, inspect the pipes themselves for any signs of blockage. Use a torch to look inside the pipes for visible obstructions. If you suspect a blockage deeper within the pipes, consider using a flexible drain cleaning tool or a pipe cleaner to dislodge the debris. Be cautious not to push the blockage further into the system. If the pipes are severely clogged, it may be necessary to replace them, especially if they are old or corroded.

Reassemble the shower components after cleaning or replacing the filters and pipes. Ensure all connections are tight and secure to prevent leaks. Turn the water supply back on and test the shower to see if the water pressure has improved. If the issue persists, the problem may lie elsewhere, such as with the thermostatic cartridge or showerhead, and further investigation will be required.

Regular maintenance can prevent blockages from occurring in the first place. Consider installing inline filters on the water supply pipes to catch debris before it reaches the shower valve. Additionally, flushing the system periodically with a descaling solution can help reduce limescale buildup, especially in hard water areas. By keeping the pipes and filters clean, you can ensure consistent water pressure and prolong the life of your thermostatic mixer shower.
