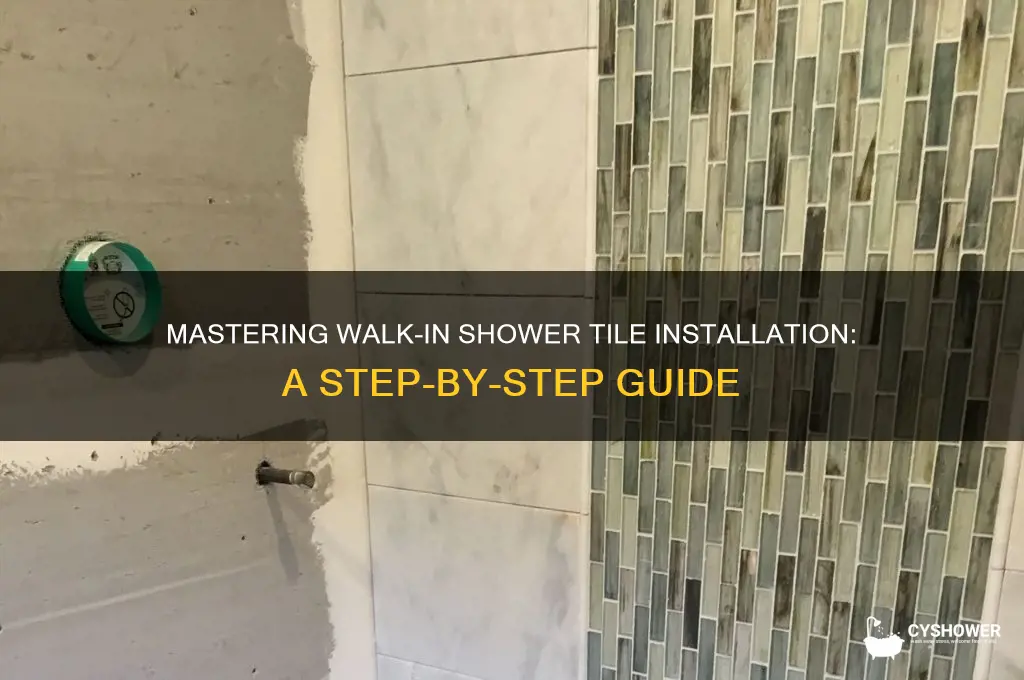

Laying tile in a walk-in shower is a detailed process that requires careful planning, precision, and the right materials to ensure a waterproof and durable finish. It begins with preparing the shower area, which includes installing a waterproof membrane and a proper slope for drainage. Next, selecting the appropriate tiles, such as porcelain or ceramic, and planning the layout is crucial for both aesthetics and functionality. The installation involves applying thinset mortar, setting the tiles, and ensuring consistent spacing with spacers. Grouting follows, using a waterproof grout to seal the joints, and finally, applying a sealant to protect the tiles and grout from moisture. Attention to detail at each step ensures a professional-looking shower that is both functional and long-lasting.
| Characteristics | Values |
|---|---|
| Surface Preparation | Ensure substrate is clean, dry, and level. Repair any cracks or damage. |
| Waterproofing | Apply a waterproofing membrane (e.g., liquid waterproofing or sheet membrane) to walls and floor. |
| Tile Layout Planning | Dry-lay tiles to plan pattern, spacing, and cuts. Center the design in the shower. |
| Tile Adhesive | Use a thinset mortar suitable for wet areas. Follow manufacturer’s instructions for mixing. |
| Tile Spacing | Use 1/16" to 1/8" spacers for consistent grout lines. |
| Tile Cutting | Use a wet saw or tile cutter for precise cuts around fixtures and edges. |
| Tile Setting | Start from the bottom row and work upward. Press tiles firmly into thinset. |
| Grout Application | Apply grout after tiles have set (24-48 hours). Use unsanded grout for joints <1/8". |
| Grout Sealing | Seal grout lines after curing (72 hours) to prevent moisture penetration. |
| Shower Pan Slope | Ensure floor tiles slope toward the drain (1/4" per foot gradient). |
| Shower Curb/Threshold | Install a curb or threshold to prevent water from escaping the shower area. |
| Tile Type | Use water-resistant tiles (e.g., porcelain or ceramic) suitable for showers. |
| Expansion Joints | Include expansion joints in large areas to prevent cracking due to movement. |
| Drying Time | Allow thinset and grout to cure fully before using the shower (typically 72 hours). |
| Tools Required | Trowel, tile cutter/wet saw, spacers, grout float, sponge, level, notched trowel. |
| Safety Precautions | Wear gloves, safety glasses, and a mask when cutting tiles or mixing thinset. |
| Professional Help | Consider hiring a professional for complex layouts or large showers. |
Explore related products
What You'll Learn
- Prepare Shower Surface: Clean, dry, and level the shower area before tiling
- Choose Right Tiles: Select waterproof, slip-resistant tiles suitable for wet environments
- Apply Waterproofing: Install a waterproof membrane to prevent moisture damage
- Lay Tiles Properly: Start tiling from the center, using spacers for even alignment
- Grout and Seal: Apply grout, then seal tiles and grout to ensure durability
Prepare Shower Surface: Clean, dry, and level the shower area before tiling
A poorly prepared shower surface can lead to tile adhesion issues, water damage, and costly repairs down the line. Before you begin tiling, ensure the shower area is clean, dry, and level. Start by removing any existing materials, such as old tiles, adhesive, or waterproofing membranes. Use a scraper, chisel, or grinder to create a smooth, even surface. For stubborn residue, apply a suitable adhesive remover, following the manufacturer’s instructions for application time and safety precautions.
Cleaning the shower surface is not just about aesthetics; it’s about creating a bond-friendly environment for the tile adhesive. Wash the area with a mild detergent and water to remove dirt, grease, and soap scum. For mold or mildew, use a solution of one part bleach to three parts water, scrubbing thoroughly and rinsing well. Allow the surface to dry completely—at least 24 hours—to prevent moisture from compromising the adhesive’s effectiveness. A moisture meter can confirm dryness, with readings below 6% for concrete and 12% for wood substrates being ideal.
Leveling the shower surface is critical for both tile alignment and water drainage. Inspect the area for dips, bumps, or slopes using a long straightedge or level. Minor imperfections can be corrected with a thin-set mortar or self-leveling compound, applied according to the product’s mixing and spreading guidelines. For larger discrepancies, consider installing a cement backer board or waterproofing membrane to create a uniform base. Ensure the slope directs water toward the drain at a gradient of 1/4 inch per foot to prevent standing water.
While preparing the surface, prioritize safety and precision. Wear protective gear, including gloves, goggles, and a dust mask, especially when grinding or mixing chemicals. Work in well-ventilated areas to avoid inhaling fumes. Double-check the levelness of the surface after each step, as even small deviations can lead to uneven tiles or water pooling. Taking the time to properly clean, dry, and level the shower area will not only ensure a professional finish but also extend the lifespan of your tiled walk-in shower.
Best Shower Hooks for Stone Tile: Durable and Secure Solutions
You may want to see also
Explore related products
Choose Right Tiles: Select waterproof, slip-resistant tiles suitable for wet environments
Selecting the right tiles for a walk-in shower is a critical decision that marries functionality with aesthetics. Waterproof tiles are non-negotiable in wet environments, as they prevent moisture absorption, which can lead to mold, mildew, and structural damage. Porcelain and ceramic tiles are top choices due to their dense composition, which resists water penetration. Unlike natural stone, which often requires sealing, these materials offer inherent protection against water damage, making them ideal for shower walls and floors.
Slip resistance is equally vital, especially in areas where water accumulates. Tiles with a high coefficient of friction (COF) rating—typically 0.6 or higher—provide better traction, reducing the risk of accidents. Textured or matte finishes, such as those found in honed or tumbled tiles, outperform glossy surfaces in wet conditions. For example, mosaic tiles with small grout lines not only add visual interest but also enhance grip, making them a practical and stylish option for shower floors.
When choosing tiles, consider the size and layout of your shower. Larger tiles minimize grout lines, which are prone to staining and mold in wet areas. However, smaller tiles, like 1x1 or 2x2 inches, offer superior slip resistance due to their increased surface texture. Striking a balance between size and safety often involves using larger tiles on walls and smaller, textured tiles on the floor. Additionally, selecting tiles with a PEI (Porcelain Enamel Institute) rating of III or higher ensures durability in high-moisture environments.
Color and pattern play a role in both safety and design. Light-colored tiles reflect more light, making the shower appear larger and brighter, while darker tiles can hide water spots and soap scum. Incorporating contrasting tiles or borders can also serve a practical purpose, such as delineating the shower floor from the walls to prevent slips. For instance, a dark pebble tile border on the floor can provide visual and tactile cues, enhancing safety without compromising style.
Finally, installation techniques can amplify the benefits of your tile selection. Using a waterproof membrane beneath the tiles, such as a liquid waterproofing compound or a sheet membrane, adds an extra layer of protection against leaks. Proper slope and drainage are also essential to prevent water pooling. By combining the right materials with thoughtful design and installation, you can create a walk-in shower that is both safe and stunning.
Tiling Walls Over Fiberglass Shower Pan: Step-by-Step Guide
You may want to see also
Explore related products
Apply Waterproofing: Install a waterproof membrane to prevent moisture damage
Moisture is the silent enemy of any shower installation, capable of causing mold, rot, and structural damage over time. Before laying a single tile, installing a waterproof membrane is non-negotiable. This barrier acts as a second line of defense, ensuring that water doesn’t seep through grout lines or tile imperfections into the substrate. Without it, even the most meticulously laid tiles will eventually fail.
The process begins with selecting the right membrane for your shower. Liquid-applied membranes, such as those from brands like Schluter or Laticrete, are popular for their flexibility and ease of application. They come in one- or two-part systems, with the latter requiring mixing before use. Sheet membranes, often made of PVC or rubber, are another option, offering durability but demanding more precise installation. For DIYers, liquid membranes are generally more forgiving, while professionals might prefer the long-term reliability of sheet membranes.
Application requires meticulous preparation. Clean the substrate thoroughly, removing any debris or residue that could compromise adhesion. For liquid membranes, use a notched trowel to apply an even coat, following the manufacturer’s recommended thickness—typically around 1/16 inch. Allow it to cure fully, which can take 24–48 hours depending on humidity and temperature. Sheet membranes involve cutting and adhering the material to walls and floors, ensuring all seams are overlapped and sealed with compatible tape or adhesive. Corners and edges require extra attention, as these are common failure points.
One critical step often overlooked is waterproofing penetrations, such as drains, niches, and pipe penetrations. Use a waterproof sealant or pre-formed flashing to create a watertight seal around these areas. Failure to do so can render the entire membrane ineffective. Additionally, test the system before tiling by filling the shower pan with water for 24 hours to check for leaks.
While the process may seem labor-intensive, the investment in waterproofing pays dividends in longevity and peace of mind. A properly installed membrane ensures your walk-in shower remains a functional and beautiful space for decades, rather than a costly repair waiting to happen. Skipping this step is a gamble no homeowner or contractor should take.
Mastering Shower Floor Drain Tiling: A Step-by-Step Guide
You may want to see also
Explore related products
Lay Tiles Properly: Start tiling from the center, using spacers for even alignment
Starting your tile installation from the center of the shower floor or wall is a game-changer for achieving a symmetrical, professional finish. This method ensures that any cuts or adjustments needed for the tiles to fit along the edges are evenly distributed, avoiding awkward slivers of tile at one side. Imagine a shower floor where the tiles radiate outward from the drain, creating a visually balanced and intentional design. This approach not only enhances aesthetics but also simplifies the layout process, especially in walk-in showers where walls and floors meet at various angles.
To execute this technique effectively, begin by locating the center point of the area to be tiled. For shower floors, this is typically the drain location. Use a chalk line or laser level to mark a straight line from the center to the edges of the space. On walls, find the center by measuring the width and height and marking the midpoint. Place the first tile at this center point, ensuring it’s level and aligned with your layout lines. This initial tile acts as the anchor for the rest of the installation.
Spacers are your best friend in this process, ensuring consistent gaps between tiles for grout. Use 1/8-inch or 3/16-inch spacers for most shower tiles, depending on the size and style. Insert spacers at each corner of the tile as you work outward from the center. This maintains even alignment and prevents tiles from shifting during the drying process. For walls, use a combination of spacers and a level to ensure tiles are both horizontally and vertically aligned. Remember, precision at this stage saves time and frustration later.
One common mistake to avoid is neglecting to account for the thickness of the grout lines when planning your layout. Measure the total area, including spacers, to ensure your tiles fit within the shower dimensions. If adjustments are needed, make cuts to the tiles at the edges rather than in the center. This preserves the symmetry of your design. Additionally, use a tile adhesive with a long working time, such as a polymer-modified thinset mortar, to allow for adjustments without compromising adhesion.
Finally, take your time and double-check your work as you progress. Laying tiles from the center outward requires careful planning and attention to detail, but the results are well worth the effort. A centered layout not only looks polished but also minimizes waste and reduces the complexity of cutting tiles to fit irregular spaces. By combining this method with the proper use of spacers, you’ll achieve a walk-in shower that’s both functional and visually stunning.
Effortless Cleaning: Master Zep Shower Tub and Tile Cleaner Usage
You may want to see also
Explore related products
Grout and Seal: Apply grout, then seal tiles and grout to ensure durability
Grout is the unsung hero of tile installation, filling the gaps between tiles to create a seamless, water-resistant surface. Without it, your walk-in shower would be a mosaic of vulnerabilities, prone to water infiltration and mold growth. Applying grout is a meticulous process that demands precision and patience. Start by choosing the right type of grout for your shower—unsanded for joints under 1/8 inch, sanded for wider gaps. Mix the grout according to the manufacturer’s instructions, typically with water in a 1:4 ratio (one part grout to four parts water), until it reaches a smooth, peanut butter-like consistency. Use a rubber grout float to press the mixture into the joints at a 45-degree angle, ensuring full coverage. Allow it to set for 10–15 minutes, then wipe away excess grout with a damp sponge, being careful not to pull grout from the joints.
Sealing is the critical follow-up step that ensures your grout and tiles withstand the test of time and moisture. Unsealed grout absorbs water, stains, and soap scum, leading to discoloration and deterioration. Sealants create a protective barrier, repelling liquids and extending the life of your shower. Wait at least 72 hours after grouting to apply the sealant, as this allows the grout to fully cure. Use a high-quality, penetrating grout sealer, applying it with a small brush or roller. Work in small sections, ensuring even coverage, and wipe away any excess with a clean cloth. Reapply the sealant annually or as needed, especially in high-moisture areas like showers.
The interplay between grout and sealant highlights a common misconception: that tiles themselves are impervious to water. While tiles are water-resistant, their edges and the grout lines are susceptible to damage. Sealing not only protects the grout but also safeguards the tile edges, preventing water from seeping beneath the surface. This dual protection is essential in a walk-in shower, where constant exposure to water and humidity can accelerate wear and tear. For added durability, consider using epoxy grout, which is more stain-resistant and durable than traditional cementitious grout, though it requires more skill to apply.
A practical tip for maintaining grout and sealant integrity is to incorporate regular cleaning into your routine. Avoid harsh chemicals like bleach or vinegar, which can degrade grout and sealant over time. Instead, use a pH-neutral cleaner and a soft-bristle brush to gently scrub grout lines. For stubborn stains, a paste of baking soda and water can be effective. By combining proper installation, sealing, and maintenance, you can ensure your walk-in shower remains both functional and aesthetically pleasing for years to come.
Choosing the Perfect Shower Tiles: A Comprehensive Guide for Your Bathroom
You may want to see also
Frequently asked questions
The best tiles for a walk-in shower are water-resistant, durable, and slip-resistant. Porcelain and ceramic tiles are popular choices due to their low water absorption and ease of maintenance. Natural stone tiles like marble or granite can also be used but require sealing to prevent water damage. Avoid porous tiles like limestone or unsealed materials.
Start by ensuring the surface is clean, dry, and free of debris. Install a waterproof membrane (like cement board or a liquid waterproofing product) on the walls and floor to prevent moisture penetration. Apply a layer of thin-set mortar to create a smooth, even base for the tiles. For floors, ensure proper slope toward the drain to avoid water pooling.
After tiling, allow the adhesive to cure fully (usually 24–48 hours). Apply grout using a grout float, pressing it into the joints and wiping away excess. Once the grout dries (typically 24 hours), seal the grout lines and tiles with a high-quality penetrating sealer to protect against moisture and stains. Reapply the sealer annually for best results.
