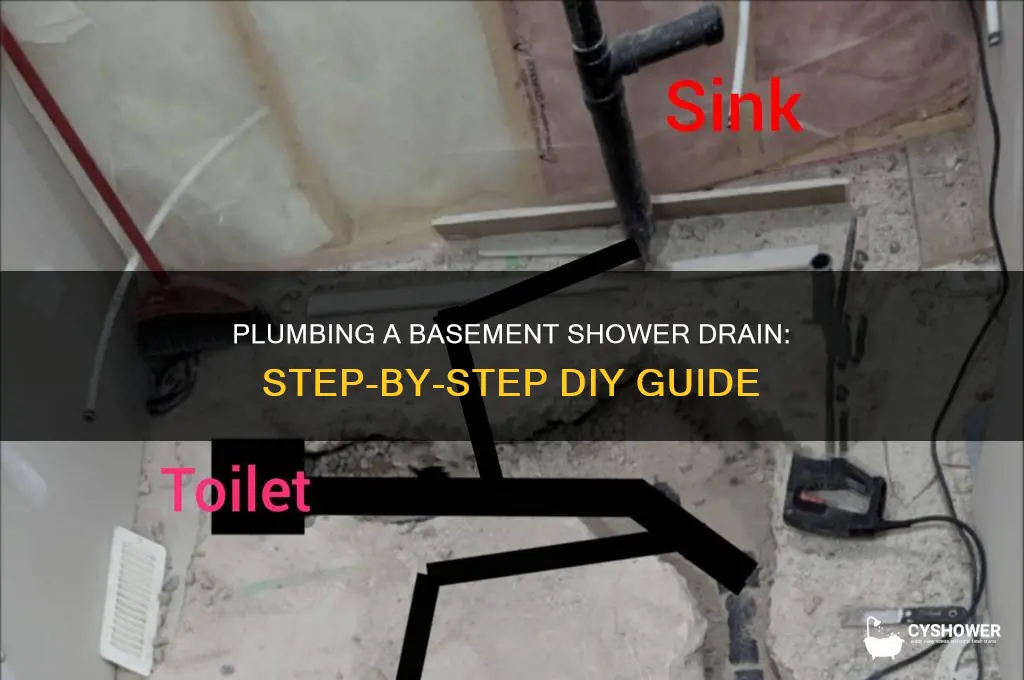

Plumbing a basement shower drain is a crucial step in creating a functional and efficient bathroom space below ground level. Unlike main-floor installations, basement plumbing requires careful planning to address challenges such as slope requirements, venting, and potential backflow issues. Properly installing the shower drain involves selecting the right materials, ensuring adequate slope for water flow, and connecting the drain to the main waste stack while complying with local building codes. Additionally, considerations like waterproofing and proper venting are essential to prevent leaks and maintain system integrity. With the right tools, knowledge, and attention to detail, plumbing a basement shower drain can be a manageable DIY project or a task best left to a professional plumber, depending on your skill level and the complexity of your setup.
| Characteristics | Values |
|---|---|
| Drain Location | Position the drain near the center or lowest point of the shower area. |
| Ventilation Requirements | Install a vent stack within 5 feet of the drain (2" diameter for showers). |
| P-Trap Installation | Use a 2" P-trap with a horizontal run of at least 3-4 inches. |
| Drain Pipe Slope | Maintain a slope of 1/4 inch per foot (or 2% grade) for proper drainage. |
| Pipe Material | Use PVC or ABS pipes (check local codes for compatibility). |
| Drain Rough-In Height | Set the drain height 2 inches below the finished shower floor level. |
| Waterproofing | Apply waterproofing membrane around the drain and shower area. |
| Permits and Codes | Obtain necessary permits and adhere to local plumbing codes. |
| Tools Required | Hacksaw, drill, pipe wrench, level, measuring tape, and sealant. |
| Additional Components | Include a shower pan liner, drain grate, and cementitious underlayment. |
| Testing | Fill the drain with water to check for leaks before finalizing installation. |
Explore related products
What You'll Learn
Plan Drain Layout
Planning the drain layout is a critical first step in plumbing a basement shower drain. Begin by determining the location of your shower stall and the route the drain pipe will take to connect to the main waste stack or sewer line. Measure the distance from the shower base to the main stack, considering any obstacles like walls, beams, or other utilities. Ensure the drain pipe slopes downward at a consistent rate of 1/4 inch per foot to allow proper water flow and prevent clogs. Use a chalk line or marker to outline the path on the floor and walls to visualize the layout before cutting or drilling.
Next, identify the type of drain system you’ll use—typically a PVC or ABS pipe—and ensure it complies with local plumbing codes. Decide whether you’ll use a standard P-trap or a more complex setup involving vents and additional fittings. If the main stack is far from the shower location, you may need to install a wet vent or extend the drain line horizontally, ensuring proper venting to maintain system efficiency. Sketch a rough diagram of the drain layout, including pipe sizes, fittings, and connections, to serve as a reference during installation.
Consider the height of the shower base relative to the main stack to ensure adequate slope. If the basement floor is concrete, you may need to break out a channel for the drain pipe, ensuring it’s deep enough to accommodate the slope and pipe diameter. For wooden subfloors, plan to notch or cut out sections of joists to run the pipe, being mindful of structural integrity. Always leave enough space for insulation around the pipe to prevent freezing in colder climates.
Incorporate access points into your layout for future maintenance. Install cleanouts at strategic locations, such as where horizontal pipes change direction or near the main stack connection. These access points will allow you to clear clogs without dismantling the entire system. Additionally, plan for proper venting to ensure air can flow freely through the drain system, preventing gurgling or slow drainage.
Finally, double-check your layout against local building codes and obtain any necessary permits before proceeding. Consult with a professional plumber if you’re unsure about any aspect of the design, especially if your basement has unique challenges like low ceilings or limited space. A well-planned drain layout not only ensures efficient water flow but also minimizes the risk of leaks, clogs, and future plumbing issues.
Unclog Your Shower: Effective Steps to Drain a Blocked Pipe
You may want to see also
Explore related products
Install Drain Rough-In
To install the drain rough-in for a basement shower, begin by determining the exact location of the shower stall. This involves measuring and marking the spot on the basement floor where the drain will be positioned. Ensure the location aligns with the overall bathroom layout and allows for proper slope to facilitate water drainage. Use a level to confirm the area is flat and adjust as needed. Once the location is finalized, cut a hole in the concrete floor using a concrete saw or rotary hammer with a core bit. The hole should be slightly larger than the drain pipe to accommodate the fittings and allow for adjustments during installation.
Next, prepare the drain pipe assembly by attaching the drain body to the 2-inch ABS or PVC pipe that will connect to the main waste line. Apply primer and solvent cement to the fittings to create a secure, watertight seal. Assemble the drain body, ensuring the weep holes are facing downward to prevent debris buildup. Insert the drain pipe through the hole in the floor, making sure it extends far enough into the basement to connect to the existing plumbing system. Temporarily secure the pipe in place using wooden wedges or adjustable pipe supports to maintain alignment while you work on the connections.
With the drain pipe in position, establish the proper slope for the drain line. The standard slope for a shower drain is 1/4 inch per foot to ensure efficient water flow. Use a level or laser level to measure the slope from the drain location to the point where the pipe connects to the main stack or waste line. Adjust the pipe supports as needed to achieve the correct slope. Dry-fit the pipe sections to ensure they align properly and make any necessary cuts or adjustments before permanently gluing the joints.
Connect the drain pipe to the main waste line using appropriate fittings, such as a sanitary tee or wye fitting, depending on the existing plumbing configuration. Ensure all connections are secure and properly aligned to prevent leaks. Apply primer and solvent cement to all joints, following manufacturer instructions for the specific type of pipe being used. Double-check that the drain body remains level and the pipe maintains the correct slope throughout the entire run.
Finally, pour a concrete or gravel base around the drain pipe to secure it in place and provide additional support. Mix and pour concrete into the excavated area, ensuring it is compacted and leveled around the pipe. Allow the concrete to cure according to the manufacturer’s instructions before proceeding with further plumbing or shower installation. Once the rough-in is complete, perform a water test by pouring water into the drain to verify proper flow and check for any leaks at the connections. This step ensures the drain rough-in is functional and ready for the next phase of shower installation.
Unscrew Watco Shower Drain: Step-by-Step Guide for Easy Removal
You may want to see also
Explore related products
Connect to Main Stack
To connect your basement shower drain to the main stack, you’ll need to locate the existing main drain stack in your home. This is typically a vertical pipe that runs from the basement to the roof, handling waste and venting for the entire plumbing system. Start by identifying the main stack’s location, often found near other plumbing fixtures like toilets or sinks. Ensure you have enough clearance to tie into the stack without disrupting its function. Use a stud finder or inspect your basement ceiling to trace the stack’s path if it’s not immediately visible. Once located, mark the spot where you plan to connect the shower drain, ensuring it’s within the required distance and aligns with local plumbing codes.
Next, measure and plan the route for your shower drain pipe to connect to the main stack. The pipe should slope downward toward the stack at a minimum gradient of 1/4 inch per foot to ensure proper drainage. Use a level to verify the slope as you plan the layout. If the main stack is far from the shower location, you may need to install additional piping, such as a horizontal branch line, to reach it. Ensure the branch line is properly supported with hangers or straps to prevent sagging or stress on the joints. Plan the route to avoid obstacles like beams, electrical wiring, or other utilities.
With the route planned, cut into the main stack to create an opening for the shower drain connection. Turn off the home’s water supply and ensure no water is running in the plumbing system to avoid spills. Use a reciprocating saw or PVC cutter to carefully cut a hole in the stack, typically 4 to 6 inches in diameter, depending on local codes and the size of your drain pipe. Clean the edges of the cut to ensure a smooth, debris-free surface for the connection. If working with PVC or ABS piping, dry-fit the connection first to ensure proper alignment before applying primer and cement for a secure, leak-proof joint.
Install a wye fitting or sanitary tee into the main stack to create a branch for the shower drain. The wye fitting should point downward to allow waste to flow into the stack without obstruction. Secure the fitting with solvent cement for PVC or ABS pipes, or use threaded connections for metal pipes, following manufacturer instructions. Ensure the fitting is level and aligned with the slope of the shower drain pipe. Test the connection by pouring water through the drain to verify proper flow into the main stack.
Finally, connect the shower drain pipe to the wye fitting or sanitary tee using the appropriate piping material (PVC, ABS, or copper, depending on your system). Use proper fittings and secure all joints with cement, glue, or threading as needed. Insulate the pipe if required by local codes, especially in colder climates to prevent freezing. Once connected, run water through the shower drain to ensure there are no leaks and that the flow is smooth. Double-check all connections and tighten as necessary before closing up any walls or ceilings. Always consult local plumbing codes and consider hiring a professional if you’re unsure about any step in the process.
Fixing Low Spots in Your Shower Floor: A Step-by-Step Guide
You may want to see also
Explore related products
Test for Leaks
Before you finalize the installation of your basement shower drain, it's crucial to test for leaks to ensure the system is watertight and functional. Start by inspecting all connections in the drain assembly. Check the joints where the drain pipe connects to the P-trap, the vent pipe, and the main waste line. Ensure all fittings are tight and properly aligned. Even a small gap or loose connection can lead to leaks, so use a flashlight to examine these areas closely. If you notice any cracks or damage in the pipes or fittings, replace them immediately to prevent future issues.
Next, perform a water test to simulate real-world conditions. Plug the shower drain using a test cap or a rubber stopper, then fill the shower base with water to its maximum capacity. Let the water sit for at least 15–20 minutes, observing the drain connections, pipes, and surrounding areas for any signs of moisture or dripping. If you detect leaks, mark the problem areas and drain the water before making the necessary repairs. Ensure all connections are tightened or sealed with plumber’s tape or thread sealant if needed.
After addressing any leaks found during the static water test, run water through the drain to test its functionality. Remove the test cap and let water flow through the drain while monitoring the pipes and connections for leaks. Pay close attention to the P-trap and vent pipe, as these areas are common leak points. If leaks occur during this test, turn off the water supply, dry the area, and recheck the connections or replace faulty components. Repeat the test until no leaks are detected.
For added assurance, check for hidden leaks behind walls or under the floor. Turn off all water sources and inspect the area around the drain pipe for dampness or water stains. Use a moisture meter if available to detect moisture in drywall or flooring. Hidden leaks often indicate improper sealing or damaged pipes, which must be addressed promptly to avoid structural damage or mold growth. If you find hidden leaks, open up the wall or floor to access and repair the affected area.
Finally, test the shower drain under pressure if possible. Attach a hose to the showerhead or use a bucket to simulate heavy water flow, mimicking the conditions of a full shower. Observe the drain system for any signs of leakage during this high-pressure test. This step is essential to ensure the drain can handle the volume of water it will encounter in daily use. If leaks persist, double-check all connections, seals, and pipe integrity before considering the installation complete. Proper leak testing is vital to prevent water damage and ensure the longevity of your basement shower drain system.
Roots in Shower Drain? Causes and Solutions Explained
You may want to see also
Explore related products
Finish with Trap & Cover
Finishing with the Trap & Cover is a critical step in plumbing a basement shower drain, as it ensures proper drainage, prevents sewer gases from entering the home, and provides a clean, finished look. Begin by selecting a suitable P-trap for your shower drain. The P-trap is a U-shaped pipe that holds water, creating a barrier against sewer gases. Ensure the trap is made of durable material like PVC or ABS, depending on your local plumbing codes. Measure the distance from the shower drain to the main drain line and cut the pipe accordingly, allowing enough length for the trap to fit comfortably.
Next, assemble the P-trap according to the manufacturer’s instructions. Typically, this involves attaching the trap adapter to the shower drain tailpiece and connecting the trap arm to the main drain line. Use primer and solvent cement to secure PVC or ABS joints, ensuring a watertight seal. Double-check that all connections are aligned properly and securely fastened. The trap should be installed at a slight downward angle toward the main drain line to facilitate proper flow and prevent standing water.
Once the P-trap is in place, install a drain cover over the shower drain opening. Choose a cover that matches your shower’s aesthetic and is compatible with the drain size. Most drain covers simply screw or snap into place, but follow the specific instructions for your model. Ensure the cover is securely attached and sits flush with the shower floor to avoid tripping hazards and allow for easy cleaning.
After installation, test the drain to ensure it functions correctly. Pour water into the shower and observe the flow through the trap and into the main drain line. Check for leaks at all joints, especially around the trap and connections. If leaks are detected, tighten the joints or reapply solvent cement as needed. Proper testing ensures the system is fully operational before the shower is put into regular use.
Finally, insulate the P-trap and drain lines if your basement is subject to cold temperatures to prevent freezing. Use foam insulation sleeves or wrap the pipes with insulation tape. This step is particularly important in colder climates to avoid potential damage to the plumbing system. With the trap and cover installed and tested, your basement shower drain is now complete, ready for use, and compliant with plumbing standards.
Easy DIY Guide to Repairing a Hole in Your Shower Tray
You may want to see also
Frequently asked questions
The first step is to determine the location of the shower and ensure it is near the main drain stack or where you can easily tie into the existing plumbing system. Check local building codes for specific requirements.
The standard slope for a shower drain pipe is 1/4 inch per foot. Use a string level or laser level to ensure the pipe slopes correctly toward the main drain to prevent standing water and clogs.
PVC (polyvinyl chloride) or ABS (acrylonitrile butadiene styrene) pipes are commonly used for shower drains due to their durability and ease of installation. Ensure the pipe size matches local plumbing codes, typically 2 inches for shower drains.
Yes, a P-trap is required to prevent sewer gases from entering the shower area. Install the P-trap directly below the shower drain, ensuring it is easily accessible for maintenance and complies with local plumbing codes.
