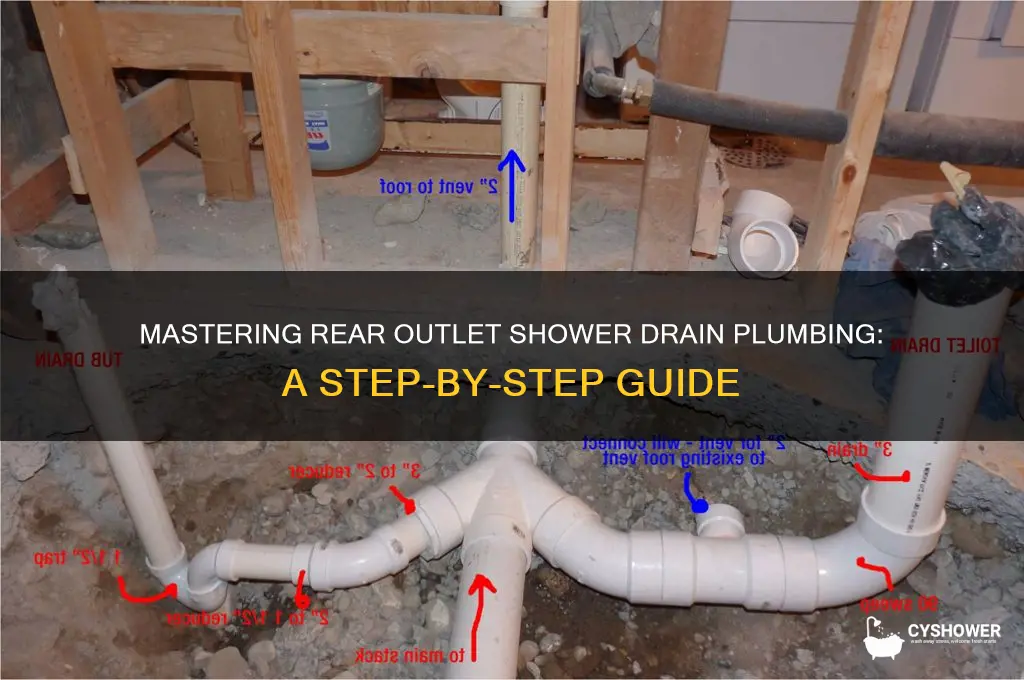

Plumbing a rear outlet shower drain requires careful planning and execution to ensure proper drainage and prevent leaks. This type of drain is commonly found in alcove showers and connects to the waste line through the back wall, making it essential to align the drain assembly with the existing plumbing. The process involves measuring the distance from the shower base to the waste line, selecting the correct drain kit, and ensuring the P-trap is properly installed to maintain the necessary slope for water flow. Additionally, sealing all connections with plumber’s putty or silicone is crucial to avoid water damage. Following local building codes and using the right tools will guarantee a functional and long-lasting installation.
| Characteristics | Values |
|---|---|
| Drain Type | Rear outlet shower drain |
| Purpose | To connect a shower drain to the plumbing system when the drain outlet is located at the rear of the shower base |
| Tools Required | Hacksaw, reciprocating saw, PVC primer and cement, measuring tape, level, drill, screwdriver, adjustable wrench, pliers, utility knife, safety gear (gloves, goggles) |
| Materials Required | PVC drain pipe, PVC fittings (90-degree elbow, coupling, trap adapter), shower drain assembly, silicone caulk, plumber's putty, Teflon tape, screws, anchors |
| Steps | 1. Plan the drain layout and measure the distance from the shower base to the drain pipe. 2. Cut the PVC drain pipe to the required length using a hacksaw or reciprocating saw. 3. Assemble the PVC fittings, including a 90-degree elbow, coupling, and trap adapter, using PVC primer and cement. 4. Install the shower drain assembly, ensuring it is level and securely attached to the shower base. 5. Connect the PVC drain pipe to the shower drain assembly and the trap adapter. 6. Secure the drain pipe to the wall or floor using screws and anchors. 7. Apply silicone caulk around the drain assembly to create a watertight seal. 8. Test the drain for leaks and make any necessary adjustments. |
| Code Requirements | Must comply with local plumbing codes, including proper venting, slope (1/4 inch per foot), and use of approved materials |
| Venting | Requires a vent pipe to prevent airlocks and ensure proper drainage |
| Slope | 1/4 inch per foot to ensure proper water flow |
| Material Compatibility | Use PVC or ABS materials compatible with the shower base and existing plumbing system |
| Sealing | Use silicone caulk or plumber's putty to create a watertight seal around the drain assembly |
| Maintenance | Regularly clean the drain to prevent clogs and ensure proper functioning |
| Common Mistakes | Incorrect slope, inadequate venting, using incompatible materials, poor sealing |
| Safety Considerations | Wear safety gear, work in a well-ventilated area, and follow manufacturer instructions for tools and materials |
| Professional Assistance | Consider hiring a professional plumber for complex installations or if unsure about local code requirements |
Explore related products
What You'll Learn
Measure and Mark Drain Location
Before you begin the installation of a rear outlet shower drain, accurately measuring and marking the drain location is crucial to ensure proper alignment and functionality. Start by placing the shower base or pan in its intended position within the shower area. Ensure it is level and centered according to your layout. Most shower bases come with a pre-cut hole or a marked area for the drain, but if yours does not, you’ll need to identify the center point of the base. Measure the length and width of the shower base and divide each by two to find the center. Mark this point clearly with a pencil or marker.
Next, verify the alignment of the drain location with the existing plumbing. From the center mark on the shower base, measure downward to the subfloor to determine the exact spot where the drain pipe will connect. Use a tape measure to ensure accuracy, and double-check that this location aligns with your home’s existing drain pipe or the planned plumbing layout. If adjustments are needed, make them now to avoid complications later. It’s essential to ensure the drain is positioned directly above the P-trap or waste pipe to allow for proper installation and drainage.
Once you’ve confirmed the vertical alignment, mark the subfloor directly below the center point of the shower base. Use a stud finder to ensure there are no structural obstructions, such as joists, in the way of your drain location. If there are, you may need to adjust the position slightly or plan for additional plumbing modifications. Clearly mark the subfloor with a pencil or chalk line to indicate the exact spot where the drain pipe will penetrate. This mark will serve as your guide when cutting the hole for the drain assembly.
To ensure precision, transfer the drain location mark from the subfloor to the underside of the shower base. This step is particularly important if your shower base is not pre-drilled. Hold the shower base in place or flip it over carefully, then align the center mark with the subfloor mark. Trace the outline of the drain opening onto the shower base, ensuring it is centered and level. If you’re working with a fiberglass or acrylic base, use a fine-tip marker to avoid damaging the material. For tile or stone bases, a pencil or chalk works well.
Finally, double-check all measurements and marks before proceeding. Use a level to confirm that the shower base is still aligned properly and that the drain location is centered. If you’re working with a helper, have them assist in holding the shower base while you verify the markings. Accurate measurements at this stage will save time and prevent errors during the installation of the rear outlet shower drain. Once you’re confident in your markings, you can move on to the next steps of cutting the drain hole and preparing the plumbing connections.
Boost Your Shower Experience: Simple Fixes for Weak Water Pressure
You may want to see also
Explore related products
Cut Hole for Drain Pipe
To begin the process of cutting a hole for the drain pipe in a rear outlet shower drain installation, you'll need to locate the exact position where the drain pipe will exit the shower pan. This requires careful planning to ensure proper alignment with the existing plumbing. Start by placing the shower base in its intended location, making sure it is level and securely positioned. Mark the center of the rear outlet on the shower pan, as this will be the reference point for cutting the hole in the subfloor. Transfer this mark to the subfloor directly below to ensure accuracy.
Next, measure the diameter of the drain pipe to determine the size of the hole you need to cut. Typically, a hole saw or reciprocating saw with a suitable blade is used for this task. Ensure the blade size matches the pipe diameter to allow for a snug fit. Before cutting, double-check that there are no electrical wires, plumbing lines, or structural supports in the area by using a stud finder or consulting the home’s blueprints. Safety and precision are crucial at this stage to avoid damaging critical components of the house.
Once you’ve confirmed the area is clear, position the hole saw or reciprocating saw on the mark you transferred to the subfloor. Secure the tool firmly and begin cutting through the subfloor material. Work steadily and apply consistent pressure to ensure a clean cut. If using a reciprocating saw, make sure to follow the marked line carefully to maintain the correct shape and size of the hole. After cutting through the subfloor, remove any debris and inspect the hole to ensure it is smooth and free of burrs or rough edges.
If the subfloor is made of concrete or another hard material, you may need to use a rotary hammer with a core bit designed for concrete cutting. This process requires more time and precision, as concrete is denser and more challenging to cut through. Ensure the core bit is the correct size for the drain pipe and that you have the necessary safety equipment, such as goggles and a dust mask, to protect yourself from debris and dust. Cut slowly and steadily, allowing the tool to do the work without forcing it.
Finally, after the hole is cut, test-fit the drain pipe to ensure it passes through smoothly and aligns properly with the shower pan’s rear outlet. Make any necessary adjustments to the hole size or shape if the pipe doesn’t fit correctly. Once the fit is confirmed, secure the drain pipe in place according to the manufacturer’s instructions, ensuring it is properly sealed to prevent leaks. This step is critical for the overall functionality and longevity of the shower drain system.
Repairing a Cracked Acrylic Shower Base: DIY Guide and Tips
You may want to see also
Explore related products
Install Drain Assembly
To install the drain assembly for a rear outlet shower drain, begin by ensuring the shower base is securely in place and level. The rear outlet drain is typically located at the back of the shower base, so confirm its position before proceeding. Start by inserting the drain body through the pre-cut hole in the shower base, making sure the threads or locking mechanism are facing upward into the shower area. Apply a bead of silicone caulk or plumber’s putty around the underside of the drain flange to create a watertight seal between the drain body and the shower base. This step is crucial to prevent leaks and water damage.
Next, secure the drain body from below the shower base. Depending on the type of drain assembly, this may involve tightening a locking nut or using a compression gasket to hold the drain in place. Ensure the drain body is aligned properly and sits flush against the shower base. If your drain assembly includes a weep hole or overflow mechanism, verify that it is correctly positioned and unobstructed. Tighten all connections hand-tight, then use a wrench or pliers to give it a final snug fit, being careful not to overtighten and crack the shower base.
Once the drain body is securely installed, attach the drain tailpiece to the bottom of the drain body. The tailpiece should align with the rear outlet and direct water toward the drainpipe. Use a coupling or adapter if necessary to ensure a proper fit between the tailpiece and the drainpipe. Secure the connection with threaded fittings or solvent cement for PVC pipes, following manufacturer instructions for the specific materials used. Double-check that all connections are tight and aligned to avoid leaks.
With the tailpiece in place, connect it to the main drainpipe. Measure and cut the drainpipe to the appropriate length, ensuring it slopes downward toward the P-trap at a minimum gradient of 1/4 inch per foot. Attach the drainpipe to the tailpiece using the appropriate fittings, such as a sanitary tee or coupling. If using PVC or ABS piping, apply primer and solvent cement to the joints for a secure, watertight seal. For metal piping, use threaded fittings or clamps as required.
Finally, install the P-trap and vent system according to local plumbing codes. The P-trap should be positioned directly below the drainpipe to prevent sewer gases from entering the shower area. Ensure the vent pipe is properly connected to the drain assembly and extends to the roof or main vent stack. Test the drain assembly by pouring water into the shower and checking for leaks at all connections. If no leaks are detected, proceed with finishing the shower installation, including waterproofing and tiling. Proper installation of the drain assembly is essential for the functionality and longevity of your rear outlet shower drain.
Step-by-Step Guide to Repairing a Three-Handle Leaky Shower Faucet
You may want to see also
Explore related products
Connect P-Trap and Vent
When connecting the P-trap and vent for a rear outlet shower drain, precision and adherence to plumbing codes are essential. Begin by positioning the P-trap directly beneath the shower drain outlet, ensuring it aligns perfectly. The P-trap serves a critical function: it prevents sewer gases from entering the bathroom while allowing water to flow freely. Use a standard 2-inch P-trap for most residential applications, securing it with slip-joint nuts and washers to ensure a watertight seal. Tighten the connections by hand first, then use a wrench to snug them up, being careful not to overtighten and crack the plastic components.
Next, connect the vent pipe to the P-trap to ensure proper drainage and prevent airlocks. The vent should tie into the existing vent stack or run vertically through the roof if a new vent is required. For a rear outlet shower drain, the vent connection is typically made at the top of the P-trap using a sanitary tee fitting. This tee must be oriented so that the inlet (from the P-trap) and the outlet (to the drain pipe) are in line, while the vent port faces upward. Secure the sanitary tee with solvent cement, following the manufacturer’s instructions for proper bonding of PVC or ABS piping.
Once the sanitary tee is in place, extend the vent pipe vertically, maintaining a minimum 1/4-inch per foot slope toward the vent stack. If the vent must change direction, use a 90-degree vent elbow, ensuring it complies with local plumbing codes regarding venting angles and distances. Avoid using 45-degree elbows unless absolutely necessary, as they can restrict airflow. Ensure all vent connections are securely glued and inspected for leaks before proceeding.
After connecting the vent, attach the horizontal drain pipe from the P-trap to the main drain line. Use a straight coupling or appropriate fitting to join the pipes, ensuring the slope remains consistent (typically 1/4-inch per foot) to facilitate proper drainage. Test the assembly by pouring water down the shower drain to ensure it flows smoothly through the P-trap and into the main drain line without obstruction.
Finally, insulate the P-trap and vent pipes if they run through unheated spaces to prevent freezing in colder climates. Double-check all connections for tightness and ensure there are no gaps or leaks in the solvent-welded joints. Once complete, the P-trap and vent system should function seamlessly, providing efficient drainage and proper venting for the rear outlet shower drain. Always consult local plumbing codes and, if unsure, hire a licensed plumber to ensure compliance and safety.
