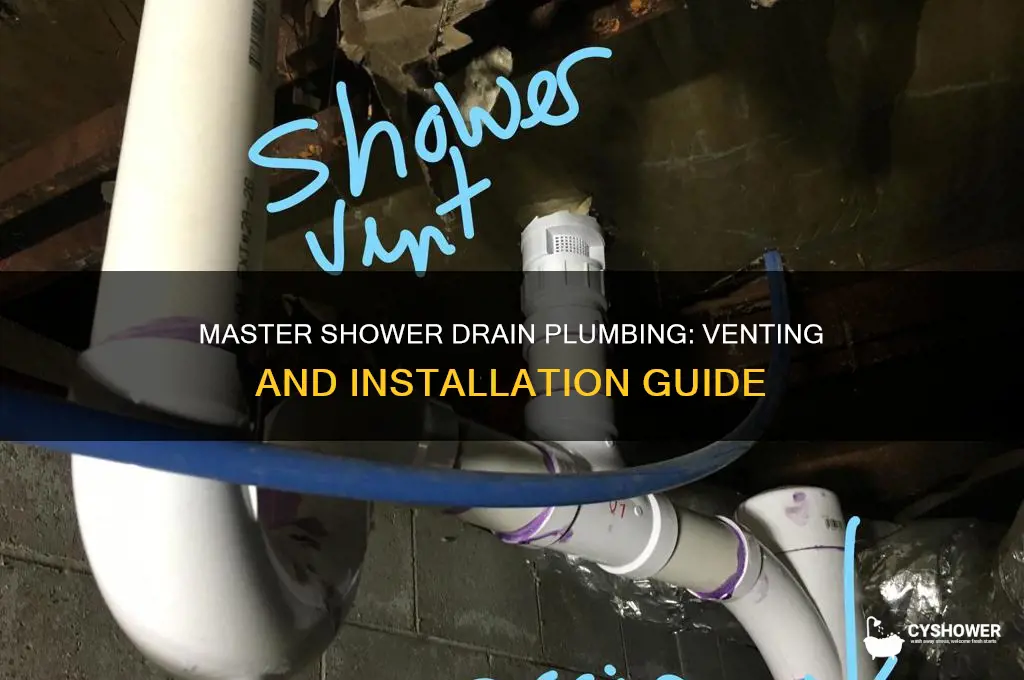

Plumbing a shower drain and vent is a critical step in ensuring proper water flow and preventing sewer gases from entering your home. This process involves installing a drain pipe that slopes correctly to allow water to flow efficiently, typically at a rate of 1/4 inch per foot, and connecting it to a vent pipe that extends through the roof to equalize air pressure and facilitate drainage. Proper venting is essential to avoid gurgling noises, slow drainage, and potential blockages. The installation requires adherence to local building codes, precise measurements, and the use of appropriate materials like PVC pipes and fittings. Whether you're a DIY enthusiast or hiring a professional, understanding the basics of shower drain and vent plumbing ensures a functional and long-lasting shower system.
| Characteristics | Values |
|---|---|
| Drain Pipe Size | Typically 2 inches in diameter for shower drains. |
| Vent Pipe Size | Usually 1.5 inches in diameter, but must be the same size as the drain pipe if it serves only one fixture. |
| Drain Slope | 1/4 inch per foot (2% slope) to ensure proper drainage. |
| Vent Termination | Must extend through the roof and be at least 12 inches above the roof surface, with a minimum distance of 3 feet from any vertical opening. |
| P-Trap Installation | Required under the shower drain, typically 2 inches in diameter, with a proper seal and secure connections. |
| Vent Connection | The vent must connect to the drain line within 42 inches of the P-trap centerline, following local plumbing codes. |
| Material | PVC or ABS piping is commonly used for shower drains and vents due to durability and ease of installation. |
| Sealing | All joints must be sealed with primer and solvent cement for PVC or ABS, and threaded connections must use Teflon tape or pipe dope. |
| Code Compliance | Must adhere to local building and plumbing codes, including minimum and maximum distances for vents and drains. |
| Inspection | Requires inspection by a local plumbing inspector to ensure compliance with codes and safety standards. |
| Vent Loop | In some cases, a vent loop (or "studor vent") may be used as an alternative to traditional venting, depending on local codes. |
| Overflow Prevention | Ensure the shower pan or base is properly installed to prevent water overflow and potential damage. |
| Access Panel | Recommended to install an access panel for future maintenance and repairs. |
| Waterproofing | Apply waterproofing membrane around the drain and shower area to prevent leaks. |
| Testing | After installation, test the drain and vent system by filling the shower with water and checking for leaks or improper drainage. |
Explore related products
What You'll Learn
- Drain Pipe Sizing: Calculate required diameter based on shower fixtures and local plumbing codes
- Ventilation Requirements: Ensure proper vent stack placement to prevent airlocks and maintain flow
- P-Trap Installation: Install P-trap correctly to block sewer gases and allow water passage
- Drain Slope: Maintain 1/4 inch per foot slope for efficient water drainage
- Sealing Connections: Use plumber’s tape and solvent cement to secure leak-free joints
Drain Pipe Sizing: Calculate required diameter based on shower fixtures and local plumbing codes
When sizing drain pipes for a shower, it’s essential to consider both the number and type of shower fixtures and the requirements of local plumbing codes. The diameter of the drain pipe directly impacts the system’s ability to handle water flow efficiently, preventing clogs and backups. Start by identifying the fixtures connected to the shower drain, such as the showerhead, body sprays, or a bathtub. Each fixture contributes to the total drainage load, which determines the minimum pipe diameter needed. For example, a standard showerhead typically requires a 2-inch drain pipe, but additional fixtures may necessitate a larger diameter or a branched drainage system.
Local plumbing codes play a critical role in drain pipe sizing, as they specify minimum and maximum diameters based on fixture units (FUs). Fixture units are a standardized measure of drainage load, with each fixture assigned a specific FU value. For instance, a showerhead might be rated at 2 FUs, while a bathtub could be 2.5 FUs. Add up the FUs for all fixtures connected to the shower drain, then consult your local code to determine the required pipe diameter. Codes often provide tables or formulas to calculate the appropriate size, ensuring the system can handle peak flow without overflow.
Once you’ve calculated the total fixture units, refer to the International Plumbing Code (IPC) or your local equivalent for sizing guidelines. For example, the IPC typically recommends a 2-inch drain pipe for up to 5 FUs, while 6 to 9 FUs may require a 2.5-inch pipe. Larger systems with more fixtures might need a 3-inch or larger pipe. Always round up to the next standard pipe size if your calculation falls between sizes. Additionally, ensure the pipe slope meets code requirements (usually 1/4 inch per foot) to facilitate proper drainage.
Venting is another critical factor tied to drain pipe sizing. The vent pipe diameter must be at least as large as the drain pipe or follow code-specific rules, such as the 1/4 rule (vent diameter in inches should be at least 1/4 of the drain pipe diameter). Proper venting prevents airlocks and ensures smooth drainage. Coordinate drain and vent sizing to avoid violations and ensure system efficiency.
Finally, verify your calculations with a licensed plumber or local building inspector to ensure compliance with all regulations. Mistakes in drain pipe sizing can lead to costly rework or functional issues. By carefully considering fixture units, local codes, and venting requirements, you’ll design a shower drainage system that is both efficient and code-compliant.
Step-by-Step Guide to Repairing Your Shower Pan Liner Easily
You may want to see also
Explore related products
Ventilation Requirements: Ensure proper vent stack placement to prevent airlocks and maintain flow
Proper vent stack placement is critical in shower drain plumbing to prevent airlocks and ensure smooth drainage. The vent stack serves as an airway that allows sewer gases to escape and maintains equal air pressure within the drain system. Without adequate ventilation, water flow can become restricted, leading to slow drainage or backups. The vent stack should be positioned within 5 feet of the shower drain to comply with most plumbing codes and ensure optimal performance. This proximity allows for efficient air movement, preventing negative pressure that can hinder water flow.
When planning vent stack placement, it’s essential to connect the vent to the drain line at a point where the pipe changes direction, typically at a 90-degree turn or a sanitary tee. This connection should be made on the drain side of the trap to ensure proper venting. Avoid connecting the vent too close to the trap, as this can allow water to siphon out, defeating the trap’s purpose of blocking sewer gases. Additionally, the vent stack must extend vertically through the roof to allow gases to escape safely into the atmosphere.
The size of the vent stack is another crucial factor. It should be the same diameter as the drain pipe or as required by local plumbing codes. Undersized vents can restrict airflow, while oversized vents are unnecessary and costly. For a standard shower drain, a 2-inch vent pipe is typically sufficient. Ensure the vent stack is pitched slightly toward the drain to prevent water accumulation, which can obstruct airflow and lead to blockages.
To maintain proper flow, the vent stack must remain clear of obstructions. Avoid installing vents in areas prone to debris buildup or where they can be easily blocked. Regularly inspect the vent termination at the roof to ensure it’s free from leaves, bird nests, or other debris. Properly capping the vent with a screen or hood can prevent obstructions while allowing gases to escape freely.
Finally, consider the overall plumbing system layout when placing the vent stack. If the shower drain is part of a larger system with multiple fixtures, the vent may need to be integrated into a common vent stack or loop vent system. This ensures all fixtures are adequately vented without requiring individual vents for each drain. Consulting local plumbing codes and possibly a professional plumber can help ensure compliance and optimal performance of the venting system.
The Mysterious Disappearance of the Bruco Shower Drain Explained
You may want to see also
Explore related products
P-Trap Installation: Install P-trap correctly to block sewer gases and allow water passage
The P-trap is a critical component in shower drain plumbing, serving as the first line of defense against sewer gases while ensuring smooth water flow. Its distinctive shape—resembling the letter "P"—creates a water seal that blocks gases from entering the bathroom while allowing wastewater to pass freely. To install a P-trap correctly, begin by measuring and cutting the drain pipe to the appropriate length, ensuring it aligns with the shower drain outlet and the horizontal vent pipe. Use a hacksaw or PVC cutter for precision, and deburr the edges to prevent damage to seals or gaskets. Proper alignment is essential, as misalignment can lead to leaks or inadequate sealing.
Next, assemble the P-trap components, which typically include the trap itself, two slip nuts, and washers. Slide a slip nut and washer onto the drain pipe extending from the shower, followed by the P-trap. Tighten the slip nut securely but avoid over-tightening, as this can crack the plastic or damage the threads. Repeat the process on the other end of the P-trap, connecting it to the horizontal drain pipe leading to the vent system. Ensure all connections are hand-tightened initially, then use a wrench to give them a final quarter-turn for a secure fit. Properly tightened connections prevent leaks and maintain the integrity of the water seal.
The P-trap must be installed at the correct angle to function effectively. It should maintain a consistent slope away from the shower drain, typically following the same gradient as the drain pipe (around 1/4 inch per foot). This slope ensures water flows efficiently and the trap remains filled with enough water to block sewer gases. If the P-trap is installed level or with an incorrect slope, it can lead to standing water, clogs, or gas leakage. Use a level to verify the slope during installation, making adjustments as needed.
Once the P-trap is in place, inspect all connections for leaks by running water through the shower drain. Check for drips or moisture around the slip nuts and joints. If leaks are detected, loosen the slip nuts slightly, reposition the washers, and tighten again. Avoid using plumber’s tape or thread sealants on plastic pipes, as the slip nuts and washers are designed to create a watertight seal without additional materials. After confirming there are no leaks, secure the P-trap to the wall or floor using pipe hangers or straps to prevent movement and stress on the joints.
Finally, ensure the P-trap is vented properly to maintain optimal drainage and prevent suction or gurgling noises. The vent pipe should connect to the drain line past the P-trap, allowing air to enter the system and equalize pressure. Without proper venting, water may drain slowly or the trap seal could be siphoned out, defeating its purpose. By installing the P-trap correctly—with precise measurements, secure connections, proper slope, and adequate venting—you ensure it effectively blocks sewer gases while facilitating smooth water passage, contributing to a functional and odor-free shower drain system.
Best Places to Purchase Kohler Shower Drains Online & In-Store
You may want to see also
Explore related products
Drain Slope: Maintain 1/4 inch per foot slope for efficient water drainage
When plumbing a shower drain, one of the most critical aspects to ensure efficient water drainage is maintaining the correct slope for the drain pipe. The industry standard and best practice dictate a slope of 1/4 inch per foot for shower drain lines. This slope is essential because it allows water to flow smoothly and quickly, preventing standing water, clogs, and potential backups. Without the proper slope, water can pool in the pipe, leading to slow drainage, foul odors, and even mold or mildew growth in the shower area.
To achieve the 1/4 inch per foot slope, careful planning and measurement are required. Start by determining the total run of the drain pipe from the shower to the main drain stack or vent. For every foot of horizontal pipe, the drain should drop by 1/4 inch. For example, if the pipe runs 8 feet horizontally, the starting point (at the shower drain) should be 2 inches higher than the endpoint (where it connects to the main stack). Use a level and measuring tape to ensure accuracy, as even a slight deviation can impact drainage efficiency.
Marking the slope on the floor or wall before installing the pipe is a practical approach. Begin by locating the endpoint of the drain pipe and marking its position. Then, measure back to the shower drain location, ensuring that for every foot of distance, the starting point is 1/4 inch higher. Use a chalk line or pencil to mark this slope along the path of the pipe. This visual guide will help you align the pipe correctly during installation, ensuring the proper gradient is maintained throughout the entire run.
When installing the drain pipe, use adjustable hangers or supports to secure it in place while maintaining the 1/4 inch per foot slope. Avoid over-tightening the hangers, as this can cause the pipe to sag or lose its slope over time. PVC or ABS pipes are commonly used for shower drains due to their durability and ease of installation. Ensure all fittings and connections are properly aligned and secured to prevent leaks and maintain the integrity of the slope.
Finally, test the drain slope before completing the installation. Pour water into the shower drain and observe the flow. Water should move swiftly and continuously without pooling or slowing down. If the drainage is slow or uneven, recheck the slope and adjust the pipe as needed. Properly maintaining the 1/4 inch per foot slope not only ensures efficient water drainage but also extends the life of your plumbing system by reducing the risk of clogs and blockages.
Easy DIY Guide: Repairing and Restoring Your Resin Shower Tray
You may want to see also
Explore related products
Sealing Connections: Use plumber’s tape and solvent cement to secure leak-free joints
When sealing connections in a shower drain and vent system, the goal is to create leak-free joints that ensure proper drainage and prevent water damage. Plumbers tape (also known as Teflon tape) and solvent cement are essential tools for this task. Begin by cleaning the pipe ends and fittings thoroughly to remove any debris, grease, or residue. This ensures a strong bond and proper sealing. Wrap plumbers tape clockwise around the male threads of the pipe or fitting, overlapping each layer slightly to create a smooth, even surface. Apply 2-3 layers for most connections, ensuring the tape is tight but not stretched, as this can cause it to tear or fail.
After applying plumbers tape, focus on using solvent cement for PVC or ABS pipes, which are commonly used in shower drain systems. Solvent cement chemically welds the pipes and fittings together, creating a permanent, watertight seal. First, dry-fit the pieces to ensure proper alignment and fit. Then, apply a thin, even coat of solvent cement to both the outside of the pipe and the inside of the fitting, using the brush attached to the cement can. Quickly insert the pipe into the fitting, twisting slightly to spread the cement evenly. Hold the joint firmly in place for 15-30 seconds to allow the cement to set initially.
For threaded connections, such as those involving metal pipes or fixtures, rely primarily on plumbers tape. Ensure the tape covers all threads but does not bunch up, as this can interfere with the connection. Tighten the joint by hand, then use a wrench to secure it, being careful not to overtighten, as this can damage the threads or crush the tape. Always check for leaks by running water through the system after assembly, tightening further if necessary.
When working with larger drain pipes or vents, such as 2-inch PVC, ensure the solvent cement is applied generously but not excessively, as too much can weaken the joint. Wipe away any excess cement that squeezes out of the joint, as it can harden and become unsightly. Allow the cement to cure fully according to the manufacturer’s instructions before testing the system under pressure. Proper curing time is critical for achieving a leak-free seal.
Finally, inspect all sealed connections for signs of leakage or weakness before completing the installation. Test the shower drain by filling it with water and checking for drips or seepage at the joints. If leaks are detected, disassemble the joint, clean the surfaces, and reapply plumbers tape or solvent cement as needed. Taking the time to seal connections correctly ensures a durable, efficient shower drain and vent system that will function reliably for years to come.
Choosing the Right Shower Drain Size: A Comprehensive Guide
You may want to see also
Frequently asked questions
The shower drain and vent system ensures proper drainage of water and prevents sewer gases from entering the home. The vent allows air to enter the drain pipes, maintaining equal air pressure for efficient flow.
Shower drain pipes are typically 2 inches in diameter. Ensure the pipe size complies with local plumbing codes and is compatible with your shower drain fixture.
The shower drain pipe should have a slope of 1/4 inch per foot (approximately 2%) to ensure proper water flow and prevent standing water in the pipes.
The vent should tie into the main vent stack or a nearby vented drain line. It must be installed within a certain distance from the drain (usually 5 feet) to comply with plumbing codes. Use a 90-degree vent fitting and ensure it extends above the flood level of the fixture.
No, a vent is essential for proper drainage and to prevent suction or siphoning of water from traps. Without a vent, the system may not function correctly and could lead to plumbing issues. Always consult local codes and a professional if unsure.
