Sophia Rain

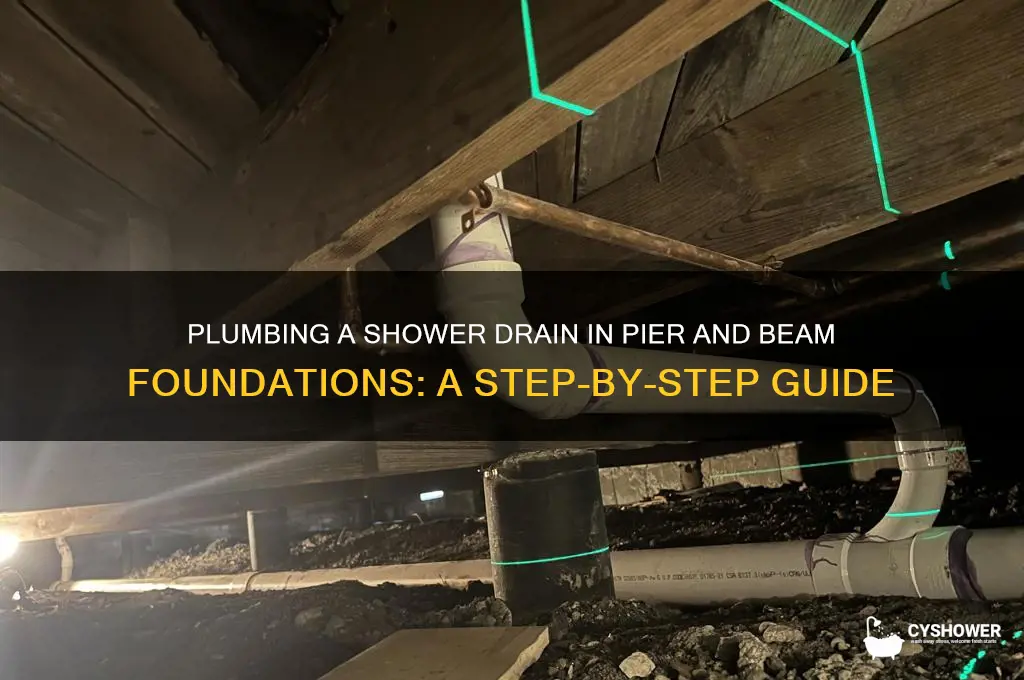

Plumbing a shower drain in a pier and beam foundation requires careful planning and execution to ensure proper drainage and prevent water damage. Unlike slab foundations, pier and beam structures elevate the house, allowing for crawl spaces that complicate traditional plumbing methods. To plumb a shower drain in this setup, you must first locate the main drain line beneath the crawl space, ensuring it’s accessible and properly sloped for gravity flow. Next, install a drain pipe from the shower location, maintaining a consistent slope of 1/4 inch per foot toward the main line. Use PVC or ABS piping, securing it with hangers to prevent sagging. Since pier and beam foundations are prone to shifting, flexible couplings or P-traps should be incorporated to accommodate movement. Finally, ensure all connections are sealed with plumber’s tape or adhesive to prevent leaks, and test the system for proper flow before finalizing the installation. This approach ensures efficient drainage while safeguarding the structural integrity of the pier and beam foundation.
Explore related products
What You'll Learn
Prepare the Drain Location
Before you begin plumbing a shower drain in a pier and beam foundation, precise preparation of the drain location is crucial. Start by identifying the exact spot where the shower will be installed. Measure and mark the center of the shower base on the subfloor. Ensure this location aligns with the shower kit’s specifications and allows for proper slope toward the drain. Use a level to confirm the subfloor is even; if not, shim or adjust the joists to create a level surface. This step is essential to prevent water pooling and ensure efficient drainage.
Next, locate the joists beneath the marked drain location. Use a stud finder or tap the subfloor to identify the joist positions. The drain will need to be positioned between the joists, so mark the centerline between them. If the drain falls directly on a joist, you’ll need to notch or cut the joist to accommodate the drain pipe, ensuring structural integrity is maintained. Always consult a structural engineer if you’re unsure about modifying joists.
Once the joists are identified and marked, determine the path the drain pipe will take from the shower to the main waste line. Measure the distance and plan the route, ensuring it avoids obstacles like other plumbing lines, electrical wiring, or ductwork. If the main waste line is below the drain location, calculate the necessary slope for the pipe, typically 1/4 inch per foot. Mark this route on the subfloor and walls for reference during installation.
With the drain location and pipe route established, inspect the area for any obstructions or issues. Check for insulation, wiring, or other utilities that might interfere with the drain pipe installation. If necessary, relocate these components or adjust the pipe route. Additionally, ensure the subfloor is free of debris and damage. Repair any weak spots or rot in the subfloor, as the drain assembly will require a sturdy base to support its weight and prevent leaks.
Finally, verify that the drain location complies with local building codes and regulations. Check requirements for venting, pipe size, and minimum distances from other fixtures. Obtain any necessary permits before proceeding. Proper preparation at this stage will save time and prevent costly mistakes during installation, ensuring a functional and code-compliant shower drain system.
Prevent Mold in Shower Drains: Effective Tips for a Clean Bathroom
You may want to see also
Explore related products
Install Drain Pipe & Vent
When installing a drain pipe and vent for a shower in a pier and beam foundation, the first step is to plan the layout carefully. Measure the distance from the shower location to the main drain stack or the nearest vent stack. Ensure that the drain pipe slopes downward at a consistent rate of 1/4 inch per foot to facilitate proper water flow. Use a chalk line or level to mark the path of the drain pipe along the floor joists, avoiding any obstructions like electrical wires or plumbing lines. For the vent, plan a route that rises vertically from the drain pipe to connect to the main vent stack, ensuring it remains within the required distance as per local plumbing codes.
Next, cut and assemble the drain pipe using PVC or ABS piping, depending on your local building codes. Begin by installing the shower drain body at the shower location, ensuring it is level and securely attached to the shower pan. From the drain body, extend the drain pipe horizontally along the marked path, using 90-degree or 45-degree fittings as needed to navigate around obstacles. Secure the pipe to the floor joists using pipe hangers or straps, maintaining the proper slope throughout. Test the slope by placing a level on the pipe and adjusting as necessary to ensure water will flow freely.
Once the drain pipe is in place, install the vent pipe. Start by attaching a vent fitting (such as a sanitary tee) to the drain pipe, typically within 42 inches of the shower drain, as required by most codes. Extend the vent pipe vertically through the floor and up between the joists, using elbow fittings to change direction if needed. Ensure the vent pipe is securely strapped to the joists and continues upward to connect to the main vent stack. If the vent pipe must pass through the foundation, use a sealed vent pipe sleeve to prevent water intrusion and maintain structural integrity.
After both the drain and vent pipes are installed, inspect the connections to ensure they are tight and leak-free. Use primer and solvent cement for PVC or ABS pipes, following the manufacturer’s instructions for proper bonding. Test the system by pouring water into the shower drain to ensure it flows smoothly and does not back up. Check the vent by capping the open end temporarily and listening for proper air movement when water is drained. If everything functions correctly, proceed to insulate the pipes if necessary, especially in colder climates, to prevent freezing.
Finally, ensure all work complies with local building codes and obtain any required inspections before proceeding with further construction. Proper installation of the drain pipe and vent is critical for the shower’s functionality and to prevent issues like clogs, sewer gases, or water damage. Take your time to measure, cut, and secure each component accurately, as mistakes in this phase can lead to costly repairs later. With careful planning and execution, you’ll have a reliable plumbing system for your pier and beam shower installation.
Best Places to Purchase Kohler Shower Drains Online & In-Store
You may want to see also
Explore related products
Secure Drain to Beam
When securing the shower drain to the beam in a pier and beam foundation, precision and stability are crucial. Begin by positioning the drain assembly directly beneath the shower’s center, ensuring alignment with the P-trap and vent stack. Use a level to confirm the drain is perfectly horizontal, as this prevents water pooling and ensures proper flow. Once aligned, mark the beam where the drain flange will attach. Most shower drains come with a flange that needs to be securely fastened to the beam to support the weight of the drain and piping.
Next, prepare the beam for attachment. If the beam is wooden, pre-drill holes to prevent splitting, especially if using metal screws or bolts. For concrete or masonry beams, use a masonry bit to drill pilot holes and insert anchors for a secure hold. Apply a bead of silicone sealant or construction adhesive around the drain flange to create a watertight seal and add stability. This step is essential to prevent water leakage into the crawl space below.
With the beam prepared, attach the drain flange using corrosion-resistant screws or bolts. Tighten them securely, but avoid over-tightening to prevent damaging the flange or beam. Ensure the flange is firmly seated against the beam, with no gaps or movement. Double-check the alignment of the drain to maintain proper slope and levelness. If the flange has weep holes, ensure they are not obstructed, as they allow moisture to escape and prevent rot.
After securing the flange, connect the drain pipe to the drain body, ensuring a tight fit with threaded connections or solvent welds for PVC pipes. Use plumber’s tape or joint compound to seal threaded connections and prevent leaks. Test the assembly by pouring water into the drain to ensure it flows freely and does not leak at any connection points. If adjustments are needed, make them before proceeding to the next steps of the installation.
Finally, insulate the drain pipe if necessary, especially in colder climates, to prevent freezing. Secure the pipe to the beam or joists using pipe hangers or straps, maintaining the proper slope toward the P-trap. Once the drain is fully secured and tested, proceed with installing the shower pan or waterproofing membrane, ensuring all components are integrated seamlessly. Properly securing the drain to the beam is foundational to a leak-free and long-lasting shower installation in a pier and beam structure.
Troubleshooting Your Shower: Quick Fixes for Water That Won't Go Cold
You may want to see also
Explore related products
Connect to Main Waste Line
When connecting the shower drain to the main waste line in a pier and beam foundation, the first step is to locate the existing main waste stack or lateral line running beneath the house. This typically involves accessing the crawl space and identifying the nearest point where the new shower drain can tie in. Ensure that the main waste line is accessible and has enough space to accommodate a new connection. Use a plumbing snake or inspection camera if necessary to verify the condition and location of the main line, as any blockages or damage will need to be addressed before proceeding.
Next, measure the distance from the shower drain location to the main waste line to determine the length of pipe needed. Choose the appropriate pipe material, typically PVC or ABS, based on local plumbing codes and compatibility with the existing system. Cut the main waste line at the connection point using a hacksaw or reciprocating saw, ensuring a clean, straight cut. Install a Y-fitting or sanitary tee to create a branch for the shower drain, securing it with primer and solvent cement for a watertight seal. The angle and orientation of the fitting should align with the slope required for proper drainage, typically 1/4 inch per foot.
Once the fitting is in place, measure and cut the pipe for the shower drain branch, ensuring it aligns with the drain location above. Attach the pipe to the fitting using primer and solvent cement, double-checking that all connections are secure and aligned with the necessary slope. If the main waste line is deeper than the shower drain, install a vented P-trap to prevent sewer gases from entering the shower area and to maintain proper drainage. The P-trap should be installed according to code, typically with a minimum 2-inch diameter and a vent connection to the main vent stack.
After completing the connections, test the system for leaks by filling the shower drain with water and inspecting all joints for signs of seepage. If no leaks are detected, backfill any excavated areas in the crawl space and secure the pipes to the floor joists using straps or hangers to prevent movement. Finally, insulate any exposed pipes to protect against condensation and temperature fluctuations, especially in unheated crawl spaces. This ensures the new shower drain connection is functional, code-compliant, and durable.
Throughout the process, adhere to local plumbing codes and regulations, and consider consulting a professional plumber if you encounter complex issues or lack experience with waste line connections. Proper planning and execution of this step are critical to ensuring efficient drainage and preventing future plumbing problems in your pier and beam shower installation.
Unclog Your Shower Drain Naturally with Vinegar: A Simple DIY Guide
You may want to see also
Explore related products
Test for Leaks & Seal
Before finalizing the installation of your shower drain in a pier and beam foundation, it’s critical to test for leaks and seal all connections properly. Start by dry-fitting all components of the drain assembly, including the drain body, trap, and vent pipe, to ensure they align correctly without gaps. Once you’re confident in the fit, disassemble the parts and apply plumber’s putty or silicone sealant to the threads and joints. Reassemble the drain, tightening all connections hand-tight to avoid over-torquing, which can damage the pipes or fittings. Allow the sealant to set according to the manufacturer’s instructions before proceeding to the leak test.
To test for leaks, begin by plugging the shower drain with a rubber stopper or rag to hold water. Slowly pour water into the drain until the trap and surrounding pipes are filled. Inspect all joints, connections, and seals closely for any signs of dripping or seepage. Pay special attention to areas where the drain penetrates the subfloor or where the trap connects to the horizontal pipe. If you notice any leaks, dry the area, disassemble the leaking joint, reapply sealant, and reassemble it before retesting. Repeat this process until no leaks are detected.
Next, test the integrity of the drain’s connection to the vent pipe, as improper venting can lead to water backup or slow drainage. Pour water into the drain again and observe whether it flows freely without gurgling or bubbling, which could indicate a venting issue. If problems arise, check the vent pipe for blockages or improper installation. Ensure the vent extends through the pier and beam structure to the exterior of the building, following local plumbing codes for proper venting.
Once the drain assembly passes both the water and venting tests, seal any gaps around the drain where it penetrates the subfloor or shower pan. Use a waterproof sealant or caulk to create a tight barrier against moisture intrusion, which is especially important in pier and beam structures where water damage can compromise the foundation. Smooth the sealant with a caulking tool and allow it to cure fully before proceeding with tile or shower pan installation.
Finally, conduct a final leak test after the shower pan or tile is installed. Fill the shower pan with water to its maximum capacity and let it sit for at least an hour. Inspect the underside of the subfloor, the drain connections, and the surrounding area for any signs of moisture. If leaks are detected, address them immediately by resealing or adjusting the drain assembly. Properly testing for leaks and sealing all components ensures a durable, leak-free shower drain installation in a pier and beam foundation.
Is a P-Trap Essential for Your Shower Drain? Explained
You may want to see also
Frequently asked questions
The first step is to locate the exact position of the shower drain and ensure it aligns with the existing plumbing layout. Measure and mark the spot on the subfloor where the drain will be installed.
Use a string level or laser level to create a slope of 1/4 inch per foot toward the drain. This ensures water flows efficiently into the drain and prevents standing water.
PVC piping is commonly used for shower drains due to its durability, ease of installation, and resistance to corrosion. Ensure the piping size matches the drain assembly (typically 2 inches).
Attach the drain assembly to the subfloor using screws or bolts, ensuring it is tightly sealed with plumber’s putty or silicone to prevent leaks. Follow manufacturer instructions for proper installation.
