Olivia Waters

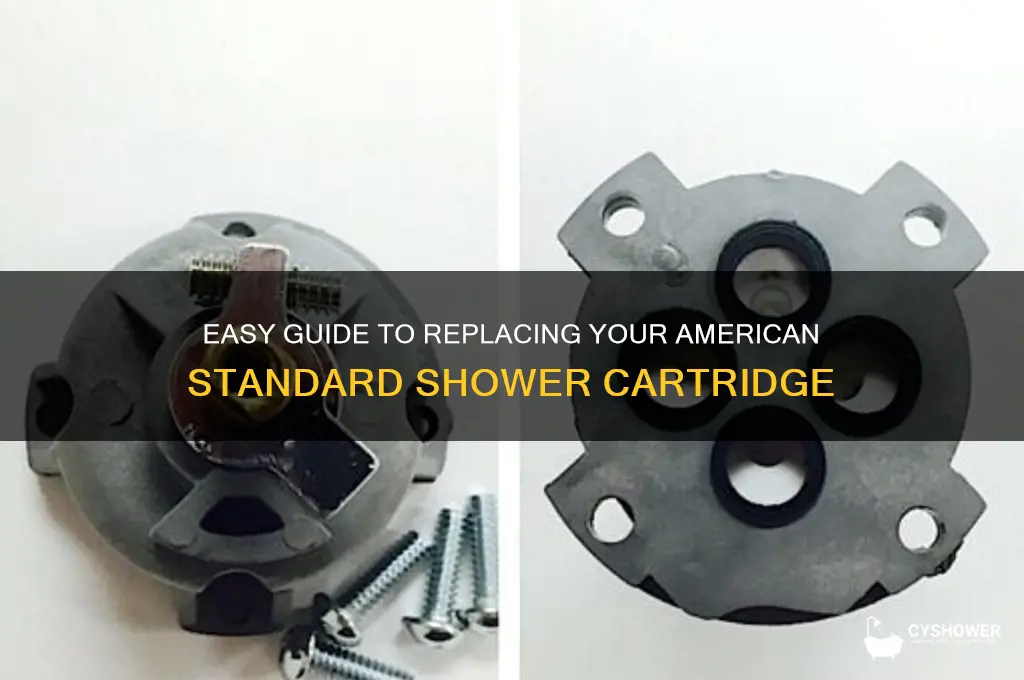

Replacing a shower cartridge in an American Standard fixture is a common DIY task that can restore proper water flow and temperature control. Over time, cartridges can wear out due to mineral buildup, corrosion, or regular use, leading to leaks or difficulty adjusting water temperature. To replace the cartridge, you’ll need basic tools like a screwdriver, pliers, and possibly a cartridge puller. Start by shutting off the water supply and removing the shower handle to access the cartridge. Carefully extract the old cartridge, clean the housing, and install the new one, ensuring it’s aligned correctly. Reassemble the handle and test the shower to confirm it functions smoothly. Following American Standard’s specific instructions for your model will ensure a successful and leak-free repair.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver, pliers, adjustable wrench, cartridge puller (if needed) |
| Materials Needed | Replacement cartridge (American Standard specific), Teflon tape, lubricant |
| Difficulty Level | Moderate |
| Time Required | 30-60 minutes |
| Steps | 1. Turn off water supply. 2. Remove handle and escutcheon. 3. Extract old cartridge. 4. Install new cartridge. 5. Reassemble handle and escutcheon. 6. Turn on water and check for leaks. |
| Cartridge Type | American Standard specific (e.g., Model 1272, R120SS, or similar) |
| Compatibility | Check model number on shower valve or existing cartridge |
| Common Issues | Leaks, difficulty turning handle, inconsistent water temperature |
| Safety Precautions | Ensure water is off before starting, avoid over-tightening components |
| Maintenance Tips | Periodically clean cartridge and apply lubricant to extend lifespan |
| Warranty Consideration | Replacing cartridge yourself may void warranty; check manufacturer policy |
| Additional Resources | American Standard support, online tutorials, or plumber assistance |
Explore related products
What You'll Learn
- Gather Tools and Parts: Assemble pliers, screwdriver, replacement cartridge, and lubricant before starting the repair process
- Shut Off Water Supply: Locate and turn off water valves to prevent leaks during cartridge replacement
- Remove Handle and Trim: Unscrew handle, pry off trim plate to access the shower cartridge
- Extract Old Cartridge: Pull out the worn cartridge carefully, noting its orientation for proper replacement
- Install New Cartridge: Insert the new cartridge, apply lubricant, and reassemble the handle and trim
Gather Tools and Parts: Assemble pliers, screwdriver, replacement cartridge, and lubricant before starting the repair process
Before diving into the task of replacing an American Standard shower cartridge, it's crucial to gather all necessary tools and parts to ensure a smooth and efficient repair process. This preparatory step not only saves time but also minimizes the risk of complications that could arise from missing or incorrect items. The essential items include pliers, a screwdriver, the replacement cartridge, and lubricant. Each of these tools plays a specific role in the process, and having them ready beforehand can make the difference between a quick fix and a frustrating ordeal.
Analytical Perspective: The selection of tools is not arbitrary. Pliers are essential for gripping and turning components that may be difficult to handle with bare hands, especially in tight spaces. A screwdriver, typically a Phillips or flathead depending on the screw type, is necessary for removing the handle and accessing the cartridge. The replacement cartridge itself must be the correct model for your American Standard shower; using an incompatible part can lead to leaks or improper function. Lubricant, such as silicone grease, ensures that the new cartridge fits smoothly and operates without friction, prolonging its lifespan.
Instructive Approach: Begin by verifying the model number of your shower valve to purchase the correct replacement cartridge. American Standard provides this information in their product manuals or on the valve itself. Once you have the cartridge, lay out your tools in a well-lit, accessible area. Use a medium-sized flathead or Phillips screwdriver for handle removal, and needle-nose pliers for extracting the old cartridge. Apply a small amount of silicone-based lubricant to the O-rings of the new cartridge to prevent damage during installation. This step-by-step preparation ensures you’re ready to tackle the repair without interruptions.
Comparative Insight: Compared to other DIY plumbing tasks, replacing a shower cartridge is relatively straightforward, but it still requires precision. For instance, while a wrench might be useful in other repairs, it’s unnecessary here and could even damage the valve. Similarly, using petroleum-based lubricants instead of silicone can degrade rubber components over time. By focusing on the specific tools and parts needed, you avoid the pitfalls of over-preparation or using incorrect materials, making the process more efficient than general plumbing repairs.
Practical Tips: Always double-check the compatibility of the replacement cartridge with your shower model to avoid returns or delays. Keep a clean cloth nearby to wipe away any excess lubricant or debris during the process. If the old cartridge is stuck, gently rock the pliers back and forth to loosen it rather than forcing it out, which could damage the valve. Finally, store any screws or small parts in a container to prevent loss, as these are often easy to misplace during disassembly.
Using Marble Tile in Residential Steam Showers: Pros, Cons, and Tips
You may want to see also
Explore related products
Shut Off Water Supply: Locate and turn off water valves to prevent leaks during cartridge replacement
Before diving into the intricacies of replacing an American Standard shower cartridge, one critical step cannot be overlooked: shutting off the water supply. This seemingly simple action is the linchpin of a leak-free, stress-free repair. Without it, even the most meticulous cartridge replacement can devolve into a soggy, time-consuming mess. Water valves are your first line of defense, and knowing how to locate and operate them is essential for any DIY plumber.
Locating the water valves for your shower is the first step in this process. In most American Standard setups, these valves are situated near the shower handle, often concealed behind a decorative plate or within an access panel. If you’re unsure where to look, trace the pipes from the showerhead downward—they typically lead directly to the shut-off valves. For older installations, the valves might be located in the basement or utility closet, controlling water flow to the entire bathroom. In such cases, you’ll need to shut off the main water supply to the house, a more drastic but equally effective measure.
Once you’ve located the valves, turning them off requires a bit of finesse. Most valves operate with a quarter-turn mechanism: clockwise to close, counterclockwise to open. If your valves are the older gate-style type, you’ll need to turn them several rotations until they’re fully closed. A helpful tip: after shutting off the valves, open the shower faucet to release any residual water pressure. This ensures that no water remains in the lines, minimizing the risk of leaks during cartridge replacement.
Shutting off the water supply isn’t just a precautionary step—it’s a necessity. Attempting to replace a cartridge without doing so can lead to water damage, mold growth, and even structural issues over time. Moreover, working on a dry system allows for better visibility and precision, making the replacement process smoother and more efficient. Think of it as laying the foundation for a successful repair: a small investment of time upfront that pays dividends in the long run.
In summary, shutting off the water supply is a straightforward yet indispensable part of replacing an American Standard shower cartridge. By locating the valves, turning them off correctly, and releasing residual pressure, you create a safe, controlled environment for your repair. This step may seem minor, but it’s the difference between a seamless DIY project and a waterlogged disaster. Master this, and you’re well on your way to becoming a confident, capable home plumber.
Bergamo Herringbone Tile: Shower Floor Suitability and Installation Tips
You may want to see also
Explore related products
Remove Handle and Trim: Unscrew handle, pry off trim plate to access the shower cartridge
The first step in replacing an American Standard shower cartridge is gaining access to it, which requires removing the handle and trim. This process is straightforward but demands attention to detail to avoid damaging the fixture. Begin by locating the screw that secures the handle to the valve body. In many American Standard models, this screw is hidden beneath a cap or button at the center of the handle. Use a flathead screwdriver to gently pry off this cap, revealing the screw underneath. Once exposed, unscrew it counterclockwise using a Phillips screwdriver. If the screw is tight, apply steady pressure to avoid stripping it.
With the screw removed, the handle should lift off easily. If it feels stuck, check for additional screws or clips that might still be holding it in place. Some models have a set screw on the side of the handle, which can be loosened with an Allen wrench. Once the handle is free, set it aside carefully to avoid losing any small parts. Next, focus on the trim plate, which is the decorative cover surrounding the handle. This plate is typically held in place by clips or screws. Use a flathead screwdriver to gently pry the trim plate away from the wall, starting at one corner and working your way around. Be cautious not to scratch the finish or damage the underlying wall.
Prying off the trim plate reveals the cartridge assembly, but it’s essential to inspect the area for any signs of wear or damage. Look for mineral deposits, corrosion, or cracks in the valve body, as these issues may require additional repairs. If the trim plate is difficult to remove, check for hidden screws or a locking mechanism. Some American Standard models use a snap-fit design, which may require a trim removal tool for safe extraction. Always prioritize preserving the integrity of the fixture, as replacement parts can be costly and time-consuming to source.
A practical tip for this stage is to take photos or notes as you disassemble the handle and trim. This documentation will serve as a reference during reassembly, ensuring each component is returned to its correct position. Additionally, keep track of screws and small parts by placing them in a labeled container or using a magnetic mat. This organization prevents frustration and delays when it’s time to put everything back together. By methodically removing the handle and trim, you create a clear path to the shower cartridge, setting the stage for a successful replacement.
Bullnose Subway Tile in Showers: Necessary or Optional? Expert Advice
You may want to see also
Explore related products
Extract Old Cartridge: Pull out the worn cartridge carefully, noting its orientation for proper replacement
Removing the old shower cartridge is a delicate operation that demands precision and awareness. Before you begin, ensure the water supply to the shower is completely shut off to avoid any unexpected spills or pressure. Once confirmed, use a cartridge puller tool—a specialized device designed to grip and extract the cartridge without causing damage to the surrounding components. If a puller isn’t available, a pair of pliers wrapped in tape can serve as a makeshift alternative, though this increases the risk of scratching the cartridge or valve body. The key here is to apply steady, even force, avoiding any twisting or jerking motions that could misalign the cartridge or damage the valve seat.
Orientation matters more than you might think. As you extract the old cartridge, take a moment to observe its position relative to the valve body. Most American Standard cartridges have a notch or marking that aligns with a corresponding groove in the valve. Snap a quick photo or make a note of this alignment—it’s your roadmap for installing the new cartridge correctly. Ignoring this step can lead to improper sealing, leaks, or even complete failure of the replacement cartridge to function. Think of it as solving a puzzle: the pieces only fit together when aligned just right.
For those dealing with stubborn cartridges, corrosion or mineral buildup is often the culprit. If the cartridge resists extraction, apply a penetrating oil (like WD-40) around the edges and let it sit for 15–20 minutes. This can loosen the grip of rust or limescale, making removal easier. However, avoid excessive force—if the cartridge still won’t budge, consult a professional to prevent costly damage to the valve body. Remember, the goal is to extract, not extract a price from your wallet in repairs.
Finally, treat this step as a learning opportunity. Inspect the old cartridge for signs of wear, such as cracks, mineral deposits, or worn O-rings. These clues can reveal underlying issues, like water quality problems or excessive pressure, that may need addressing to extend the lifespan of the new cartridge. By understanding why the old one failed, you’re not just replacing a part—you’re upgrading your approach to maintenance. After all, knowledge is the best tool in any DIYer’s arsenal.
Shower Boards vs. Tiles: Which Bathroom Option Reigns Supreme?
You may want to see also
Explore related products
Install New Cartridge: Insert the new cartridge, apply lubricant, and reassemble the handle and trim
With the old cartridge removed, it's time to install the new one. This step is crucial for restoring your shower's functionality and ensuring a smooth, leak-free operation. Begin by taking the new American Standard cartridge and aligning it with the valve body. The cartridge's orientation is essential; ensure the notches or markings on the cartridge match the corresponding grooves in the valve to guarantee proper installation. Gently but firmly, push the cartridge into place until it sits flush with the valve.
The application of lubricant is a simple yet vital step often overlooked. A small amount of silicone-based lubricant applied to the cartridge's O-rings and the inside of the handle can make a significant difference. This lubrication reduces friction, allowing for smoother handle operation and prolonging the cartridge's lifespan. It's a quick fix that can prevent future issues, such as stiff handles or premature wear.
Reassembling the handle and trim requires attention to detail. Start by placing the handle adapter over the cartridge, ensuring it's correctly positioned. Then, attach the handle, securing it with the set screw. Tighten the screw firmly, but be cautious not to overtighten, as this can damage the cartridge or handle. Finally, reattach the trim plate, aligning it with the handle and securing it with the provided screws. This process not only completes the repair but also ensures the shower's aesthetics are restored.
This installation process is a delicate balance of precision and care. Each step, from inserting the cartridge to reassembling the trim, contributes to the overall success of the repair. By following these instructions, you can achieve a professional-looking result, ensuring your American Standard shower functions optimally. Remember, taking your time and paying attention to the small details will make this DIY project a satisfying and cost-effective solution.
Easy DIY Guide to Replacing Your Sayco Shower Diverter
You may want to see also
Frequently asked questions
Locate the model number of your shower valve, usually found on the valve body or in the product manual. Use this number to find the compatible cartridge on American Standard’s website or at a hardware store.
You’ll typically need a Phillips screwdriver, pliers, a cartridge puller (if the cartridge is stuck), and possibly a wrench. Grease or silicone lubricant may also be helpful for reassembly.
Turn off the water supply, disassemble the handle and escutcheon, then use a cartridge puller to grip and extract the cartridge. If it’s still stuck, apply penetrating oil and let it sit before trying again.
