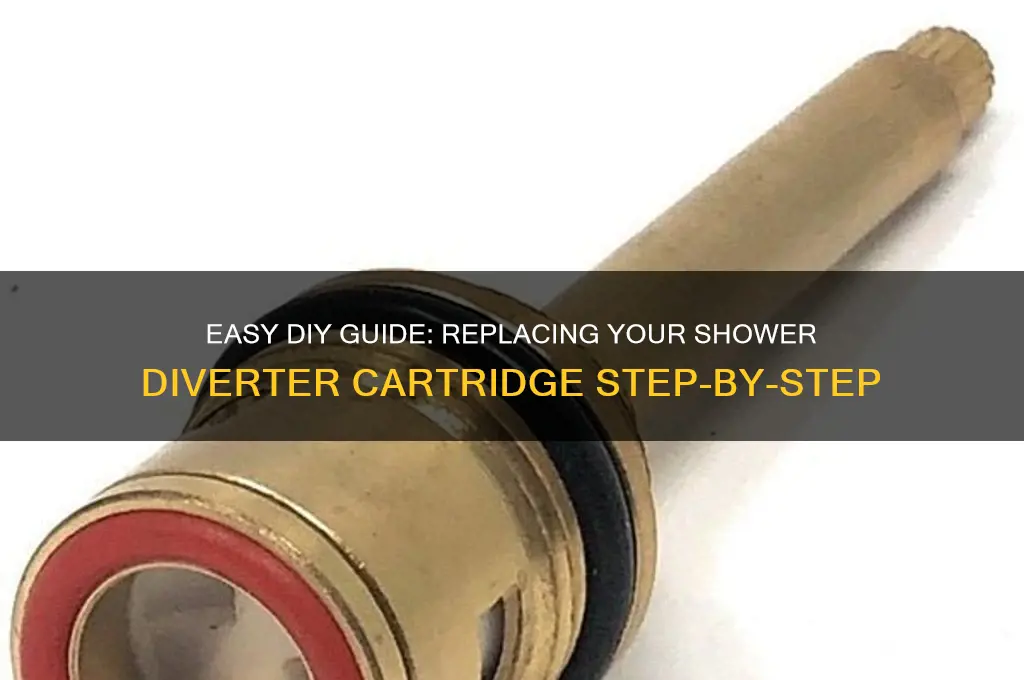

Replacing a shower diverter cartridge is a common DIY plumbing task that can resolve issues like leaks, low water pressure, or difficulty switching between the showerhead and tub spout. The diverter cartridge is a small component located inside the shower valve that directs water flow, and over time, it can wear out or become clogged with mineral deposits. To replace it, you’ll need to identify the type of cartridge your shower uses, turn off the water supply, remove the handle and escutcheon plate, and carefully extract the old cartridge. After cleaning the valve, insert the new cartridge, reassemble the components, and test the shower to ensure proper functionality. This process can save you from costly repairs and restore your shower’s performance efficiently.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver, pliers, cartridge puller, utility knife, replacement cartridge |
| Safety Precautions | Turn off water supply, wear safety gloves |
| Steps | 1. Remove handle, 2. Access cartridge, 3. Remove old cartridge, 4. Install new cartridge, 5. Reassemble |
| Cartridge Types | Single-control, dual-control, pressure balance |
| Common Brands | Moen, Delta, Kohler, American Standard |
| Difficulty Level | Moderate |
| Time Required | 30 minutes to 1 hour |
| Cost of Replacement Cartridge | $10 to $50 |
| Symptoms of Faulty Cartridge | Leaking, difficulty diverting water, inconsistent temperature |
| Maintenance Tips | Regularly clean cartridge, avoid excessive force on handle |
| Compatibility Check | Verify cartridge model number matches shower fixture |
| Warranty Considerations | Check if replacement voids existing warranty |
| Professional Help | Recommended if unsure or encountering complications |
