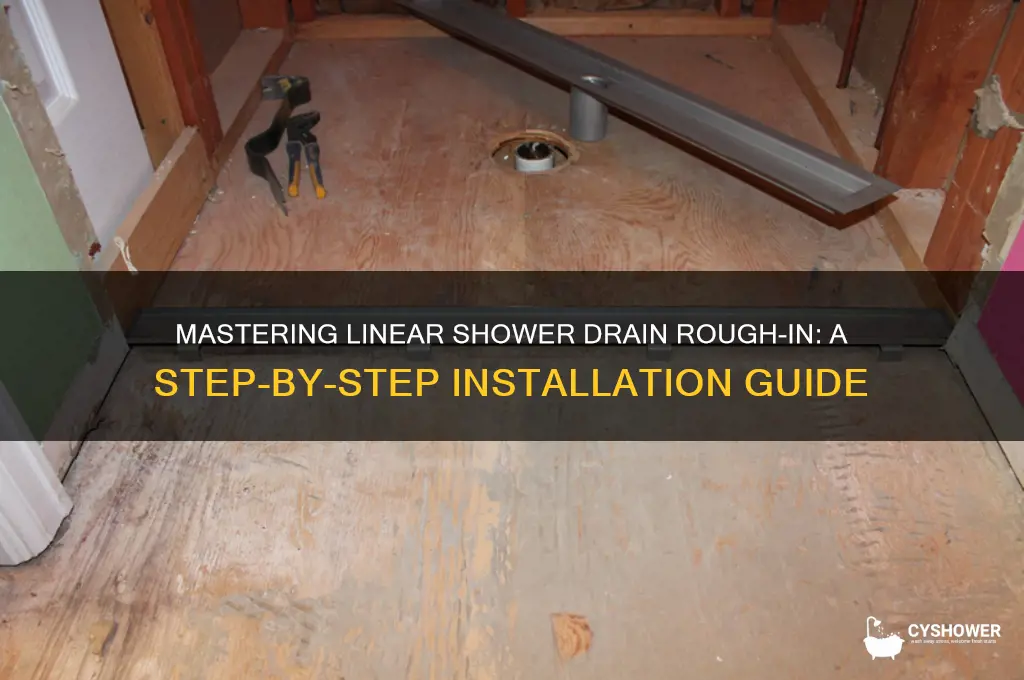

Roughing in a linear shower drain is a critical step in bathroom construction or renovation, ensuring proper drainage and preventing water buildup. This process involves precise planning and execution to align the drain with the shower slope, typically graded at a 1-2% incline toward the drain. Begin by marking the drain’s location on the subfloor, ensuring it’s centered and level. Next, cut an opening in the subfloor to accommodate the drain body, allowing for proper alignment with the plumbing system. Install the drain assembly according to the manufacturer’s instructions, ensuring it’s securely fastened and watertight. Finally, apply a layer of waterproofing membrane around the drain to prevent leaks. Accurate rough-in work sets the foundation for a functional and long-lasting linear shower drain installation.
| Characteristics | Values |
|---|---|
| Drain Location | Centered or offset based on shower design and slope requirements. |
| Slope Requirements | 1/4 inch per foot (2% slope) toward the drain for proper water flow. |
| Drain Size | Typically 2 inches in diameter; check local plumbing codes for specifics. |
| Rough-In Height | Adjusted to ensure the drain top aligns with the finished shower floor. |
| Waterproofing Membrane | Install a waterproof membrane (e.g., PVC or chlorine-free rubber) under and around the drain. |
| Subfloor Preparation | Ensure the subfloor is clean, level, and structurally sound. |
| Drain Assembly Installation | Secure the drain body to the subfloor with screws or brackets. |
| Pipe Connection | Connect the drain to the waste pipe using PVC or ABS fittings. |
| Test Fit Drain Cover | Ensure the drain cover fits properly before finalizing the rough-in. |
| Inspect for Leaks | Perform a flood test to check for leaks before proceeding with tiling. |
| Compliance with Codes | Adhere to local building and plumbing codes for drain installation. |
| Materials Needed | Drain assembly, waterproofing membrane, screws, PVC/ABS pipes, fittings. |
| Tools Required | Level, screwdriver, hacksaw, utility knife, measuring tape, plumber’s putty. |
| Time Estimate | 2-4 hours depending on experience and complexity. |
| Professional Assistance | Recommended for complex installations or code compliance verification. |
Explore related products
What You'll Learn
Planning Drain Placement
When planning the placement of a linear shower drain, the first step is to consider the shower layout and slope requirements. The drain should be positioned at the lowest point of the shower floor to ensure proper water flow. Typically, a slope of 1/4 inch per foot is recommended to facilitate efficient drainage. Measure the shower area and mark the centerline to help visualize the drain’s location. Ensure the drain aligns with the shower’s aesthetic and functional needs, such as being centered along a wall or placed at one end for a minimalist look. Always refer to local building codes for specific slope and placement requirements.
Next, evaluate the shower’s intended use and design style to determine the ideal drain location. For walk-in showers, placing the drain near the shower entrance can prevent water from pooling in high-traffic areas. In larger showers, a central drain may be more effective, but ensure it doesn’t interfere with the shower’s overall design. Consider the showerhead and spray pattern to avoid directing water away from the drain. If the shower includes a bench or niche, position the drain so it doesn’t obstruct these features while still capturing water effectively.
The relationship between the drain and the shower’s waterproofing system is critical. Plan the drain placement in coordination with the waterproofing membrane to ensure a seamless integration. The drain should be positioned so that the membrane can slope toward it without creating weak points or seams that could lead to leaks. Use a waterproof drain assembly compatible with your chosen membrane system, and ensure the drain flange is securely embedded in the membrane to maintain a watertight seal.
Another important factor is the plumbing layout. Locate the drain in a position where the piping can run straight and avoid unnecessary bends, which can reduce drainage efficiency. Measure the distance from the drain to the existing plumbing stack or vent and plan the pipe routing accordingly. If the drain is placed against a wall, ensure there is enough space behind the wall for the piping without interfering with other utilities. Consult a plumber if the layout is complex or if you’re unsure about venting requirements.
Finally, consider accessibility and maintenance when planning the drain placement. Avoid placing the drain in hard-to-reach areas, as this can make cleaning and maintenance difficult. If using a tile insert or grate, ensure it’s easily removable for debris removal. For barrier-free or curbless showers, position the drain close to the shower entrance to minimize the slope required across the floor, making it safer and more accessible. Always double-check measurements and plans before installation to avoid costly mistakes.
Quick DIY Guide to Repairing a Broken Shower Drain Pipe
You may want to see also
Explore related products
Cutting the Shower Pan Slope
To ensure proper drainage and prevent water pooling, cutting the shower pan slope is a critical step when roughing in a linear shower drain. The goal is to create a gentle gradient that directs water toward the drain, typically at a slope of 1/4 inch per foot. Begin by marking the layout of the shower pan, including the location of the linear drain. Use a chalk line or straightedge to draw lines from the drain to each wall, ensuring they are perfectly straight. These lines will serve as guides for cutting the slope.
Next, prepare the subfloor by ensuring it is clean, dry, and structurally sound. If the subfloor is uneven, level it using a self-leveling compound or additional mortar. Once the subfloor is ready, apply a layer of waterproof membrane or cladding to protect against moisture penetration. This step is essential to prevent water damage and mold growth beneath the shower pan. Allow the membrane to cure according to the manufacturer’s instructions before proceeding.
With the membrane in place, start cutting the slope using a cementitious mortar mix or a pre-sloped foam base. If using mortar, mix it to a thick, workable consistency and begin troweling it onto the subfloor. Follow the chalk lines, building up the mortar gradually to achieve the 1/4-inch slope. Use a straightedge or level to check the slope frequently, ensuring consistency across the entire shower pan. For precision, work in small sections and allow each layer to set slightly before smoothing it out.
Alternatively, pre-sloped foam bases offer a quicker and more consistent method for creating the slope. These foam panels are designed with a built-in gradient and can be cut to fit the shower dimensions. Secure the foam panels to the subfloor using recommended adhesives or screws, ensuring they align with the drain location. Once installed, apply a layer of mortar or waterproofing material over the foam to create a smooth, even surface for tile installation.
Finally, test the slope by pouring water onto the shower pan and observing its flow toward the linear drain. Adjust the slope as needed by adding or removing mortar in specific areas. Ensure the drain is level with the finished slope to avoid any obstructions. Once the slope is verified, allow the mortar to cure completely before proceeding with waterproofing and tile installation. Properly cutting the shower pan slope is essential for the functionality and longevity of the linear shower drain system.
Efficient Outdoor Shower Drain Venting: A Step-by-Step Guide
You may want to see also
Explore related products
Installing Drain Assembly
Before installing the drain assembly for a linear shower drain, ensure you have the correct tools and materials: a linear drain kit, silicone sealant, plumber’s tape, a level, a hacksaw, and a wrench. Begin by positioning the drain assembly in the rough opening you’ve prepared in the shower floor. The assembly should align perfectly with the slope of the shower pan to ensure proper drainage. Use a level to confirm that the drain is flush with the surrounding area and slightly tilted toward the outlet to facilitate water flow. Double-check the manufacturer’s instructions for specific alignment requirements, as some drains may have unique positioning needs.
Next, secure the drain assembly to the shower pan. Most linear drains come with adjustable legs or brackets that can be tightened to hold the drain in place. Loosen the screws on the brackets, adjust the height to match the shower floor, and then tighten them securely. Ensure the drain body is firmly attached and does not wobble. If the drain includes a clamping ring or locking mechanism, engage it to hold the assembly firmly against the shower pan. This step is critical to prevent leaks and ensure the drain remains stable during use.
Once the drain is securely positioned, connect the drain outlet to the existing plumbing. Attach the provided drainpipe or adapter to the outlet, ensuring it aligns with the shower’s waste line. Use plumber’s tape or a rubber gasket to create a watertight seal at the connection point. Tighten the fittings with a wrench, but avoid over-tightening to prevent damage to the threads or gasket. Test the connection by pouring water into the drain to ensure it flows freely into the waste line without leaks.
Apply a bead of silicone sealant around the top edge of the drain assembly where it meets the shower pan. This creates a waterproof barrier and prevents water from seeping beneath the drain. Smooth the sealant with a caulking tool or your finger, ensuring it adheres evenly to both the drain and the shower surface. Allow the sealant to cure according to the manufacturer’s instructions before proceeding with tiling or finishing the shower floor.
Finally, install the grate or cover over the drain assembly. Most linear drains come with a removable grate that fits snugly into the drain body. Ensure the grate is aligned correctly and sits flush with the surrounding surface. Secure it in place using the provided screws or clips, taking care not to overtighten, as this could damage the grate or drain body. With the grate installed, the drain assembly is complete, and you can proceed with waterproofing and tiling the shower area. Always follow the manufacturer’s guidelines for your specific drain model to ensure proper installation and performance.
Effective Tips to Minimize Shower Drain Pipe Clogs and Blockages
You may want to see also
Explore related products
Connecting Drain to Waste Line
When connecting the linear shower drain to the waste line, the first step is to ensure proper alignment and positioning. Measure the distance from the shower floor to the existing waste pipe and mark the location where the drain will connect. Typically, the waste line should be centered beneath the linear drain to ensure efficient water flow. Use a level to confirm that the drain is aligned with the slope of the shower floor, which should be a minimum of 1/4 inch per foot toward the drain to prevent standing water.
Next, cut the waste pipe to the appropriate length to accommodate the connection. If the existing waste line is PVC or ABS, use a hacksaw or PVC cutter to make a clean, straight cut. Ensure the pipe is deburred to allow for a smooth connection. For cast iron or galvanized pipes, you may need a reciprocating saw or pipe cutter. Once the pipe is cut, dry-fit the drain assembly to the waste line to verify alignment and ensure there are no obstructions.
After confirming the fit, disassemble the drain and prepare the pipes for permanent connection. Apply primer to the PVC or ABS pipes and fittings, followed by a layer of cement, ensuring full coverage. Quickly insert the drain’s outlet into the waste line, twisting slightly to secure it in place. Hold the connection firmly for about 30 seconds to allow the cement to set. For threaded connections, wrap the threads with Teflon tape or use pipe compound to create a watertight seal before tightening the fittings with a wrench.
Once the drain is connected to the waste line, secure it in place to prevent movement during use. Use plumber’s putty or silicone sealant around the drain flange to create a watertight seal between the drain body and the shower pan. If the drain assembly includes mounting brackets or screws, attach them according to the manufacturer’s instructions. Double-check that the drain remains level and aligned with the shower slope.
Finally, test the connection for leaks before proceeding with the final shower installation. Pour water into the drain to ensure it flows freely into the waste line without pooling or backup. Inspect the connection points for any signs of leakage, particularly at the joint between the drain and the waste pipe. If leaks are detected, disassemble the connection, reapply primer and cement, or tighten fittings as needed. Once the connection is secure and leak-free, you can proceed with tiling and finishing the shower floor.
Quick Fixes: Unclog and Drain Your Blocked Shower Effortlessly
You may want to see also
Explore related products
Testing for Leaks & Fit
Before finalizing the installation of your linear shower drain, it's crucial to test for leaks and ensure a proper fit. Start by dry-fitting the drain assembly into the rough opening to verify alignment and positioning. Place the drain body into the opening without securing it, and check that it sits flush with the shower floor and aligns with the slope you’ve established for proper drainage. Ensure the drain is centered and level, using a spirit level to confirm accuracy. If adjustments are needed, make them now before proceeding.
Next, conduct a water test to check for leaks in the drain assembly and surrounding areas. Temporarily seal the drain opening with a removable plug or tape, and fill the shower pan or sloped area with water to a depth of at least 2 inches. Let the water sit for several hours, periodically inspecting the subfloor and underside of the shower pan for any signs of leakage. Pay close attention to the seams between the drain body and the shower pan, as well as the connections to the drain pipe. If leaks are detected, drain the water, dry the area, and re-examine the seals and connections to identify and rectify the issue.
Once the water test is complete and no leaks are found, test the fit of the drain cover or grate. Place the cover over the drain body and ensure it sits securely and evenly. Check that the grate aligns with the surrounding tile or flooring and that there are no gaps or uneven edges. If the grate doesn’t fit properly, adjust the positioning of the drain body or trim the grate as needed, ensuring it remains functional and aesthetically pleasing.
After confirming the fit of the grate, reconnect the drain pipe to the drain body, ensuring all connections are tight and properly sealed. Use plumber’s tape or a suitable sealant on threaded connections to prevent leaks. Once reassembled, repeat the water test to ensure the entire system remains leak-free. This step is critical to avoid water damage and ensure the longevity of your shower installation.
Finally, inspect the overall fit and functionality of the linear drain. Ensure the slope directs water efficiently toward the drain, and verify that the grate allows for proper water flow without obstruction. If everything checks out, proceed with tiling or finishing the shower floor around the drain. Proper testing for leaks and fit at this stage will save time and prevent costly repairs later, ensuring a durable and reliable shower drain installation.
Easy DIY Guide: Repairing Your Wall-Mounted Shower Mixer Quickly
You may want to see also
Frequently asked questions
The first step is to determine the exact location of the drain based on the shower layout and slope requirements. Ensure it aligns with the shower pan and is centered or positioned as per design specifications.
Use a pre-sloped shower pan or create a slope of 1/4 inch per foot toward the drain using mortar or a mud bed. Verify the slope with a level to ensure water drains efficiently.
You’ll need a linear drain assembly, PVC or ABS piping, waterproofing membrane, mortar or thin-set, a shower pan (if not using a mud bed), and tools like a trowel, level, and saw for cutting pipes.
Attach the drain outlet to the existing waste pipe using PVC or ABS fittings. Ensure the connection is secure, properly aligned, and complies with local plumbing codes. Test for leaks before finalizing the installation.
