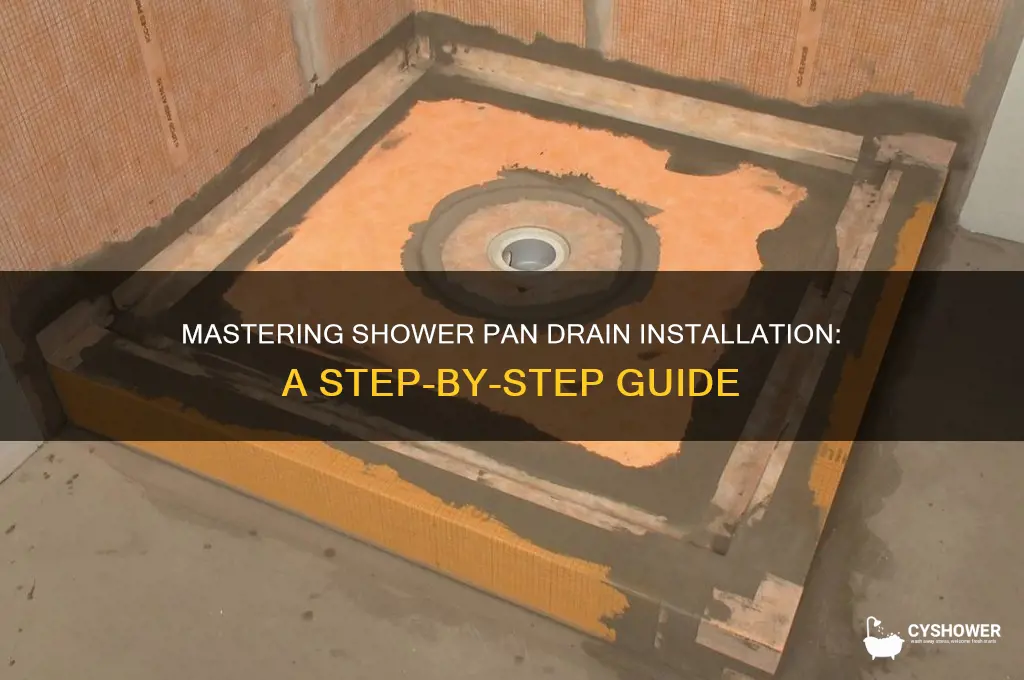

Running the drain for a shower pan is a crucial step in any bathroom renovation or installation, ensuring proper water flow and preventing leaks. The process involves carefully positioning the drain assembly, which typically includes a drain body, strainer, and plumbing connections, to align with the shower pan’s pre-cut hole. It’s essential to use a waterproof membrane or sealant around the drain to create a watertight seal, preventing moisture from seeping into the subfloor. Additionally, ensuring the drain is level and securely attached to the plumbing system is vital for efficient water evacuation. Proper installation not only enhances the shower’s functionality but also extends the lifespan of the shower pan by minimizing the risk of water damage.
| Characteristics | Values |
|---|---|
| Drain Location | Centered in the shower pan for optimal water flow. |
| Drain Size | Typically 2 inches in diameter (standard size for shower pans). |
| Drain Type | PVC or ABS (depending on local plumbing codes). |
| Slope Requirement | 1/4 inch per foot slope toward the drain for proper drainage. |
| Mortar Bed | Required under the shower pan to create the necessary slope. |
| Waterproofing | Apply waterproofing membrane around the drain and under the shower pan. |
| Drain Assembly | Includes a drain body, strainer, and optional hair catcher. |
| Ventilation | Ensure the drain is properly vented to prevent airlocks and slow drainage. |
| Sealing | Use silicone or plumber's putty to seal the drain to the shower pan. |
| Rough-In Height | Adjust the drain height during rough-in to align with the finished floor. |
| Compliance | Follow local building codes and manufacturer instructions. |
| Testing | Perform a flood test before tiling to ensure no leaks. |
| Tools Required | Saw, drill, screwdriver, level, and plumbing wrenches. |
| Material Compatibility | Ensure compatibility between the drain material and shower pan material. |
| Maintenance | Regularly clean the drain to prevent clogs. |
Explore related products
What You'll Learn
Prepare the Shower Pan Area
Before you begin running the drain for your shower pan, proper preparation of the area is crucial for a successful installation. Start by ensuring the shower pan area is clean and free of any debris, dust, or old materials. Remove any existing flooring or subfloor down to the joists if necessary, especially if you're dealing with a remodel. This step is essential to provide a stable and level base for the shower pan. Use a vacuum or a brush to thoroughly clean the area, as any leftover particles can interfere with the leveling process or the adhesion of the shower pan.
Next, inspect the area for any signs of water damage, rot, or mold. Address these issues immediately by replacing damaged joists or subflooring. It’s critical to have a solid and dry foundation to prevent future problems. If the subfloor is uneven, use a self-leveling compound to create a flat surface. Follow the manufacturer’s instructions for mixing and applying the compound, and allow it to cure completely before proceeding. A level subfloor ensures the shower pan sits correctly and drains efficiently.
Once the subfloor is prepared, mark the location of the drain hole according to the shower pan manufacturer’s specifications. Typically, the drain should be centered in the shower pan to ensure proper water flow. Use a pencil or marker to clearly indicate the spot. Double-check the measurements to avoid mistakes, as an incorrectly placed drain can lead to water pooling or installation difficulties. If you’re working with a new construction, ensure the plumbing rough-in for the drain is already in place and aligned with your markings.
After marking the drain location, prepare the hole for the shower drain assembly. Use a hole saw or jigsaw to cut through the subfloor, ensuring the hole is the correct size for your drain kit. Be precise to avoid damaging surrounding materials. If you’re installing a new drain pipe, ensure it is properly aligned with the existing plumbing and secured according to local building codes. Test the drain alignment by dry-fitting the shower pan to ensure the drain fits snugly and is level with the pan’s bottom.
Finally, apply a waterproofing membrane to the subfloor and surrounding walls as required by the shower pan manufacturer or local codes. This step is vital to prevent water from seeping into the subfloor or walls, which can cause structural damage over time. Use a paint roller or brush to apply the membrane evenly, paying extra attention to corners and seams. Allow the membrane to dry completely before proceeding with the shower pan installation. Proper waterproofing ensures the longevity and functionality of your shower drain system.
Quick Fixes for a Smooth-Sliding Shower Enclosure Door
You may want to see also
Explore related products
Install the Drain Assembly Properly
Installing the drain assembly properly is a critical step in ensuring your shower pan functions correctly and prevents leaks. Begin by preparing the shower pan and drain components. Place the shower pan in its final position, ensuring it is level and aligned with the surrounding structure. Locate the pre-cut hole in the center of the pan, which is designed to accommodate the drain. Clean the area around the hole to remove any debris or residue that could interfere with the installation. Next, inspect the drain assembly to ensure all parts are included: the drain body, gasket, strainer, and any accompanying screws or seals. Familiarize yourself with the manufacturer’s instructions, as designs may vary slightly between brands.
With the shower pan in place, insert the drain body through the hole from the top of the pan. The drain body should fit snugly, but avoid forcing it, as this could damage the pan. From beneath the shower pan, secure the drain body using the provided gasket and tightening ring. The gasket should create a watertight seal between the drain body and the shower pan. Tighten the ring evenly, using a screwdriver or wrench, to ensure the drain body is firmly in place. Be cautious not to overtighten, as this could crack the pan or damage the threads. Double-check that the drain body is level and aligned with the shower pan’s slope to allow proper water drainage.
Once the drain body is secured, attach the plumbing connections to the bottom of the drain assembly. Use PVC or ABS piping, depending on your local plumbing codes and the manufacturer’s recommendations. Apply a suitable adhesive or solvent cement to the pipe and drain fitting, then push them together firmly. Wipe away any excess adhesive and allow it to dry according to the manufacturer’s instructions. Ensure the pipe is angled slightly downward to facilitate proper water flow toward the main drain line. If necessary, use a pipe support or strap to secure the drain pipe and prevent movement or strain on the drain assembly.
After the plumbing connections are complete, install the strainer onto the top of the drain body. The strainer serves to catch hair and debris, preventing clogs in the drain system. Place the strainer over the drain opening and secure it using the provided screws or by threading it onto the drain body. Ensure the strainer sits flush with the shower pan’s surface to avoid tripping hazards and maintain a clean appearance. Test the strainer by running water into the shower pan to ensure it fits properly and does not allow water to leak around the edges.
Finally, conduct a water test to verify the drain assembly is installed correctly. Fill the shower pan with water and observe the drain for any signs of leakage around the drain body, gasket, or plumbing connections. If leaks are detected, tighten the connections or adjust the gasket as needed. Once the drain functions properly, proceed with the remainder of the shower installation, such as waterproofing and tiling. Proper installation of the drain assembly ensures a functional and leak-free shower pan, contributing to the longevity and performance of your shower system.
Easy DIY Guide to Repairing Cracked Shower Grout Quickly
You may want to see also
Explore related products
Connect Drain Pipes Securely
When connecting drain pipes securely for a shower pan, start by ensuring all components are properly aligned and prepared. Begin by placing the shower drain assembly into the pre-cut hole in the shower pan, making sure it fits snugly and is level. Apply a bead of silicone caulk or plumber’s putty around the drain flange to create a watertight seal between the drain and the shower pan. This step is crucial to prevent leaks and water damage. Once the drain is in place, tighten the screws or bolts from underneath the pan to secure the drain assembly firmly. Double-check that the drain is centered and flush with the surface of the shower pan before proceeding.
Next, connect the drain tailpiece to the shower drain assembly. The tailpiece is the vertical pipe that extends downward from the drain and will eventually connect to the horizontal drain pipe. Use a coupling or adapter if the sizes of the tailpiece and drain pipe differ. Ensure all connections are tight and secure by hand-tightening the threaded fittings or using appropriate adhesives for solvent-welded pipes. If using PVC or ABS pipes, apply primer and cement to the joints, following the manufacturer’s instructions for a strong, leak-free bond. Wipe away any excess adhesive to maintain a clean and professional appearance.
To connect the horizontal drain pipe, measure and cut the pipe to the appropriate length, ensuring it aligns with the tailpiece and the main drain line. Use a hacksaw or PVC cutter for clean, straight cuts. Attach the pipe to the tailpiece using a coupling or adapter, securing it with threaded fittings or solvent welds, depending on the pipe material. Slope the horizontal pipe slightly (approximately 1/4 inch per foot) toward the main drain line to ensure proper water flow and prevent standing water. Secure the pipe in place with hangers or straps to avoid strain on the joints and maintain the correct slope.
Finally, test the connections for leaks before finalizing the installation. Pour water into the shower drain and inspect all joints for signs of leakage. If leaks are detected, tighten fittings or reapply adhesive as needed. Once the system is confirmed to be leak-free, insulate the drain pipes if required by local building codes or to prevent condensation. Properly securing the drain pipes ensures efficient water drainage and prevents future plumbing issues, making this step essential for a successful shower pan installation.
Easy DIY Guide to Repairing Your Moen Delta Shower Faucet Cartridge
You may want to see also
Explore related products
Test for Leaks and Water Flow
Before finalizing the installation of your shower pan drain, it’s crucial to test for leaks and ensure proper water flow. Start by dry-fitting all components—the drain assembly, shower pan, and plumbing connections—to ensure they align correctly without any gaps. Use plumber’s putty or silicone sealant around the drain flange to create a watertight seal between the drain and the shower pan. Once the drain is securely installed, connect the drain pipe to the P-trap and ensure all fittings are tightened properly. Double-check that the P-trap is positioned correctly to allow for proper water flow and to prevent clogs. This initial setup is essential to minimize the risk of leaks during testing.
To test for leaks, fill the shower pan with water to a level just below the top of the drain. Let it sit for at least 15–20 minutes, observing closely for any signs of water seeping through the drain flange, the shower pan, or the plumbing connections. If you notice any leaks, dry the area, disassemble the drain, and reapply sealant or adjust the fittings as needed. Repeat the test until no leaks are detected. This step ensures that the drain assembly is fully sealed and ready for regular use.
Next, test the water flow by running water through the drain at a moderate pace. Observe how quickly the water empties from the shower pan. If the water drains slowly or pools around the drain, there may be an issue with the slope of the shower pan or a blockage in the drain pipe. Ensure the shower pan is sloped correctly toward the drain, typically at a gradient of 1/4 inch per foot. If the slope is correct and the water still drains slowly, inspect the drain pipe and P-trap for obstructions or improper alignment.
For a more thorough flow test, pour a bucket of water into the shower pan to simulate heavy use. Watch how the water exits through the drain and check for any gurgling sounds, which could indicate a venting issue in your plumbing system. Proper venting is essential to maintain optimal water flow and prevent airlocks. If you suspect a venting problem, consult a professional plumber to address the issue.
Finally, after confirming that the drain is leak-free and the water flow is efficient, proceed with tiling or finishing the shower area. Always follow local building codes and manufacturer instructions for your specific shower pan and drain system. Testing for leaks and water flow before completing the installation saves time and prevents potential water damage down the line, ensuring a functional and long-lasting shower pan drain.
Easy Steps to Repair Your Moen Shower Valve Quickly and Efficiently
You may want to see also
Explore related products
Seal and Waterproof the Drain Area
Sealing and waterproofing the drain area is a critical step in installing a shower pan to prevent water leakage and potential damage to the subfloor and surrounding structures. Begin by ensuring the drain assembly is securely installed and properly aligned with the shower pan. Use a high-quality plumber’s putty or silicone sealant to create a watertight seal between the drain body and the shower pan. Apply the sealant evenly around the drain flange, pressing it firmly into place to eliminate any gaps. Allow the sealant to cure according to the manufacturer’s instructions before proceeding to ensure maximum adhesion and waterproofing.
Next, focus on the area where the drain pipe connects to the shower pan. Wrap the threads of the drain pipe with Teflon tape or apply a pipe joint compound to create a secure, leak-free connection. Tighten the drain assembly carefully, ensuring it is snug but not over-tightened, as this can damage the shower pan or the drain components. Once the drain is securely attached, inspect the connection for any signs of leakage by running water through the drain and checking for moisture around the pipe joint.
After securing the drain, apply a waterproof membrane or liquid waterproofing compound to the entire drain area and the surrounding shower pan surface. This additional layer acts as a secondary barrier against water penetration, especially in areas where the sealant might be more prone to wear or movement. Use a brush or roller to apply the waterproofing material evenly, ensuring full coverage and paying special attention to seams and corners. Allow the membrane or compound to dry completely before proceeding with tiling or other finishing steps.
For added protection, consider installing a waterproof drain flashing or clamp beneath the shower pan. This component bridges the gap between the drain and the shower pan, providing an extra layer of defense against water intrusion. Position the flashing carefully, ensuring it fits snugly around the drain and adheres securely to the shower pan. Seal the edges of the flashing with a waterproof sealant to create a continuous barrier against moisture.
Finally, test the drain area for waterproofing integrity before completing the shower installation. Fill the shower pan with water and let it sit for at least 24 hours, monitoring for any signs of leakage around the drain or surrounding areas. If no leaks are detected, proceed with confidence, knowing the drain area is properly sealed and waterproofed. This meticulous approach ensures a durable and reliable shower pan installation that will withstand daily use and protect your home from water damage.
Effective DIY Methods to Unclog Hair from Shower Drains Fast
You may want to see also
Frequently asked questions
The drain for a shower pan is typically located at the lowest point of the pan, usually in the center or towards one side. It is often covered by a drain cover or strainer, which can be removed to access the drain.
To run the drain for a shower pan, you will typically need a hacksaw or reciprocating saw to cut the drain pipe, a drill with a hole saw bit to create a hole for the drain, and PVC glue and primer to secure the drain pipe. You may also need a plunger or drain snake to clear any debris from the drain.
To connect the drain pipe to the shower pan, first ensure the drain hole is properly aligned and sized. Then, apply PVC primer to the drain pipe and shower pan drain fitting, followed by PVC glue. Quickly insert the drain pipe into the fitting and hold it in place until the glue sets. Check for leaks and ensure proper drainage before completing the installation.
