Mia Stone

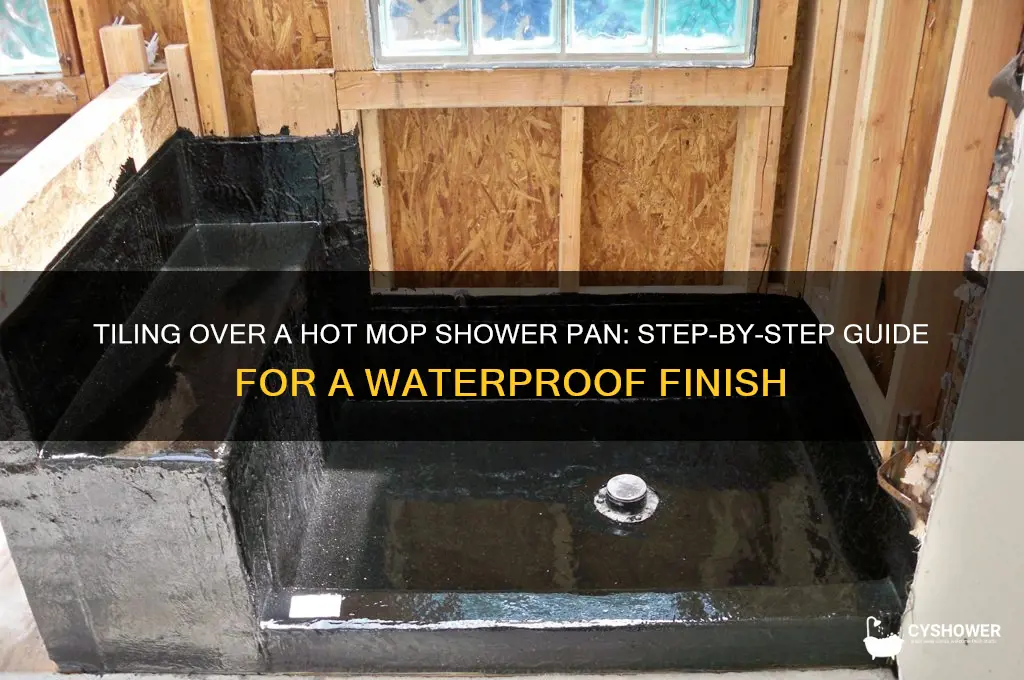

Tiling over a hot mop shower pan is a specialized process that requires careful preparation and execution to ensure a waterproof and durable finish. Hot mop shower pans, traditionally made with a layer of hot asphalt and fiberglass, provide a reliable waterproofing base, but tiling over them demands attention to detail. The process begins with thoroughly cleaning and inspecting the pan to ensure it’s free of cracks, debris, or imperfections. A suitable waterproofing membrane or uncoupling mat is often applied over the hot mop surface to create a stable and moisture-resistant foundation for the tiles. Properly adhering the tiles using a high-quality thinset mortar and ensuring consistent grout lines are crucial steps. Additionally, addressing expansion joints and using the right materials for the shower environment will prevent future issues like cracking or water leakage. When done correctly, tiling over a hot mop shower pan can result in a beautiful, long-lasting shower that combines traditional waterproofing techniques with modern tile aesthetics.
| Characteristics | Values |
|---|---|
| Surface Preparation | Ensure the hot mop shower pan is clean, dry, and free of debris. Repair any cracks or damage before tiling. |
| Waterproofing | Hot mop is inherently waterproof, but additional waterproofing membrane (e.g., liquid waterproofing or cementitious coatings) is recommended over the hot mop surface for added protection. |
| Bonding Agent | Apply a bonding agent or primer (e.g., latex additive or tile adhesive with bonding properties) to improve adhesion between the hot mop and thinset mortar. |
| Thinset Mortar | Use a polymer-modified thinset mortar suitable for wet areas. Follow manufacturer instructions for mixing and application. |
| Tile Selection | Choose tiles suitable for wet areas, such as ceramic, porcelain, or natural stone. Ensure tiles are rated for shower use. |
| Tile Layout | Plan the tile layout to minimize cuts and ensure proper drainage. Start tiling from the center or focal point of the shower pan. |
| Grout | Use a waterproof grout (e.g., epoxy or cementitious grout with a waterproofing additive) to fill tile joints. Allow proper curing time. |
| Expansion Joints | Incorporate expansion joints around the perimeter of the shower pan and at intervals as needed to accommodate movement and prevent cracking. |
| Sealing | Seal grout lines and tile edges with a high-quality silicone caulk or grout sealer to prevent water penetration. |
| Curing Time | Allow sufficient curing time for thinset, grout, and waterproofing materials before using the shower. Typically 24-48 hours, depending on products used. |
| Maintenance | Regularly clean and maintain the tiled surface to prevent soap scum, mildew, and mold buildup. Reapply sealant as needed. |
| Professional Guidance | Consult a professional tile installer or waterproofing specialist for complex installations or if unsure about any step. |
Explore related products
What You'll Learn
Prepare the shower pan surface for tiling
Before tiling over a hot mop shower pan, the surface must be meticulously prepared to ensure adhesion and longevity. Hot mop pans, known for their waterproof asphalt base, present a unique challenge due to their smooth, non-porous nature. Unlike concrete or plywood, this surface lacks texture, which is critical for tile mortar to grip effectively. Without proper preparation, tiles may detach over time, leading to costly repairs and water damage.
Surface Evaluation and Cleaning
Begin by inspecting the hot mop pan for cracks, unevenness, or signs of wear. Minor cracks can be filled with a flexible waterproofing sealant, while deeper issues may require professional repair. Next, thoroughly clean the surface to remove soap scum, grease, or mineral deposits. Use a degreasing cleaner or a mixture of trisodium phosphate (TSP) and water, following the manufacturer’s dilution ratio (typically ½ cup TSP per gallon of water). Scrub the area with a stiff brush, rinse thoroughly, and allow it to dry completely.
Creating Texture for Adhesion
To enhance mortar adhesion, the smooth hot mop surface must be roughened. Sanding is the most effective method—use 80-grit sandpaper or a mechanical sander to scuff the entire pan, focusing on areas where water pools. Alternatively, apply a latex primer or a bonding agent specifically designed for non-porous surfaces. Products like epoxy or acrylic-based primers create a textured base for mortar, but ensure compatibility with both the hot mop and tile adhesive.
Waterproofing and Membrane Installation
Even though hot mop pans are inherently waterproof, adding an extra layer of protection is prudent. Install a waterproofing membrane over the prepared surface, such as liquid-applied membranes or sheet membranes like PVC or CPE. Follow the manufacturer’s instructions for application, ensuring all corners and seams are fully covered. This step not only safeguards against leaks but also provides a uniform surface for tiling.
Final Preparation and Layout
Before laying tiles, dry-fit them to plan the layout and ensure proper drainage toward the shower drain. Mark reference lines on the walls to maintain alignment. If using a notched trowel to apply mortar, test a small area first to confirm adhesion. Allow the mortar to cure slightly before setting tiles, pressing firmly to embed them into the mortar bed. This meticulous preparation ensures a durable, watertight finish that withstands daily use and environmental stress.
Top Backer Board Options for Durable and Waterproof Tile Showers
You may want to see also
Explore related products
Apply waterproofing membrane correctly over the hot mop
Applying a waterproofing membrane over a hot mop shower pan is a critical step to ensure longevity and prevent leaks. The hot mop, a traditional waterproofing method using hot asphalt and fiberglass fabric, creates a durable base but requires a modern membrane to bridge gaps and enhance protection. Before starting, ensure the hot mop surface is clean, dry, and free of debris. Any imperfections or loose material can compromise the membrane’s adhesion, so inspect the surface carefully and patch any cracks or voids with a compatible repair compound.
The choice of waterproofing membrane is pivotal. Liquid-applied membranes, such as those based on polyurethane or acrylic, are ideal for their flexibility and ability to conform to the hot mop’s uneven surface. Roll-on membranes, like sheet-applied PVC or rubberized asphalt, are also effective but require precise installation to avoid wrinkles or air pockets. Follow the manufacturer’s instructions for mixing ratios and application thickness—typically, two coats are recommended, with the first coat applied horizontally and the second vertically to ensure complete coverage. Allow each coat to cure fully, which can take 24–48 hours depending on humidity and temperature.
One common mistake is rushing the application process. Overlapping seams inadequately or failing to embed fabric mesh in liquid membranes can lead to weak spots. For liquid membranes, use a notched trowel to apply the first coat evenly, then reinforce seams and corners with a polyester fabric layer before applying the second coat. For sheet membranes, heat-weld seams using a specialized welding tool to create a watertight bond. Always test the membrane’s integrity with a flood test before tiling—fill the shower pan with water for 24 hours and inspect for leaks.
Caution must be exercised when working with hot mop surfaces, as they can retain heat and release fumes. Ensure proper ventilation and wear protective gear, including gloves and a respirator. Avoid applying membranes in direct sunlight or extreme temperatures, as this can affect curing and adhesion. If the hot mop surface is particularly rough, consider sanding it lightly or applying a primer to improve bonding. Finally, remember that the membrane is only as good as its installation—precision and patience are key to achieving a waterproof seal.
In conclusion, applying a waterproofing membrane over a hot mop shower pan is a blend of art and science. By selecting the right product, following meticulous application steps, and avoiding common pitfalls, you can create a robust barrier against moisture intrusion. This not only protects the underlying structure but also ensures a stable substrate for tile installation, setting the stage for a beautiful and durable shower.
Essential Shower Wall Prep: What to Apply Before Tiling for Durability
You may want to see also
Explore related products
Choose suitable tiles and adhesive for wet areas
Selecting the right tiles for a hot mop shower pan is crucial, as not all tiles are created equal when it comes to wet areas. Porcelain tiles, for instance, are a top choice due to their low water absorption rate, typically less than 0.5%. This makes them highly resistant to moisture, preventing water from seeping through and causing damage. In contrast, ceramic tiles, while popular, absorb more water and may not be as durable in high-moisture environments. For a hot mop shower pan, prioritize tiles with a high slip resistance rating, such as those with a Dynamic Coefficient of Friction (DCOF) of 0.42 or higher, to ensure safety in wet conditions.
The adhesive you choose is equally important, as it must bond effectively to both the hot mop surface and the tiles while withstanding constant moisture exposure. Modified thin-set mortars, particularly those labeled for wet areas, are ideal. Look for products that specify "waterproof" or "immersed conditions" on the packaging. For example, a polymer-modified cement-based adhesive provides superior adhesion and flexibility, reducing the risk of cracks over time. When applying the adhesive, use a notched trowel to create ridges, ensuring proper coverage and allowing for air pockets to escape, which enhances bonding strength.
A common mistake is overlooking the importance of grout selection in wet areas. Epoxy grout is the gold standard for shower pans due to its waterproof and stain-resistant properties. Unlike cementitious grout, which can crack and absorb water, epoxy grout forms a dense, impermeable barrier. However, it requires precise application—mix only small batches at a time, as it sets quickly, and ensure the grout lines are fully packed to avoid voids. For added protection, consider applying a grout sealer after curing, though epoxy grout typically doesn’t require it.
Finally, consider the long-term maintenance and aesthetic appeal of your tile choice. Light-colored tiles with subtle textures can create a spacious, modern look while hiding water spots and soap scum more effectively than dark or highly polished tiles. Additionally, larger tiles with minimal grout lines reduce areas where mold and mildew can accumulate, simplifying cleaning. Pairing these tiles with a high-quality adhesive and grout ensures not only a visually appealing shower but also one that stands the test of time in a wet environment.
Uneven Shower Tiles: Causes, Fixes, and Prevention Tips for Flat Laying
You may want to see also
Explore related products
Install tiles with proper spacing and alignment
Achieving proper spacing and alignment when tiling over a hot mop shower pan is critical for both aesthetics and functionality. Uneven tiles or inconsistent grout lines can detract from the overall appearance and compromise the waterproof integrity of the installation. To ensure precision, start by laying out the tiles dry to visualize the pattern and make adjustments for cuts or spacing. Use tile spacers—typically 1/16 to 1/8 inch for shower walls—to maintain consistent gaps between tiles. For floors, consider slightly wider grout lines (up to 3/16 inch) to accommodate movement and provide better traction.
The alignment of tiles is equally important, especially in a wet environment like a shower. Begin by establishing a level reference line, either horizontally or vertically, depending on the starting point. Use a laser level or a straightedge to ensure accuracy. Work in small sections, pressing each tile firmly into the mortar bed and checking alignment with adjacent tiles. Adjust as needed before the mortar sets. For diagonal or herringbone patterns, measure and mark the layout carefully to avoid misalignment, which can be more noticeable in complex designs.
One common mistake is neglecting to account for the thickness of the grout lines when planning the layout. This can lead to tiles being pushed out of alignment as spacers are removed and grout is applied. To avoid this, subtract the width of the grout lines from the tile dimensions when calculating the overall layout. For example, if using 12-inch tiles with 1/8-inch grout lines, plan for 11 7/8-inch spacing to ensure tiles remain aligned after grouting.
Proper spacing also plays a role in the shower pan’s drainage and water resistance. Ensure tiles slope slightly toward the drain to prevent water pooling. Use a level or a slope gauge to verify the gradient during installation. Additionally, avoid placing grout lines directly over the shower pan’s seams or transitions, as these areas are more prone to movement and cracking. Instead, position tiles to bridge these joints for added stability.
Finally, take time to inspect the layout before the mortar fully sets. Once tiles are bonded, correcting alignment or spacing issues becomes significantly more difficult. Step back periodically to view the installation from different angles, checking for uniformity and symmetry. Small adjustments made early in the process can save hours of rework later. With careful planning and attention to detail, proper spacing and alignment will enhance both the durability and visual appeal of the tiled shower pan.
Spotting Mold in Your Tile Shower: Key Warning Signs to Watch
You may want to see also
Explore related products
Grout and seal the tiled shower pan effectively
Grout selection is critical when tiling over a hot mop shower pan, as the wrong type can lead to cracks, mold, or water damage. Opt for a sanded grout with a minimum 1/8-inch joint width to accommodate tile expansion and contraction. Unsanded grout, though smoother, lacks the necessary strength for this application. Epoxy grout is ideal due to its waterproof and stain-resistant properties, but it requires precise mixing—follow the manufacturer’s ratio (typically 2 parts resin to 1 part hardener) and work in small batches to prevent premature hardening. For a budget-friendly option, choose a polymer-modified cementitious grout, which offers improved flexibility and water resistance compared to traditional cement grout.
Sealing the grout and tile is non-negotiable to protect against moisture infiltration. Apply a penetrating sealer specifically designed for showers, ensuring it bonds deeply with the grout pores. Before sealing, allow the grout to cure for at least 72 hours to avoid trapping moisture. Use a small foam brush for precision, wiping excess sealer from the tile surface immediately with a clean cloth. Reapply the sealer annually or as recommended by the manufacturer, especially in high-use showers. For added protection, consider a grout release agent during installation to prevent grout from bonding to the tile surface, making cleanup easier and reducing the risk of stains.
A common mistake is neglecting the shower pan’s slope during grouting, which can lead to water pooling. Ensure the grout lines follow the pan’s gradient, typically 1/4 inch per foot toward the drain. Use a level to verify alignment and adjust grout thickness as needed. For curved or irregular tiles, employ a grout bag for controlled application, avoiding overfilling that could disrupt the slope. After grouting, mist the area with water and use a grout float at a 45-degree angle to pack the grout firmly, minimizing voids that could trap water.
Comparing sealing methods reveals that spray-on sealers are convenient but often less effective than brush-applied products. Spray sealers may miss grout lines or create an uneven coat, while brushing ensures thorough coverage. Additionally, avoid sealing over dirty grout, as debris can become permanently trapped. Clean the grout with a pH-neutral cleaner and stiff brush before sealing. For heavily soiled areas, use a grout cleaner with a 1:10 bleach-to-water solution, rinsing thoroughly to prevent discoloration. This meticulous approach ensures the shower pan remains watertight and aesthetically pleasing for years.
Top Shower Rods for Tile: Durable, Stylish, and Easy Install Options
You may want to see also
Frequently asked questions
Yes, you can tile directly over a hot mop shower pan, but it’s crucial to ensure the surface is clean, dry, and free of any debris. Apply a waterproofing membrane or a suitable primer to enhance adhesion and protect against moisture.
Use a polymer-modified thinset mortar specifically designed for wet areas. This type of adhesive provides strong bonding and flexibility, which is essential for shower pans where movement and moisture are common.
While hot mop is inherently waterproof, it’s a good practice to apply an additional waterproofing membrane or liquid waterproofing product over the hot mop before tiling. This adds an extra layer of protection against potential leaks.
