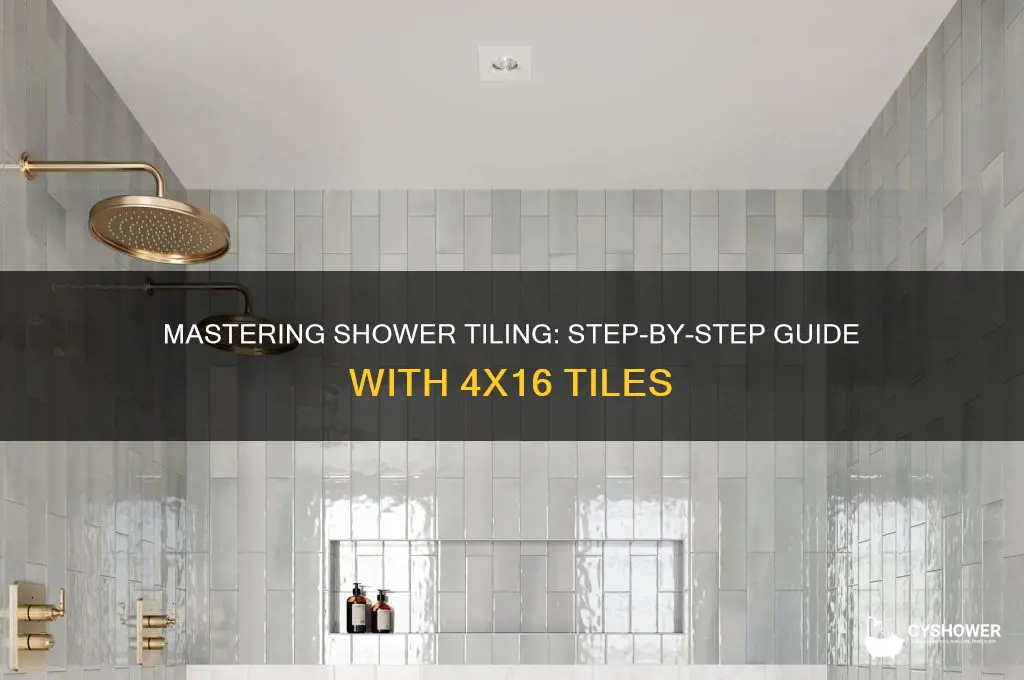

Tiling a shower with 4x16 tiles is a popular choice for modern bathroom designs, offering a sleek and elongated look that can make small spaces appear larger. This project requires careful planning, precise measurements, and the right tools to ensure a professional finish. From preparing the shower surface and laying out the tile pattern to applying thinset and grouting, each step is crucial for durability and water resistance. Whether you're a DIY enthusiast or a seasoned pro, understanding the techniques and best practices for working with 4x16 tiles will help you achieve a stunning, long-lasting shower installation.
| Characteristics | Values |
|---|---|
| Tile Size | 4x16 inches (10x40 cm) |
| Layout Patterns | Stacked, offset (brick), herringbone, vertical, or horizontal |
| Grout Lines | 1/16 inch (recommended) for consistency and aesthetics |
| Adhesive | Waterproof thin-set mortar suitable for wet areas |
| Waterproofing | Apply a waterproofing membrane (e.g., liquid or sheet membrane) before tiling |
| Substrate Preparation | Ensure substrate is clean, dry, flat, and free of debris |
| Spacers | Use 1/16 inch spacers for consistent grout lines |
| Cutting Tools | Wet saw or tile cutter for precise cuts |
| Sealing | Seal grout lines and tiles with a penetrating sealer after installation |
| Expansion Joints | Include expansion joints if tiling large areas to prevent cracking |
| Slope for Drainage | Ensure floor tiles slope toward the shower drain (1/4 inch per foot) |
| Wall vs. Floor Tiles | Use same tiles but ensure floor tiles are slip-resistant |
| Time Required | 1-3 days depending on shower size and experience |
| Difficulty Level | Intermediate (requires precision and patience) |
| Cost | Varies based on tile quality, tools, and materials (approx. $5-$20/sq. ft.) |
| Maintenance | Regular cleaning with non-abrasive cleaners to maintain appearance |
| Aesthetic Appeal | Modern, sleek look with elongated tiles enhancing space perception |
Explore related products
What You'll Learn
- Surface Preparation: Clean, dry, and level shower walls; apply waterproof membrane for tile adhesion
- Layout Planning: Measure and mark tile layout; ensure consistent spacing and alignment for aesthetic appeal
- Thinset Application: Spread thinset mortar evenly; use notched trowel for proper tile adhesion
- Tile Installation: Press tiles firmly into thinset; use spacers for consistent grout lines
- Grouting & Sealing: Apply grout after tiles set; seal grout and tiles for water resistance
Surface Preparation: Clean, dry, and level shower walls; apply waterproof membrane for tile adhesion
Before any tile touches your shower walls, a meticulous foundation is crucial. Think of it as preparing a canvas for a masterpiece – a flawed surface will undermine even the most beautiful tiles. Cleanliness is paramount. Remove all soap scum, mildew, and existing debris using a strong degreaser and a stiff brush. Rinse thoroughly and allow the walls to dry completely. Moisture trapped beneath the tiles spells disaster, leading to mold, mildew, and eventual tile failure.
Imagine your shower walls as a stage for your tiles. A level playing field is essential for a professional finish. Inspect for any bumps, dips, or imperfections. Minor irregularities can be addressed with a thin layer of thinset mortar, carefully troweled to create a smooth, even surface. For more significant deviations, consider using a self-leveling compound, following the manufacturer's instructions meticulously.
The shower environment is inherently wet, demanding a robust defense against water infiltration. This is where a waterproof membrane steps in as your tiles' silent guardian. Choose a membrane suitable for shower applications, such as a liquid-applied membrane or a sheet membrane. Follow the manufacturer's guidelines for application, ensuring complete coverage and proper curing time. This crucial step prevents water from seeping behind the tiles, safeguarding your investment and preventing costly repairs down the line.
Think of the waterproof membrane as the unsung hero of your tiling project. It may not be visible, but its role is indispensable. By meticulously preparing your shower walls – cleaning, drying, leveling, and applying a waterproof membrane – you're laying the groundwork for a stunning and long-lasting tiled shower.
Regrouting and Sealing Tile Shower Floor: Effective Moisture Issue Solution?
You may want to see also
Explore related products
Layout Planning: Measure and mark tile layout; ensure consistent spacing and alignment for aesthetic appeal
Before laying a single tile, visualize the finished shower wall as a canvas where precision transforms chaos into elegance. Start by measuring the height and width of your shower area, accounting for niches, benches, or fixtures. Use a level and pencil to mark horizontal and vertical reference lines, ensuring they intersect at a point that will guide your tile alignment. This initial framework is crucial—it dictates whether your tiles will appear harmonious or haphazard. For 4x16 tiles, consider the grout lines (typically 1/16 inch) and plan for even spacing, especially if your dimensions don’t divide evenly by the tile length. A common mistake is neglecting to dry-fit tiles before committing to mortar, so lay out a few rows on the floor to identify potential alignment issues or awkward cuts.
The devil is in the details, particularly when aligning tiles to maintain visual flow. Begin by marking the centerline of your shower wall, both vertically and horizontally, and work outward from this point. This ensures symmetry and minimizes the need for sliver cuts along edges, which can detract from the overall aesthetic. Use a chalk line or laser level to extend these reference lines across the entire surface, creating a grid that guides tile placement. For 4x16 tiles, orient them either vertically or horizontally depending on the desired effect—vertical placement elongates the space, while horizontal creates a more expansive feel. Whichever direction you choose, ensure the first row is perfectly level or plumb, as subsequent rows will follow its lead.
Spacing consistency is non-negotiable for a polished look. Use tile spacers (1/16 inch is standard for this size) to maintain uniform gaps between tiles, but don’t rely solely on spacers for alignment. Periodically step back to assess the layout from a distance, checking for any deviations in pattern or level. If you’re working with a staggered or brick bond layout, mark the halfway point of each tile length to ensure consistent offsets. For showers with multiple walls, ensure tiles align at corners by measuring and marking both walls simultaneously. This prevents unsightly mismatches where walls meet, a flaw that even meticulous grout work can’t conceal.
Finally, anticipate challenges by planning for cuts and adjustments early. Measure and mark tiles for cutting before applying mortar, and always cut tiles face-up to avoid chipping the visible surface. If your layout requires partial tiles along the edges, adjust the starting point of your first row to center the cuts, making them less noticeable. For example, if a full tile leaves a 1-inch gap at the end of a row, shift the starting tile by half its length to create two 2-inch cuts instead. This balances the visual weight and maintains the illusion of continuity. Remember, layout planning isn’t just about measurement—it’s about foresight, ensuring every tile contributes to a cohesive, professional finish.
Behind Shower Tile Essentials: Waterproofing, Backer Boards, and Installation Tips
You may want to see also
Explore related products
Thinset Application: Spread thinset mortar evenly; use notched trowel for proper tile adhesion
Thinset mortar is the unsung hero of any successful tile installation, and its application is both an art and a science. The key to achieving a professional finish when tiling a shower with 4x16 tiles lies in the meticulous spreading of thinset. This adhesive not only bonds the tile to the substrate but also compensates for minor surface irregularities, ensuring a level and durable installation. To begin, prepare the thinset according to the manufacturer’s instructions, typically mixing one 50-pound bag with 5 to 6 quarts of water until it reaches a smooth, lump-free consistency. Allow the mixture to slake for 10 minutes, then remix before application to activate the polymers for optimal adhesion.
The notched trowel is your most critical tool in this process, as it determines the thickness and uniformity of the thinset layer. For 4x16 tiles, a 1/4-inch square-notch trowel is generally recommended, though this may vary based on the tile’s thickness and the substrate’s condition. Hold the trowel at a 45-degree angle and spread the thinset in even, parallel rows, ensuring complete coverage without gaps. The notches create ridges that allow air to escape during tile placement, preventing voids and ensuring a strong bond. Avoid overworking the thinset, as this can push adhesive into the grout lines or reduce its bonding strength.
One common mistake is applying too much thinset, which can lead to uneven tiles and difficulty in leveling. Conversely, too little thinset compromises adhesion and leaves tiles prone to cracking under stress. A properly applied layer should fully support the tile without oozing out the sides. For shower walls, work in small sections (about 2 to 3 square feet at a time) to prevent the thinset from drying before the tile is set. Press each tile firmly into place, using a slight twisting motion to embed it into the ridges created by the notched trowel.
While the process may seem straightforward, achieving consistency requires practice and attention to detail. For example, temperature and humidity can affect thinset curing time, so avoid working in extreme conditions. If you’re tiling over a cement board or waterproof membrane, ensure the surface is clean, dry, and free of debris before applying thinset. Additionally, use spacers to maintain consistent grout lines, typically 1/16 to 1/8 inch for 4x16 tiles, depending on the desired aesthetic.
In conclusion, thinset application is a critical step that demands precision and care. By using the correct notched trowel, working in manageable sections, and maintaining consistency in your technique, you can achieve a flawless tile installation that not only looks professional but also stands the test of time. Remember, the goal is not just to adhere the tile but to create a seamless, waterproof surface that enhances the functionality and beauty of your shower.
Effective Bleach Solution to Eliminate Mold on Shower Tile Surfaces
You may want to see also
Explore related products
Tile Installation: Press tiles firmly into thinset; use spacers for consistent grout lines
Pressing tiles firmly into thinset is a critical step in achieving a professional and durable shower tile installation. The thinset mortar acts as the adhesive that bonds the tile to the substrate, providing strength and stability. When using 4x16 tiles, which are longer and more prone to shifting, proper application of thinset ensures the tiles adhere evenly and remain level. Start by spreading the thinset with a notched trowel, holding it at a 45-degree angle to create ridges that allow for better adhesion. The size of the notch depends on the tile and substrate; for 4x16 tiles, a 1/4-inch square-notch trowel is commonly recommended. Press each tile firmly into the thinset, twisting slightly to ensure full contact and to collapse the ridges, creating a strong bond.
Using spacers is equally essential for maintaining consistent grout lines, which not only enhance the aesthetic appeal but also ensure structural integrity. For 4x16 tiles, 1/16-inch or 1/8-inch spacers are typically used, depending on the desired grout line width. Place spacers at each corner of the tile before pressing it into the thinset. This prevents tiles from shifting during installation and ensures uniformity across the shower surface. Spacers also help account for minor variations in tile size, which can be more noticeable with larger tiles like 4x16. Once the thinset sets (usually after 24 hours), remove the spacers carefully to avoid disturbing the tiles.
A common mistake is not pressing tiles firmly enough into the thinset, leading to hollow spots or weak adhesion. To avoid this, apply steady, even pressure as you set each tile, ensuring it is fully embedded in the mortar. Use a tile leveler or straightedge to check for flatness and adjust as needed. If a tile is not level, lift it gently, reapply thinset, and reset it. For vertical shower installations, work in small sections to prevent thinset from drying before tiles are placed, and use a tile backer board as a stable substrate.
Comparing this method to other tiling techniques, such as using mastic adhesive, highlights the superiority of thinset for wet areas like showers. Thinset is waterproof and resistant to mold and mildew, making it ideal for environments with constant moisture. Mastic, on the other hand, is not recommended for showers due to its water-soluble nature. Additionally, thinset provides a stronger bond, which is crucial for larger tiles that bear more weight and stress. While the process requires more precision and time, the longevity and durability of the installation justify the effort.
In conclusion, mastering the technique of pressing tiles firmly into thinset and using spacers for consistent grout lines is key to a successful 4x16 tile shower installation. This approach ensures not only a visually appealing finish but also a robust and long-lasting result. By following these steps and avoiding common pitfalls, even a novice can achieve professional-quality tilework. Remember, patience and attention to detail are your greatest tools in this process.
Offset or Stacked: Best Layout for 13x13 Shower Wall Tiles
You may want to see also
Explore related products
Grouting & Sealing: Apply grout after tiles set; seal grout and tiles for water resistance
Once your 4x16 tiles are firmly set and the adhesive has cured according to the manufacturer's instructions (typically 24-48 hours), it's time to grout. Grouting not only fills the gaps between tiles but also enhances the overall aesthetic and structural integrity of your shower. Choose a grout color that complements your tiles; for 4x16 tiles, a contrasting grout can emphasize the linear pattern, while a matching grout creates a seamless look. Use a nonsanded grout for joints smaller than 1/8 inch, which is typical for these tiles. Mix the grout according to the package instructions, ensuring a smooth, lump-free consistency. Apply the grout diagonally across the tiles using a rubber float, pressing it firmly into the joints. Work in small sections to avoid drying before you can clean the excess.
After grouting, allow the grout to set for 10-15 minutes, then begin cleaning the tile surfaces. Use a damp sponge to gently wipe away excess grout, rinsing the sponge frequently. Avoid pressing directly into the grout lines to prevent pulling grout out of the joints. As the grout cures (usually 24-48 hours), it will lighten in color, so avoid walking on or disturbing the area. Once fully cured, inspect the grout lines for any gaps or inconsistencies; if necessary, touch up with additional grout. Proper cleaning at this stage is crucial, as dried grout residue can be difficult to remove and may require harsh chemicals.
Sealing is the final, non-negotiable step to ensure your shower remains waterproof and resistant to mold and mildew. Both the grout and the tiles themselves should be sealed, especially in a wet environment like a shower. Use a high-quality penetrating sealer designed for tile and grout, applying it with a small brush or roller. Work the sealer into the grout lines and over the tile surfaces, wiping away any excess with a clean cloth. Allow the sealer to dry completely, typically 2-4 hours, before using the shower. Reapply the sealer annually or as recommended by the manufacturer to maintain water resistance and protect your investment.
A common mistake is skipping the sealing step or using the wrong type of sealer, which can lead to water penetration, staining, and grout deterioration. For 4x16 tiles, which often create a sleek, modern look, maintaining pristine grout lines is essential to preserving the design. Consider testing the sealer on a small, inconspicuous area first to ensure it doesn't alter the appearance of the tiles or grout. Additionally, in high-moisture areas like showers, using a grout additive or choosing a mold-resistant grout can provide extra protection.
In summary, grouting and sealing are critical steps in tiling a shower with 4x16 tiles, ensuring both durability and aesthetics. Properly applied grout enhances the tile layout, while sealing safeguards against water damage and extends the life of your installation. By following these steps meticulously, you'll achieve a professional finish that stands the test of time, even in the demanding environment of a shower.
Master Shower Tiling: Step-by-Step Guide Using Hardibacker for Durability
You may want to see also
Frequently asked questions
Ensure the walls are clean, dry, and free of debris. Apply a waterproof membrane or backer board suitable for wet areas, and mark reference lines to guide tile placement.
Start by dry-laying tiles from the center of the wall outward, using the reference lines. Adjust the layout to keep cuts minimal, especially at the edges and corners.
Use a high-quality, waterproof thinset mortar specifically designed for wet areas. Follow the manufacturer’s instructions for proper mixing and application.
Use 1/8-inch tile spacers to maintain consistent spacing. For a modern look, consider using smaller spacers or no spacers at all for a tight grout joint.
Use a sanded grout for joints wider than 1/8 inch or unsanded grout for smaller joints. Choose a waterproof or stain-resistant grout to protect against moisture and mold.
