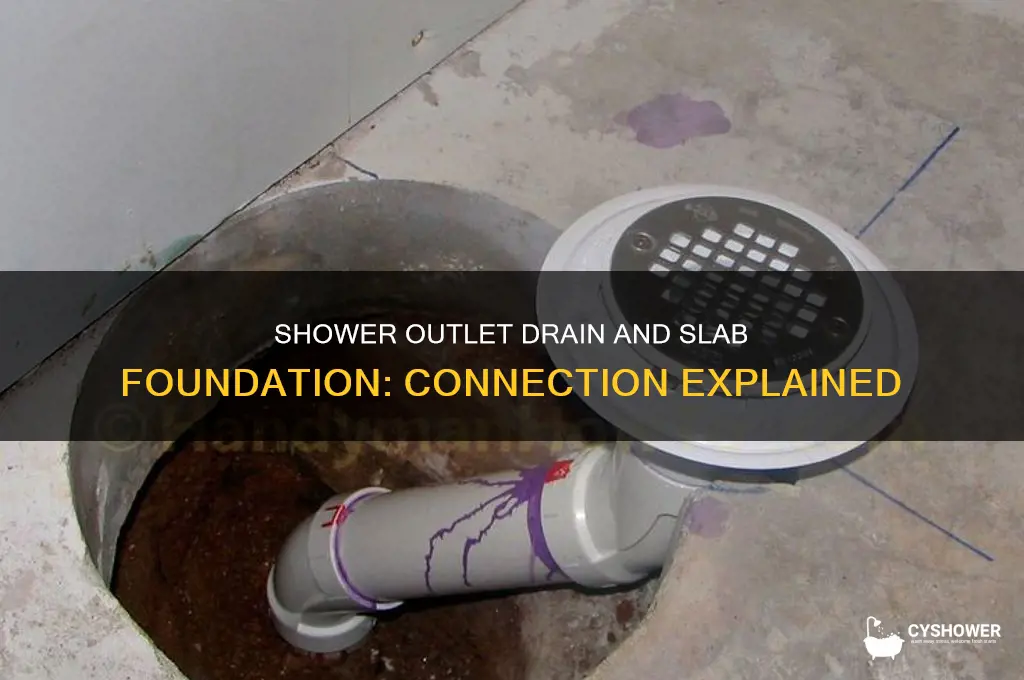

When considering the plumbing setup in a home with a slab foundation, a common question arises: is the shower outlet drain attached directly to the slab? In many cases, the shower drain is indeed connected to the slab foundation, as this provides a stable and secure base for the plumbing system. The drain pipe is typically embedded within the concrete slab during the initial construction phase, ensuring a watertight seal and preventing leaks. However, the exact configuration can vary depending on the building codes, local regulations, and the specific design of the plumbing system. Understanding this connection is crucial for homeowners and contractors, as it impacts maintenance, repairs, and potential renovations involving the shower or bathroom area.
| Characteristics | Values |
|---|---|
| Attachment Method | Typically, shower outlet drains are not directly attached to the slab foundation. They are usually connected to a PVC or ABS drain pipe that runs through the slab. |
| Drain Location | The drain is positioned within the shower pan or base, which is installed on top of the slab foundation. |
| Slab Penetration | The drain pipe penetrates the slab foundation through a pre-cut hole or core-drilled opening. |
| Waterproofing | Proper waterproofing around the drain pipe and shower pan is crucial to prevent water leakage into the slab foundation. |
| Structural Integrity | The slab foundation must be structurally sound to support the weight of the shower, pan, and water without compromising the drain connection. |
| Plumbing Code Compliance | Installation must adhere to local plumbing codes, ensuring proper slope, venting, and sealing of the drain system. |
| Material Compatibility | The drain pipe material (PVC, ABS, etc.) should be compatible with the slab foundation and surrounding materials to avoid corrosion or damage. |
| Maintenance Access | Access to the drain pipe for maintenance or repairs is typically provided through a cleanout or access panel, not directly through the slab. |
| Expansion Joints | If the slab has expansion joints, the drain pipe should be installed to accommodate any movement without causing damage. |
| Installation Timing | The drain pipe is usually installed during the rough-in plumbing phase, before the slab is fully cured and finished. |
Explore related products
What You'll Learn
Signs of Drain-Slab Connection
When determining if a shower outlet drain is attached to a slab foundation, several signs can indicate this connection. One of the most straightforward methods is to inspect the plumbing layout during or after construction. If the shower drain pipe is embedded within the concrete slab or if it penetrates the slab directly, this is a clear indication of a drain-slab connection. In older homes, accessing the underside of the slab through a crawl space or basement can reveal whether the drain pipe is anchored to the foundation. However, in many modern slab-on-grade constructions, this connection is common and often intentional to ensure proper drainage.
Another sign of a drain-slab connection is the presence of a visible drain flange or collar at the shower floor level, which is typically secured directly to the slab. This flange is designed to create a watertight seal between the drain pipe and the slab, preventing leaks. If you notice a metal or plastic ring around the shower drain that appears to be integrated into the slab, it strongly suggests that the drain is attached to the foundation. Additionally, during installation, plumbers often use specialized tools to core a hole through the slab for the drain pipe, leaving behind telltale signs of this process.
Water behavior can also provide clues about a drain-slab connection. If water drains quickly and efficiently without pooling around the shower area, it may indicate that the drain is properly connected to the slab and aligned with the home’s drainage system. Conversely, slow drainage or recurring water backups could signal issues with the drain-slab connection, such as misalignment or damage to the pipe where it meets the foundation. Regularly monitoring drainage performance can help identify potential problems early.
Physical signs of distress in the shower area or surrounding floor can further indicate a drain-slab connection. Cracks in the tile or slab around the drain, uneven flooring, or visible gaps between the drain and the shower floor may suggest movement or settling of the slab, which is often linked to the drain’s attachment. In some cases, water damage or mold growth near the drain area could point to leaks at the junction between the drain pipe and the slab. These issues warrant immediate inspection to prevent structural damage.
Lastly, consulting construction or plumbing blueprints can provide definitive evidence of a drain-slab connection. These documents typically detail the placement of plumbing fixtures relative to the foundation. If the blueprints show the shower drain pipe extending into or through the slab, it confirms the connection. For homeowners without access to blueprints, hiring a professional plumber or contractor to conduct an inspection can provide clarity and ensure the drain is properly integrated with the slab foundation.
Fix Your Tub Shower Diverter Valve: A Step-by-Step Repair Guide
You may want to see also
Explore related products
Potential Issues with Slab-Attached Drains
When a shower outlet drain is attached directly to a slab foundation, several potential issues can arise, often leading to costly repairs and structural concerns. One of the primary problems is the risk of water leakage. Over time, the connection between the drain and the slab can weaken due to shifting soil, foundation movement, or deterioration of sealing materials. This can allow water to seep into the slab, causing moisture buildup beneath the foundation. Such moisture can lead to mold growth, wood rot, and even compromise the structural integrity of the slab itself. Regular inspections and maintenance are crucial to detect and address leaks early, but prevention remains the most effective strategy.
Another significant issue is the difficulty of accessing and repairing slab-attached drains. Unlike drains connected to pipes above the slab, these systems are embedded within the foundation, making them hard to reach without significant demolition. If a clog occurs or the drain pipe cracks, homeowners may need to break through the slab to fix the problem. This not only increases repair costs but also disrupts the living space and can cause additional damage to flooring or surrounding structures. Retrofitting or relocating the drain to an above-slab system is often recommended to mitigate this risk, though it requires careful planning and professional expertise.
Slab-attached drains are also susceptible to damage from foundation movement, a common issue in areas with expansive soils or seismic activity. As the slab shifts or settles, the rigid drain pipes can crack or disconnect from the plumbing system. This movement can lead to blockages, leaks, or complete drain failure. In regions prone to such conditions, installing flexible couplings or isolating the drain from the slab may help reduce the risk of damage. However, these measures are not foolproof, and ongoing monitoring of the foundation’s stability is essential.
Additionally, slab-attached drains can contribute to poor indoor air quality if not properly sealed. Water leaks from these drains can create a damp environment beneath the slab, fostering mold and mildew growth. These contaminants can then infiltrate the living space through cracks in the slab or HVAC systems, posing health risks to occupants. Ensuring proper waterproofing and ventilation beneath the slab is critical to preventing these issues, but achieving this in existing structures can be challenging and expensive.
Lastly, the long-term durability of slab-attached drains is often a concern. The materials used in these systems, such as PVC or cast iron, may degrade over time due to exposure to moisture, chemicals, or soil conditions. Without regular maintenance, the drain pipes can corrode, crack, or collapse, leading to system failure. Homeowners with slab-attached drains should invest in periodic inspections and consider proactive replacements to avoid sudden and severe plumbing emergencies. While slab-attached drains can function effectively when properly installed and maintained, their inherent vulnerabilities make them a less desirable option compared to above-slab alternatives.
Leaking Shower Door? Here's Who to Call for Quick Repairs
You may want to see also
Explore related products
Repairing Leaks in Slab Foundations
Once the source of the leak is identified, the next step is to assess the extent of the damage. Minor leaks may only require simple repairs, such as resealing the drain or tightening connections. However, if the leak has caused significant water damage to the slab or surrounding areas, more extensive repairs may be necessary. In cases where the shower drain is directly attached to the slab, it’s possible that the seal between the drain and the slab has failed, allowing water to penetrate the foundation. Repairing this often involves removing the drain assembly, cleaning the area, and reinstalling the drain with a new waterproof seal. It’s essential to use high-quality waterproofing materials to ensure a long-lasting solution.
For more severe leaks that have compromised the integrity of the slab, professional intervention may be required. Techniques such as slab jacking or underpinning can be used to stabilize the foundation, while epoxy injections or polyurethane foam can fill cracks and prevent further water intrusion. If the shower drain is found to be the primary issue, it may need to be replaced entirely, especially if it’s old or corroded. During this process, it’s also advisable to inspect the surrounding plumbing lines for any additional leaks or weaknesses that could exacerbate the problem.
Preventive measures are equally important to avoid future leaks in slab foundations. Regular maintenance of shower drains, including cleaning and inspecting for signs of wear, can help catch issues early. Additionally, ensuring proper grading around the foundation and installing a reliable waterproofing membrane during construction can minimize the risk of water penetration. Homeowners should also be mindful of water usage and avoid excessive moisture in areas adjacent to the slab foundation.
In summary, repairing leaks in slab foundations, especially those involving shower outlet drains, demands a thorough inspection, precise repairs, and proactive maintenance. By addressing the issue promptly and using appropriate materials and techniques, homeowners can protect their foundation from further damage and ensure a dry, stable living environment. If the task seems beyond one’s expertise, consulting a professional plumber or foundation repair specialist is always a wise decision to guarantee effective and lasting results.
Unclog Your Shower Drain Easily with Salt: A Simple DIY Guide
You may want to see also
Explore related products
Identifying Drain Location in Slab
When identifying the drain location in a slab foundation, especially for a shower outlet, it's essential to understand the structural and plumbing integration. In most residential constructions, the shower drain is indeed attached to the slab foundation. This attachment ensures stability and proper alignment of the plumbing system with the building's foundation. The drain assembly is typically embedded within the concrete slab during the pouring process, creating a secure and watertight connection. To locate the drain, start by examining the shower area for visible signs of the drain pipe. In some cases, a small access panel or cleanout might be installed near the drain, providing a clue to its position beneath the slab.
If there are no visible indicators, the next step involves consulting the home's blueprints or plumbing diagrams. These documents often include detailed layouts of the plumbing system, including the exact location of the shower drain relative to the slab foundation. If blueprints are unavailable, consider reaching out to the home builder or a professional plumber who can provide insights based on standard construction practices. Another method is to use non-invasive detection tools, such as stud finders or thermal imaging devices, to identify anomalies in the slab that may indicate the presence of plumbing pipes.
For a more hands-on approach, carefully inspect the underside of the slab if access is available, such as in a basement or crawl space. The drain pipe will typically protrude from the slab and connect to the main waste line. If access to the underside is limited, consider using a small, flexible camera designed for plumbing inspections to peer into the drain and trace its path. This method can help confirm the drain's location and its connection to the slab foundation.
In cases where the drain location remains elusive, it may be necessary to expose a small section of the slab. This process involves cutting into the concrete, which should only be done by a professional to avoid damaging the plumbing or structural integrity of the slab. Once exposed, the drain assembly and its attachment to the slab will be clearly visible, providing definitive confirmation of its location. Always prioritize safety and consult experts when dealing with structural modifications.
Lastly, understanding the typical construction practices in your region can provide valuable clues. In many areas, shower drains are strategically placed to align with the home's main waste stack, ensuring efficient drainage. By combining visual inspection, documentation review, and technological tools, homeowners and professionals can accurately identify the shower drain's location within the slab foundation. This knowledge is crucial for maintenance, renovations, or troubleshooting plumbing issues related to the shower outlet.
Easy DIY Guide to Repairing Your Single Knob Shower Faucet
You may want to see also
Explore related products
Preventing Slab Damage from Drain Leaks
One of the most effective ways to prevent slab damage is to ensure proper installation and maintenance of shower drains. During construction or renovation, it’s essential to use high-quality materials and follow building codes to create a watertight seal between the drain and the slab. This includes using appropriate waterproofing membranes and ensuring that all connections are secure. Regular inspections of the drain system are equally important. Homeowners should periodically check for signs of leaks, such as water stains, dampness, or unusual odors around the shower area. Early detection can prevent minor issues from escalating into major problems.
Another preventive measure is to install a drain pan or water containment system beneath the shower. A drain pan acts as a secondary barrier, catching any water that leaks from the shower drain before it reaches the slab. These pans are typically made of durable materials like PVC or stainless steel and are sloped to direct water into a separate drain. This simple addition can significantly reduce the risk of water damage to the slab. Additionally, ensuring that the shower’s plumbing is properly vented can prevent pressure buildup, which might otherwise force water out of joints and seals.
Proper grading and drainage around the home’s exterior also play a critical role in protecting the slab foundation. Water should always be directed away from the house to prevent pooling near the foundation. This can be achieved by maintaining a slope of at least 5% away from the structure and ensuring that gutters and downspouts are functioning correctly. Interior drainage solutions, such as sump pumps or French drains, can further safeguard the slab by managing groundwater levels and reducing hydrostatic pressure.
Finally, homeowners should be proactive in addressing plumbing issues promptly. Even small leaks can lead to significant damage over time, especially when they occur beneath or within the slab. Hiring a licensed plumber to repair or replace faulty drains, pipes, or seals is a worthwhile investment in the long-term health of the foundation. Regularly testing the shower drain for leaks by pouring water into it and checking for seepage below the slab can also help catch problems early. By combining proper installation, routine maintenance, and effective water management strategies, slab damage from drain leaks can be effectively prevented.
Easy DIY Shower Rise Repair Guide: Fix Leaks and Clogs Fast
You may want to see also
Frequently asked questions
No, the shower outlet drain is not directly attached to the slab foundation. It is connected to the plumbing system through pipes that run beneath the slab.
Yes, shower drains are installed by cutting a hole in the slab foundation during construction to allow for proper plumbing connections.
A leaking shower drain can cause water damage to the slab foundation, leading to cracks, mold, or structural issues if not addressed promptly.
Shower drains are sealed using waterproofing materials like membranes, flashing, or sealants to prevent water from penetrating the slab foundation.
Yes, an existing shower drain can be replaced by a professional plumber who will carefully remove the old drain and install a new one, ensuring proper sealing to protect the slab.
