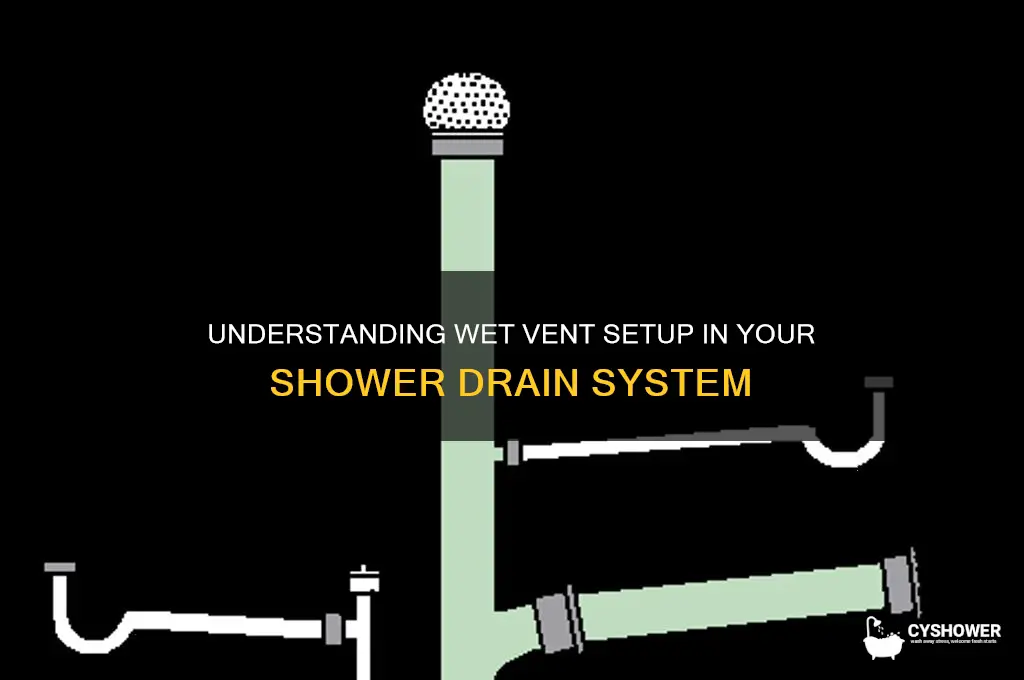

A shower drain with a wet vent setup refers to a specific plumbing configuration where the drainpipe also serves as a vent for the plumbing system, allowing air to enter and exit to maintain proper drainage and prevent airlocks. In this setup, the vent pipe is connected to the drainpipe downstream of the trap, typically under the shower or nearby fixture, rather than extending directly to the roof. This design is commonly used in situations where running a separate vent stack to the roof is impractical or space-constrained. While wet vents can save space and reduce material costs, they require careful planning to ensure compliance with plumbing codes and to avoid issues like slow drainage or sewer gases entering the living space. Understanding the mechanics and implications of a wet vent setup is crucial for homeowners and plumbers alike to ensure efficient and safe plumbing systems.
| Characteristics | Values |
|---|---|
| Definition | A wet vent setup in a shower drain refers to a plumbing configuration where the vent pipe for the drain is also used to carry wastewater from other fixtures, such as sinks or toilets. |
| Purpose | To conserve space and reduce the number of vent pipes needed in a plumbing system, especially in tight or multi-fixture bathrooms. |
| How It Works | The vent pipe is connected to the drain pipe below the flood rim of the fixture (e.g., shower), allowing air to enter the drain system to prevent airlocks and ensure proper drainage. |
| Code Compliance | Must comply with local plumbing codes (e.g., IPC or UPC), which typically allow wet venting for specific fixtures and under certain conditions, such as the vent being sized correctly and not serving too many fixtures. |
| Fixture Compatibility | Commonly used with showers, bathtubs, and lavatories, but not typically with toilets or kitchen sinks due to higher wastewater flow rates. |
| Vent Size | The vent pipe must be sized according to code requirements, often based on the drain size and the number of fixtures it serves. |
| Installation | Requires precise installation to ensure the vent connects below the fixture's flood rim and maintains proper slope for drainage. |
| Advantages | Saves space, reduces material costs, and simplifies plumbing layout in compact areas. |
| Disadvantages | Potential for noise (gurgling) or reduced drainage efficiency if not properly designed or installed. |
| Maintenance | Regular inspection and cleaning are necessary to prevent clogs and ensure proper venting. |
Explore related products
What You'll Learn
- Wet Vent Basics: Definition and purpose of a wet vent in plumbing systems
- Shower Drain Setup: How a wet vent connects to shower drains efficiently
- Ventilation Requirements: Code compliance for wet vents in residential plumbing
- Installation Process: Steps to install a wet vent for shower drains
- Common Issues: Troubleshooting wet vent problems in shower drain systems
Wet Vent Basics: Definition and purpose of a wet vent in plumbing systems
A wet vent is a specific plumbing configuration where a drainpipe serves a dual purpose: it functions as both a drain and a vent for other fixtures in the system. In traditional plumbing setups, separate pipes are used for waste drainage and venting, but a wet vent combines these roles to save space and materials. This setup is particularly common in residential plumbing, especially in bathrooms where multiple fixtures, such as a shower, sink, and toilet, are located close together. When a shower drain has a wet vent setup, it means the shower drainpipe also acts as a vent for other fixtures, allowing air to enter the system to maintain proper drainage and prevent airlocks.
The purpose of a wet vent in plumbing systems is to streamline the plumbing layout while ensuring efficient waste removal and venting. In a wet vent system, the shower drainpipe is strategically positioned to allow wastewater from other fixtures, such as a sink or toilet, to flow through it. Simultaneously, the same pipe provides ventilation for these fixtures by allowing air to enter the system, which helps maintain equal air pressure and prevents suction that could slow down drainage. This dual functionality reduces the number of pipes needed, making the system more cost-effective and easier to install, especially in tight spaces.
Wet vents are particularly useful in situations where extending a separate vent stack to each fixture is impractical or impossible due to space constraints or building design. For example, in a bathroom with a shower, sink, and toilet, the shower drain can be configured as a wet vent to serve the sink or toilet, eliminating the need for additional vent pipes. However, it’s crucial to ensure the wet vent is properly sized and installed to handle both drainage and venting functions without causing clogs or drainage issues.
One key consideration in a wet vent setup is the slope and size of the pipe. The pipe must have the correct slope to allow wastewater to flow freely while also accommodating airflow. Typically, a wet vent pipe is larger in diameter than a standard drainpipe to handle the combined flow of waste and air. Additionally, local plumbing codes often dictate specific requirements for wet vent installations, including the maximum number of fixtures that can be connected to a single wet vent and the minimum pipe diameter.
In summary, a wet vent is a versatile plumbing solution that combines drainage and venting functions into a single pipe, often used in shower drain setups to serve multiple fixtures efficiently. Its primary purpose is to simplify plumbing layouts, reduce material costs, and ensure proper drainage and airflow in the system. While wet vents offer practical benefits, they require careful planning and adherence to plumbing codes to function effectively and avoid potential issues. Understanding wet vent basics is essential for homeowners and plumbers alike to ensure a reliable and compliant plumbing system.
Quick Guide to Repairing a Leaky Moen Shower Faucet
You may want to see also
Explore related products
Shower Drain Setup: How a wet vent connects to shower drains efficiently
A shower drain with a wet vent setup is a plumbing configuration designed to efficiently manage wastewater and prevent airlock issues in the drainage system. In this setup, the vent pipe, which is crucial for maintaining proper air pressure in the drain lines, is connected to the drain pipe in a way that allows both wastewater and air to flow simultaneously. This is particularly useful in situations where a traditional vent stack cannot be installed due to space constraints or building design limitations. The wet vent system ensures that the shower drain operates smoothly, reducing the likelihood of gurgling noises, slow drainage, or backups.
The connection between a wet vent and a shower drain is established by integrating the vent pipe with the drain line upstream of the trap arm. This means the vent pipe ties into the drain pipe before it reaches the P-trap, which is the curved section of the drain designed to hold water and block sewer gases from entering the building. By connecting the vent upstream, the system allows air to enter the drain line, equalizing pressure and facilitating the free flow of water. This setup is especially efficient in multi-fixture branch lines, where multiple drains (like sinks and showers) share a common vent.
To install a wet vent for a shower drain, the plumber must ensure compliance with local plumbing codes, which often dictate the maximum number of fixtures allowed on a wet vented line and the required pipe diameters. The vent pipe should be sized appropriately to handle the expected airflow and connected at a point where it can effectively serve the shower drain without causing interference with other fixtures. Proper slope and alignment are critical to ensure gravity aids the flow of wastewater and prevents debris buildup.
One of the key advantages of a wet vent setup is its space-saving design, making it ideal for compact bathrooms or renovations where traditional venting is impractical. However, it requires careful planning to avoid issues like cross-contamination or reduced venting efficiency. For instance, the wet vent must be installed in a way that prevents wastewater from other fixtures from flowing back into the shower drain. Additionally, the system should be designed to minimize the distance between the vent connection and the shower drain to optimize performance.
In summary, a shower drain with a wet vent setup is an efficient plumbing solution that combines venting and drainage into a single system. By connecting the vent pipe upstream of the trap arm, it ensures proper airflow and prevents drainage problems. While it offers practical benefits, especially in tight spaces, it requires precise installation and adherence to plumbing codes to function effectively. Understanding this setup is essential for homeowners and plumbers alike to maintain a reliable and trouble-free shower drainage system.
Repairing Cracked RV Shower: Step-by-Step DIY Fix Guide
You may want to see also
Explore related products
Ventilation Requirements: Code compliance for wet vents in residential plumbing
In residential plumbing, understanding the concept of a wet vent setup is crucial, especially when it comes to shower drains. A wet vent system allows the vent and drain pipes to be combined, serving both as a drain for wastewater and a vent for sewer gases. This setup is particularly useful in tight spaces where running separate vent pipes is impractical. However, ensuring code compliance for wet vents is essential to maintain proper ventilation, prevent sewer gas backup, and avoid plumbing issues. The International Plumbing Code (IPC) and other local building codes provide specific guidelines for wet vent installations to ensure safety and efficiency.
One of the primary ventilation requirements for wet vents in residential plumbing is the sizing of the vent pipe. According to the IPC, the wet vent must be sized to accommodate the fixtures it serves, ensuring adequate airflow to prevent airlocks and allow for proper drainage. For example, a shower drain wet vent must be at least 1.5 inches in diameter, but this can vary based on the number of fixtures connected to the system. Additionally, the wet vent must not be smaller than the drain it serves, as this could restrict airflow and lead to drainage problems. Proper sizing ensures that the system functions effectively without compromising ventilation.
Another critical aspect of code compliance is the placement and configuration of the wet vent. The IPC stipulates that the wet vent must connect to the drain pipe within a specific distance from the fixture, typically no more than 42 inches horizontally or 60 inches vertically from the trap weir. This ensures that the venting action is immediate and effective, preventing suction that could siphon water from the trap and allow sewer gases to enter the living space. Furthermore, the wet vent must slope correctly toward the drain to facilitate proper flow and prevent water from pooling in the pipe.
Code compliance also requires that wet vents be properly supported and secured to avoid sagging or disconnection over time. This is particularly important in residential settings where plumbing systems are subject to long-term use and potential settling of the building structure. Supports should be installed at regular intervals, following local code requirements, to maintain the integrity of the wet vent system. Additionally, all connections must be tightly sealed to prevent leaks and ensure that sewer gases are safely vented to the outdoors.
Lastly, it is essential to consider the limitations of wet vent systems when designing residential plumbing. While wet vents are efficient and space-saving, they are not suitable for all fixtures or layouts. For instance, wet vents cannot be used for toilets or other high-drainage fixtures due to the risk of rapid water flow overwhelming the venting capacity. Plumbers and homeowners must consult local building codes and possibly seek professional advice to determine if a wet vent setup is appropriate for their specific situation. Adhering to these ventilation requirements ensures that the plumbing system remains compliant, functional, and safe for long-term use.
Quick Fixes for Your Shower Heater: Troubleshooting and Repair Guide
You may want to see also
Explore related products
Installation Process: Steps to install a wet vent for shower drains
A wet vent setup for a shower drain is a plumbing configuration where the vent pipe for the drain is also used to carry wastewater from other fixtures, such as a toilet or sink. This system is efficient as it reduces the number of vent pipes needed, but it requires careful installation to ensure proper drainage and venting. Below is a detailed, step-by-step guide to installing a wet vent for shower drains.
Step 1: Plan the Layout and Gather Materials
Before beginning the installation, plan the layout of the wet vent system. Ensure compliance with local plumbing codes, as regulations may dictate specific requirements for wet vents. Measure the distance from the shower drain to the main stack and other fixtures that will share the vent. Gather all necessary materials, including PVC or ABS pipes, fittings (such as Y-connectors, vent tees, and sanitary tees), a shower drain assembly, vent pipe, and appropriate adhesives or solvent cement. Verify that the pipe sizes match the requirements of your plumbing system, typically 2-inch pipes for the drain and vent.
Step 2: Install the Shower Drain Assembly
Start by installing the shower drain assembly according to the manufacturer’s instructions. Ensure the drain is securely attached to the shower pan or floor and that the weep holes are not obstructed. Connect the drain to the horizontal drain pipe, which will eventually tie into the wet vent system. Use a sanitary tee fitting to create the connection, ensuring the tee is oriented correctly to allow for proper flow and venting. Apply solvent cement to all joints and allow them to dry completely before proceeding.
Step 3: Connect the Wet Vent
From the sanitary tee, extend the horizontal drain pipe toward the main stack or other fixtures. Use a Y-connector or vent tee to create the wet vent connection. The wet vent will serve both as a drain for the shower and as a vent for other fixtures. Ensure the vent portion of the fitting is angled upward to allow air to flow freely into the system, preventing airlocks and ensuring proper drainage. Secure all fittings with solvent cement and follow manufacturer guidelines for drying times.
Step 4: Tie into the Main Stack or Other Fixtures
Extend the wet vent pipe to connect it to the main stack or the fixture it will serve (e.g., a toilet or sink). Use appropriate fittings to maintain the correct slope for drainage, typically 1/4 inch per foot. If connecting to another fixture, ensure the wet vent is installed above the flood level of the highest fixture to prevent cross-contamination. Double-check all connections for leaks and ensure the system complies with local plumbing codes.
Step 5: Test the System
Once the installation is complete, test the system to ensure proper functionality. Run water through the shower drain and other connected fixtures to check for leaks and proper drainage. Inspect the vent for airflow by covering the drain and observing if water flows freely when the vent is open. If any issues arise, disassemble the problematic area, recheck the connections, and retest the system. After confirming everything works correctly, insulate exposed pipes if necessary and complete any required inspections by local authorities.
By following these steps, you can successfully install a wet vent for a shower drain, ensuring efficient drainage and venting while adhering to plumbing best practices.
Easy Steps to Repair a Dipping Moen Tub Shower Faucet
You may want to see also
Explore related products
Common Issues: Troubleshooting wet vent problems in shower drain systems
A wet vent setup in a shower drain system is a plumbing configuration where the vent pipe also serves as a drain for another fixture, such as a toilet or sink. This design is common in older homes or in situations where space is limited. While it can be efficient, it also introduces specific challenges that may lead to issues. Troubleshooting wet vent problems requires understanding how this system works and identifying common problems that can arise. Here are some of the most frequent issues and how to address them.
One common issue with wet vent systems is slow drainage in the shower. This occurs when the vent pipe, which is shared with another fixture, becomes partially blocked or restricted. Hair, soap scum, and debris can accumulate in the shower drain, but the problem is exacerbated because the vent pipe must handle waste from multiple sources. To troubleshoot, start by removing the shower drain cover and clearing any visible obstructions. Use a drain snake or auger to break up clogs deeper in the pipe. If the issue persists, inspect the vent pipe for blockages, ensuring it is clear of debris and properly angled to allow air to flow freely.
Another frequent problem is gurgling noises coming from the shower drain, which often indicate improper venting. In a wet vent system, air pressure imbalances can occur when water from one fixture flows into the vent pipe while another fixture is in use. This can create a vacuum effect, causing gurgling sounds and potentially leading to slow drainage or backups. To resolve this, check the vent pipe for proper sizing and installation. Ensure it meets local plumbing codes and is not undersized for the number of fixtures it serves. Installing an air admittance valve (AAV) can also help alleviate air pressure issues by allowing air to enter the system without relying on the vent pipe.
Sewer odors emanating from the shower drain are another issue associated with wet vent systems. This happens when the water seal in the P-trap is compromised, often due to evaporation or siphoning caused by negative pressure in the vent pipe. To address this, pour water down infrequently used drains to refill the P-trap and restore the seal. If the problem persists, inspect the vent pipe for leaks or blockages that may be disrupting airflow. Installing a P-trap with a deeper water seal or adding a trap primer valve can also help maintain the water barrier and prevent odors.
Lastly, backups or overflows in the shower drain can occur in wet vent systems, particularly when multiple fixtures are used simultaneously. This happens when the shared vent pipe cannot handle the volume of water and air displacement, leading to water backing up into the shower. To troubleshoot, reduce the simultaneous use of fixtures connected to the wet vent system. If the issue continues, consider consulting a professional plumber to evaluate the system’s capacity and potentially reconfigure the plumbing to include a dedicated vent for the shower drain. Regular maintenance, such as flushing drains with hot water and vinegar or using enzymatic cleaners, can also prevent buildup and reduce the risk of backups.
In summary, troubleshooting wet vent problems in shower drain systems involves addressing issues like slow drainage, gurgling noises, sewer odors, and backups. By understanding the unique challenges of this setup and taking targeted steps to clear obstructions, improve venting, and maintain proper seals, homeowners can effectively resolve common problems and ensure their shower drain system functions efficiently.
Easy DIY Guide: Attaching a Hand Shower to Your Toilet
You may want to see also
Frequently asked questions
A wet vent setup means the drainpipe for the shower also serves as a vent for other plumbing fixtures, allowing air to enter the system to maintain proper drainage and prevent airlocks.
In a wet vent setup, the shower drainpipe is connected to other fixtures (like sinks or toilets) in a way that allows wastewater and vent air to share the same pipe, ensuring efficient drainage and preventing siphoning.
Yes, a wet vent setup is code-compliant in many jurisdictions, provided it meets specific requirements for pipe sizing, slope, and fixture connections to ensure proper function and prevent clogs.
A wet vent setup reduces the number of pipes needed, saves space, and lowers installation costs while maintaining efficient drainage and venting for multiple fixtures.
