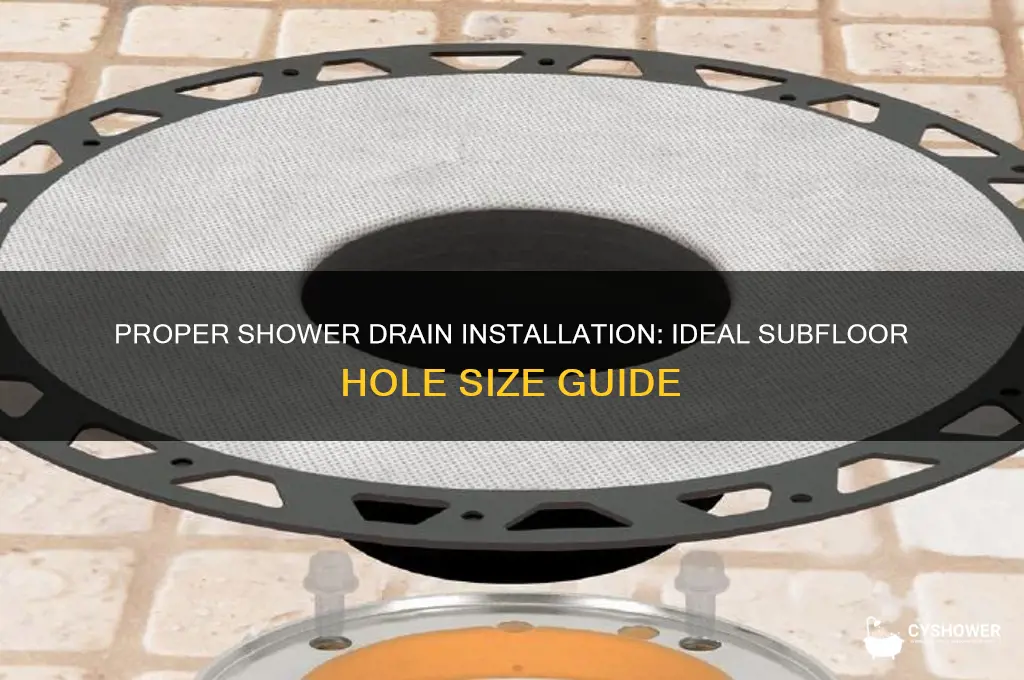

When installing a shower drain, determining the correct size of the hole in the subfloor is crucial for ensuring proper drainage and preventing leaks. The hole should be large enough to accommodate the drain body and allow for a secure fit, typically ranging from 2 to 4 inches in diameter, depending on the specific drain model and local plumbing codes. It’s essential to follow the manufacturer’s instructions and consult local regulations to ensure compliance and avoid potential issues during installation. Accurate measurements and careful cutting of the subfloor will help create a stable base for the shower pan and drain assembly, contributing to a long-lasting and leak-free shower system.
| Characteristics | Values |
|---|---|
| Hole Size for Shower Drain | Typically 4 inches in diameter |
| Subfloor Material | Plywood or oriented strand board (OSB) |
| Drain Pipe Diameter | 2 inches (standard PVC or ABS pipe) |
| Hole Shape | Circular |
| Center-to-Center Distance (if multi-drain) | Varies based on design, typically 12-24 inches apart |
| Hole Depth | Should accommodate drain assembly and slope (usually 2-3 inches deep) |
| Slope Requirement | 1/4 inch per foot toward the drain |
| Building Code Compliance | Must adhere to local plumbing codes (e.g., IPC or UPC) |
| Waterproofing | Subfloor around the hole must be waterproofed |
| Additional Support | Reinforce subfloor around the hole with blocking or double layers |
| Ventilation Requirement | Ensure proper venting for the drain system |
| Rough-In Height | Adjusted based on final floor height and drain assembly |
Explore related products
What You'll Learn
Standard drain pipe diameter
When installing a shower drain, one of the critical steps is determining the correct size of the hole in the subfloor to accommodate the drain pipe. The standard drain pipe diameter for residential shower drains is typically 2 inches. This size is widely accepted in plumbing codes and is sufficient for most shower applications, ensuring proper drainage without the risk of clogs. The 2-inch diameter is also compatible with standard shower drain assemblies, making it a reliable choice for both new installations and replacements.
It’s important to note that while 2 inches is the standard, some high-flow shower systems or custom installations may require a larger diameter, such as 3 inches, to handle increased water volume. However, these cases are less common and usually involve specific design or performance requirements. For the majority of homeowners and contractors, sticking to the 2-inch standard is both practical and code-compliant.
When cutting the hole in the subfloor, it’s essential to ensure it’s slightly larger than the drain pipe diameter to allow for proper fitting and adjustment. For a 2-inch drain pipe, a hole of 3 to 4 inches in diameter is typically recommended. This extra space accommodates the drain body, flange, and any necessary waterproofing materials, such as a rubber gasket or membrane. Precision in cutting the hole is crucial to avoid gaps or misalignment, which can lead to leaks or structural issues.
Another factor to consider is the compatibility of the drain pipe diameter with the existing plumbing system. The 2-inch drain pipe should connect seamlessly to the main waste stack or branch line, which is also usually 2 inches in diameter. If there’s a mismatch in sizes, adapters or reducers may be needed, but it’s best to maintain consistency to ensure efficient drainage. Always consult local building codes or a professional plumber to confirm the appropriate pipe diameter for your specific project.
In summary, the standard drain pipe diameter for shower drains is 2 inches, and the hole in the subfloor should be sized accordingly, typically 3 to 4 inches in diameter. Adhering to these standards ensures a proper fit, compliance with plumbing codes, and long-term functionality of the shower drain system. For most residential applications, this approach will provide reliable and efficient drainage.
