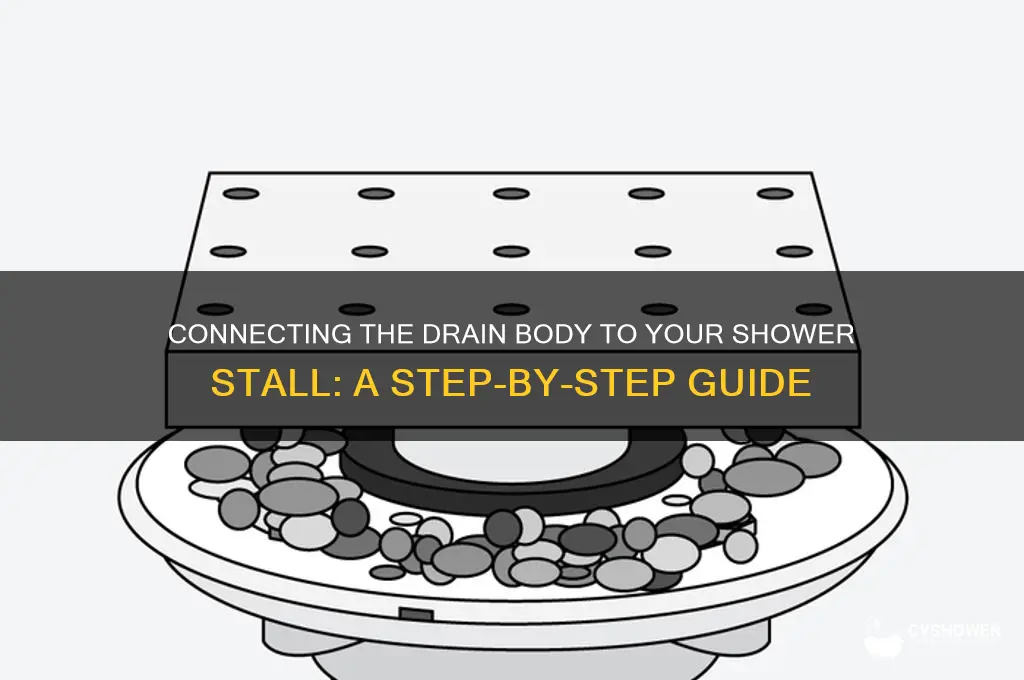

The connection between the drain body and the shower stall is a critical aspect of bathroom plumbing, ensuring efficient water drainage and preventing leaks. Typically, the drain body is installed directly into the shower pan or floor, secured with a waterproof seal to prevent water seepage. It is connected to the shower stall via a strainer or cover plate, which sits flush with the shower floor and catches hair and debris to prevent clogs. Below the strainer, the drain body extends into the plumbing system, often linking to a P-trap that prevents sewer gases from entering the bathroom. Proper installation involves aligning the drain body with the shower slope to ensure water flows smoothly, and using appropriate materials like PVC or ABS pipes to maintain durability and compliance with building codes. Understanding this connection is essential for both new installations and troubleshooting existing drainage issues.
| Characteristics | Values |
|---|---|
| Connection Method | Typically connected via a threaded coupling or adhesive seal. |
| Drain Body Material | Commonly made of PVC, ABS, or brass. |
| Shower Stall Compatibility | Designed to fit standard shower stall bases (e.g., 2-inch or 3-inch). |
| Sealing Mechanism | Uses plumber's putty, silicone caulk, or a rubber gasket for watertight seal. |
| Installation Type | Can be top-mounted (from above) or bottom-mounted (from below). |
| Threaded Connection | Often uses a 2-inch or 3-inch threaded adapter for secure fitting. |
| Adjustability | Some drain bodies have adjustable height to accommodate varying stall thicknesses. |
| Strainer Inclusion | Most drain bodies include a removable strainer to catch debris. |
| Water Flow Rate | Designed to handle standard shower flow rates (e.g., 2-3 gallons per minute). |
| Compliance Standards | Meets ASME A112.19.2 or similar plumbing codes for safety and efficiency. |
Explore related products
What You'll Learn
Shower Drain Installation Methods
When connecting the drain body to a shower stall, there are several methods to ensure a secure and watertight seal. One of the most common techniques involves using a threaded adapter that screws into the drain body. This adapter is then connected to the shower stall's drain pipe, typically made of PVC or ABS material. Before installation, it is crucial to apply plumber's tape or thread seal tape to the threads to prevent leaks. Once the adapter is securely tightened, a rubber gasket or sealant is applied around the top of the drain body to create a watertight barrier between the drain and the shower pan or floor.
Another widely used method is the glue-in drain installation, which is popular for acrylic or fiberglass shower stalls. This approach involves using a drain body designed with a flange that sits on top of the shower pan. A solvent cement, specifically formulated for the shower pan material (e.g., PVC cement for PVC pans), is applied to both the drain body and the shower pan opening. The drain is then inserted and held firmly in place until the cement sets. This method ensures a strong bond and a leak-free connection. It is essential to follow manufacturer guidelines for drying and curing times to avoid damage.
For tile shower installations, the clamping ring method is often preferred. This technique uses a drain body with a threaded collar and a clamping ring that tightens from below the shower pan. The drain is inserted into the pre-cut hole in the shower floor, and the clamping ring is secured with bolts, compressing a gasket against the underside of the shower pan. This creates a watertight seal without the need for adhesives. The top of the drain body is then finished with a decorative grate or cover, which can be easily removed for cleaning or maintenance.
In retrofitting or remodeling scenarios, the retrofit drain installation method is employed. This involves using a drain body designed to fit over an existing drain hole without requiring extensive modifications to the shower stall. The drain body typically includes adjustable components to accommodate varying shower pan thicknesses. A waterproof sealant is applied around the edges to ensure no water seeps beneath the drain. This method is ideal for updating older shower stalls without the need for a full replacement.
Lastly, the compression gasket method is a versatile option suitable for various shower stall materials. This method utilizes a drain body with a compression gasket that expands when tightened, creating a seal against the shower pan. The drain is inserted into the hole, and a locking nut or plate is tightened from below, compressing the gasket. This approach is particularly useful for uneven or slightly misaligned surfaces, as the gasket conforms to the shape of the shower pan. Proper alignment and torque are critical to achieving a secure and leak-free installation.
Each of these shower drain installation methods requires careful planning, precise measurements, and adherence to manufacturer instructions to ensure a durable and functional connection between the drain body and the shower stall. Choosing the right method depends on the shower stall material, the existing plumbing setup, and the specific requirements of the installation project.
