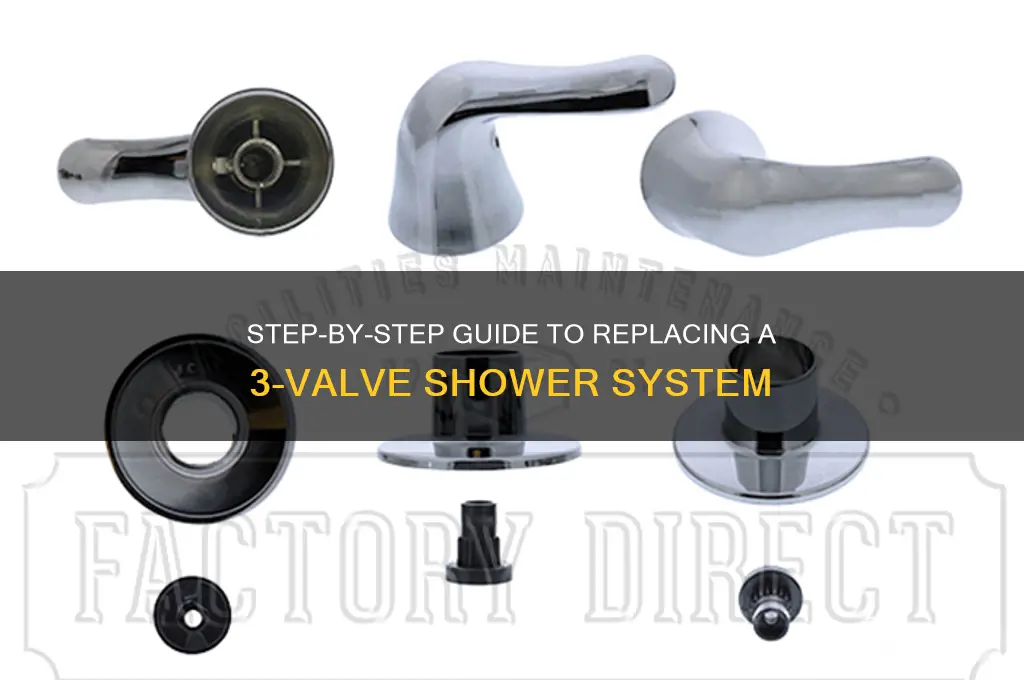

Replacing a 3-valve shower can seem daunting, but with the right tools and a step-by-step approach, it’s a manageable DIY project. A 3-valve shower typically includes separate controls for hot and cold water and a diverter valve to switch between the showerhead and tub spout. Over time, these valves can wear out, leading to leaks, reduced water pressure, or difficulty controlling temperature. To replace them, you’ll need to shut off the water supply, remove the existing valves, install new ones, and ensure proper sealing to prevent leaks. This process requires basic plumbing skills, but with careful attention to detail, you can restore your shower’s functionality and efficiency.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver, adjustable wrench, pliers, utility knife, Teflon tape, replacement valve cartridge, new shower handle (if needed) |
| Difficulty Level | Moderate |
| Time Required | 1-2 hours |
| Steps | 1. Turn off water supply 2. Remove shower handle and escutcheon 3. Extract old valve cartridge 4. Clean valve body 5. Install new cartridge 6. Reassemble handle and escutcheon 7. Turn on water supply and test |
| Common Issues | Leaking valve, worn-out cartridge, mineral buildup |
| Safety Precautions | Ensure water is off before starting, wear safety goggles |
| Cost | $20-$100 (depending on replacement parts) |
| Compatibility | Specific to 3-valve shower systems (check manufacturer's instructions) |
| Maintenance Tips | Regularly clean showerhead and valve to prevent mineral buildup |
| Alternative Solutions | Consider upgrading to a pressure-balance valve for improved performance |
| Environmental Impact | Properly dispose of old parts, consider water-saving showerheads |
| Warranty | Check manufacturer's warranty for replacement parts |
| Additional Resources | Manufacturer's website, online tutorials, local plumbing professionals |
Explore related products
$22.11 $44.99
$89.99
What You'll Learn
- Shutting Off Water Supply: Locate main valve, turn clockwise to stop water flow before starting
- Removing Old Valve Trim: Pry off handle, unscrew trim plate, and detach escutcheon carefully
- Installing New Valve Cartridge: Insert replacement cartridge, align properly, and secure with screws or clips
- Attaching New Trim and Handle: Place escutcheon, screw on trim plate, and attach handle firmly
- Testing for Leaks: Turn water back on, check connections, and ensure no leaks occur
Shutting Off Water Supply: Locate main valve, turn clockwise to stop water flow before starting
Before you embark on replacing a 3-valve shower, one critical step cannot be overlooked: shutting off the water supply. This seemingly simple task is the linchpin of a smooth, mess-free project. The main water valve, typically located near the water meter or where the main water line enters your home, is your first point of action. Turning it clockwise will halt the water flow, ensuring you don’t inadvertently flood your bathroom or damage surrounding fixtures. This step is non-negotiable—skipping it could turn a straightforward DIY project into a costly disaster.
Locating the main valve requires a bit of detective work. In most homes, it’s found in the basement, garage, or utility closet. If you’re unsure, trace the path of your water pipes from the shower back to their source. Once identified, ensure the valve is fully functional by testing it beforehand. A stiff or rusted valve may require lubrication or replacement, which should be addressed before proceeding. Remember, the valve’s position is key: clockwise tightens and stops the flow, while counterclockwise opens it. This basic principle is your safeguard against unwanted water intrusion.
Shutting off the water supply isn’t just about turning a valve; it’s about understanding the system’s dynamics. After closing the main valve, open the shower faucet to release any residual water in the pipes. This step prevents pressure buildup and ensures a dry workspace. Additionally, consider placing a bucket or towel beneath the shower area as a precautionary measure. Even with the water off, small drips or residual moisture can linger, and being prepared minimizes cleanup later.
A common mistake is assuming all water flow has stopped immediately after turning the valve. Give it a few minutes to ensure the system has fully depressurized. If you’re working on an older plumbing system, be cautious of hidden leaks or weak joints that might release water unexpectedly. In such cases, having a wrench or pliers handy to tighten connections can be a lifesaver. This proactive approach not only protects your workspace but also saves time and frustration.
In conclusion, shutting off the water supply is a deceptively simple yet vital step in replacing a 3-valve shower. It demands attention to detail, from locating the main valve to ensuring the system is fully depressurized. By treating this step with the importance it deserves, you set the stage for a successful and stress-free project. After all, a little preparation goes a long way in avoiding the chaos of an uncontrolled water flow.
Easy DIY Guide: Replacing Your Graff Shower Cartridge Step-by-Step
You may want to see also
Explore related products
Removing Old Valve Trim: Pry off handle, unscrew trim plate, and detach escutcheon carefully
The first step in replacing a 3-valve shower is dismantling the old valve trim, a process that requires precision and care to avoid damaging the surrounding tiles or plumbing. Begin by prying off the handle, typically secured with a small screw hidden beneath a decorative cap. Use a flathead screwdriver to gently lift the cap, then remove the screw and pull the handle away from the valve. This exposes the trim plate, which often conceals the valve cartridge and internal mechanisms.
Next, unscrew the trim plate, which is usually fastened with two to four screws around its perimeter. Depending on the age and brand of the shower valve, these screws may be corroded or difficult to access. Applying a penetrating oil like WD-40 can loosen stubborn screws, but be cautious not to over-tighten or strip them during removal. Once the screws are out, the trim plate should lift off easily, revealing the valve cartridge and escutcheon.
Detaching the escutcheon—the decorative plate surrounding the valve—requires patience and a gentle touch. In many cases, it is held in place by friction or adhesive, rather than screws. Use a putty knife or thin tool to carefully pry the escutcheon away from the wall, working slowly to avoid cracking tiles or damaging the underlying waterproofing. If the escutcheon is particularly stubborn, applying heat with a hairdryer can soften any adhesive, making it easier to remove.
Throughout this process, take note of the order and orientation of each component, as this will aid in reassembly or troubleshooting later. For example, some trim plates have alignment tabs that must fit into specific grooves on the valve body. Photographing each step or labeling removed parts can serve as a visual reference, ensuring a smoother installation of the new valve trim. By approaching this stage methodically, you minimize the risk of complications and set the foundation for a successful shower valve replacement.
Matte Shower Tiles: Cleaning Challenges and Maintenance Tips Revealed
You may want to see also
Explore related products
$25.54 $42.69
$35.43 $42.93
Installing New Valve Cartridge: Insert replacement cartridge, align properly, and secure with screws or clips
The valve cartridge is the heart of your shower's functionality, controlling water flow and temperature. When replacing a 3-valve shower, installing a new cartridge is a pivotal step that demands precision and care. Begin by ensuring the replacement cartridge matches the original model—compatibility is key to avoiding leaks and ensuring smooth operation. With the correct cartridge in hand, the installation process can transform a dysfunctional shower into a reliable daily necessity.
Inserting the replacement cartridge requires a methodical approach. Start by aligning the cartridge with the valve body, ensuring the notches or tabs fit seamlessly into their designated slots. This alignment is critical; a misaligned cartridge can lead to improper water mixing or even damage the valve. Use a gentle but firm touch to guide the cartridge into place, avoiding excessive force that could warp the plastic or metal components. Think of it as fitting a puzzle piece—patience and attention to detail are your best tools.
Securing the cartridge is the final step, but it’s far from trivial. Depending on your shower model, you’ll use screws or clips to hold the cartridge in place. Tighten screws evenly to avoid uneven pressure, which can cause cracks or leaks. If using clips, ensure they snap firmly into position, providing a snug fit without over-compressing the cartridge. A practical tip: apply a small amount of silicone grease to the cartridge’s O-rings before installation. This reduces friction and enhances the seal, prolonging the life of the component.
While the process seems straightforward, common pitfalls can derail your efforts. Over-tightening screws, for instance, can strip threads or crack the valve body. Conversely, under-tightening leaves the cartridge loose, leading to leaks or erratic water flow. Always refer to the manufacturer’s instructions for torque specifications or recommended tools. If unsure, hand-tighten screws and test the shower before fully securing the cartridge. This cautious approach ensures you catch issues early, saving time and frustration.
In conclusion, installing a new valve cartridge is a blend of precision and practicality. By aligning the cartridge properly and securing it with care, you restore your shower’s functionality and extend its lifespan. Treat this step as a delicate operation, and your efforts will pay off in consistent water temperature and pressure. Remember, a well-installed cartridge is the difference between a shower that works and one that excels.
Revamp Your Bathroom: A Step-by-Step Guide to Redoing Shower Tile
You may want to see also
Explore related products
Attaching New Trim and Handle: Place escutcheon, screw on trim plate, and attach handle firmly
The escutcheon, often overlooked, is the unsung hero of your shower’s aesthetic and functional integrity. This decorative plate not only conceals the valve body and plumbing but also sets the tone for the entire fixture. When attaching new trim, start by aligning the escutcheon with the valve. Ensure it sits flush against the wall, as gaps can compromise both appearance and water resistance. Most escutcheons come with pre-drilled holes, but double-check alignment before proceeding. A slight misalignment now can lead to a crooked handle or uneven trim plate later.
Next, secure the trim plate. This step requires precision and the right tools—typically a Phillips-head screwdriver. Tighten the screws firmly but not excessively; overtightening can strip the threads or crack the plate, especially if it’s made of plastic. For metal trim plates, consider using thread-locking adhesive on the screws for added stability. If your shower has a temperature control or pressure balance feature, ensure the trim plate’s markings align with the valve’s settings. A misaligned plate can render these features ineffective or confusing to use.
Attaching the handle is where form meets function. Handles come in various styles—lever, cross, or knob—each requiring specific attachment methods. For lever handles, ensure the set screw (usually located on the underside) is tightened securely but not so tight that it restricts smooth movement. Cross handles often require a central screw and a locking nut underneath, while knob handles may use a simple set screw or adhesive. Test the handle’s range of motion before fully tightening; it should move freely without wobbling. If the handle feels stiff, check for debris in the valve cartridge or adjust the set screw tension.
A practical tip: before finalizing any attachments, run a quick water test. Turn on the shower to ensure no leaks occur around the escutcheon or trim plate. If water seeps through, recheck the alignment and tightness of the screws. For added protection, apply a bead of silicone caulk around the escutcheon’s edges, smoothing it with a damp finger for a clean finish. This step not only enhances water resistance but also gives the installation a professional look.
In conclusion, attaching new trim and handle is a blend of precision and practicality. Each component—escutcheon, trim plate, and handle—plays a distinct role in both functionality and aesthetics. By following these steps and incorporating practical tips, you ensure a seamless installation that not only looks good but also stands the test of time. Remember, the devil is in the details, and a well-executed trim and handle attachment can elevate the entire shower replacement project.
DIY Shower Tiling: Can You Tackle This Project Yourself?
You may want to see also
Explore related products
Testing for Leaks: Turn water back on, check connections, and ensure no leaks occur
Once the new shower valve is installed, the moment of truth arrives: testing for leaks. This critical step ensures your hard work doesn’t result in water damage or future headaches. Begin by slowly turning the water supply back on, allowing pressure to build gradually. This controlled approach minimizes the risk of sudden bursts or stress on the new connections. As the water flows, inspect every joint, fitting, and seal meticulously. Use a flashlight if needed to spot even the smallest drips or moisture buildup. Common trouble spots include the supply lines, escutcheon plate edges, and the valve cartridge itself. If you detect a leak, don’t panic—shut off the water immediately and reassess the connection. Tighten loose fittings with a wrench, but avoid over-tightening, as this can damage threads or crack components. For stubborn leaks, consider applying plumber’s tape or replacing faulty parts. Patience is key; rushing this step can lead to costly mistakes.
Analyzing the leak-testing process reveals its dual purpose: immediate problem-solving and long-term prevention. A single undetected leak, no matter how minor, can escalate into mold, structural damage, or skyrocketing water bills. For instance, a dripping connection at 10 drops per minute wastes over 500 gallons of water annually. Beyond the practical, this step is a diagnostic tool. Leaks often indicate underlying issues—improper installation, incompatible parts, or worn-out seals. Addressing these root causes now prevents recurring problems. Think of it as a final quality check, ensuring your shower not only functions but thrives.
Persuasively, skipping leak testing is akin to ignoring a check engine light—a gamble with high stakes. Homeowners often assume “if it looks right, it is right,” but water’s insidious nature means leaks can hide in plain sight. For example, a hairline crack in a supply line might not drip visibly but can saturate walls over time. Investing 15–20 minutes in thorough testing saves hours of repair work later. Pro tip: place paper towels or a dry cloth under connections before testing; moisture will show up instantly, even if drips don’t. This simple hack turns you into a leak detective, catching issues before they escalate.
Comparatively, leak testing in shower valve replacement differs from other plumbing tasks due to the valve’s central role in water distribution. Unlike a faucet or toilet, a shower valve handles higher pressure and temperature fluctuations, making leak risks more diverse. While testing a toilet seal involves static water, shower valves must withstand dynamic flow and temperature shifts. This uniqueness demands a systematic approach: start with cold water, then test hot, and finally run both simultaneously to simulate real-world conditions. Contrast this with a sink drain test, which focuses solely on static seals. The shower valve’s complexity underscores why this step is non-negotiable.
Descriptively, the scene of leak testing is a blend of anticipation and precision. The hiss of water returning to the pipes fills the air as you crouch, eyes scanning for the telltale glisten of moisture. Each connection becomes a focal point, a potential culprit in this silent drama. The tension builds as you run your fingers along pipes, feeling for dampness, your breath holding with each twist of the faucet handle. Success arrives not with fanfare but with stillness—no drips, no dampness, just the steady flow of water where it belongs. This moment transforms the mechanical act of installation into a triumph of craftsmanship, a quiet victory in the battle against chaos.
Upgrade Your Bathroom: Easy Steps to Replace Old Shower Trim
You may want to see also
Frequently asked questions
You’ll typically need an adjustable wrench, screwdriver, pliers, Teflon tape, a bucket, and possibly a pipe wrench or basin wrench for tight spaces.
Locate the shut-off valves for the shower, usually near the fixture or in the basement. If there are no individual valves, turn off the main water supply to the house.
Yes, but it requires modifying the plumbing behind the wall. Consult a professional if you’re unsure about rerouting pipes or altering the existing setup.
Turn off the water, remove the handle and escutcheon, then use a cartridge puller or pliers to carefully extract the old cartridge. Be gentle to avoid damaging the valve body.
Yes, apply Teflon tape to the threads of the new valve and connections to ensure a watertight seal and prevent leaks. Wrap it clockwise and avoid over-tightening.
